Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install ground cable.
  2. Install nut to retain ground cable to bellhousing stud.

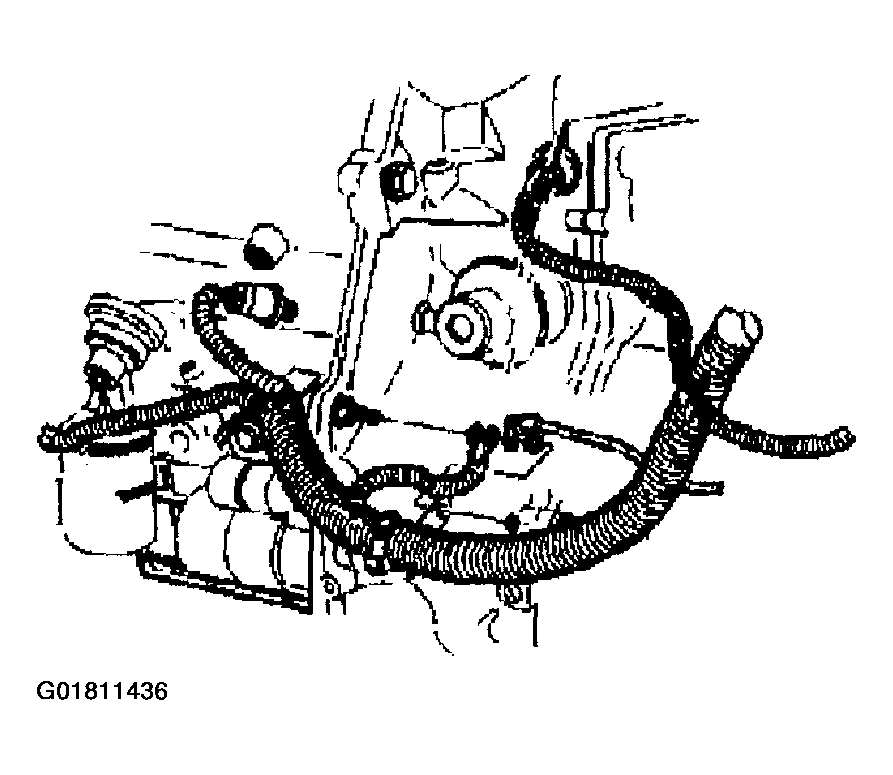

    3. Fig 1: Installing Negative Cable
    G01811436Courtesy of GENERAL MOTORS CORP.
  3. Install front transmission mount. Refer to TRANSAXLE MOUNT ASSEMBLY (FRONT) in Automatic Transmission.
  4. Install lower closeout panel.
  5. Lower vehicle.
  6. Install negative cable to retainers.
  7. Tape positive cable and ground strap to negative cable.
  8. Install bolt to retain ground cable to core support.
  9. Connect negative ground cable (2). Refer to Battery Negative Cable Disconnect/Connect Procedure  .

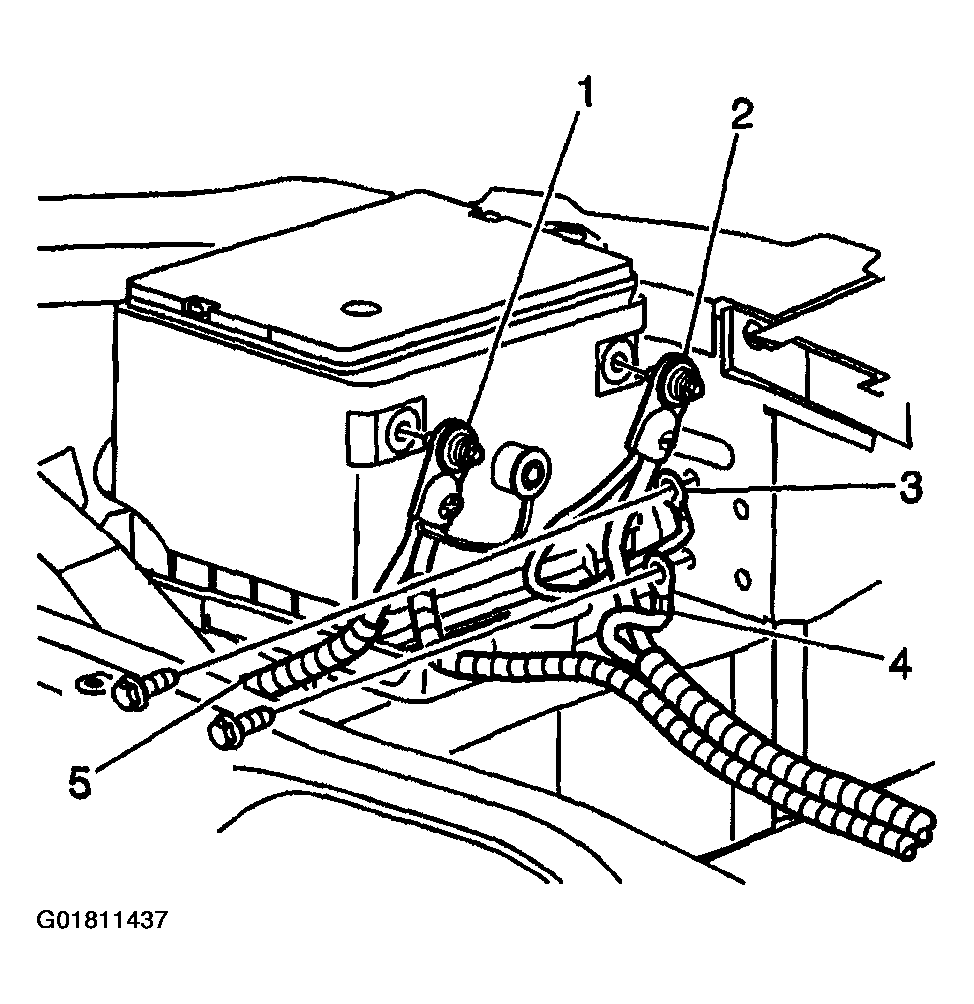

    Fig 2: Connecting Negative Cable
    G01811437Courtesy of GENERAL MOTORS CORP.
