Adjusting Cover Assembly Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Apply sealant to the threads of the adjusting cover.

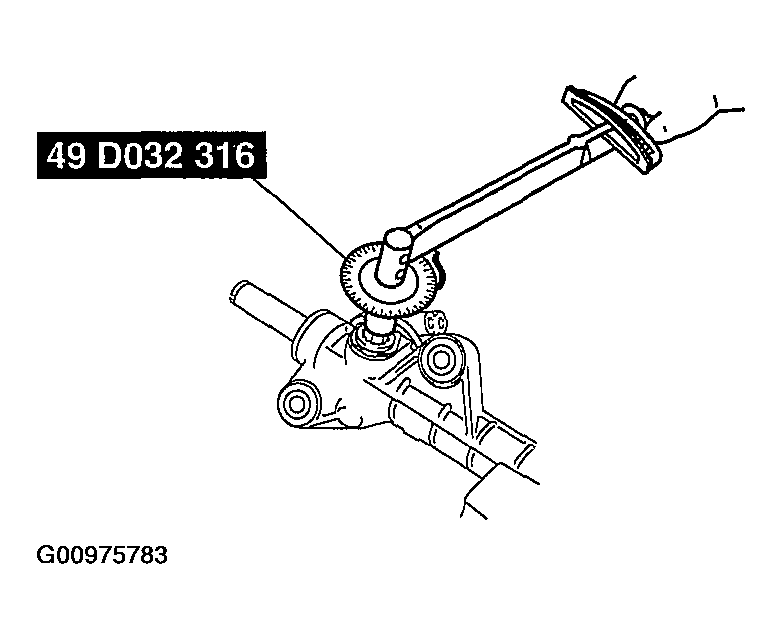

- Using the SST,
tighten the adjusting cover with a tightening torque of 20-29 N.m {2.1-2.9 kgf.m, 15-21 ft.lbf}
- Using the SST,
loosen the adjusting cover to 25-30°.
Courtesy of MAZDA MOTORS CORP.
