Rack Bushing Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. After installing the SST  to the steering rack end, assemble the rack bushing to the rack housing.

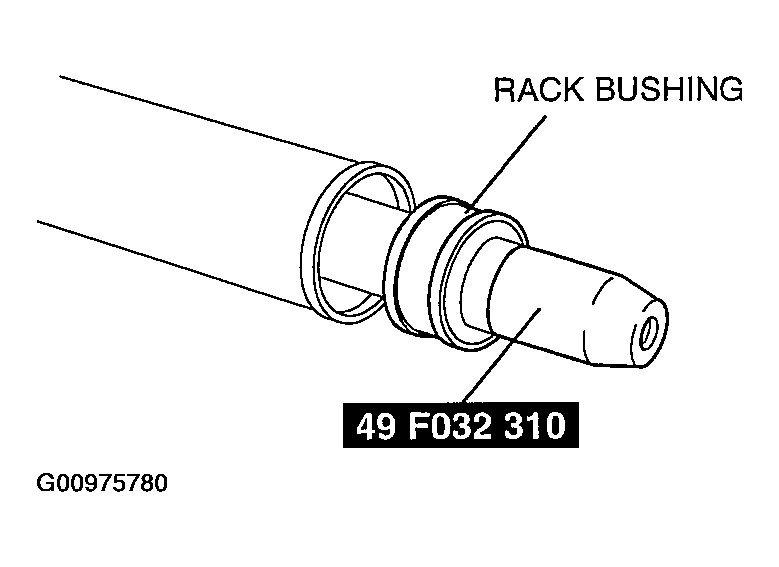

    Fig 1: Assembling Rack Bushing To Rack Housing Using Special Service Tool
    G00975780Courtesy of MAZDA MOTORS CORP.
