Rear Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front seat. See FRONT SEAT REMOVAL/INSTALLATION .
    2. Rear seat. See REAR SEAT REMOVAL/INSTALLATION .
    3. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    4. Console. See CONSOLE REMOVAL/INSTALLATION .
    5. Front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    6. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
    7. B-pillar lower trim. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
    8. Lower anchor of the front seat belt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
    9. Tire house trim. See TIRE HOUSE TRIM REMOVAL/INSTALLATION .
    10. Fuel-filler lid opener lever cover. See FUEL-FILLER LID OPENER REMOVAL/INSTALLATION .
    11. Floor covering. See INTERIOR TRIM .
  3. Remove in the order indicated in the figure.
    Fig 1: Rear Heat Duct Removing Sequence
    G00975554Courtesy of MAZDA MOTORS CORP.

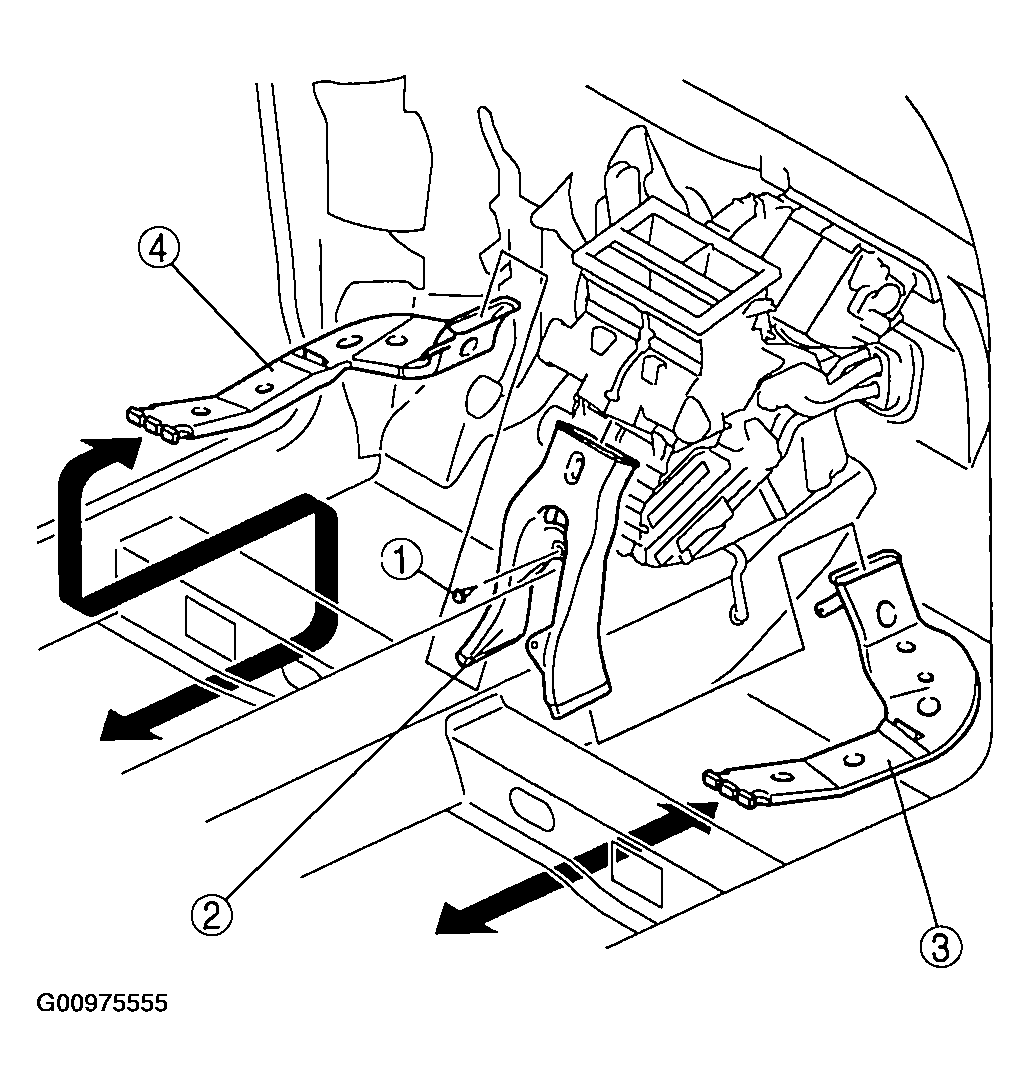

    Fig 2: Removing/Installing Rear Heat Duct
    G00975555Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
