Air Intake Actuator Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
  3. Remove the front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
  4. Remove the decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
  5. Remove the glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
  6. Remove the car-navigation unit. See CAR-NAVIGATION SYSTEM .
  7. Remove in the order indicated in the figure.
    Fig 1: Air Intake Actuator Removal Sequence
    G00975568Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.

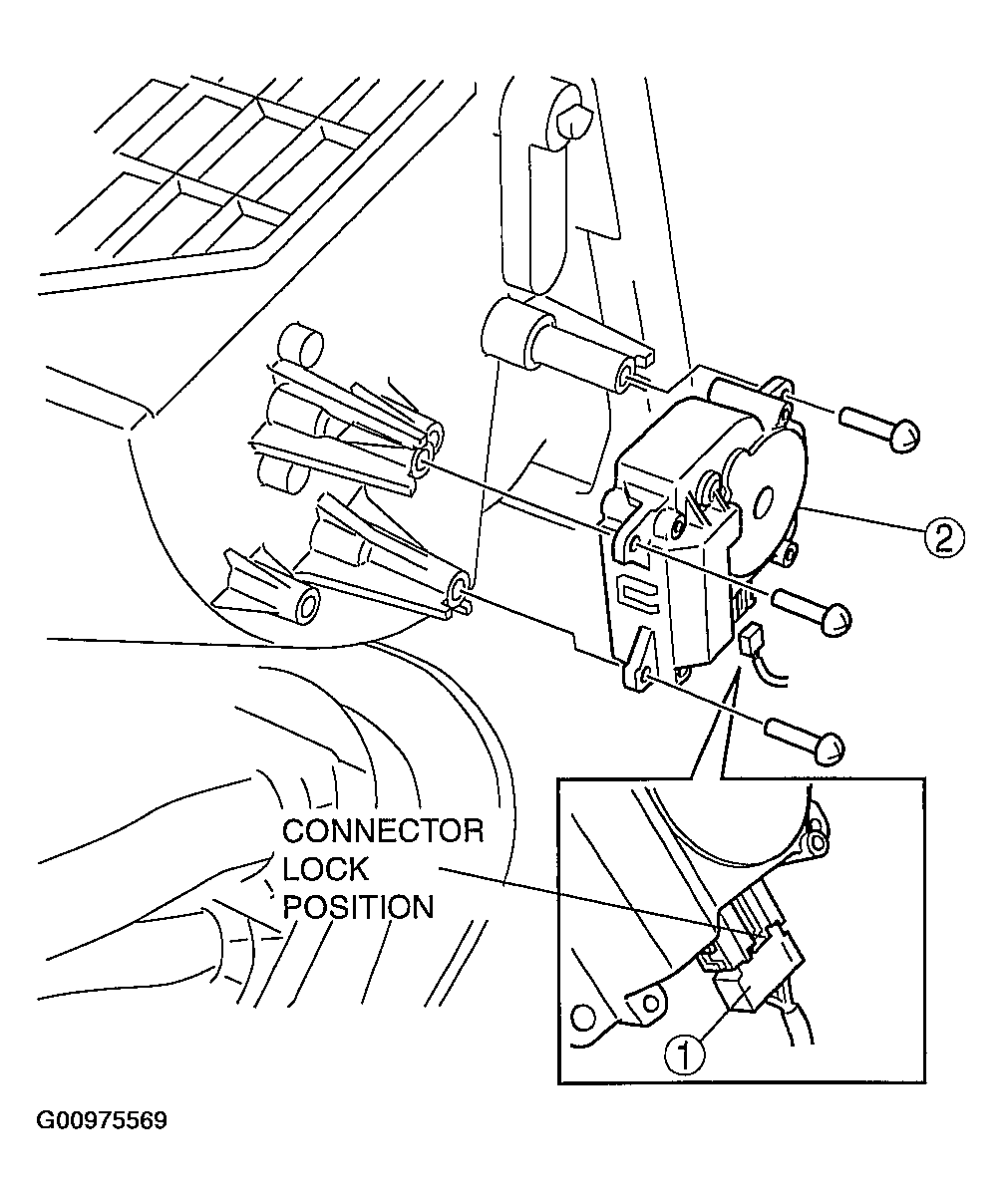

    Fig 2: Removing/Installing Air Intake Actuator
    G00975569Courtesy of MAZDA MOTORS CORP.
