Air Mix Wire

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the temperature control dial at middle position (MAX HOT-MAX COLD).
    CAUTION:
    • If the air mix wire is set without first fixing the air mix link position, it is possible that the air mix door cannot be switched normally.
  2. Set the air mix sub link to the middle position (MAX HOT-MAX COLD) and insert an approx.  No. 5  Phillips screwdriver into the set hole to fix the position of the link.
  3. Connect the air mix wire to air mix link.
  4. Clamp the air mix wire to wire clamp.
  5. Remove the screwdriver and verify that the temperature control dial can move its full stroke.

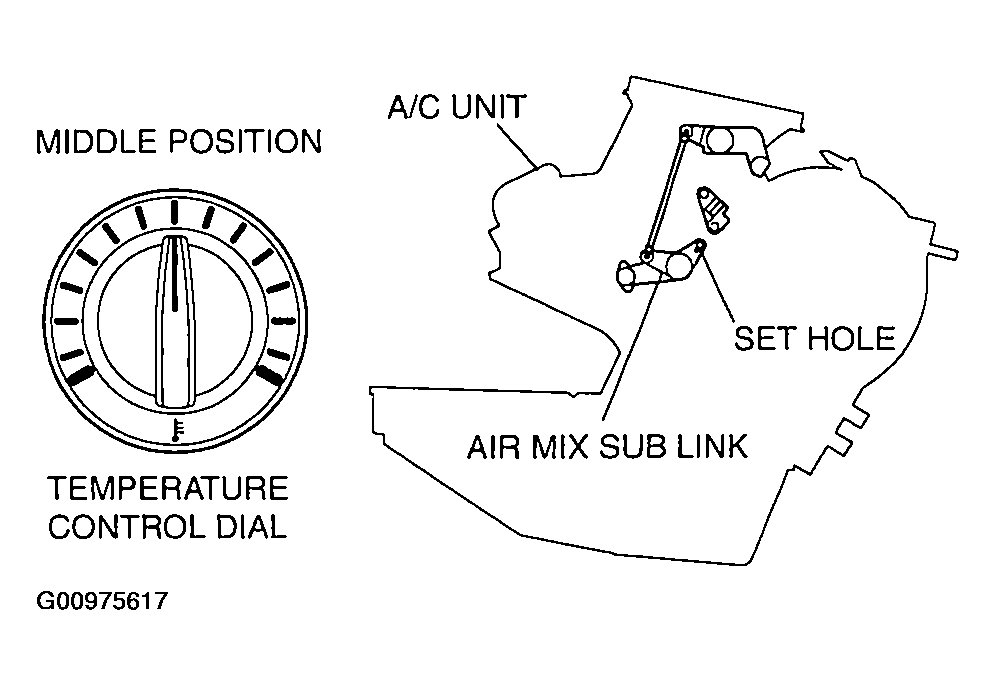

    Fig 1: Setting Air Mix Sub Link & Set Hole
    G00975617Courtesy of MAZDA MOTORS CORP.
