Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Connect battery positive voltage to magnetic clutch terminal A and the A/C compressor body to ground.

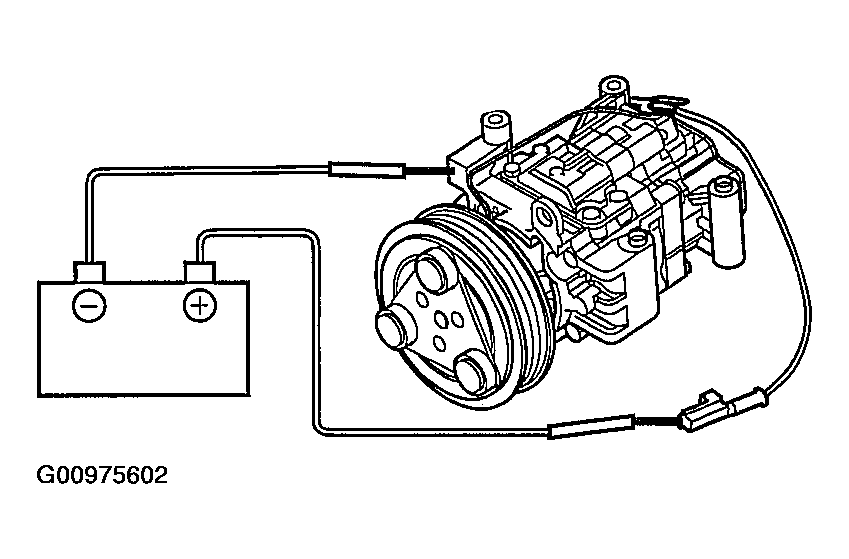

Fig 1: Inspecting Magnetic Clutch
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Magnetic Clutch Terminal & Connections
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If there is any malfunction, replace the stator and thermal protector.
