Charging Preparation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

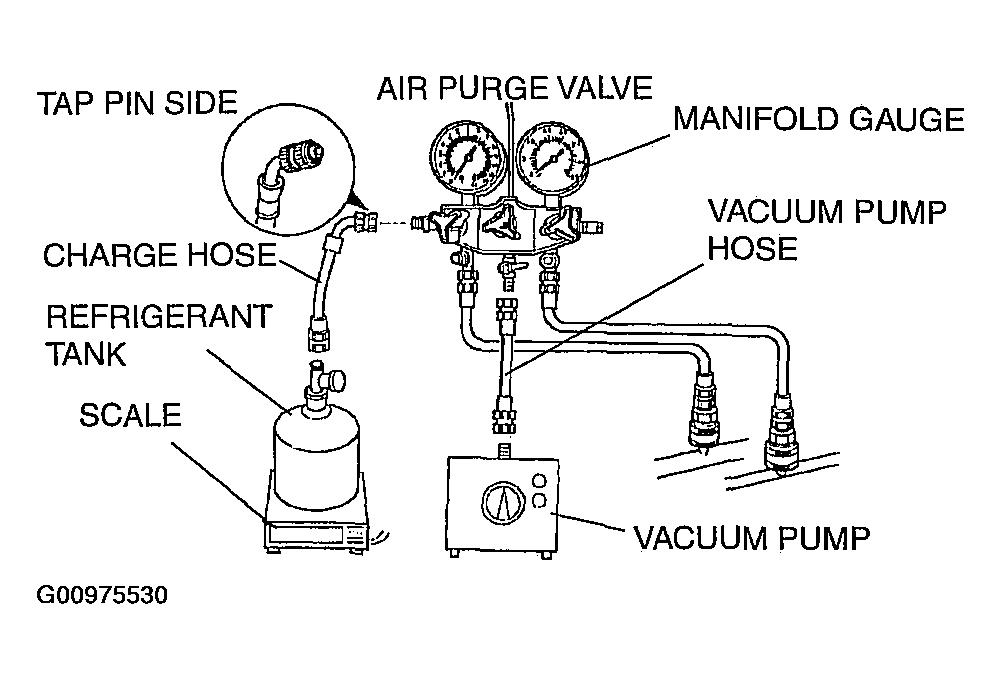

- Install the manifold gauge set.
- Connect the tap pin side of the charging hose to the air purge valve of the manifold gauge.
- Connect the vacuum pump hose to the center joint of the manifold gauge.
- Connect the vacuum pump hose to the vacuum pump.
- Connect the charging hose to the refrigerant tank.
- Place the refrigerant tank on the scale.
Regular amount of refrigerant (approx. quantity)
- 475-525 g {16.8-18.5 oz}
