Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the jounce bumper to the mounting cup (4WD 15 Series and RWD 25 Series).

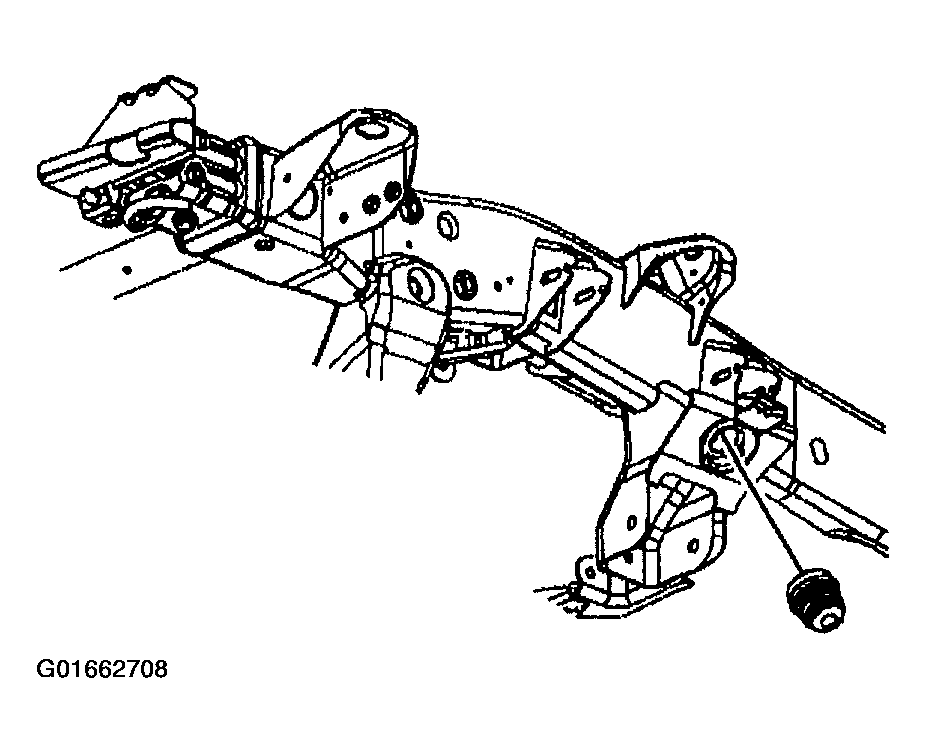

    Fig 1: Snapping Jounce Bumper (4WD 15 Series & RWD 25 Series)
    G01662708Courtesy of GENERAL MOTORS CORP.
  2. Install the jounce bumper (4WD 25 Series and RWD 15 Series).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the nut to the jounce bumper stud.

    Tighten

    Tighten the nut to 30 N.m (22 lb ft).

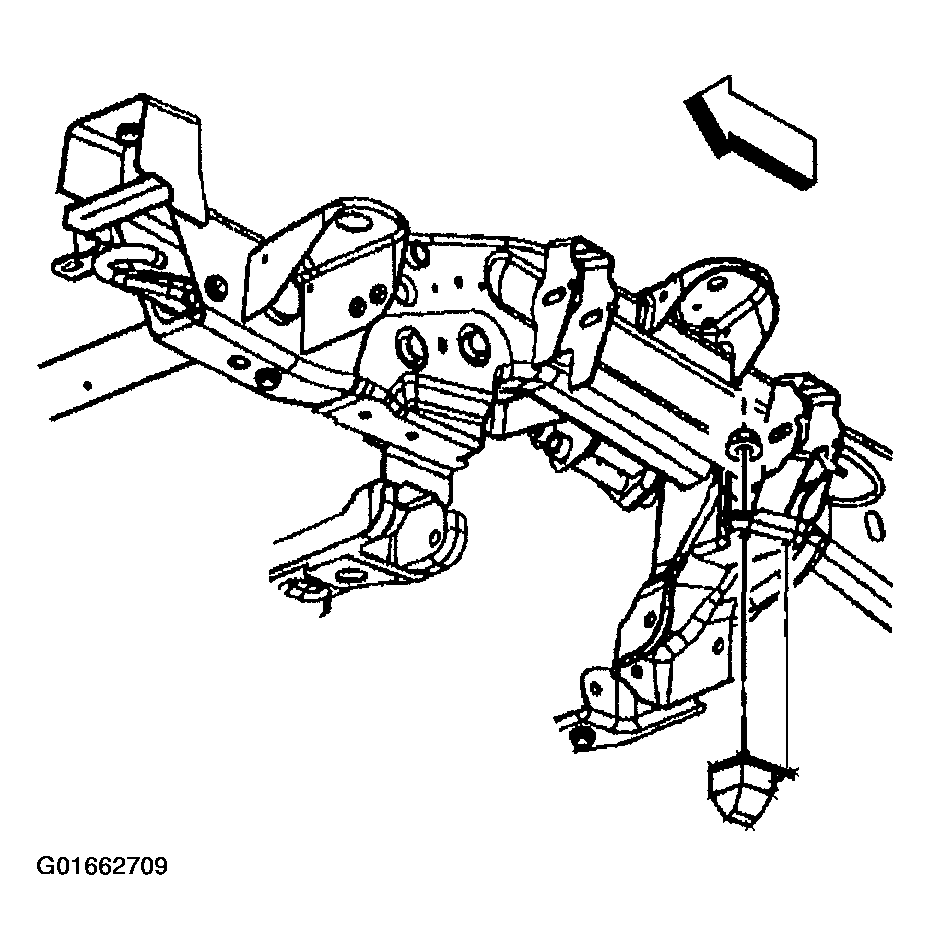

    4. Fig 2: Installing Nut From Jounce Bumper Stud (4WD 25 Series & RWD 15 Series)
    G01662709Courtesy of GENERAL MOTORS CORP.
  4. Remove the safety stands.
  5. Lower the vehicle.
