Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Unsnap the jounce bumper from the mounting cup (4WD 15 Series and RWD 25 Series).

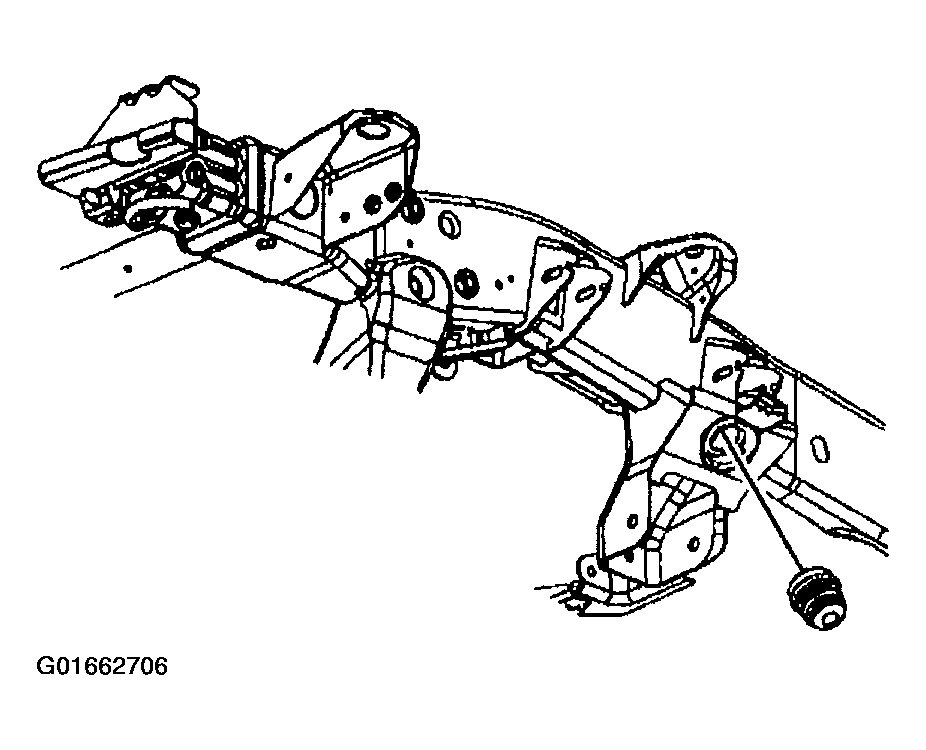

    Fig 1: Unsnapping Jounce Bumper (4WD 15 Series & RWD 25 Series)
    G01662706Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the jounce bumper stud (4WD 25 Series and RWD 15 Series).
  4. Remove the jounce bumper.

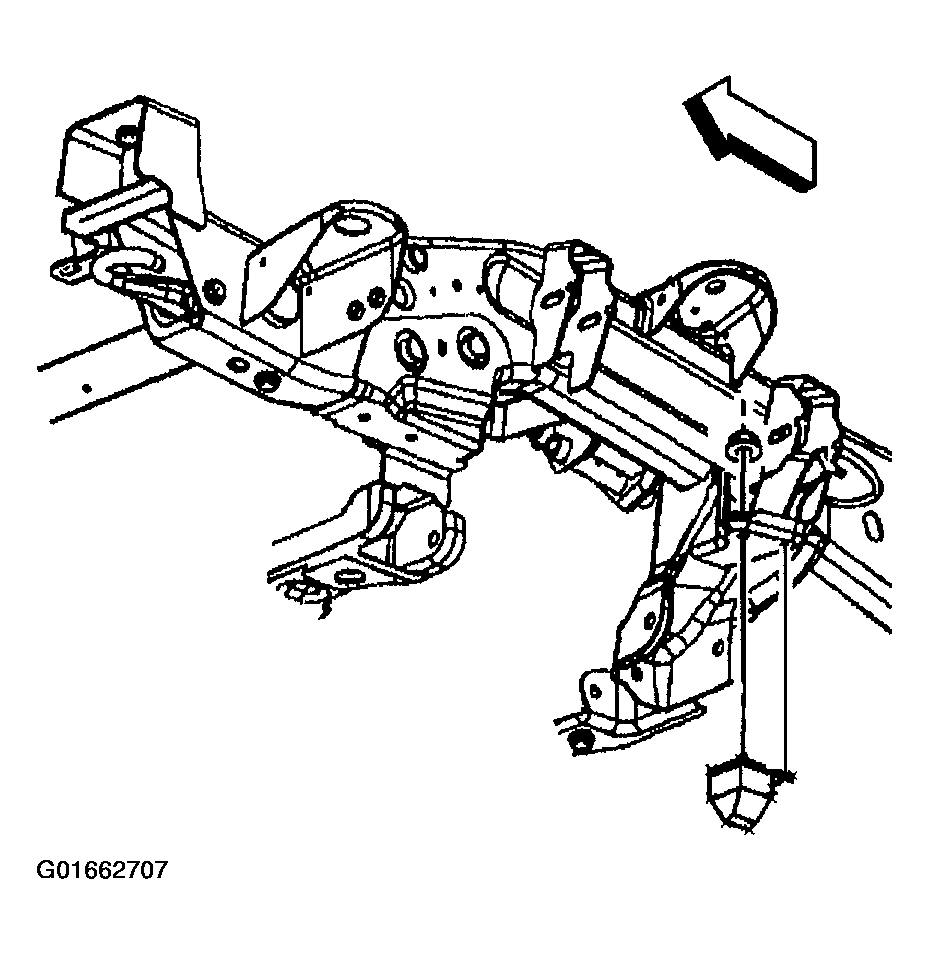

    Fig 2: Removing Nut From Jounce Bumper Stud (4WD 25 Series & RWD 15 Series)
    G01662707Courtesy of GENERAL MOTORS CORP.
