Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper control arm.
  2. Install the upper control arm bolts (4) for the 25/35 Series 4WD.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the upper control arm nuts and the adjustment cams (2) 25/35 Series 4WD.

    Tighten

    Tighten the nuts to 190 N.m (140 lb ft).

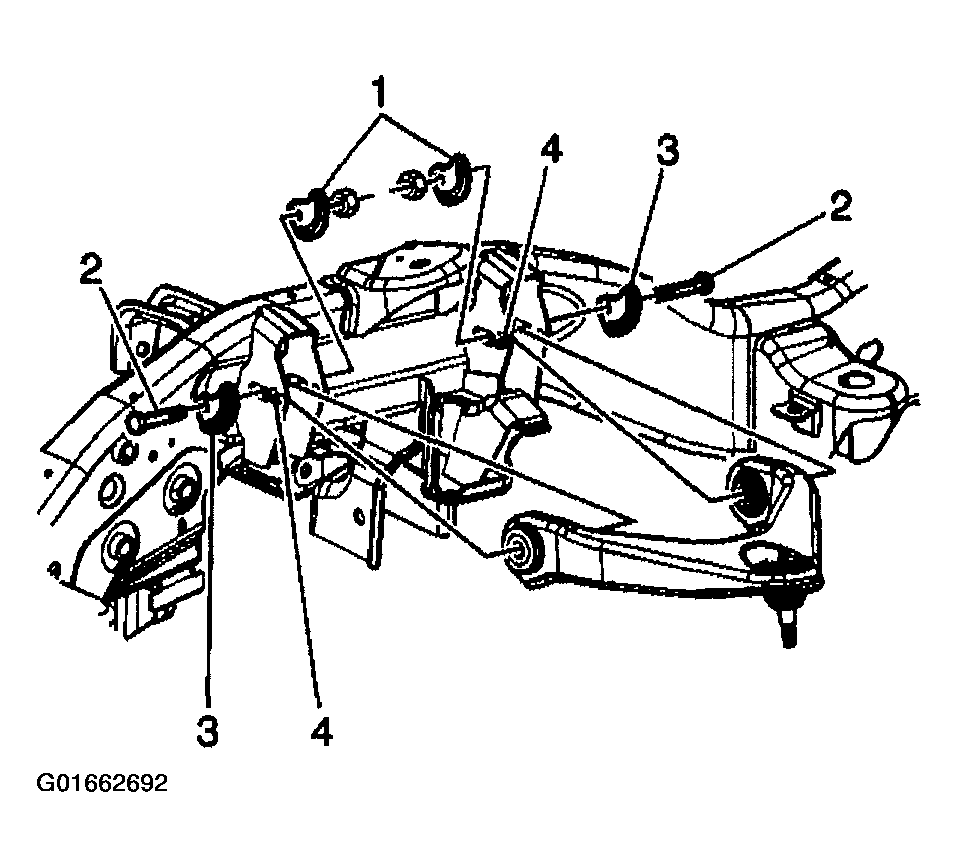

    Fig 1: Installing Upper Control Arm (25/35 Series)
    G01662692Courtesy of GENERAL MOTORS CORP.
  4. Install the upper control arm bolts (4) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD.
  5. Install the upper control arm nuts and the adjustment cams (2) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD.

    Tighten

    Tighten the nuts to 190 N.m (140 lb ft).

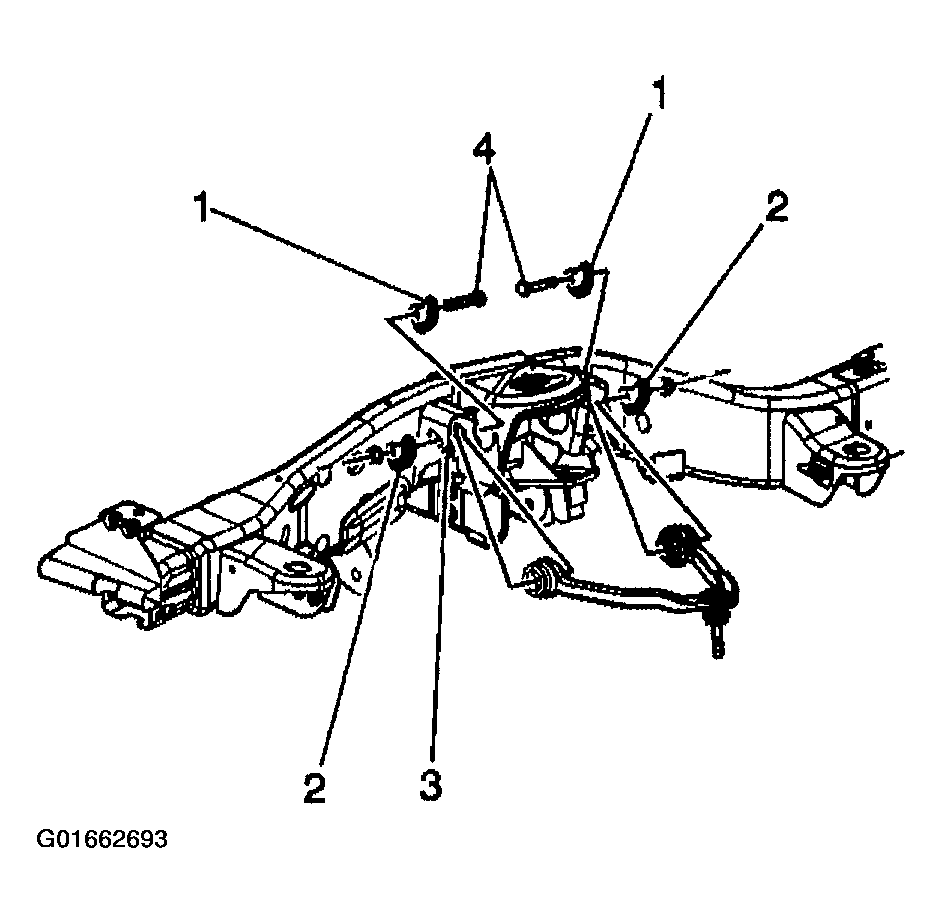

    Fig 2: Installing Upper Control Arm (15 Series)
    G01662693Courtesy of GENERAL MOTORS CORP.
  6. Connect the upper control arm to the steering knuckle.
  7. Install the wheel drive shaft. Refer to AXLE SHAFT , AXLE SHAFT or AXLE SHAFT .
  8. Install the new nut to the upper ball joint stud.

    Tighten

    Tighten the nut to 50 N.m (37 lb ft).

  9. Install the retaining bolts for the brake hose and wheel speed sensor brackets.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

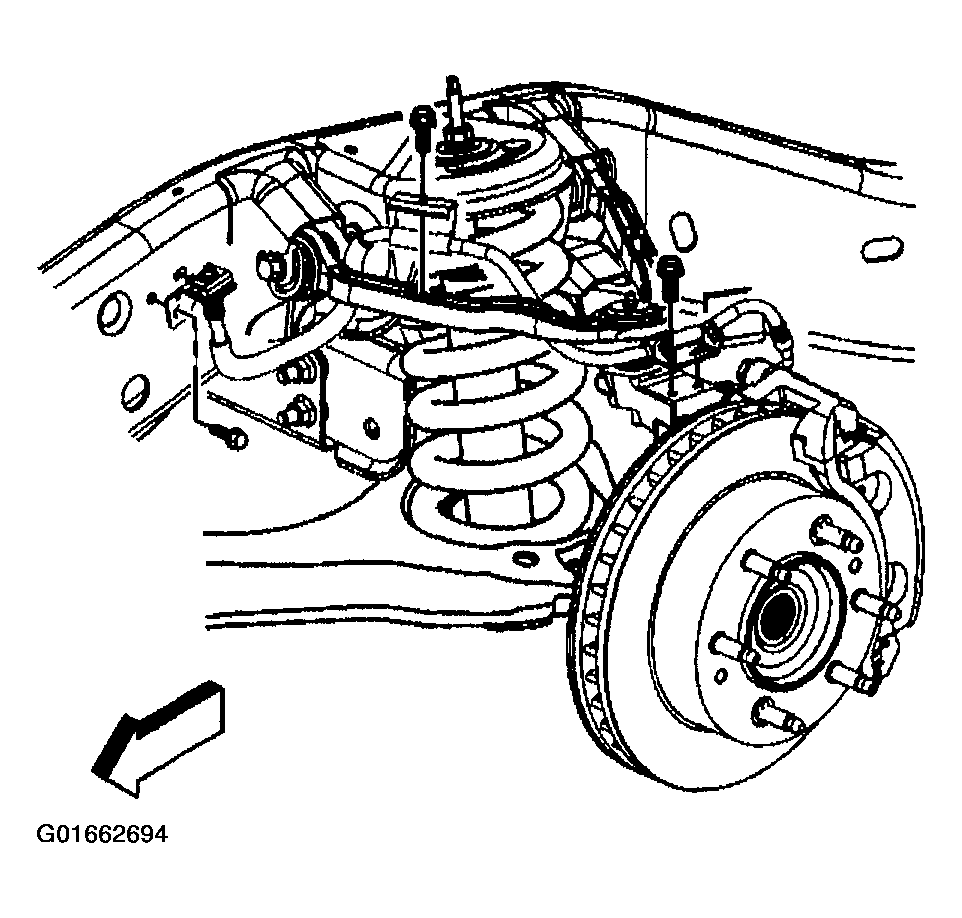

  10. Fig 3: Installing Brake Hose Bracket
    G01662694Courtesy of GENERAL MOTORS CORP.
  11. Connect the RTD link rod to the sensor, if equipped. Refer to FRONT POSITION SENSOR LINK ASSEMBLY REPLACEMENT - ELECTRONIC SUSPENSION .
  12. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  13. Remove the safety stands.
  14. Lower the vehicle.
  15. Verify the wheel alignment. Refer to SPECIFICATIONS .
