Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Disconnect the Real Time Damping (RTD) link rod from the sensor, if equipped. Refer to FRONT POSITION SENSOR LINK ASSEMBLY REPLACEMENT - ELECTRONIC SUSPENSION .
Remove the retaining bolt for the brake hose and the wheel speed sensor brackets.

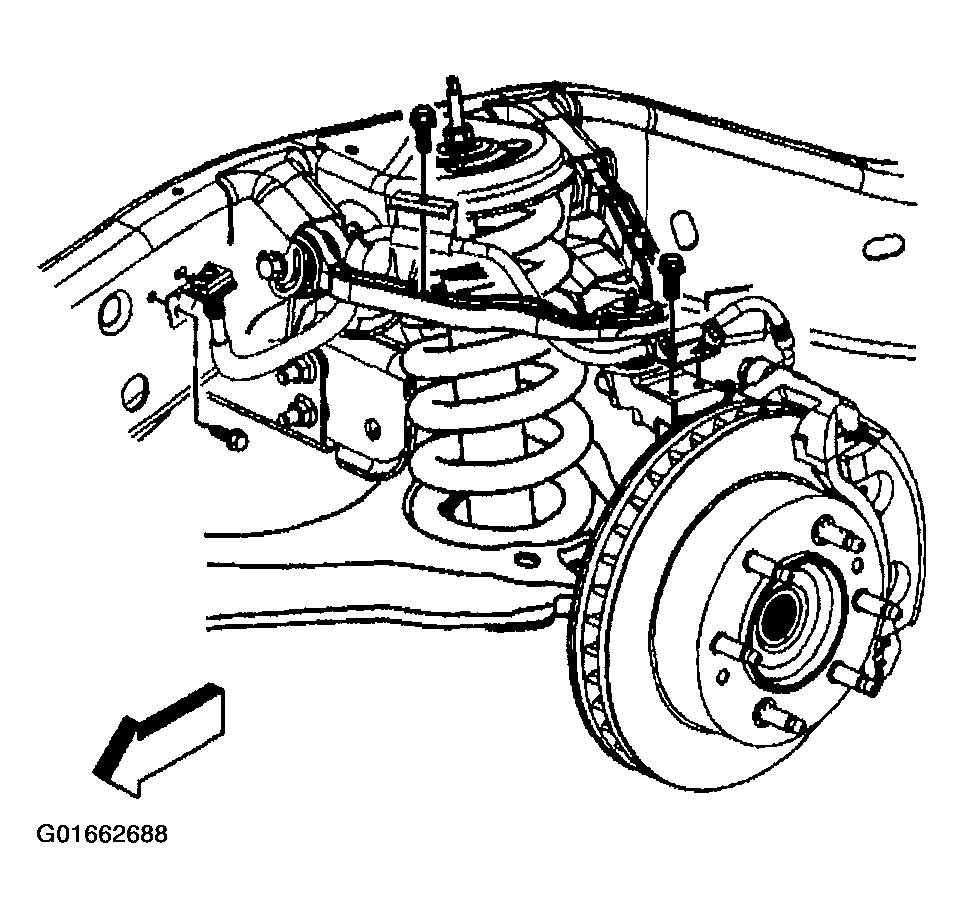

Fig 1: Removing Brake Hose Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the wheel drive shaft. Refer to AXLE SHAFT , AXLE SHAFT or AXLE SHAFT .
Remove the nut at the upper ball joint. Discard the nut.
Disconnect the upper control arm from the steering knuckle using the J 43631 (1).

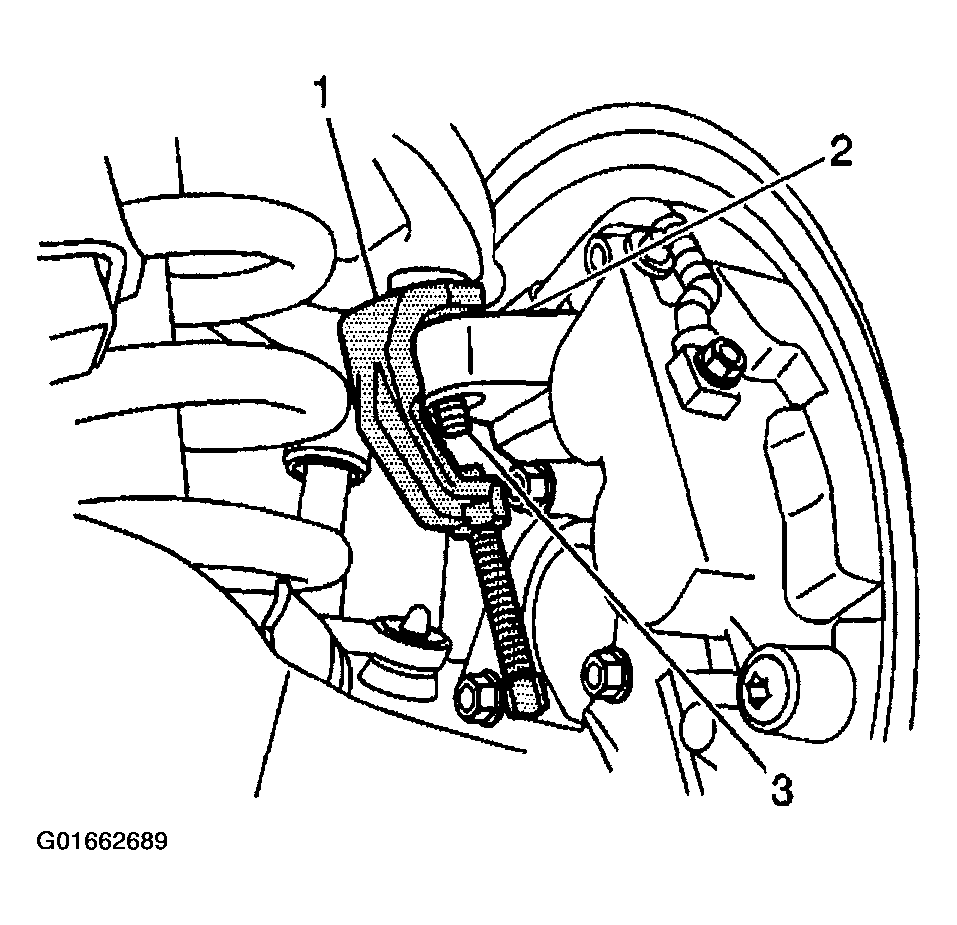

Fig 2: Removing Upper Ball Joint Nut
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm nuts and the adjustment cams (2) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD).
Remove the upper control arm bolts (4) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD.

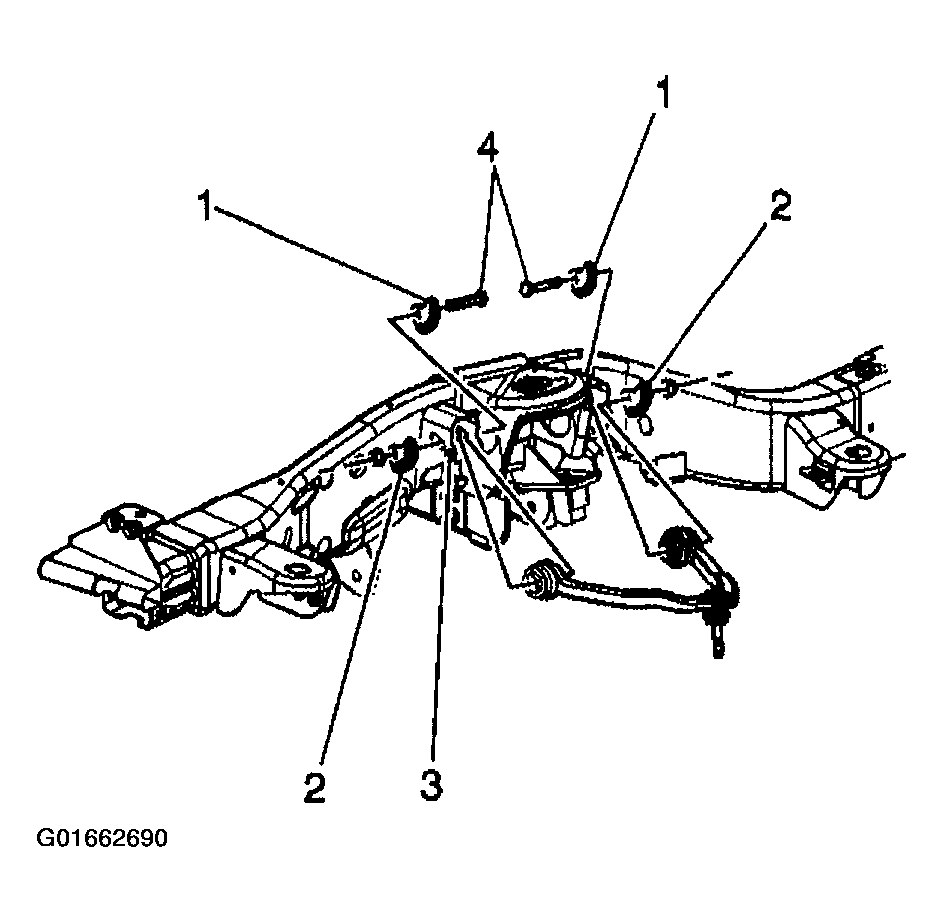

Fig 3: Removing Upper Control Arm (15 Series)
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm nuts and the adjustment cams (2) for the 25/35 Series 4WD.
Remove the upper control arm bolts (4) for the 25/35 Series 4WD.
Remove the upper control arm.

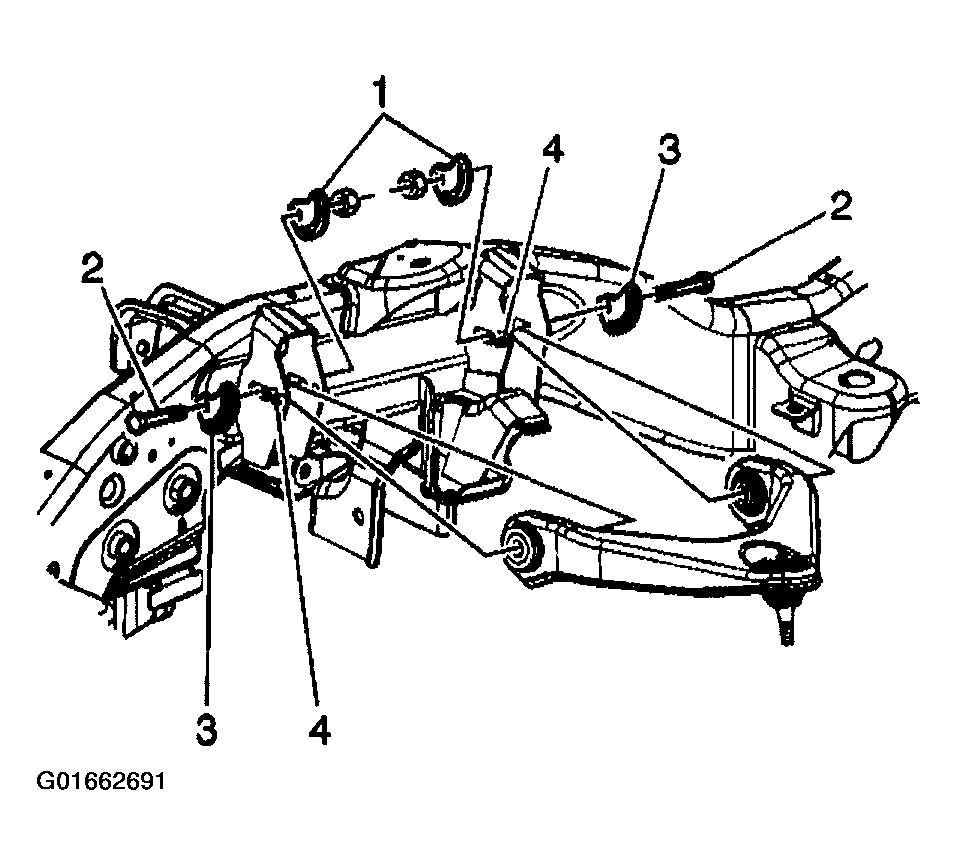

Fig 4: Removing Upper Control Arm (25/35 Series)
Courtesy of GENERAL MOTORS CORP.
