Lighting Systems Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

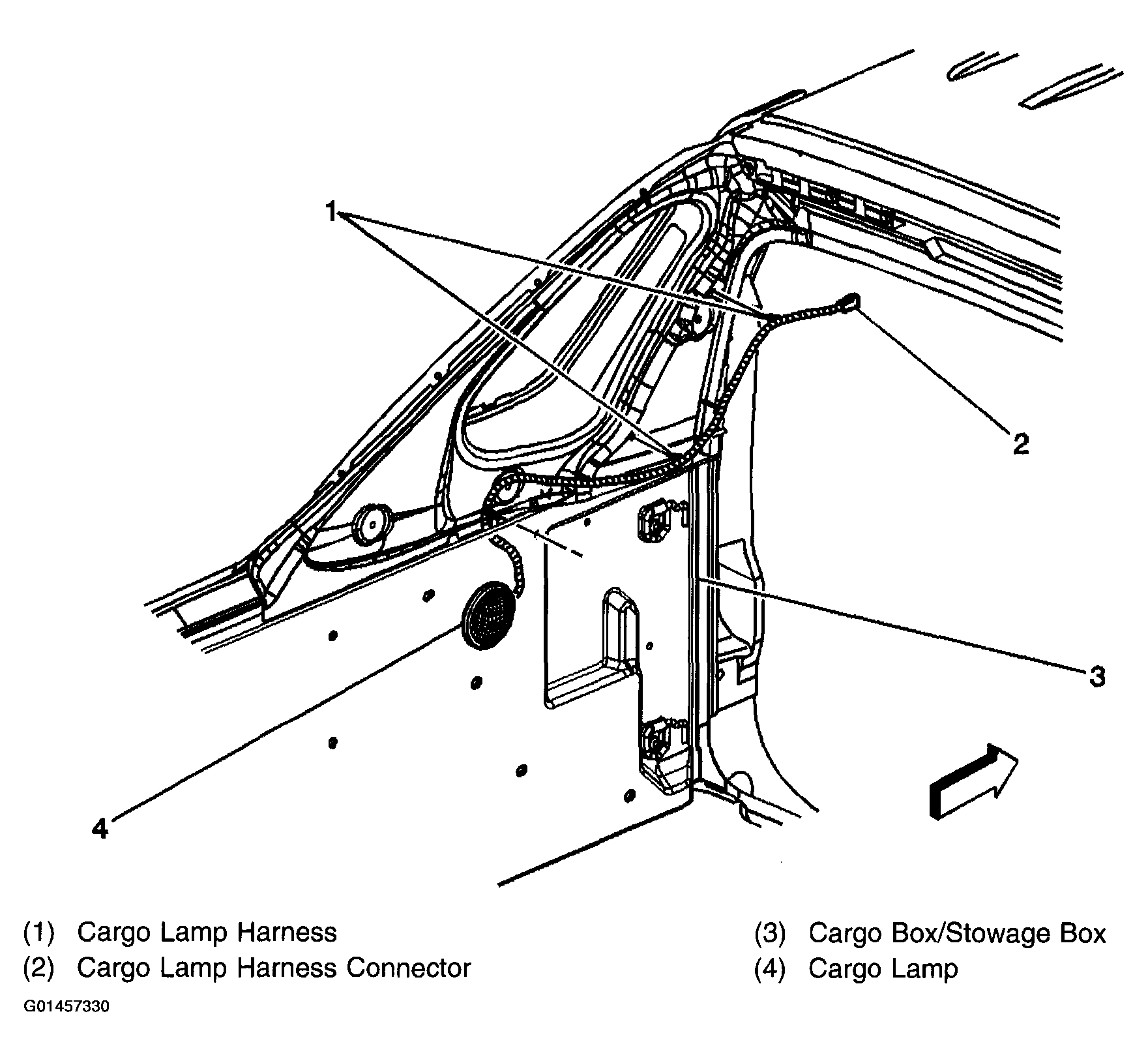

Fig 1: Lighting Systems Component - Cargo Lamps (Avalanche/Escalade EXT)

G01457330

Courtesy of GENERAL MOTORS CORP.

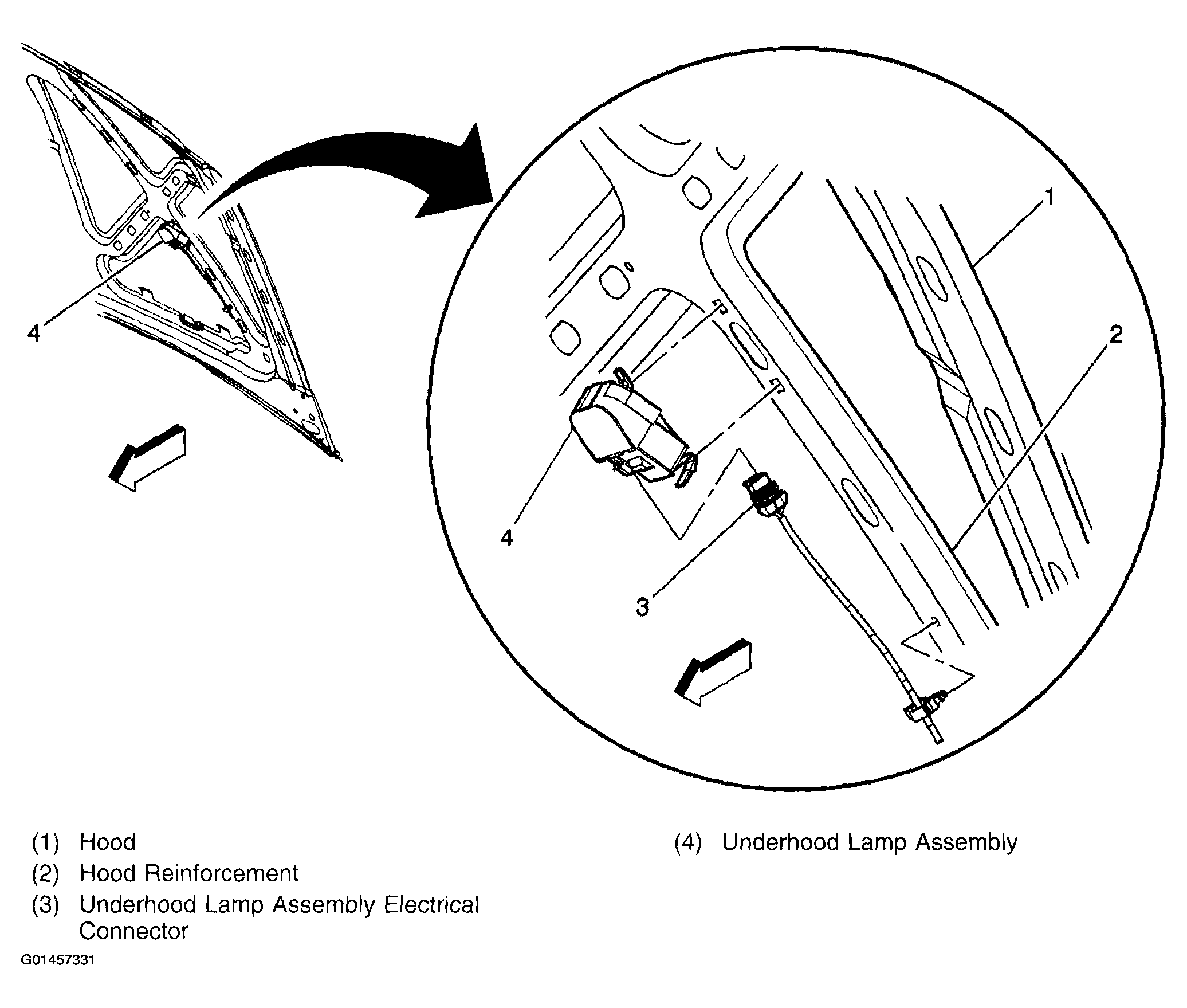

Fig 2: Lighting Systems Component - Hood

G01457331

Courtesy of GENERAL MOTORS CORP.

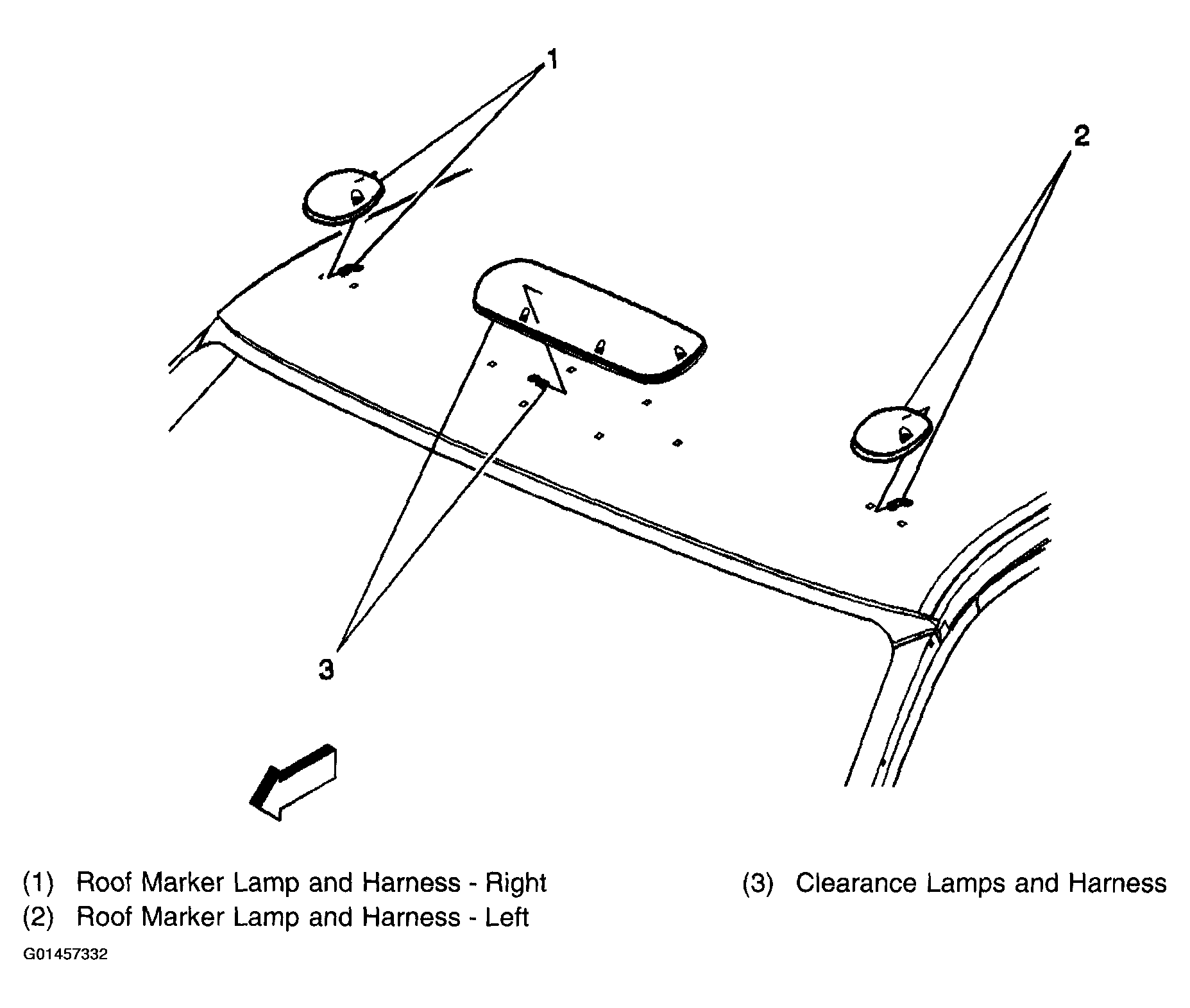

Fig 3: Lighting Systems Component - Roof Marker & Clearance Lamps

G01457332

Courtesy of GENERAL MOTORS CORP.

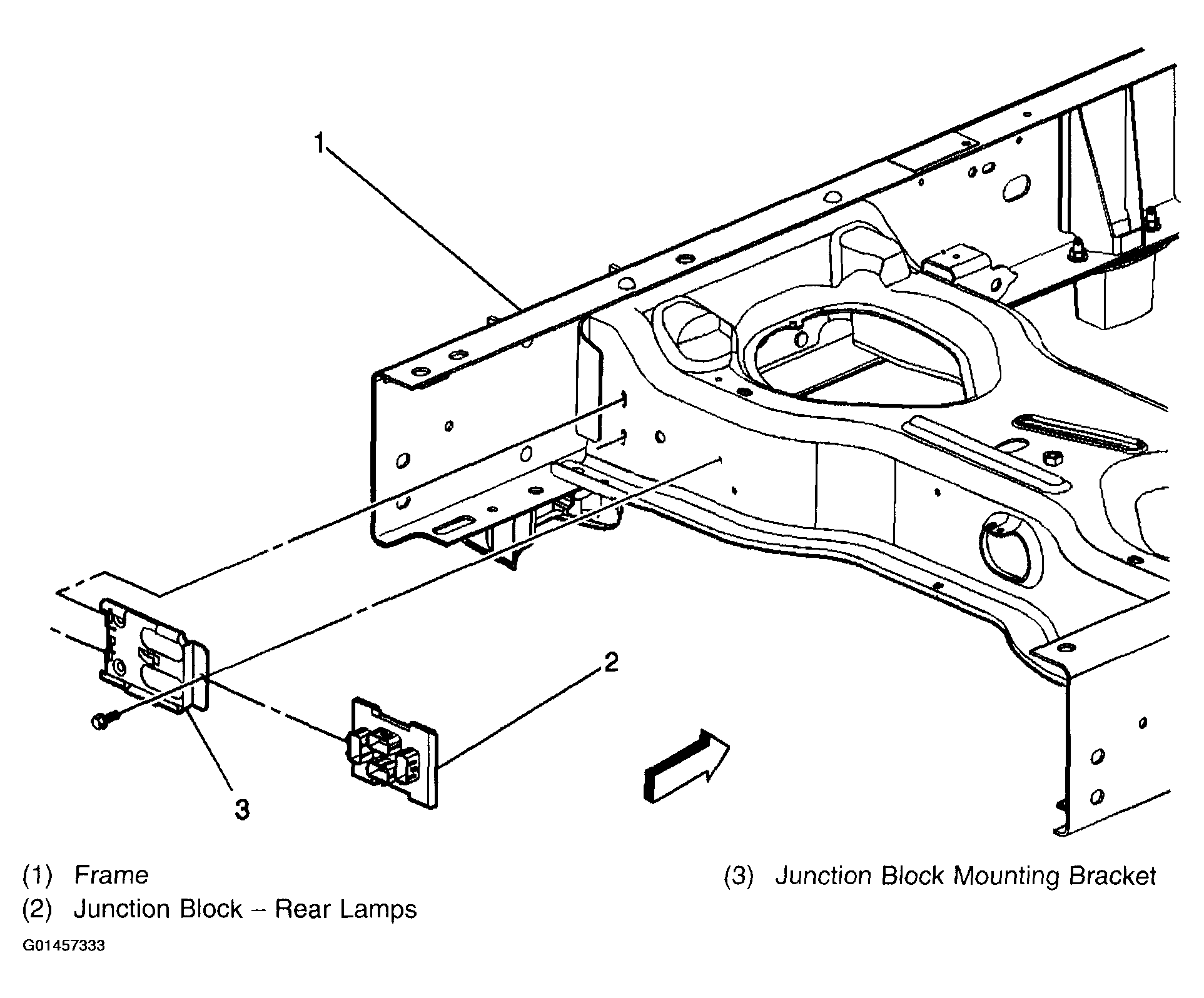

Fig 4: Lighting Systems Component (Junction Block - Rear Lamps)

G01457333

Courtesy of GENERAL MOTORS CORP.

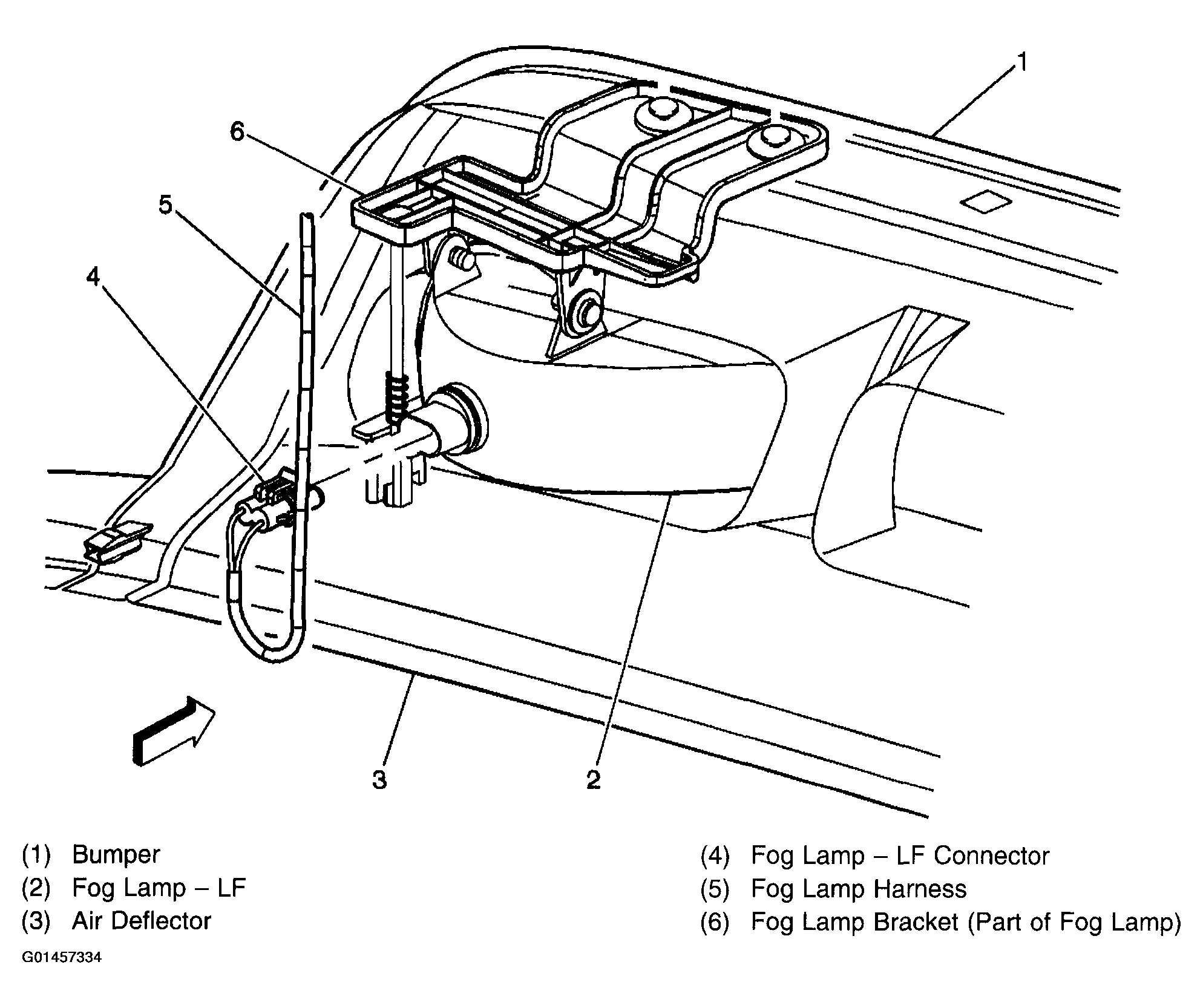

Fig 5: Lighting Systems Component - LF Corner Of Bumper

G01457334

Courtesy of GENERAL MOTORS CORP.

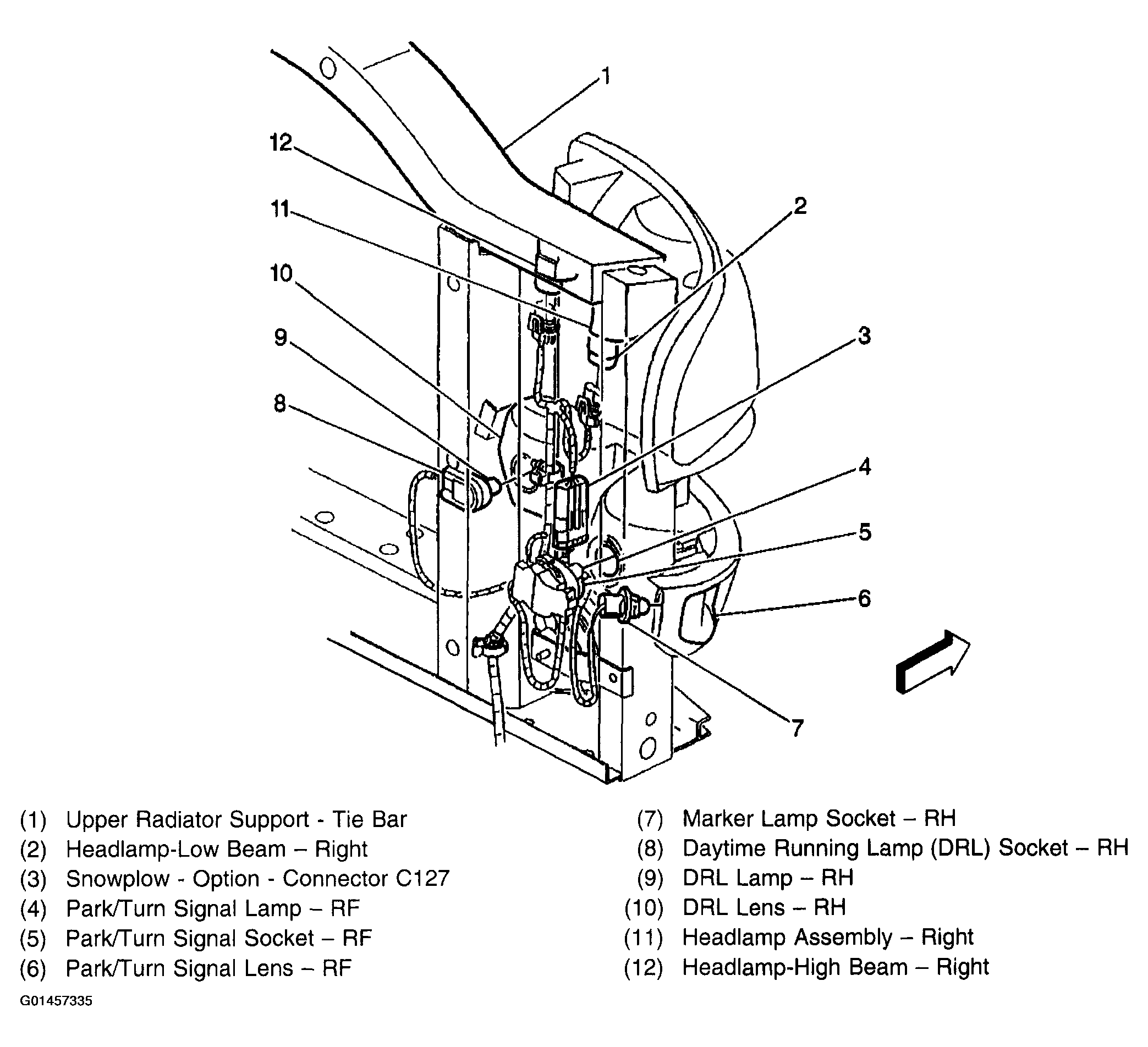

Fig 6: Lighting Systems Component (RF Corner Of Vehicle - Lighting Components)

G01457335

Courtesy of GENERAL MOTORS CORP.

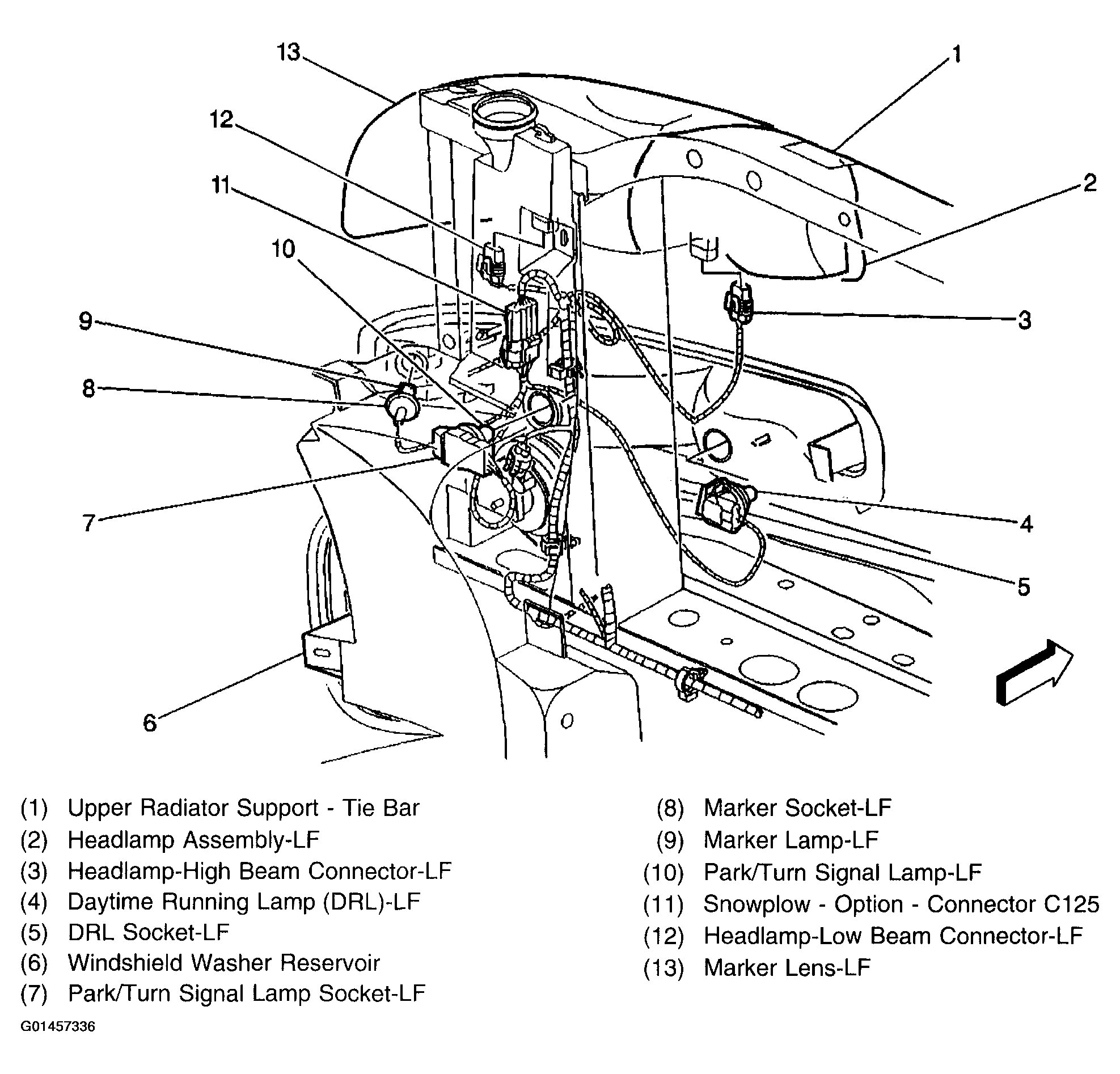

Fig 7: Lighting Systems Component (LF Corner Of Vehicle - Lighting Components)

G01457336

Courtesy of GENERAL MOTORS CORP.

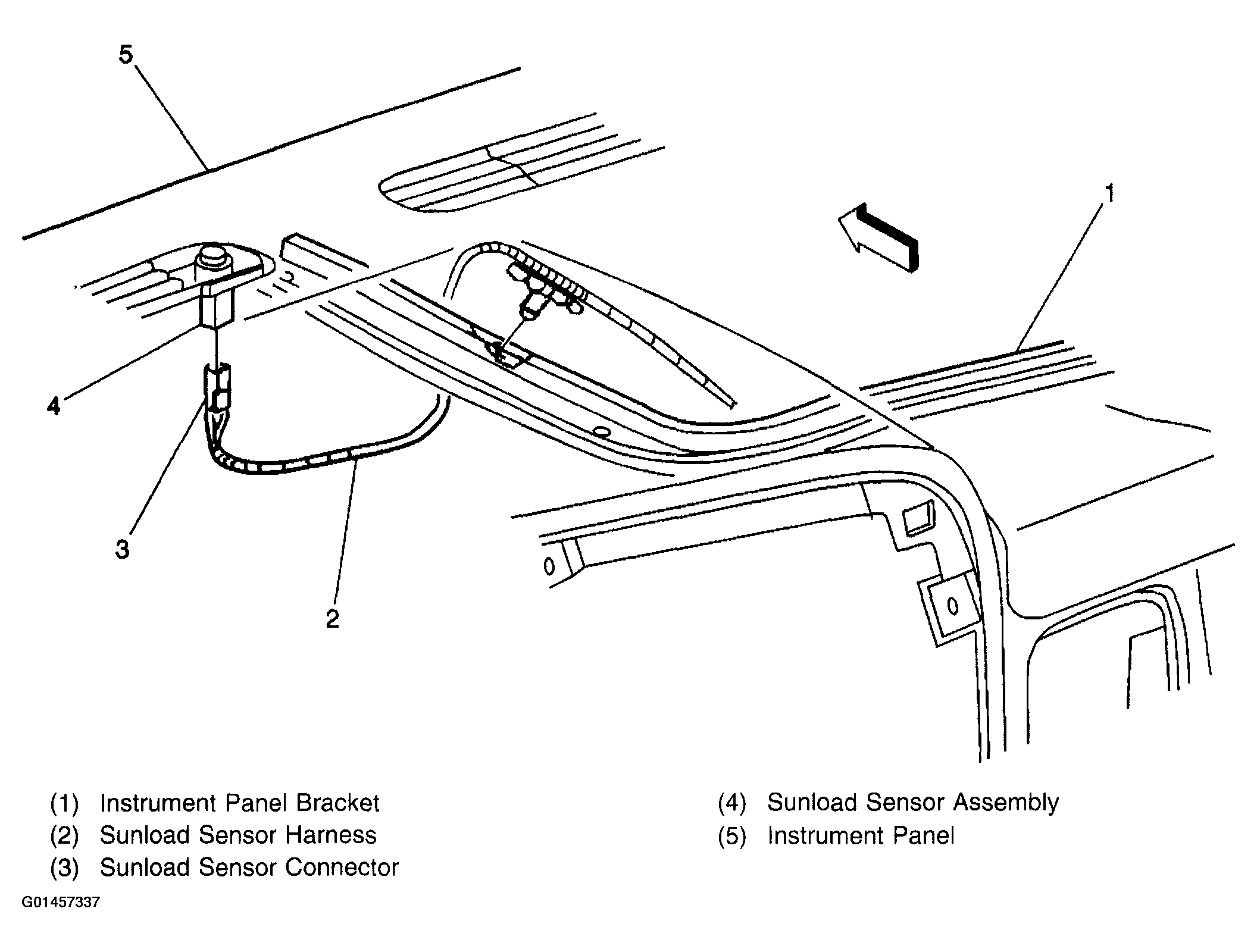

Fig 8: Lighting Systems Component - Sunload Sensor Assembly

G01457337

Courtesy of GENERAL MOTORS CORP.

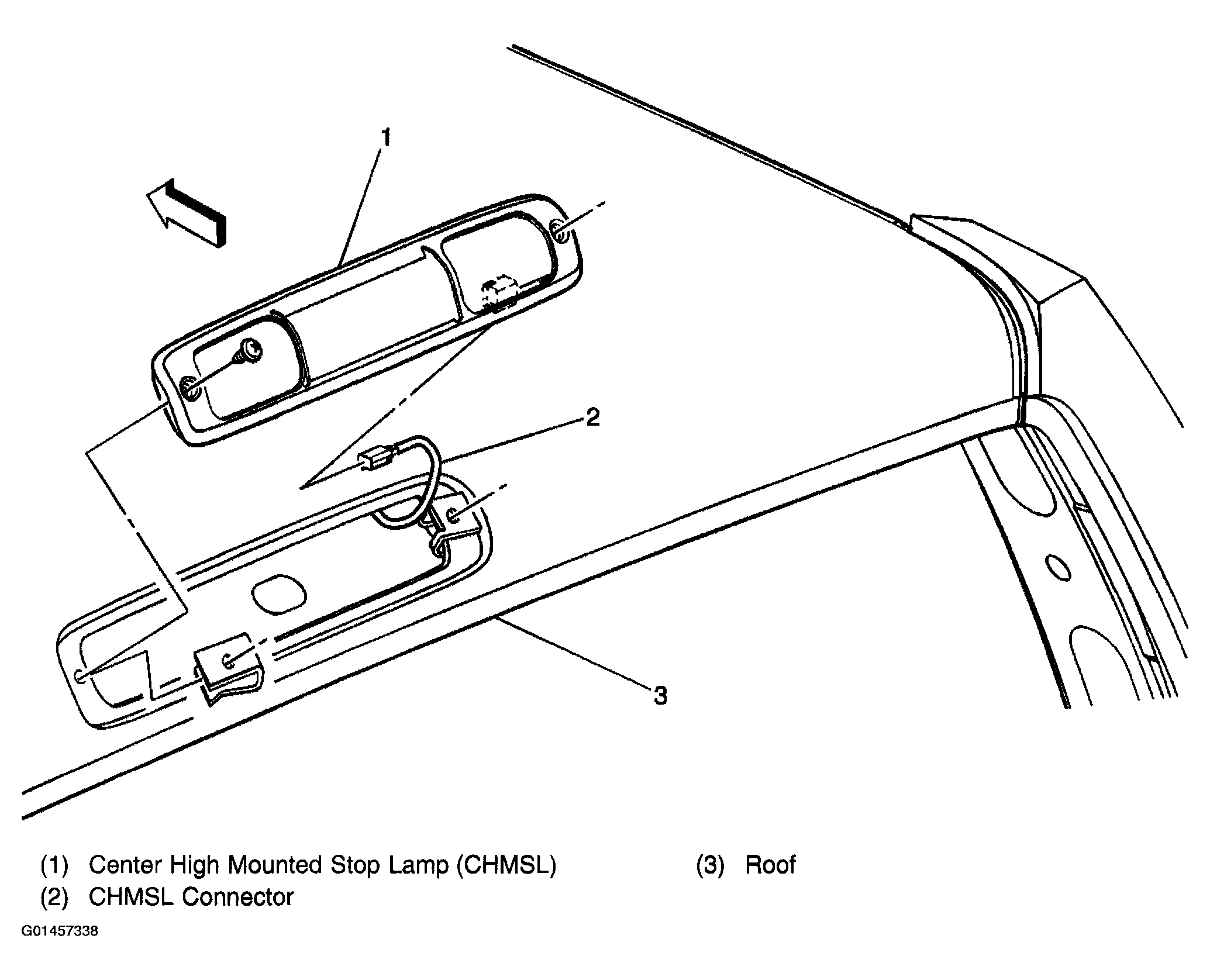

Fig 9: Lighting Systems Component - Center Rear Of Roof (Pickup)

G01457338

Courtesy of GENERAL MOTORS CORP.

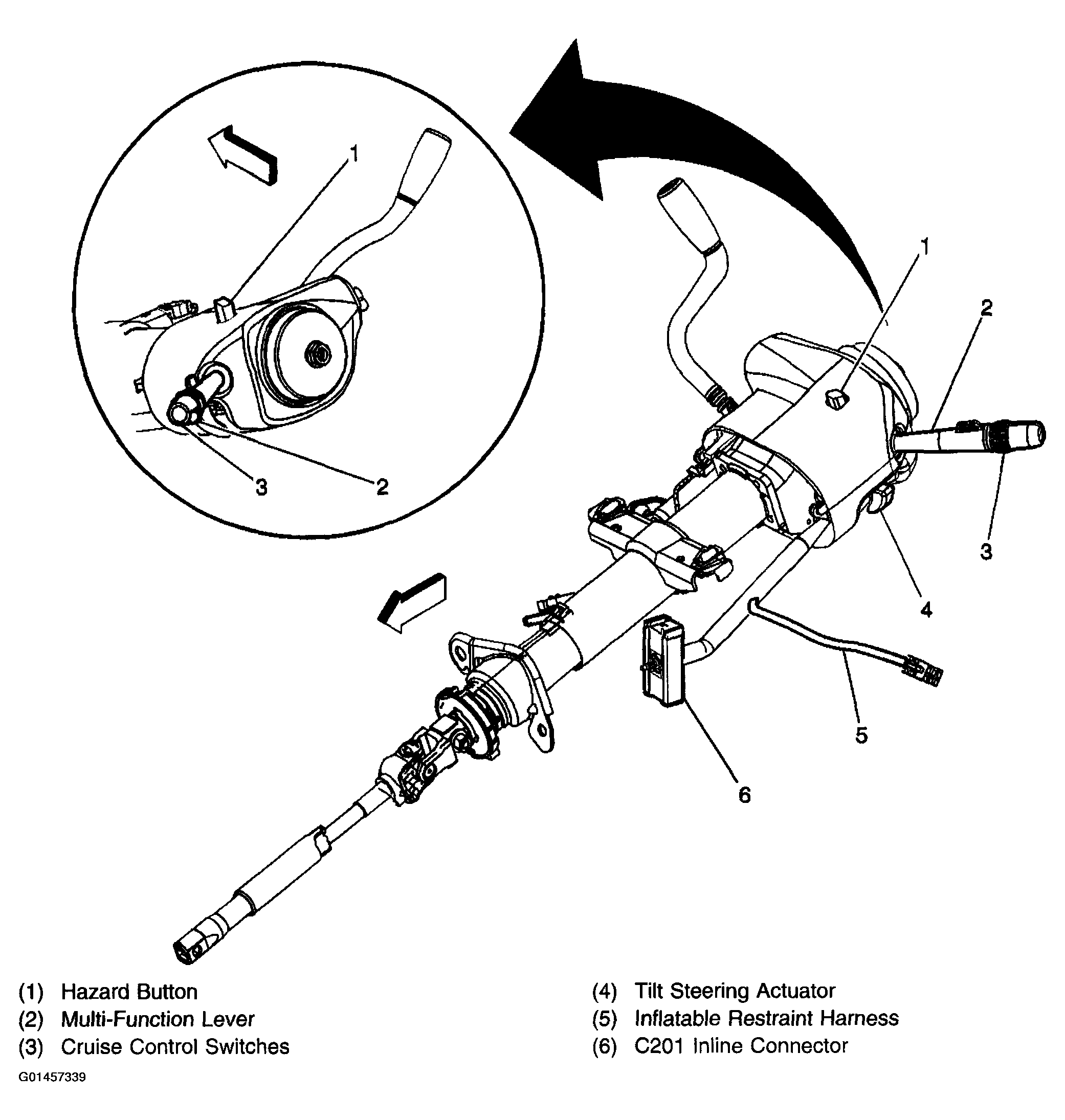

Fig 10: Lighting Systems Component - Steering Column Components

G01457339

Courtesy of GENERAL MOTORS CORP.

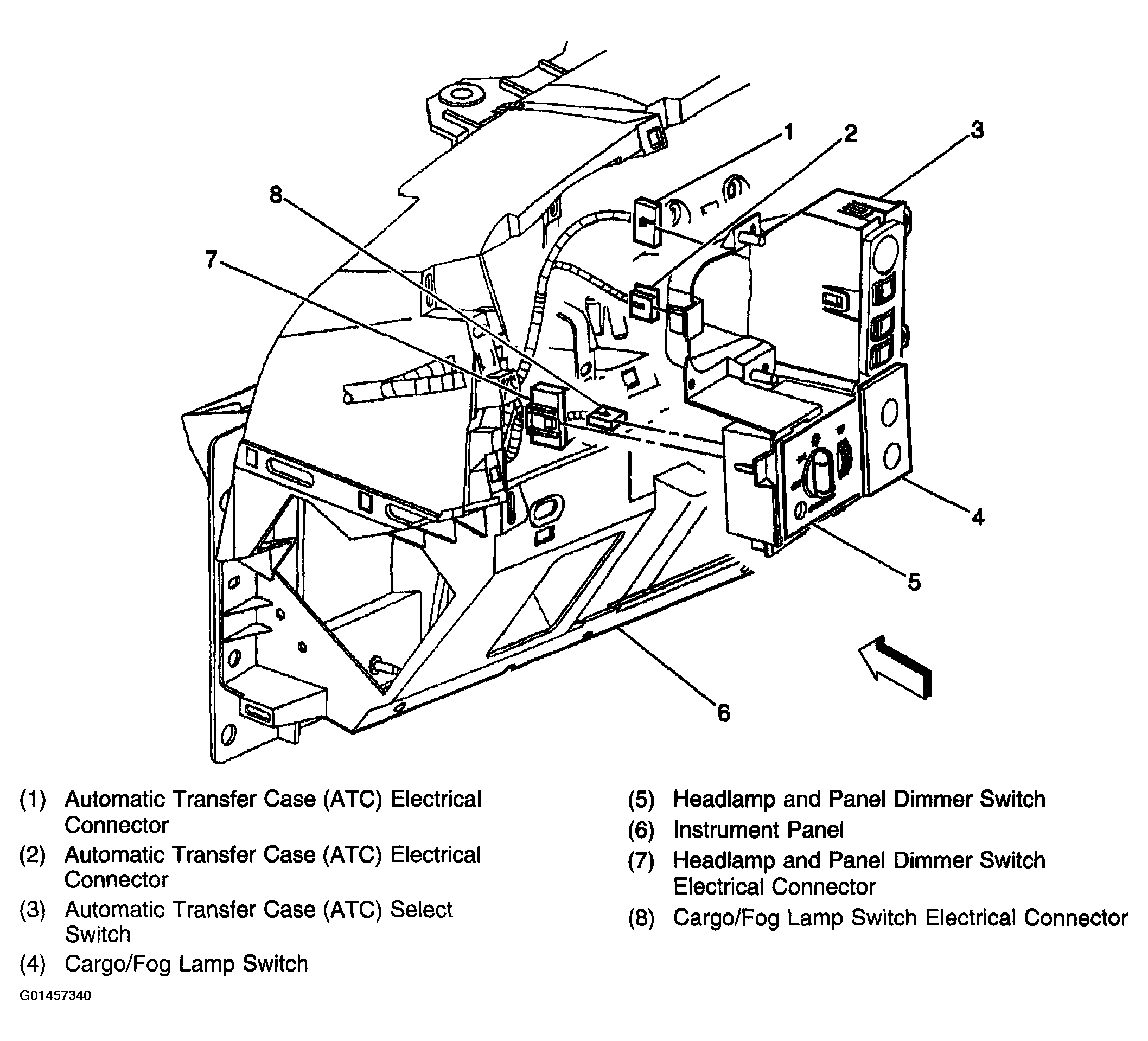

Fig 11: Lighting Systems Component (Left Side Of I/P - Switches)

G01457340

Courtesy of GENERAL MOTORS CORP.

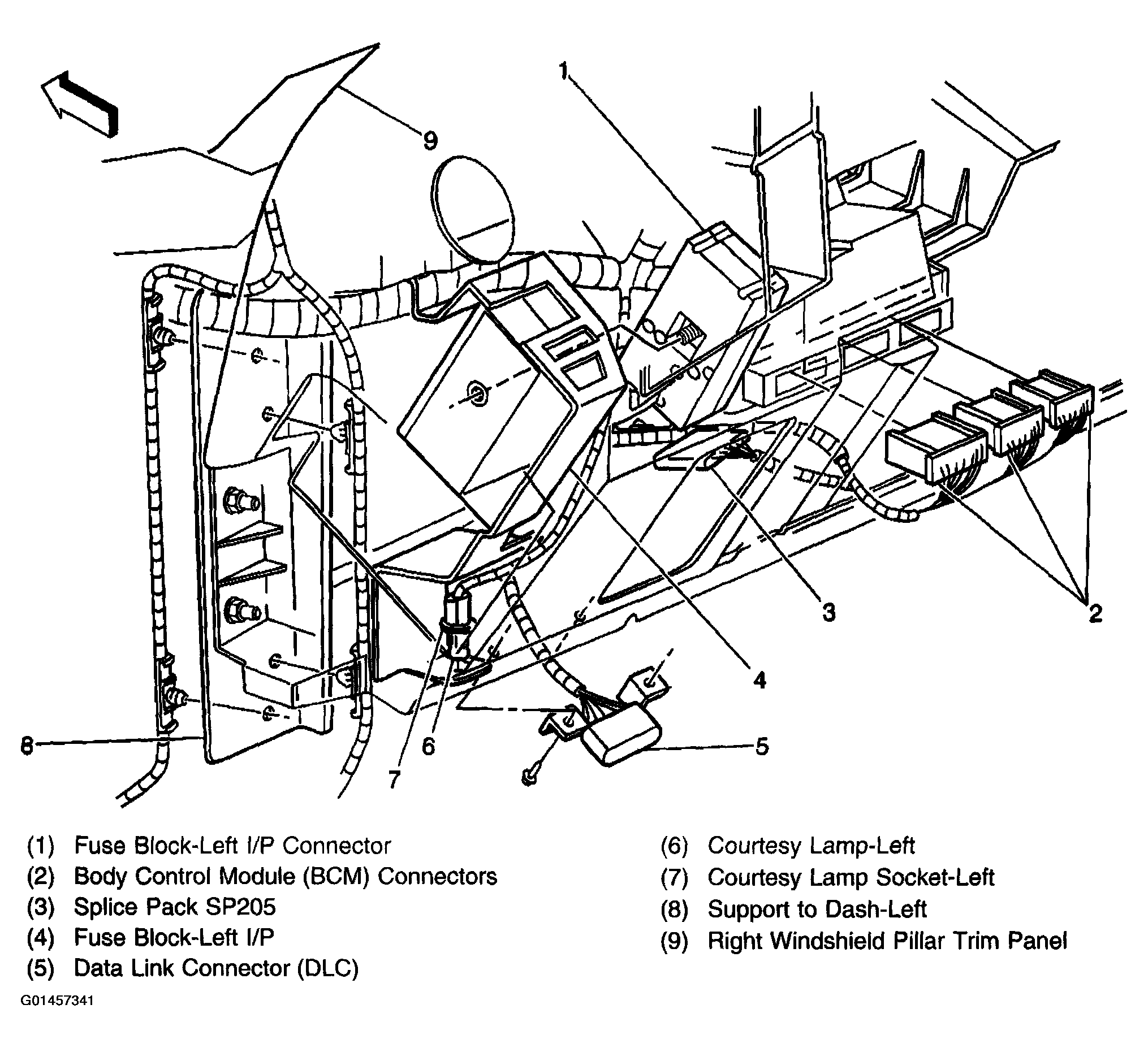

Fig 12: Lighting Systems Component - Lower Left Side Of I/P Components

G01457341

Courtesy of GENERAL MOTORS CORP.

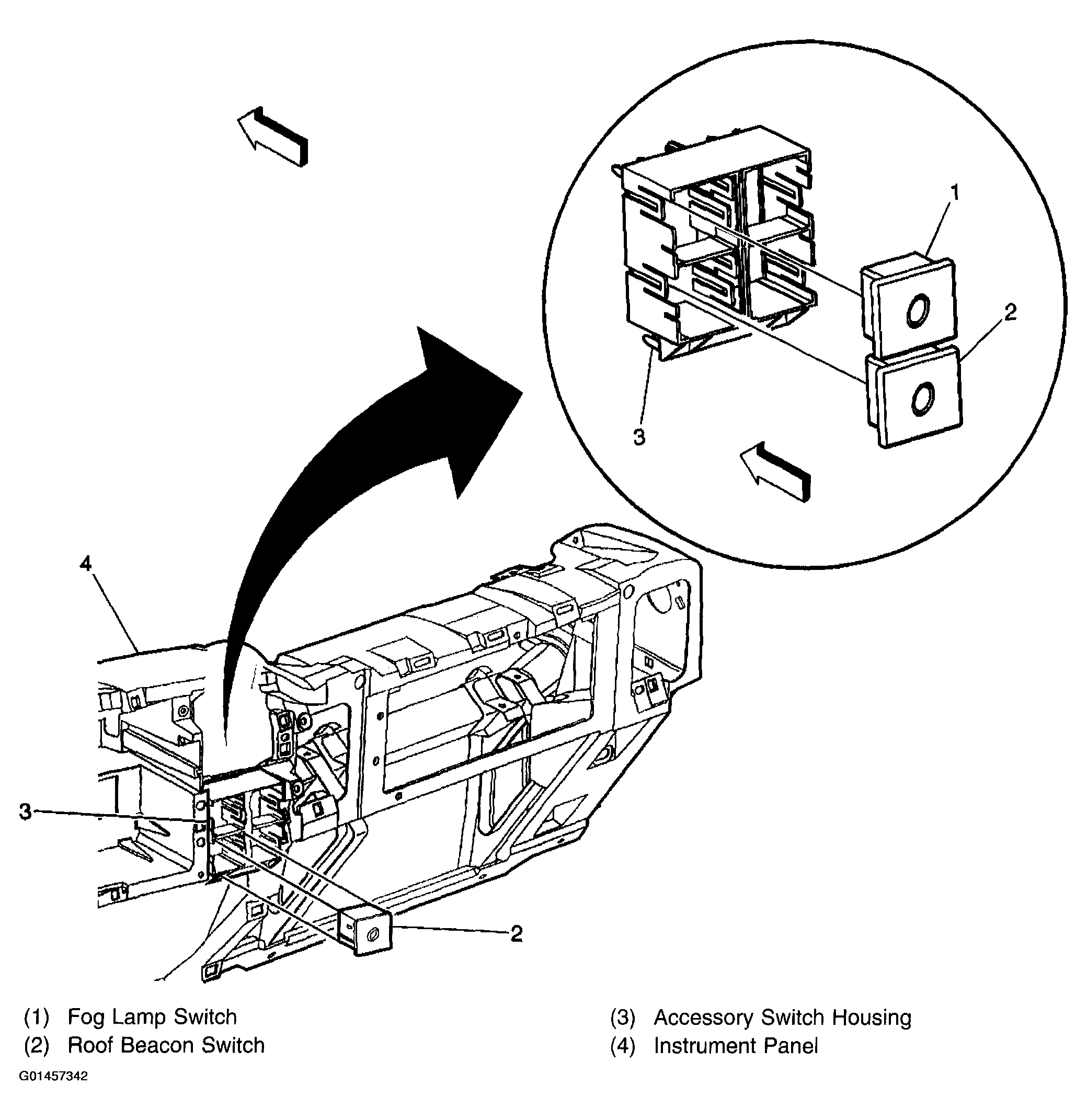

Fig 13: Lighting Systems Component (Center Of I/P - Accessory Switches)

G01457342

Courtesy of GENERAL MOTORS CORP.

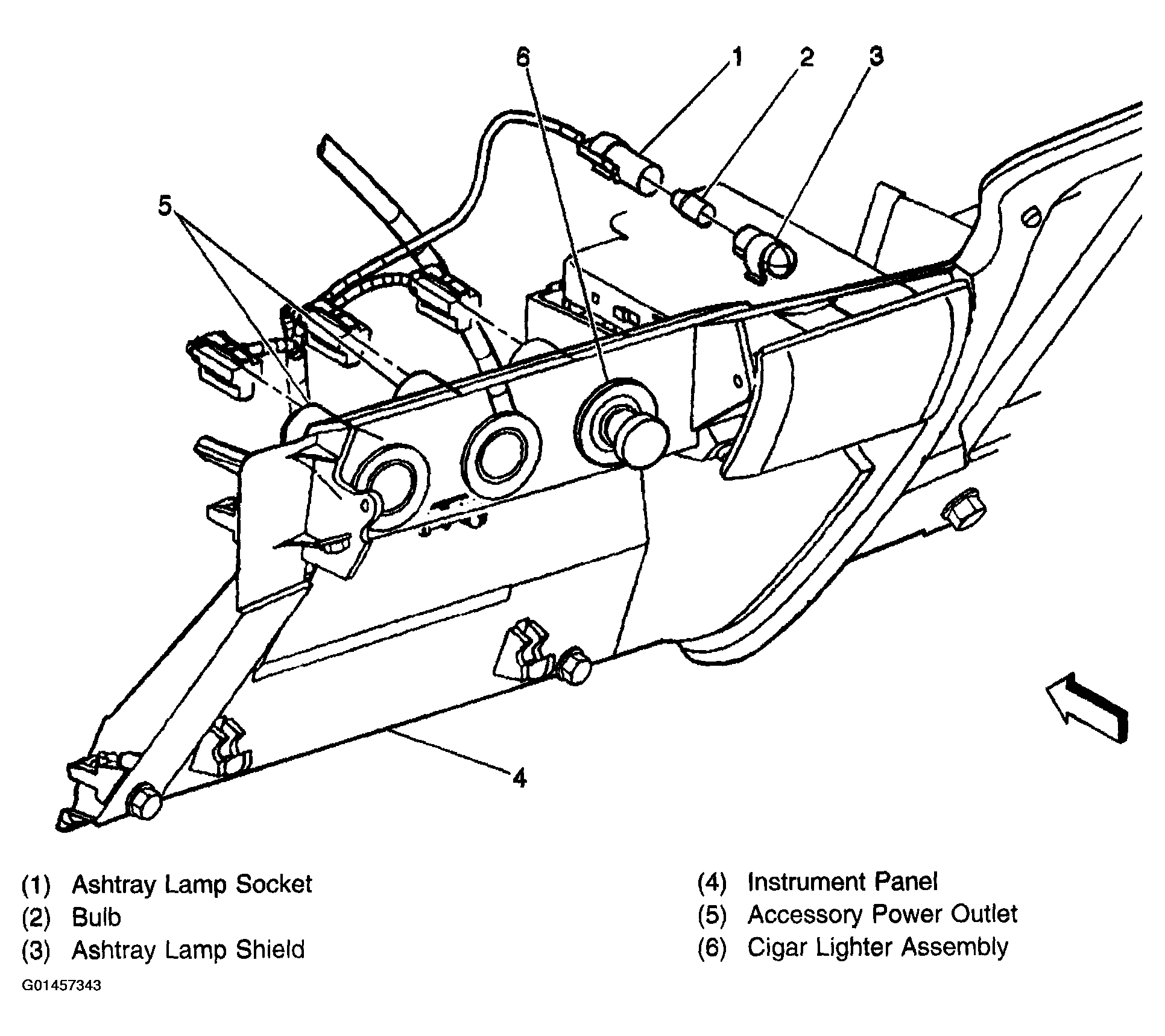

Fig 14: Lighting Systems Component - Lower Center Of I/P Components

G01457343

Courtesy of GENERAL MOTORS CORP.

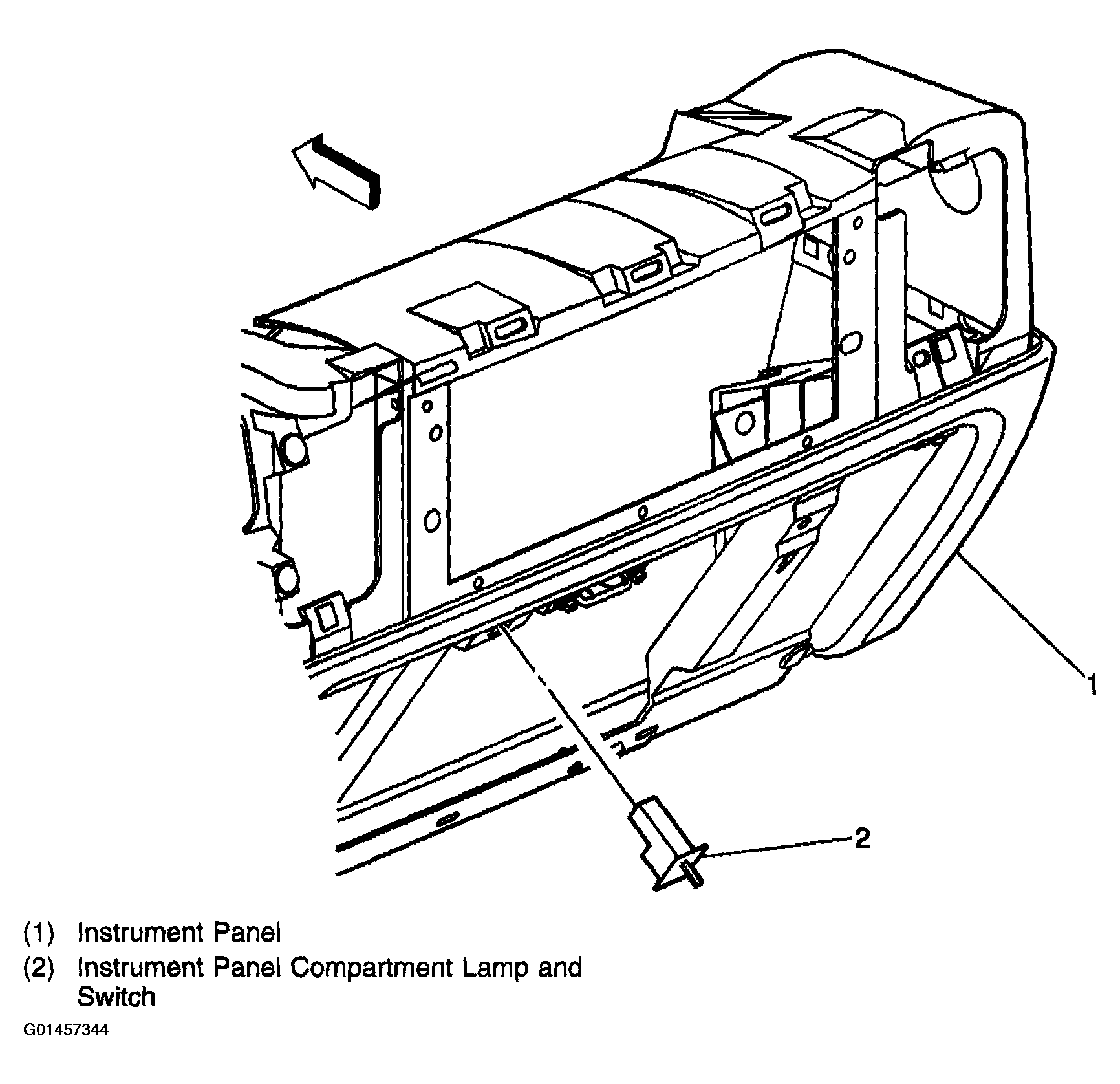

Fig 15: Lighting Systems Component - Instrument Panel Compartment Lamp

G01457344

Courtesy of GENERAL MOTORS CORP.

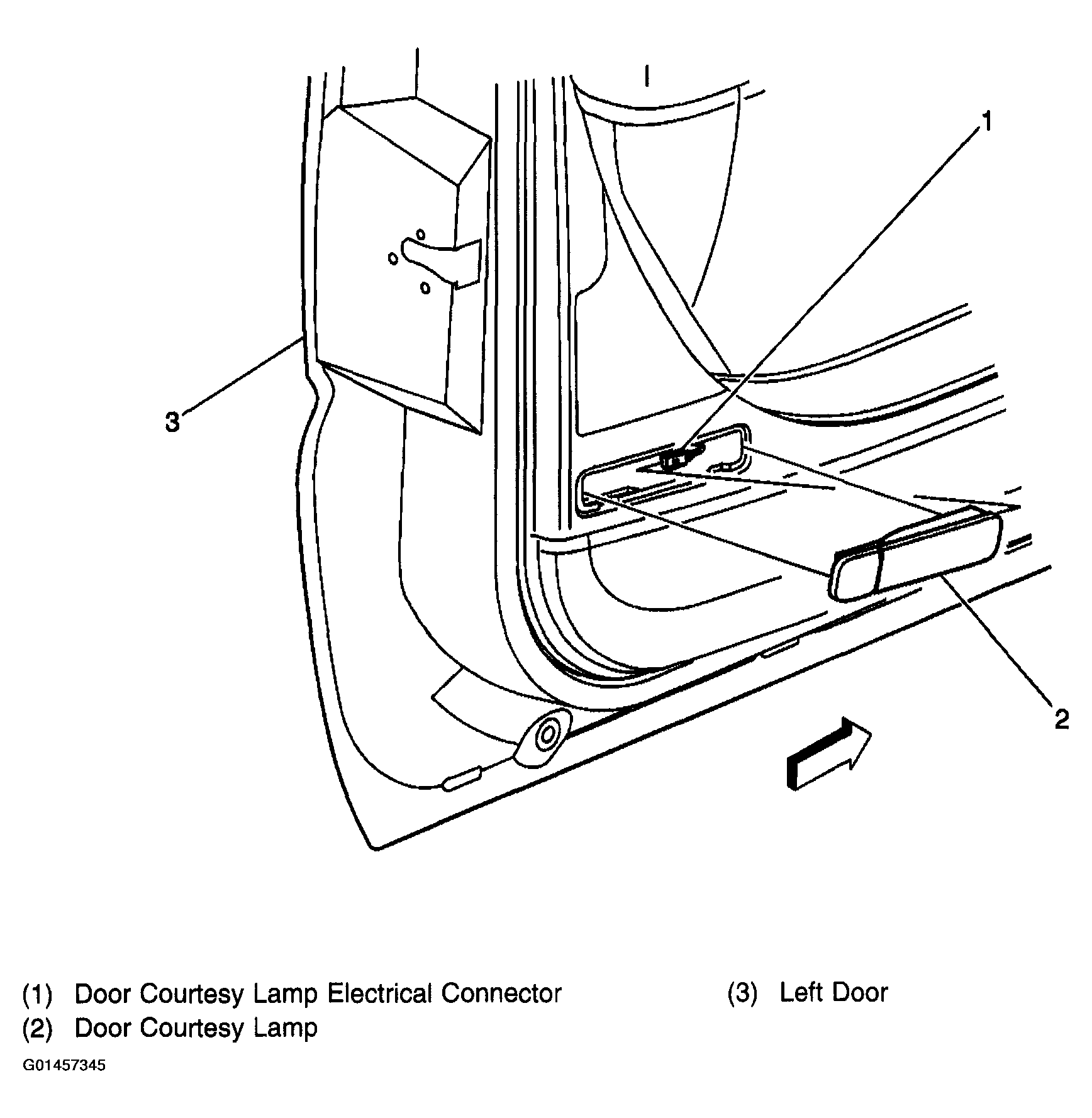

Fig 16: Lighting Systems Component (Driver Door Panel Components - Courtesy Lamp)

G01457345

Courtesy of GENERAL MOTORS CORP.

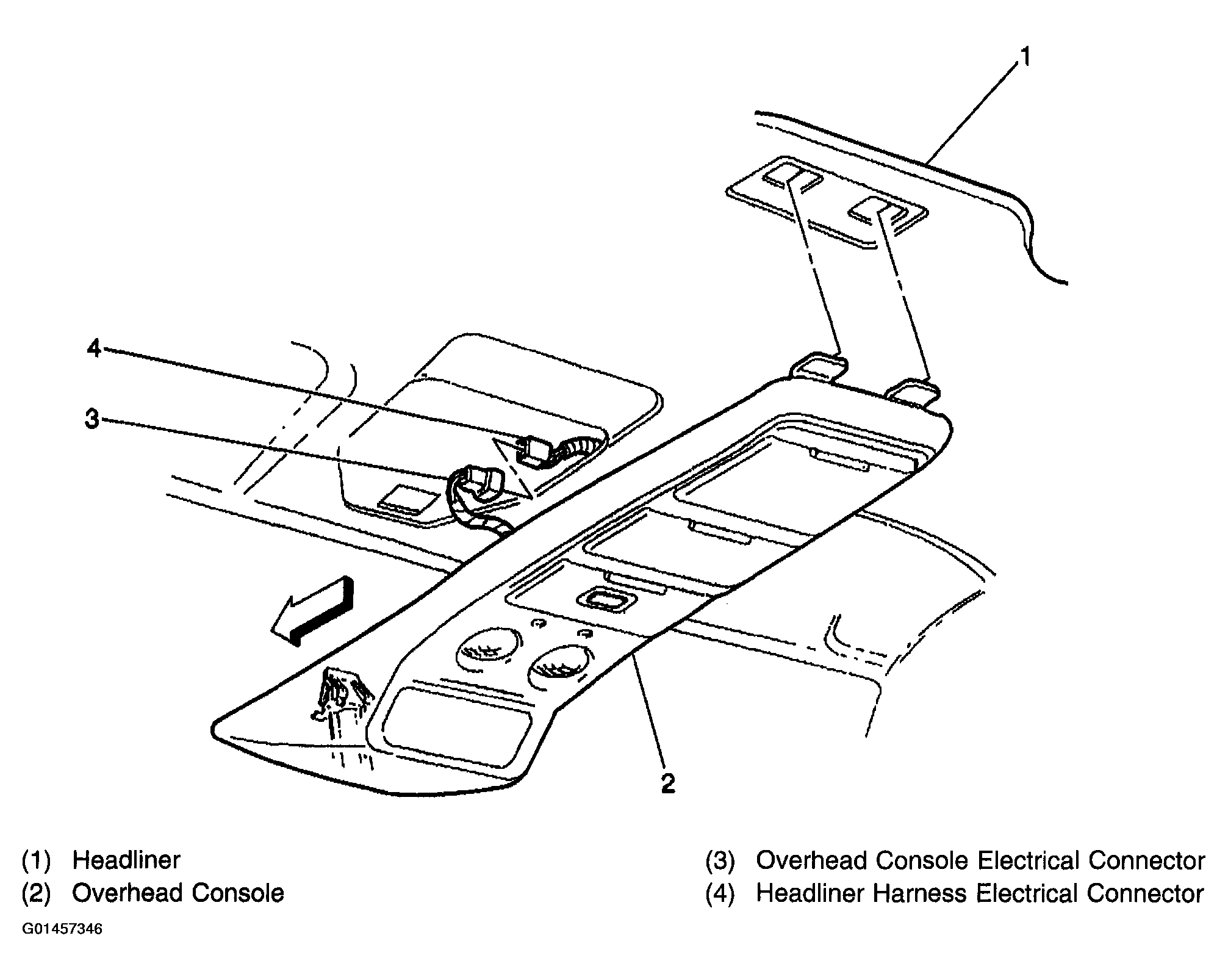

Fig 17: Lighting Systems Component - Overhead Console

G01457346

Courtesy of GENERAL MOTORS CORP.

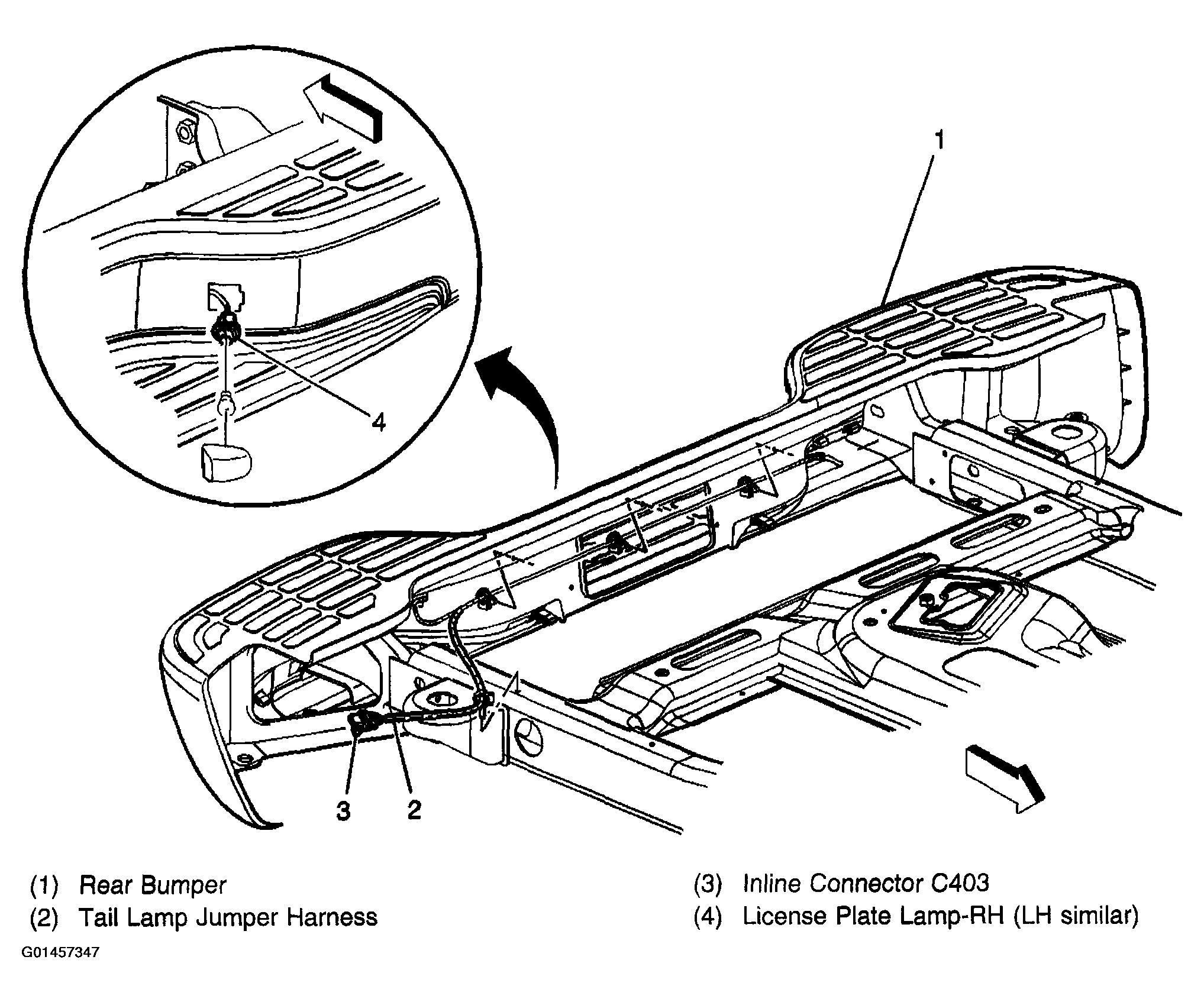

Fig 18: Lighting Systems Component - Rear Bumper (Utility)

G01457347

Courtesy of GENERAL MOTORS CORP.

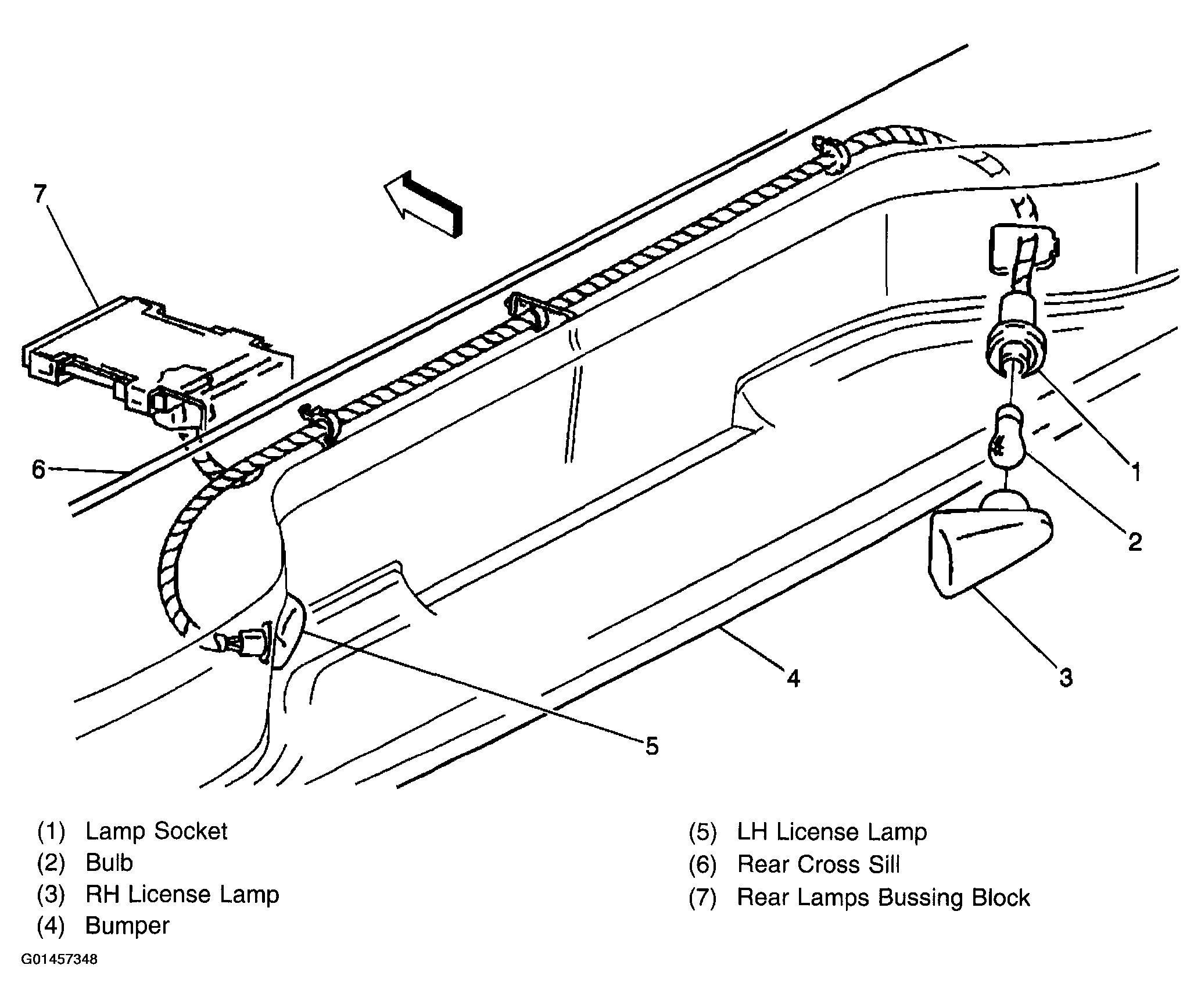

Fig 19: Lighting Systems Component - License Lamps

G01457348

Courtesy of GENERAL MOTORS CORP.

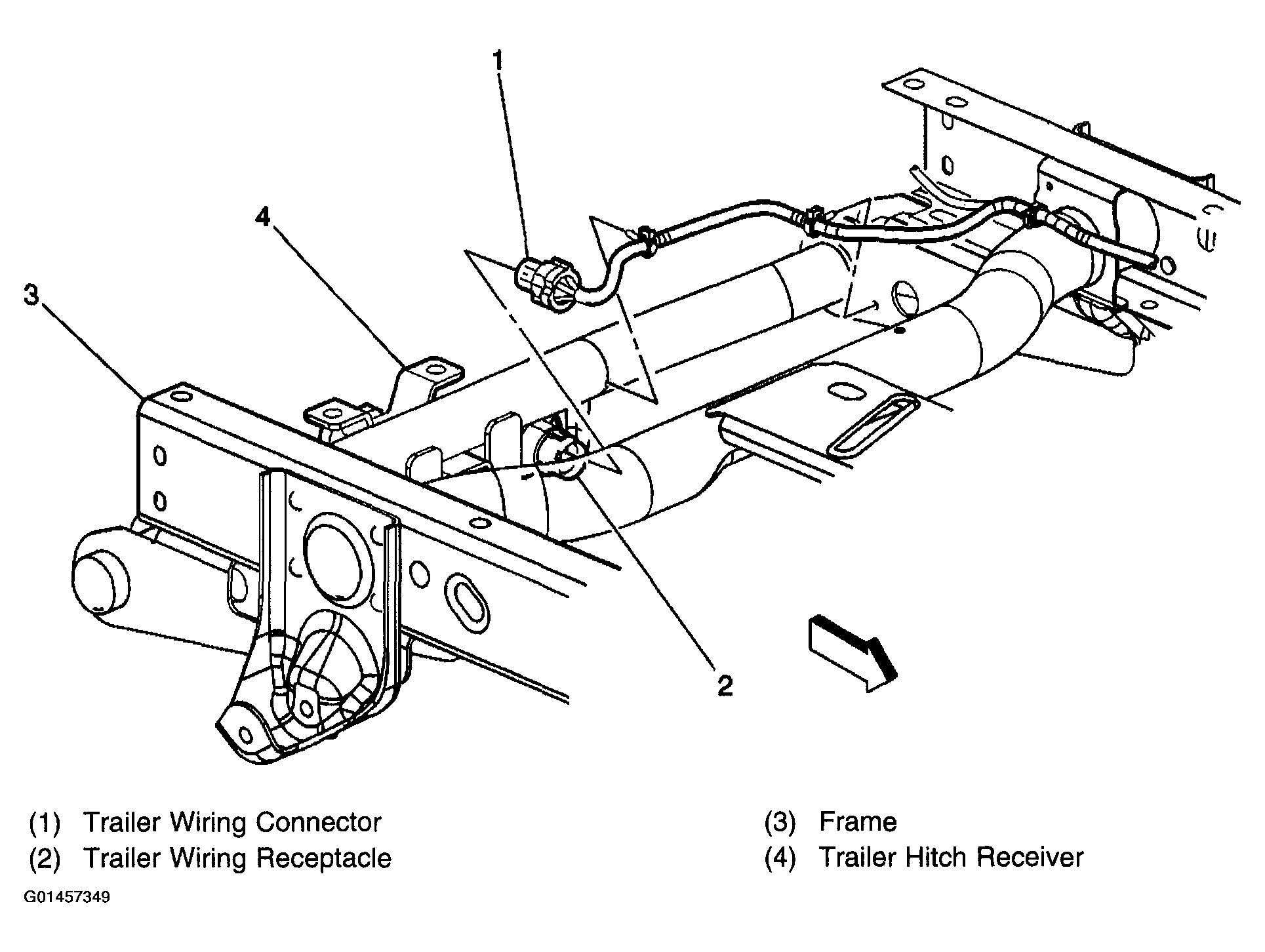

Fig 20: Lighting Systems Component - Trailer Wiring Harness

G01457349

Courtesy of GENERAL MOTORS CORP.
