Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery insulator, if necessary.
  2. Install the battery.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the battery hold down retainer and bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

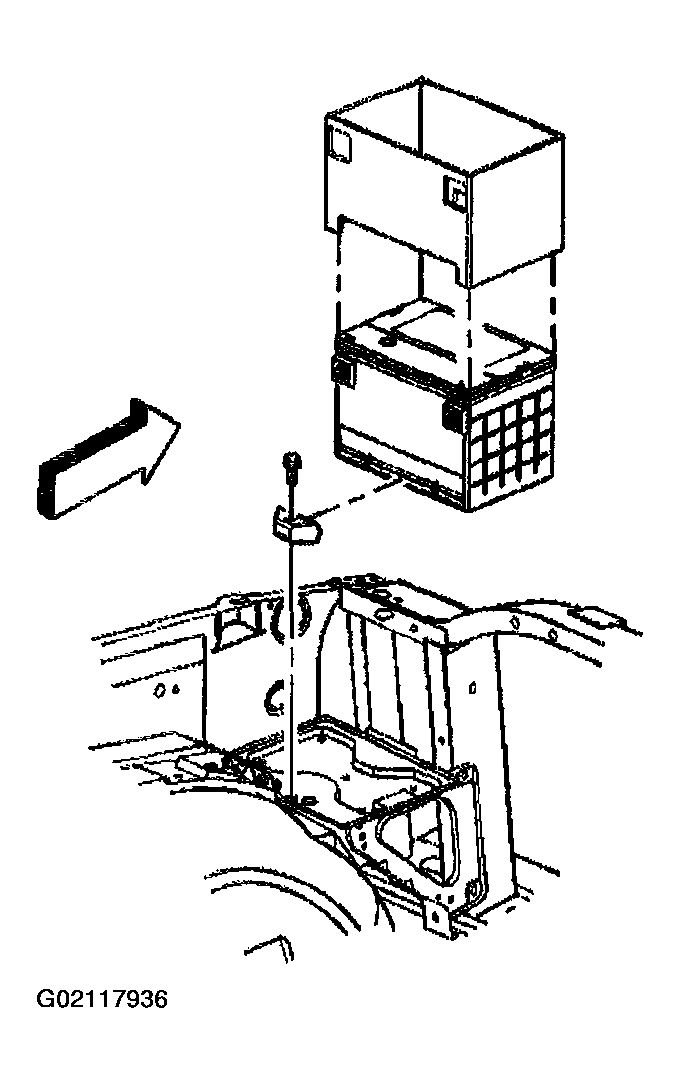

    Fig 1: Installing Battery Hold Down Retainer And Bolt
    G02117936Courtesy of GENERAL MOTORS CORP.
  4. Install the front end diagonal brace and bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

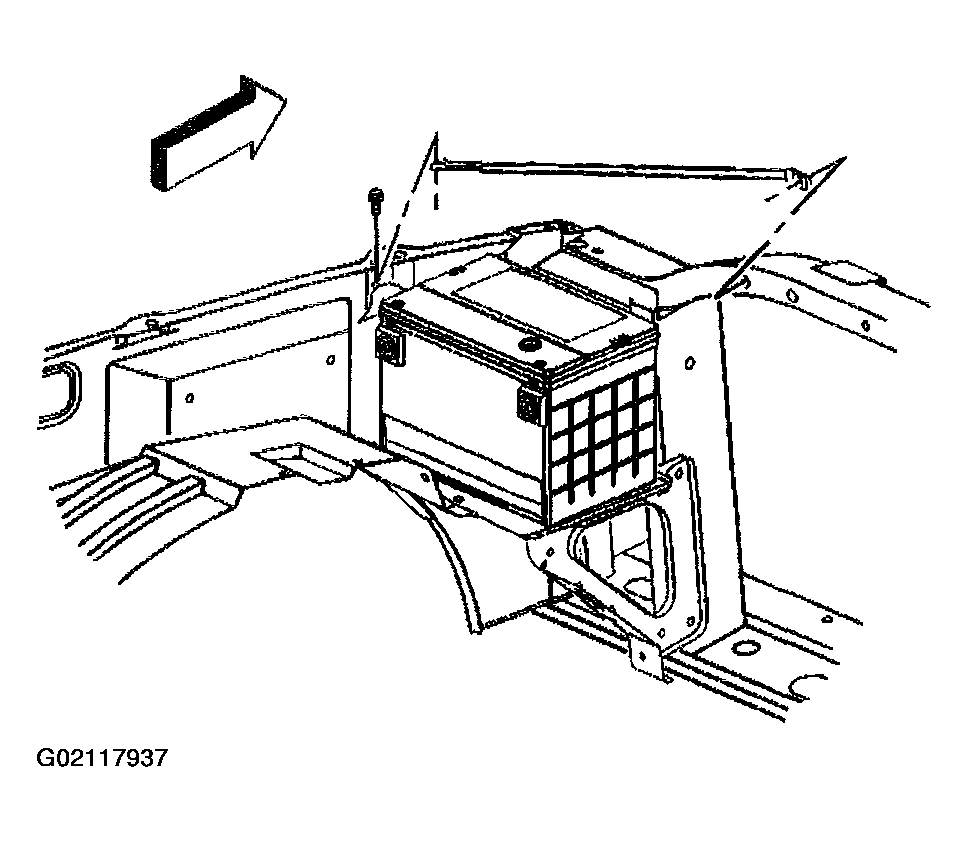

    Fig 2: Installing Front End Diagonal Brace And Bolts
    G02117937Courtesy of GENERAL MOTORS CORP.
  5. Connect the positive battery cable.

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

  6. Snap the positive battery cable cap closed.

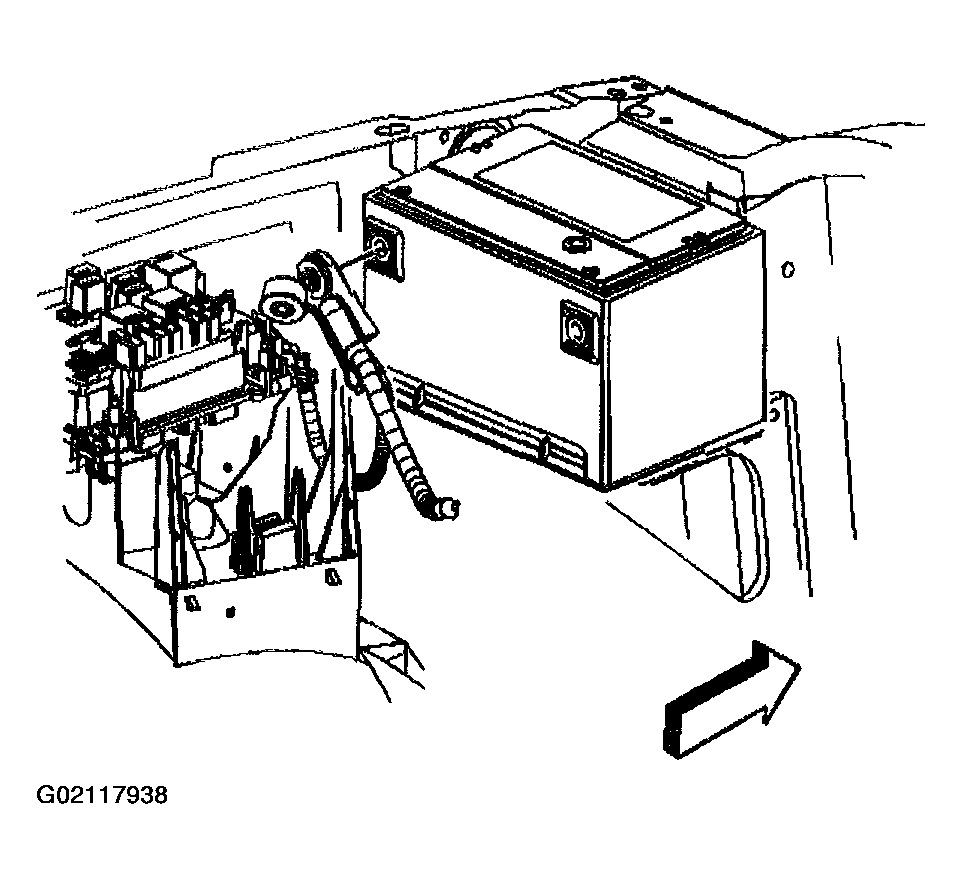

    Fig 3: Connecting Positive Battery Cable
    G02117938Courtesy of GENERAL MOTORS CORP.
  7. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

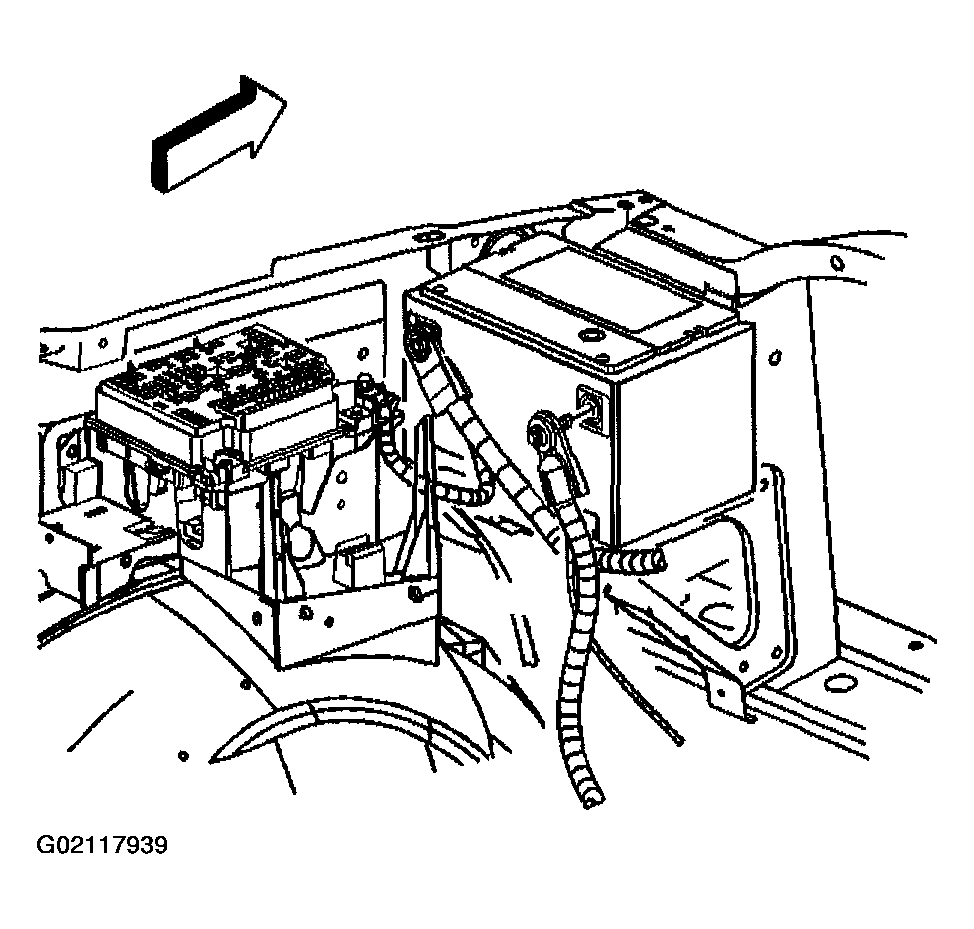

    Fig 4: Connecting Negative Battery Cable
    G02117939Courtesy of GENERAL MOTORS CORP.
