Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the jounce bumper. The 15 series utilities are snap fit.
    NOTE: Refer to Fastener Notice on page P-9 in Cautions and Notices.
  2. Install the jounce bumper bolt.

    Tighten

    Tighten the bolt to 32 N.m (24 lb ft).

  3. Remove the safety stands.
  4. Lower the vehicle.

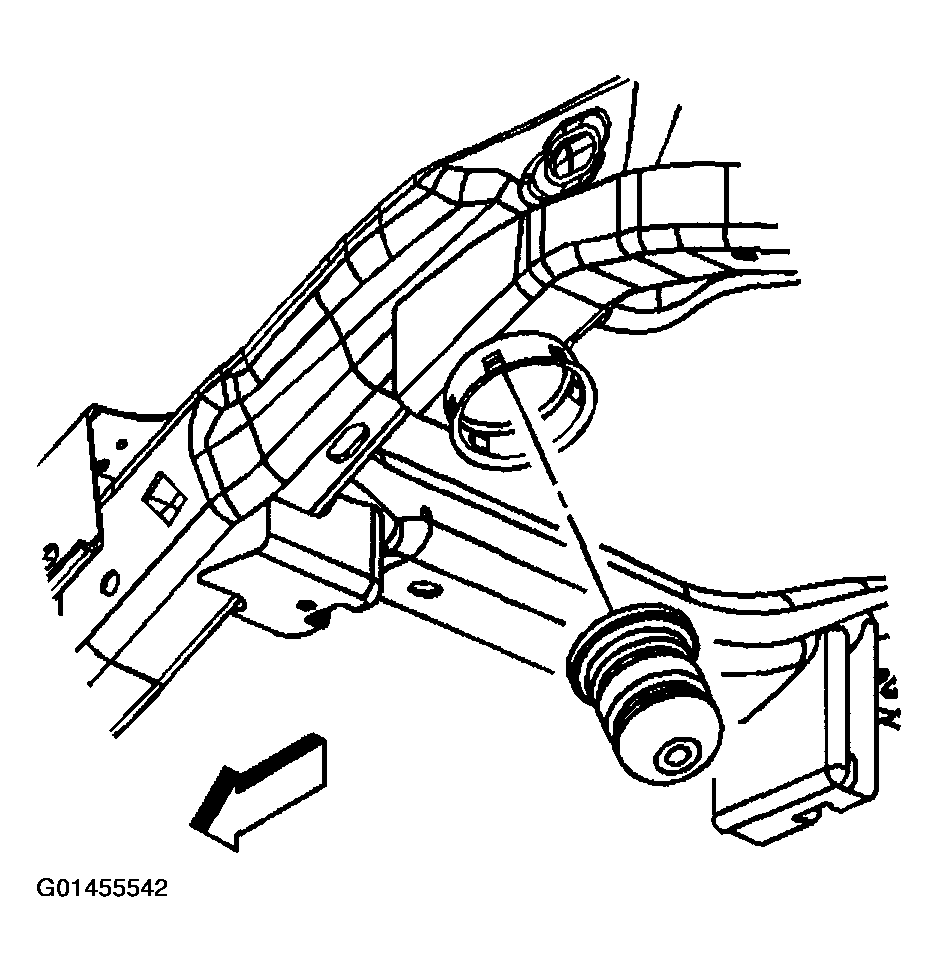

    Fig 1: Installing Jounce Bumper
    G01455542Courtesy of GENERAL MOTORS CORP.
