Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply rubber lubricant to the bushing (1) and spring eye (2).
  2. Install the bushing to the leaf spring.
    1. Place the leaf spring in a press.
    2. Press the bushing into the spring.
  3. Install the leaf spring assembly to the vehicle. Refer to LEAF SPRING REPLACEMENT  .
  4. Remove the safety stands.
  5. Lower the vehicle.

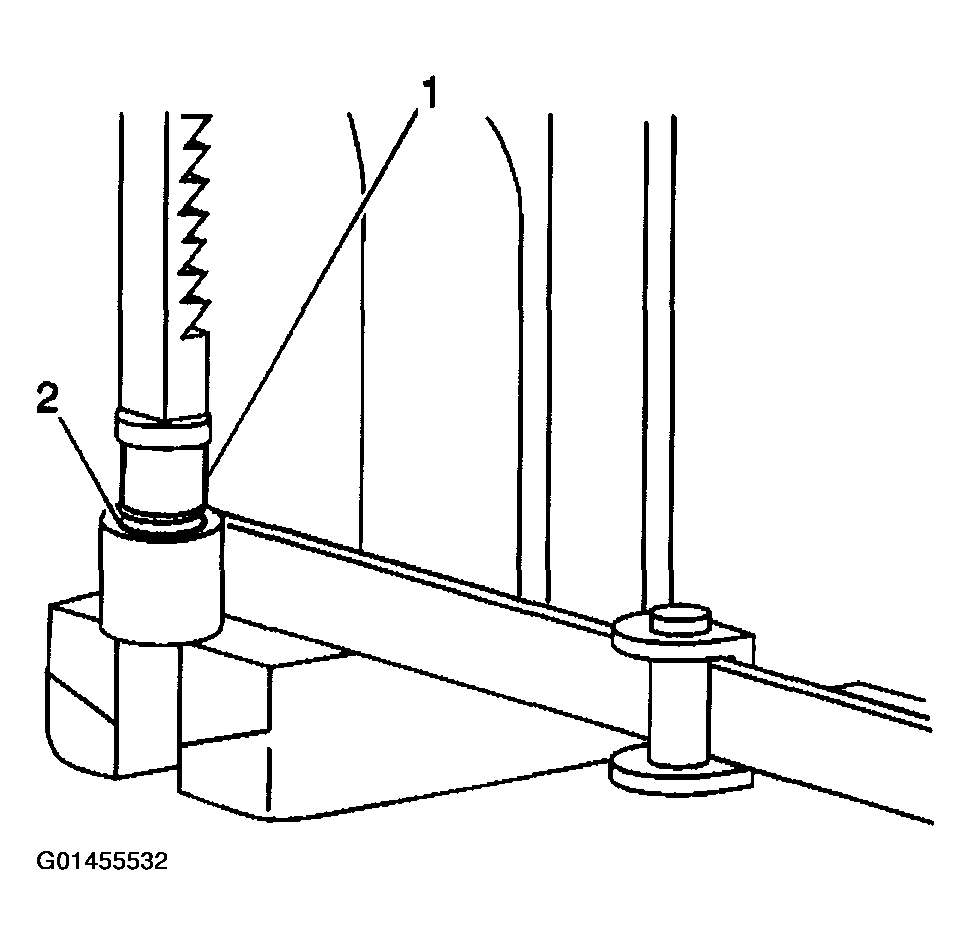

    Fig 1: Installing Bushing To Leaf Spring
    G01455532Courtesy of GENERAL MOTORS CORP.
