Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the leaf spring assembly from vehicle. Refer to LEAF SPRING REPLACEMENT  .
  3. Remove the bushing from the leaf spring using the following procedure:
    1. Place the leaf spring in a press.
    2. Press the bushing out.
    3. Clean the spring bushing bore of any foreign or old bushing material.

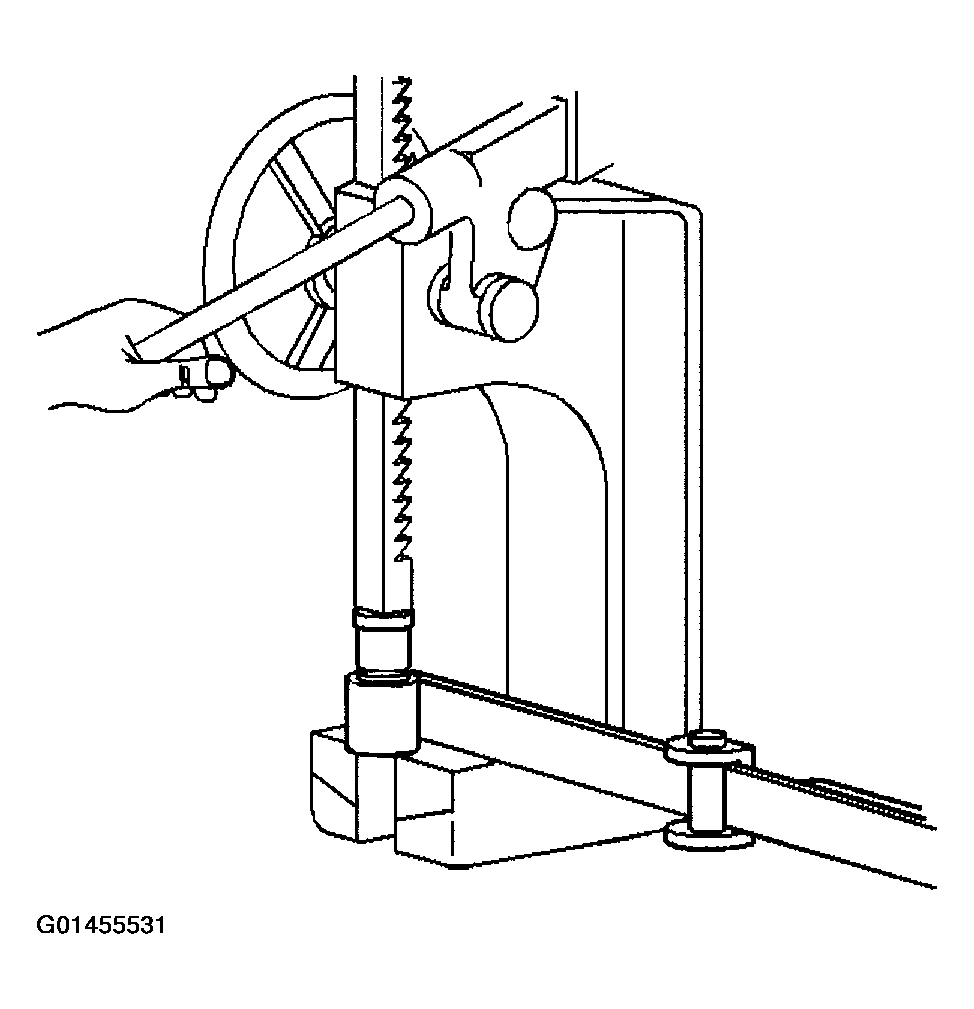

    Fig 1: Removing Bushing From Leaf Spring
    G01455531Courtesy of GENERAL MOTORS CORP.
