Data Link Communications Connector End Views
WARNING:
This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

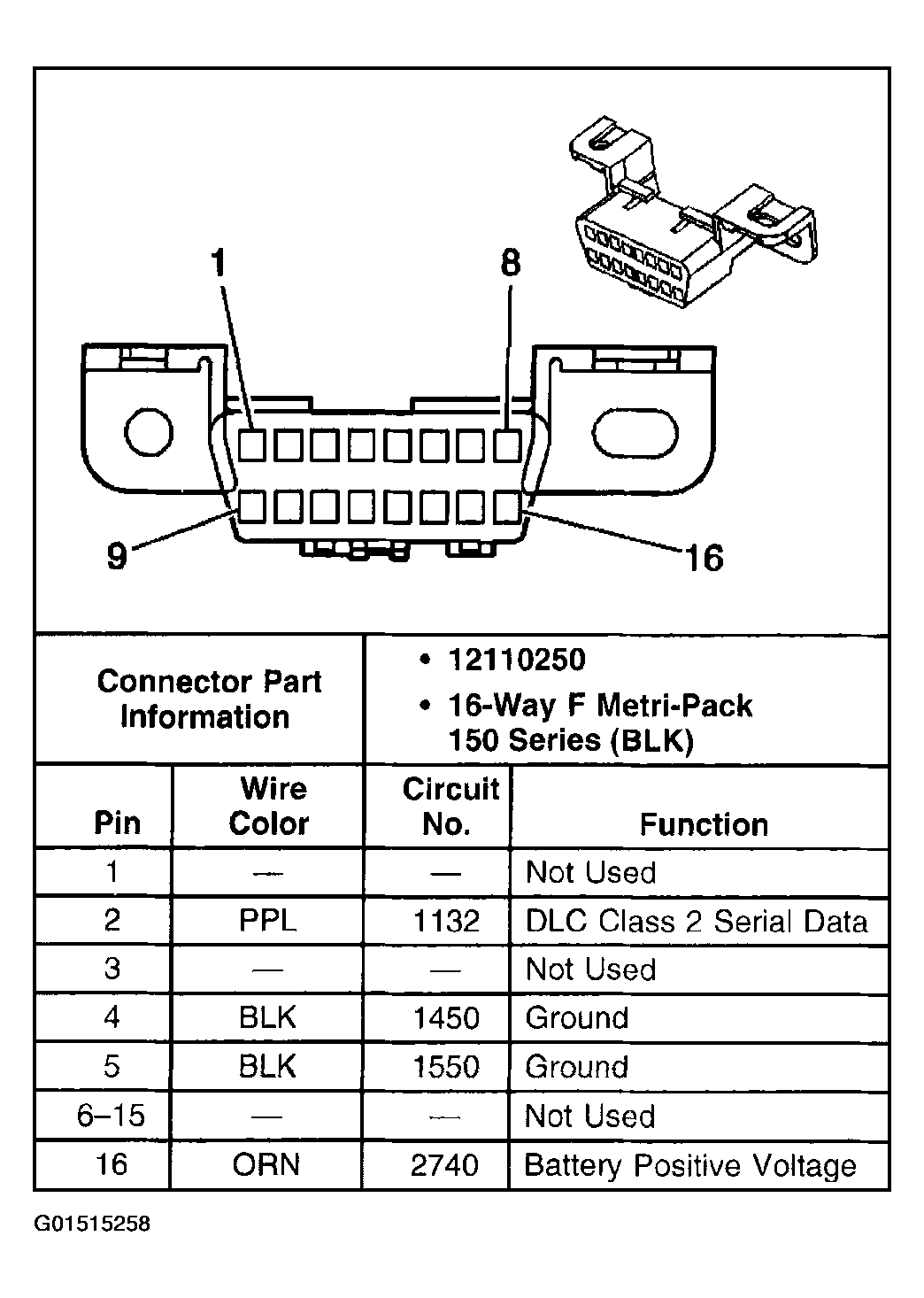

Fig 1: Identifying Data Link Connector (DLC) Terminals
Courtesy of GENERAL MOTORS CORP.

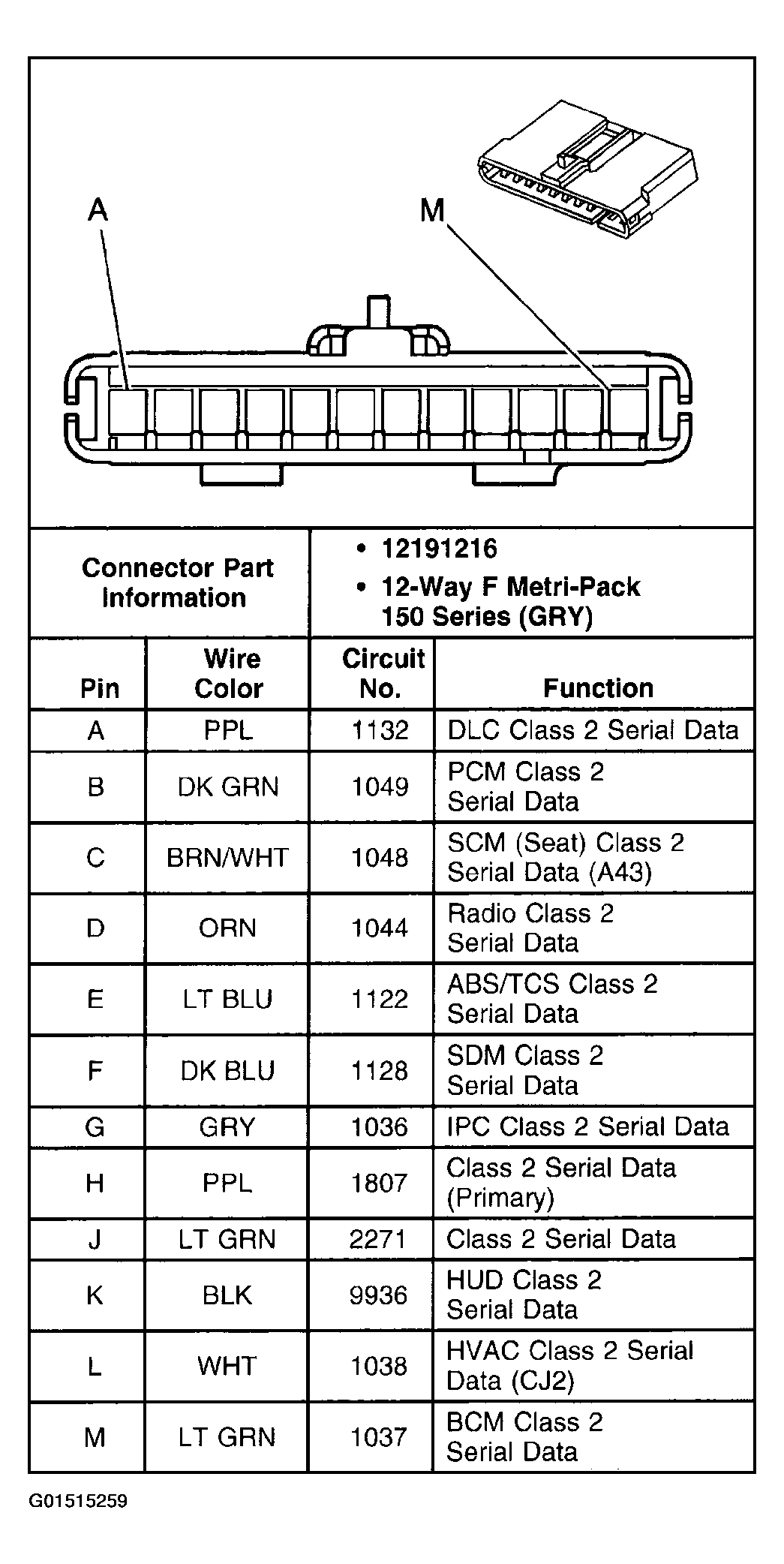

Fig 2: Identifying Splice Pack (SP205) Terminals
Courtesy of GENERAL MOTORS CORP.
