Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor control processor assembly to the HVAC module assembly.
  2. Install the rearward mounting screw.

    Tighten

    Tighten the screw to 1.8 N.m (16 Ib. in).

  3. Install the forward mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 Ib. in).

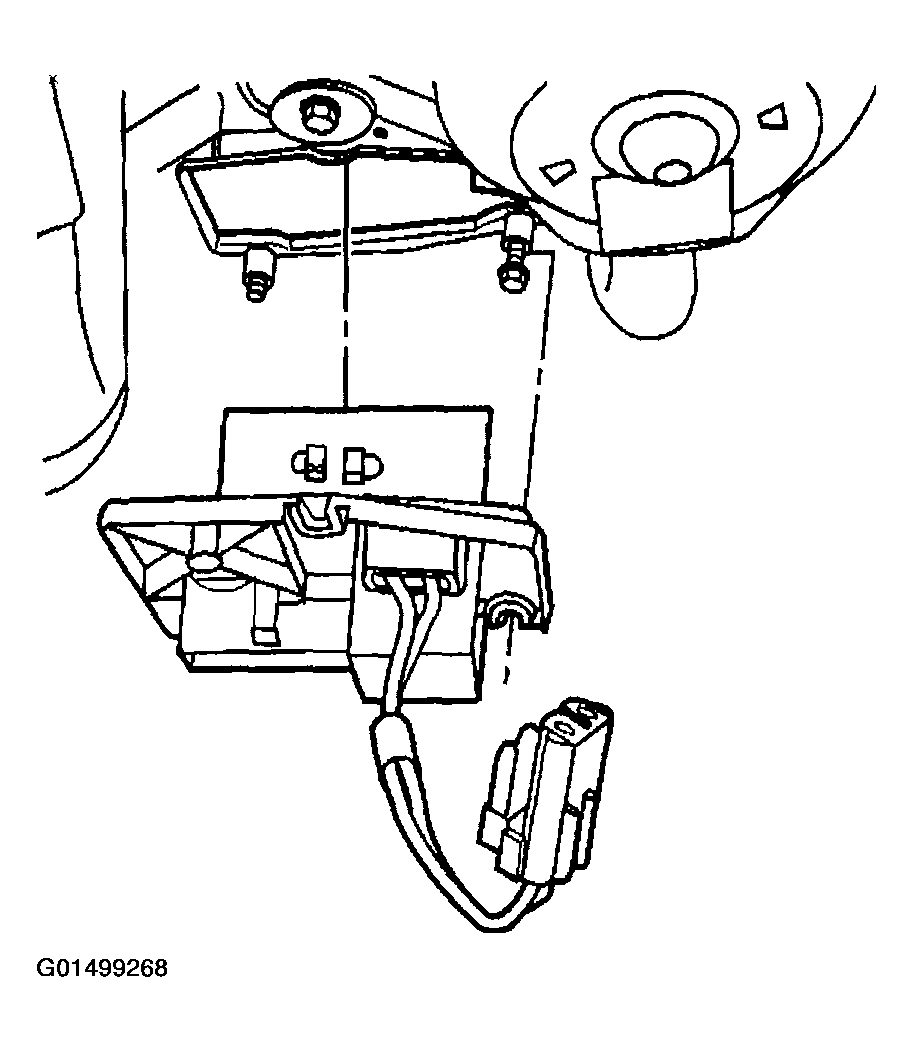

    Fig 1: Installing Blower Control Processor Assembly From HVAC Module Assembly
    G01499268Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the blower control processor assembly.
  5. Install the blower motor to the HVAC module assembly.
  6. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb ft).

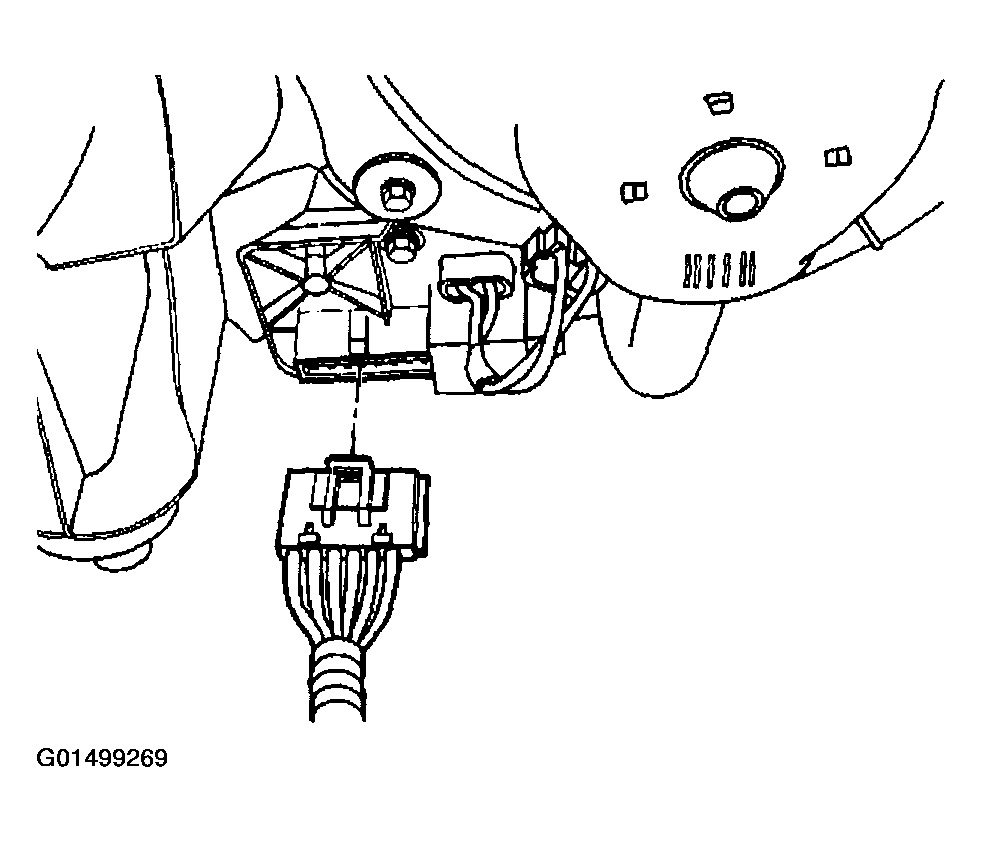

    Fig 2: Connecting Electrical Connector To Blower Control Processor Assembly
    G01499269Courtesy of GENERAL MOTORS CORP.
  7. Connect the blower motor electrical connector.
  8. Install the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

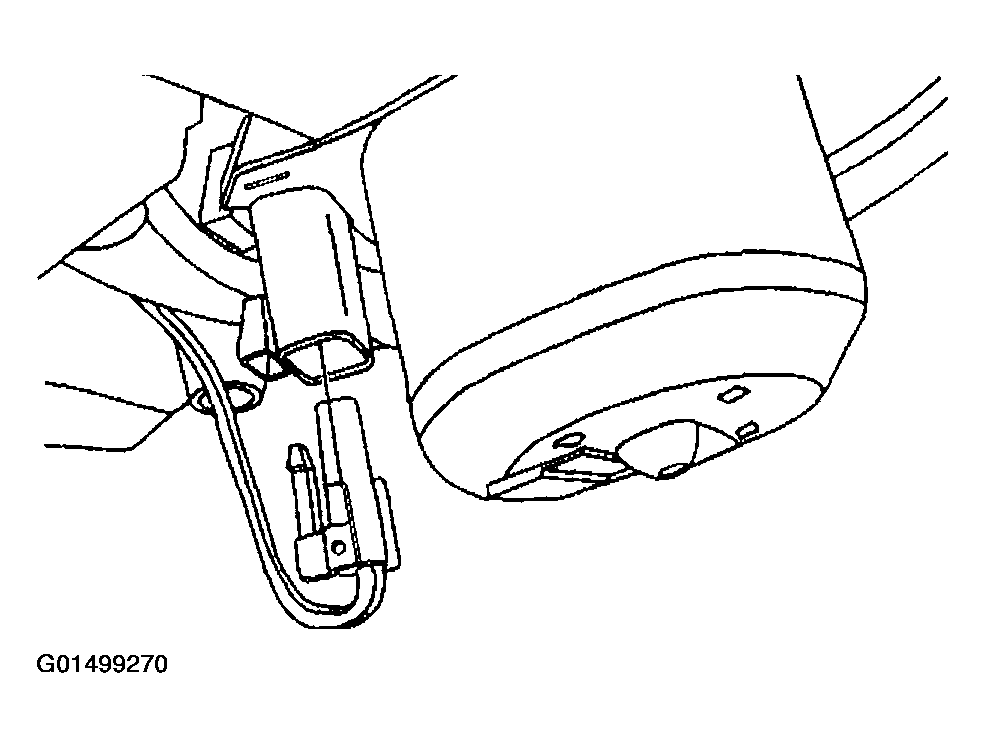

    Fig 3: Connecting Blower Motor Electrical Connector
    G01499270Courtesy of GENERAL MOTORS CORP.
