Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  2. Disconnect the blower motor electrical connector.
  3. Remove the blower motor mounting screws.
  4. Remove the blower motor from the HVAC module assembly.

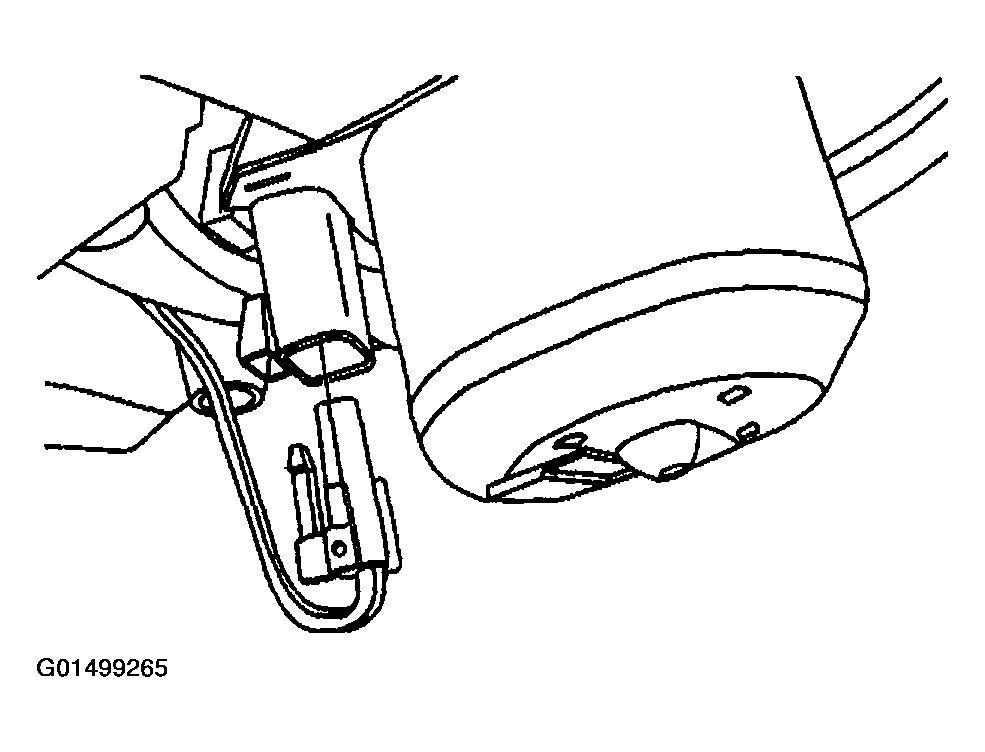

    Fig 1: Disconnecting Blower Motor Electrical Connector
    G01499265Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the blower motor control processor assembly.

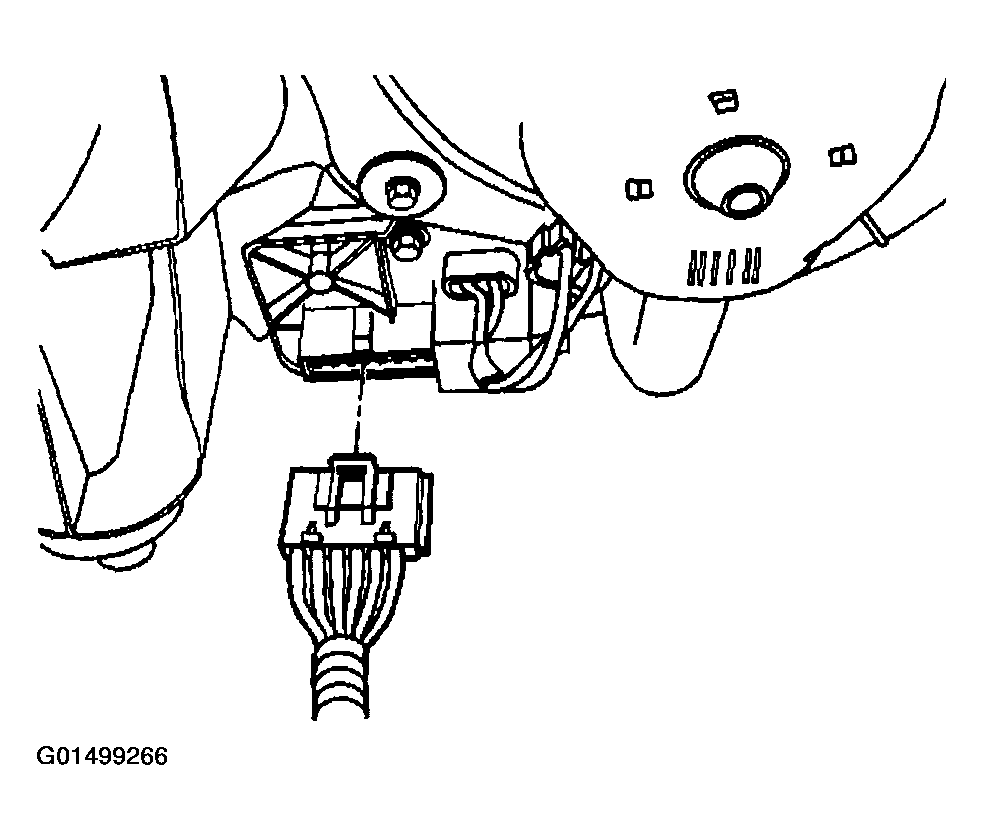

    Fig 2: Disconnecting Electrical Connector From Blower Motor Control Processor Assembly
    G01499266Courtesy of GENERAL MOTORS CORP.
  6. Remove the forward blower control processor mounting screws.
  7. Remove the rearward blower control processor mounting screw.
  8. Remove the blower control processor assembly from the HVAC module assembly.

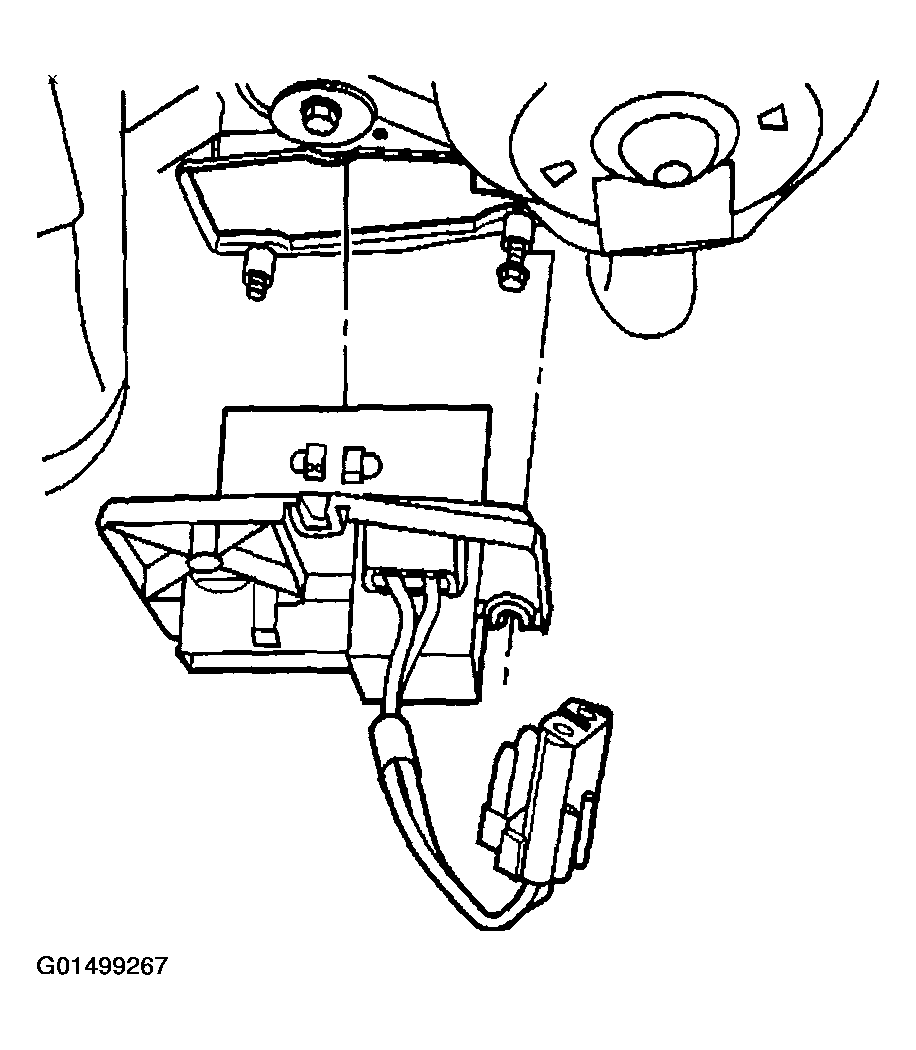

    Fig 3: Removing Blower Control Processor Assembly From HVAC Module Assembly
    G01499267Courtesy of GENERAL MOTORS CORP.
