Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation actuator.
  2. Install the recirculation actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 Ib. in).

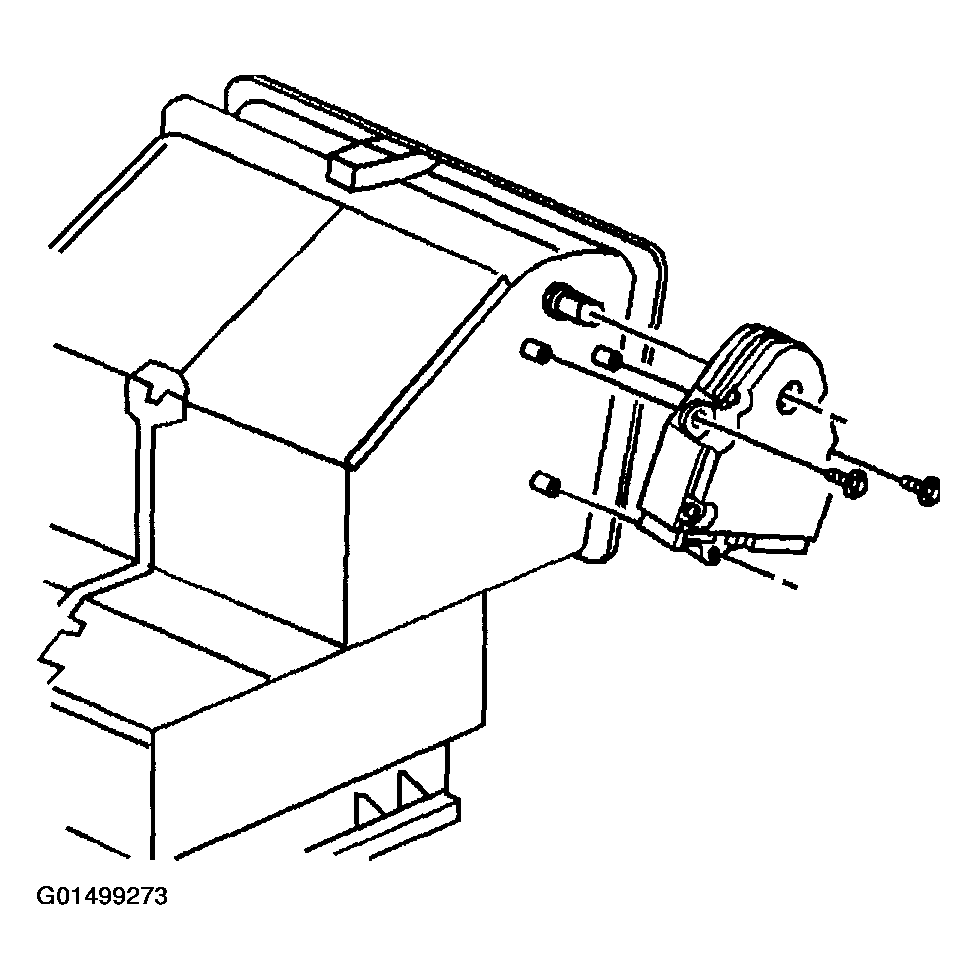

    Fig 1: Installing Mounting Screws And Recirculation Actuator
    G01499273Courtesy of GENERAL MOTORS CORP.
  3. Connect the recirculation actuator electrical connector.
  4. Install the upper I/P trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .

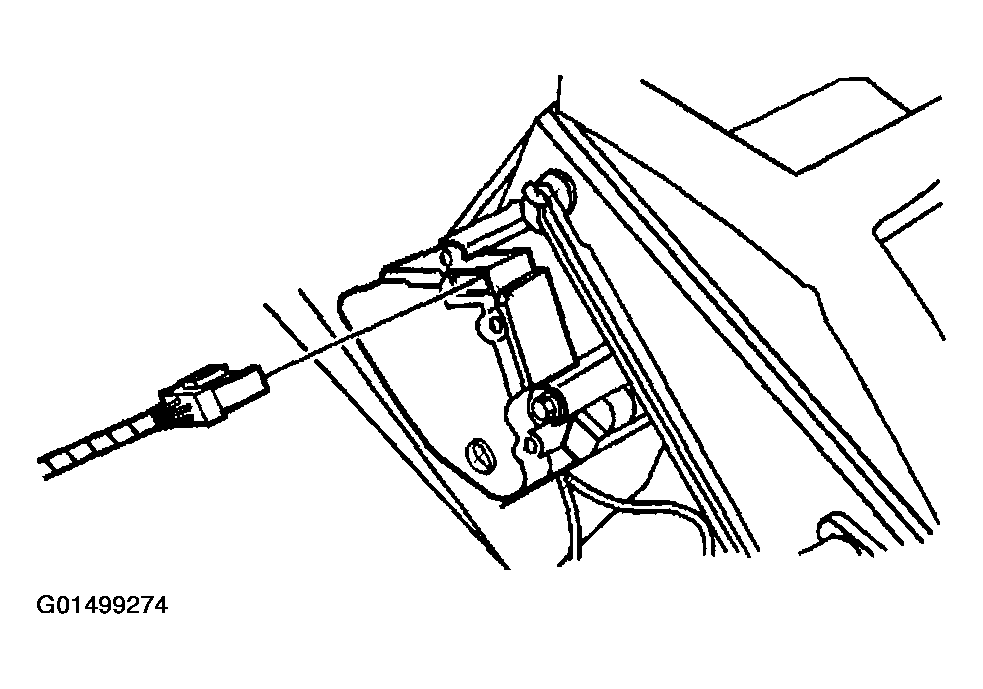

    Fig 2: Connecting Recirculation Actuator Electrical Connector
    G01499274Courtesy of GENERAL MOTORS CORP.
