Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

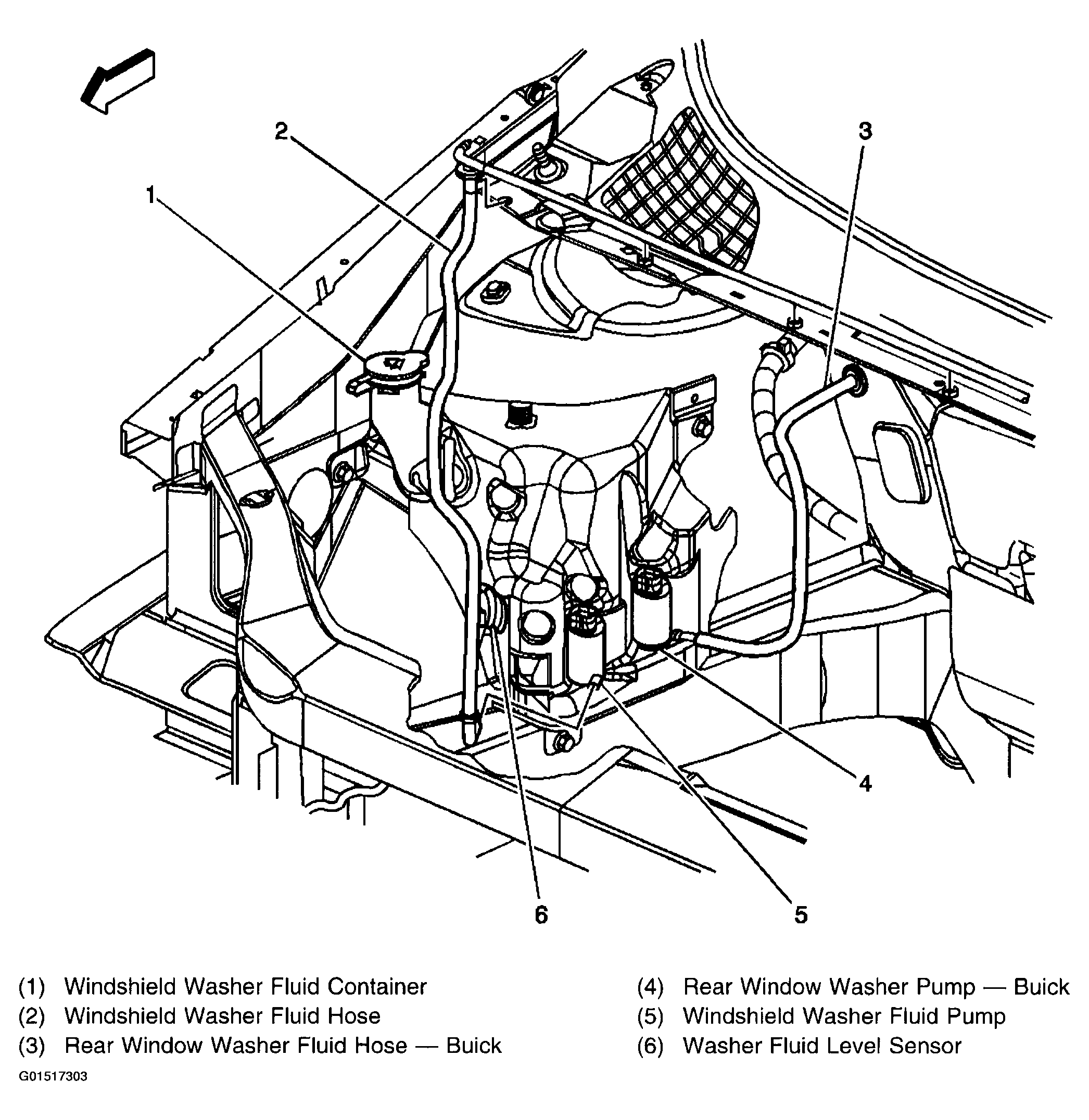

Fig 2: Locating Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

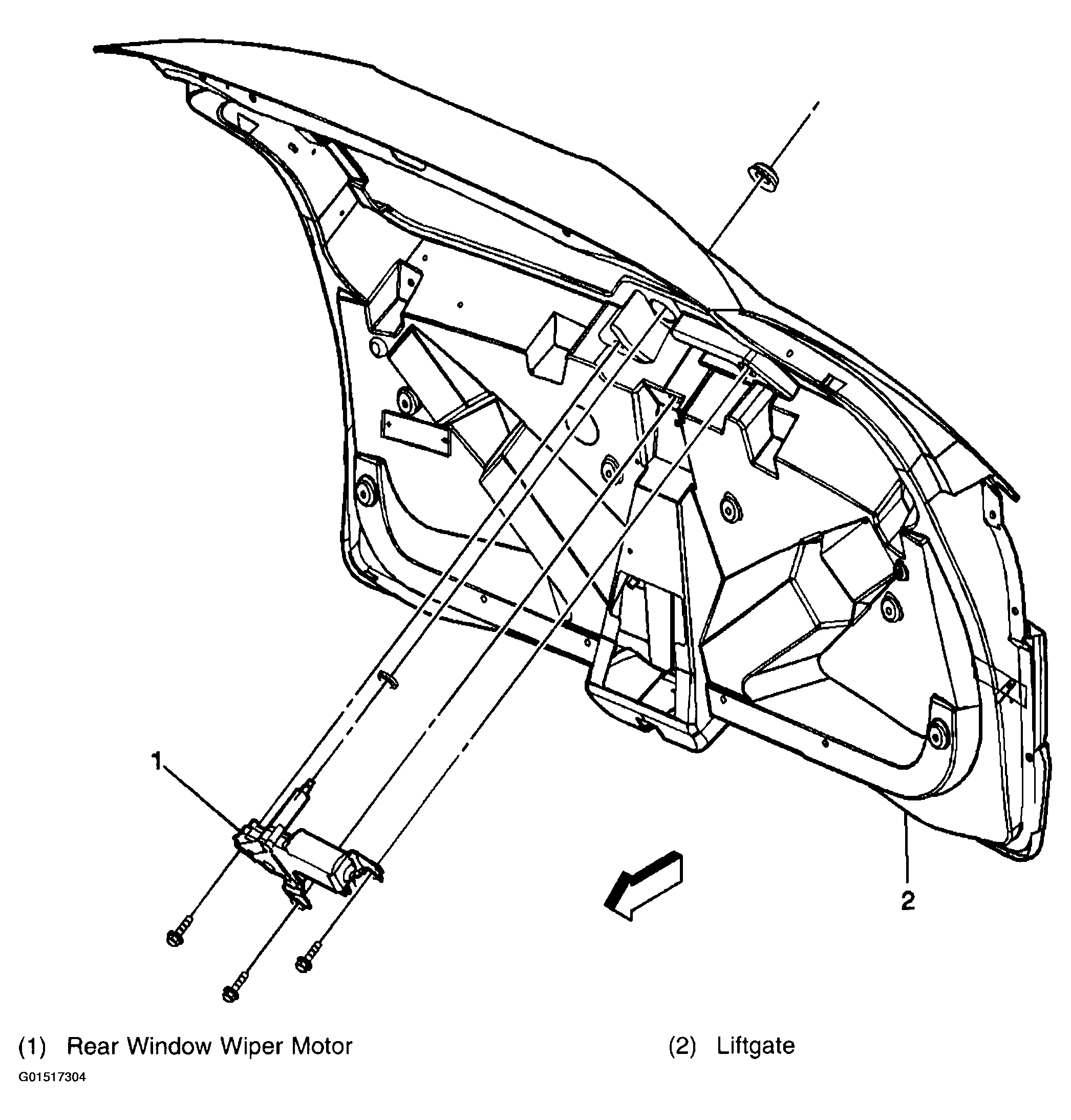

Fig 3: Locating Rear Window Wiper Motor - Buick

Courtesy of GENERAL MOTORS CORP.
