Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

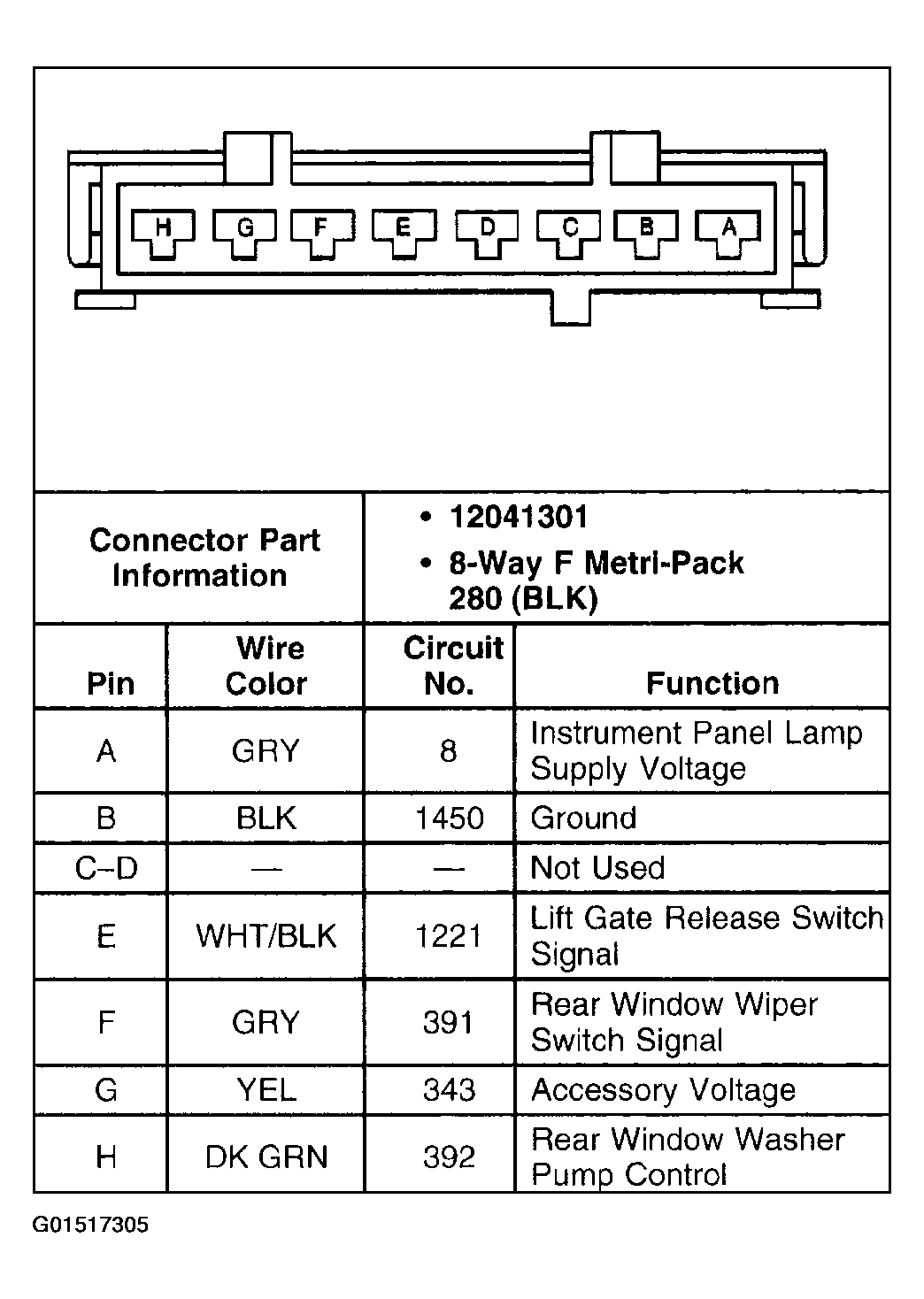

Fig 1: Identifying Instrument Panel Switch Assembly C1 Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

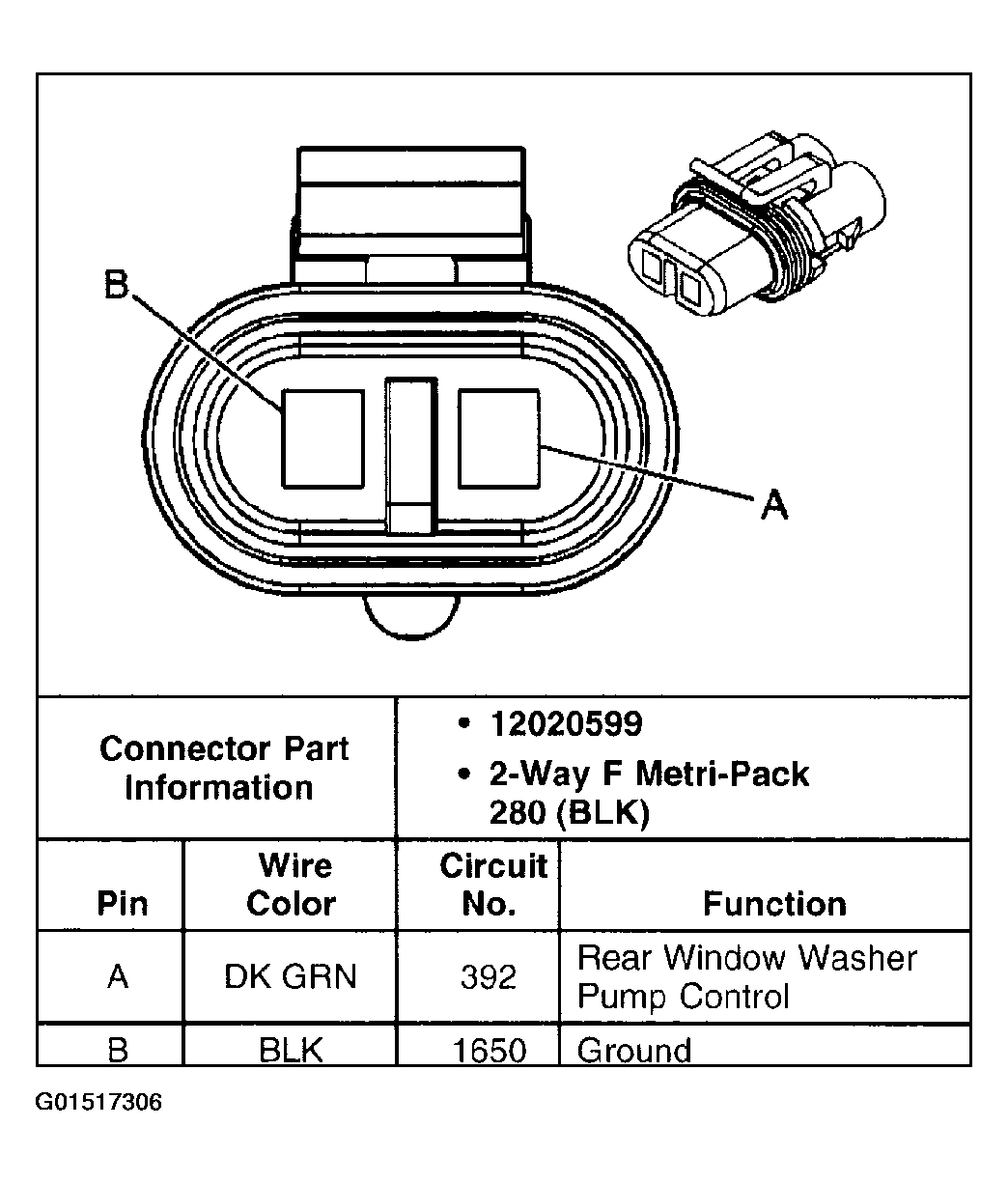

Fig 2: Identifying Rear Window Washer Fluid Pump Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Rear Window Wiper Motor Harness Connector (Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Windshield Washer Fluid Level Switch Harness Connector

Courtesy of GENERAL MOTORS CORP.

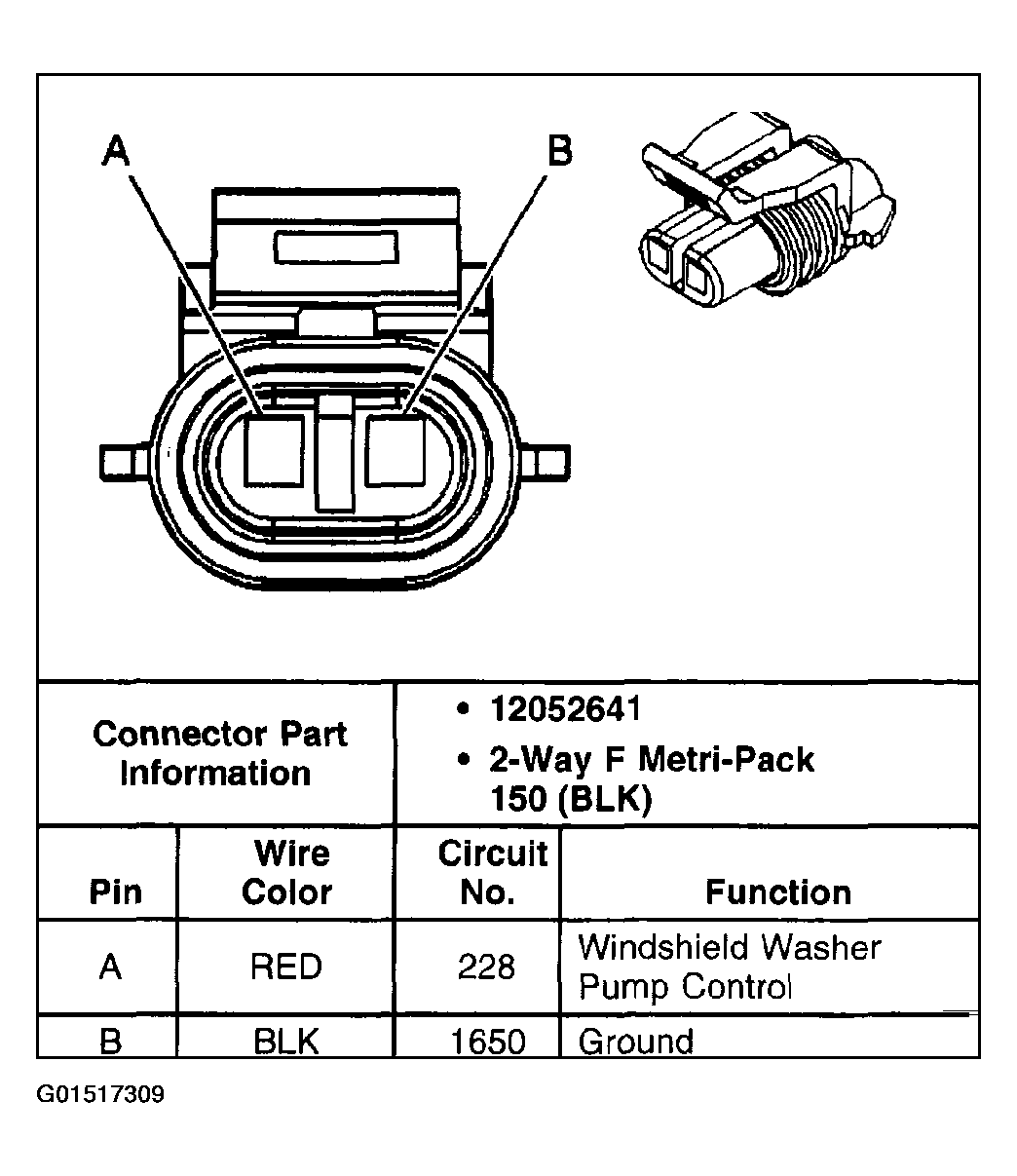

Fig 5: Identifying Windshield Washer Fluid Pump Harness Connector

Courtesy of GENERAL MOTORS CORP.

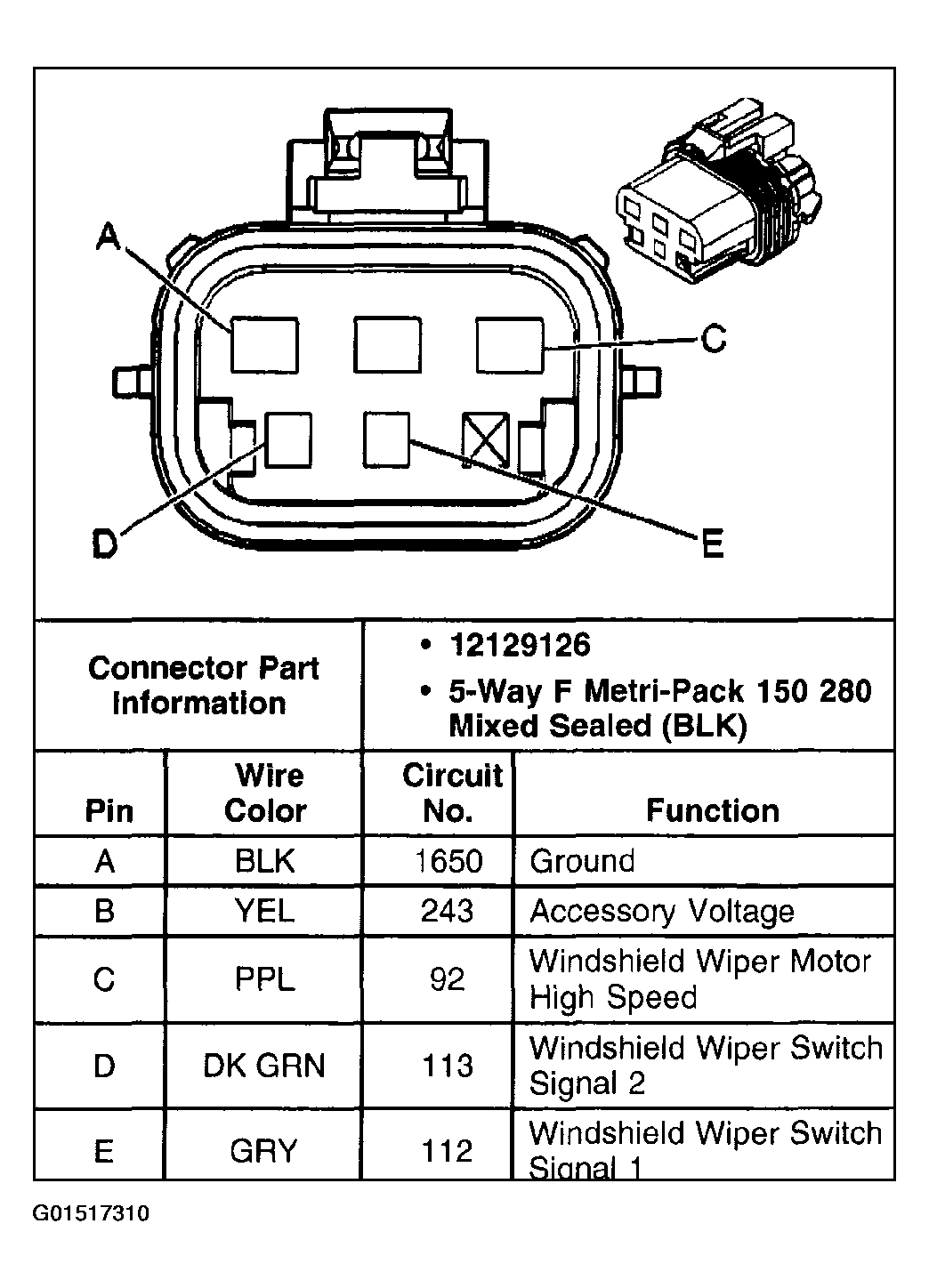

Fig 6: Identifying Windshield Wiper Motor Harness Connector

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Turn Signal/Multifunction Switch C3 Harness Connector

Courtesy of GENERAL MOTORS CORP.
