Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper system drive module to the cowl.
  2. Install the wiper system drive module bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Connect the wiper motor cover electrical connector.
  4. Install the cruise control module and bracket. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  5. Install the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  7. Install the wiper arms. Refer to WIPER ARM REPLACEMENT  .

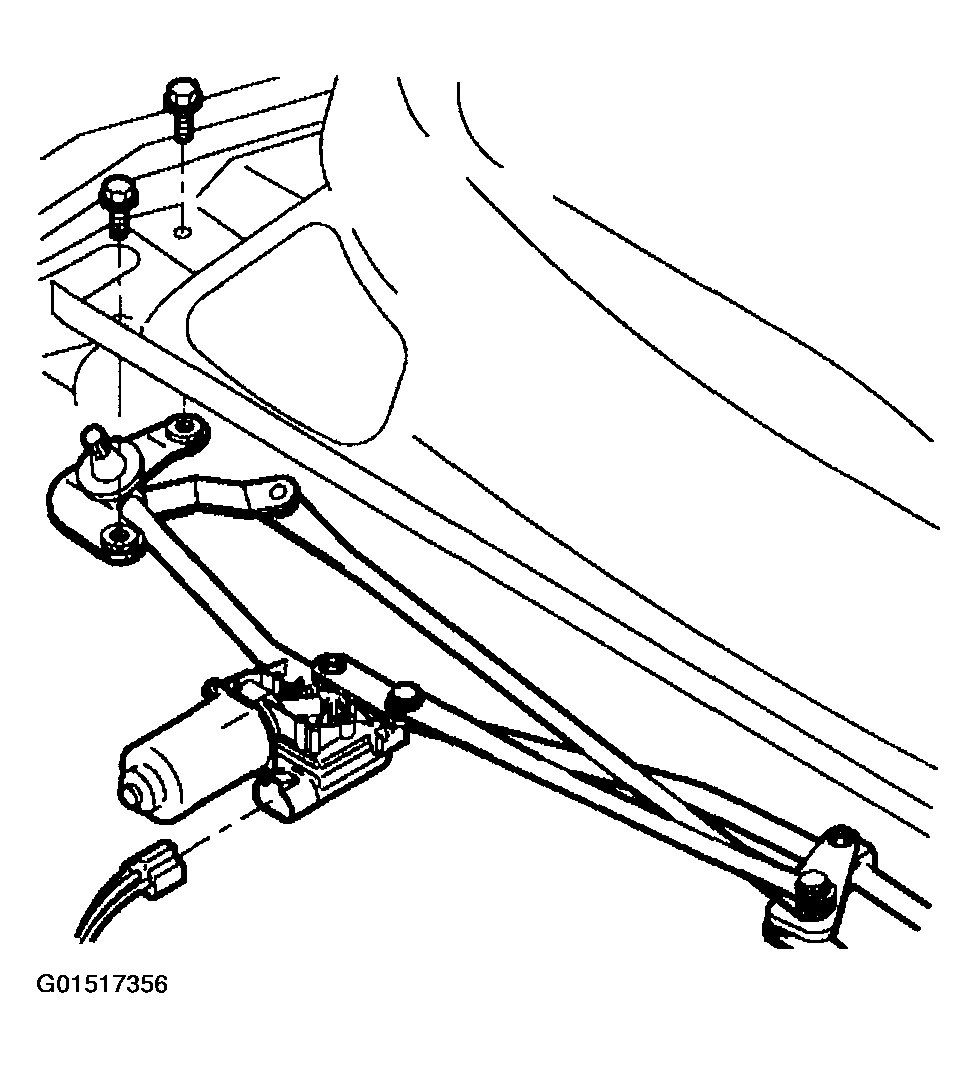

    Fig 1: Positioning Wiper System Drive Module To Cowl
    G01517356Courtesy of GENERAL MOTORS CORP.
