Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT  .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Remove the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  4. Remove the cruise control module. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  5. Disconnect the wiper motor cover electrical connector.
  6. Remove the wiper system drive module bolts.
  7. Remove the wiper system drive module from the engine compartment.

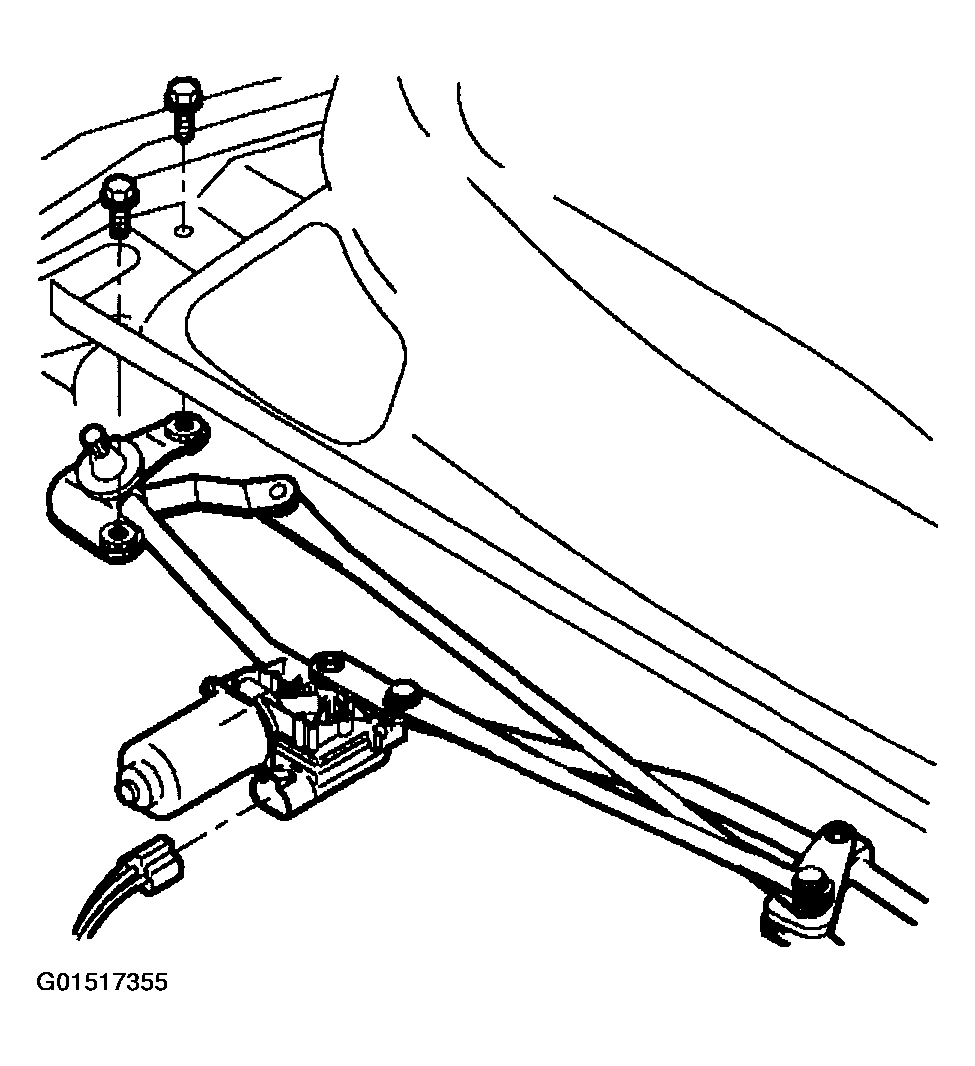

    Fig 1: Removing Wiper System Drive Module From Engine Compartment
    G01517355Courtesy of GENERAL MOTORS CORP.
