Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .
  2. Remove the security indicator lamp (3) from the instrument panel upper trim:
    1. Rotate the lamp counterclockwise to approximately 1/4 turn.
    2. Pull the lamp out.
  3. Disconnect the security indicator lamp electrical connector from the security indicator lamp.

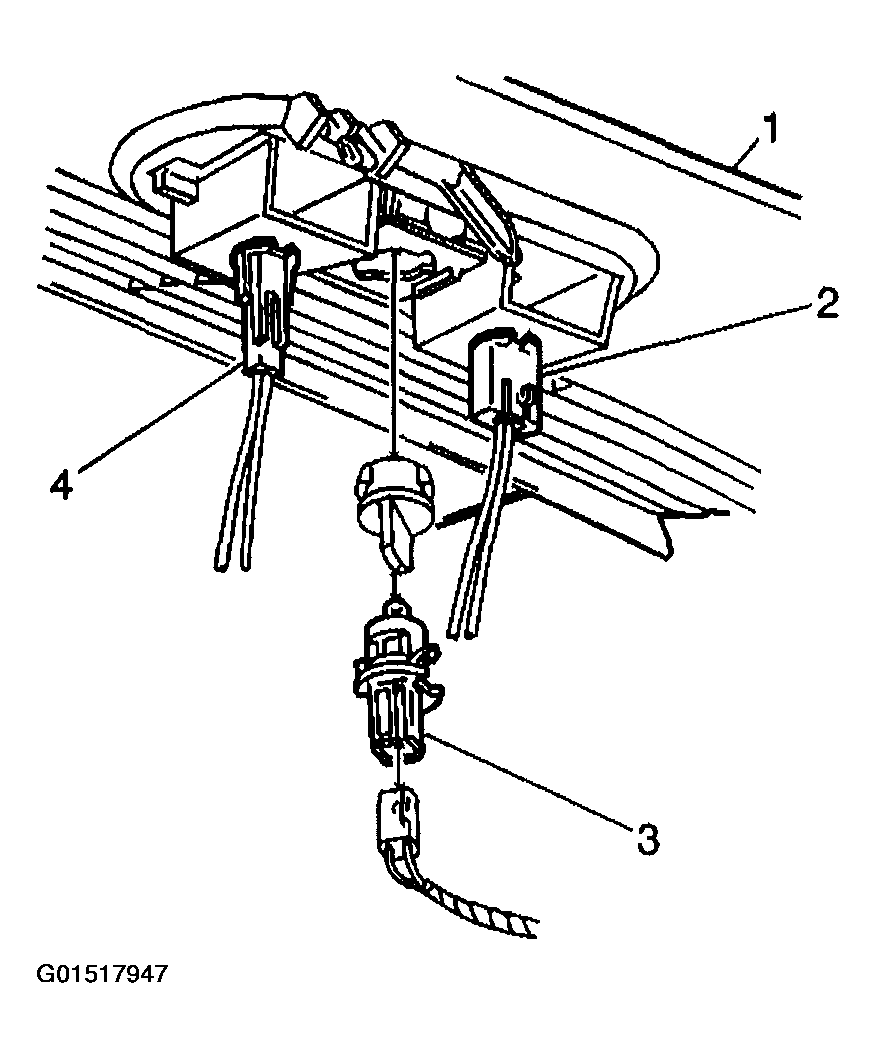

    Fig 1: Disconnecting Security Indicator Lamp Electrical Connector From Security Indicator Lamp
    G01517947Courtesy of GENERAL MOTORS CORP.
