Power Roof Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Sunroof Module C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Sunroof Module C2 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Sunroof Module C2 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

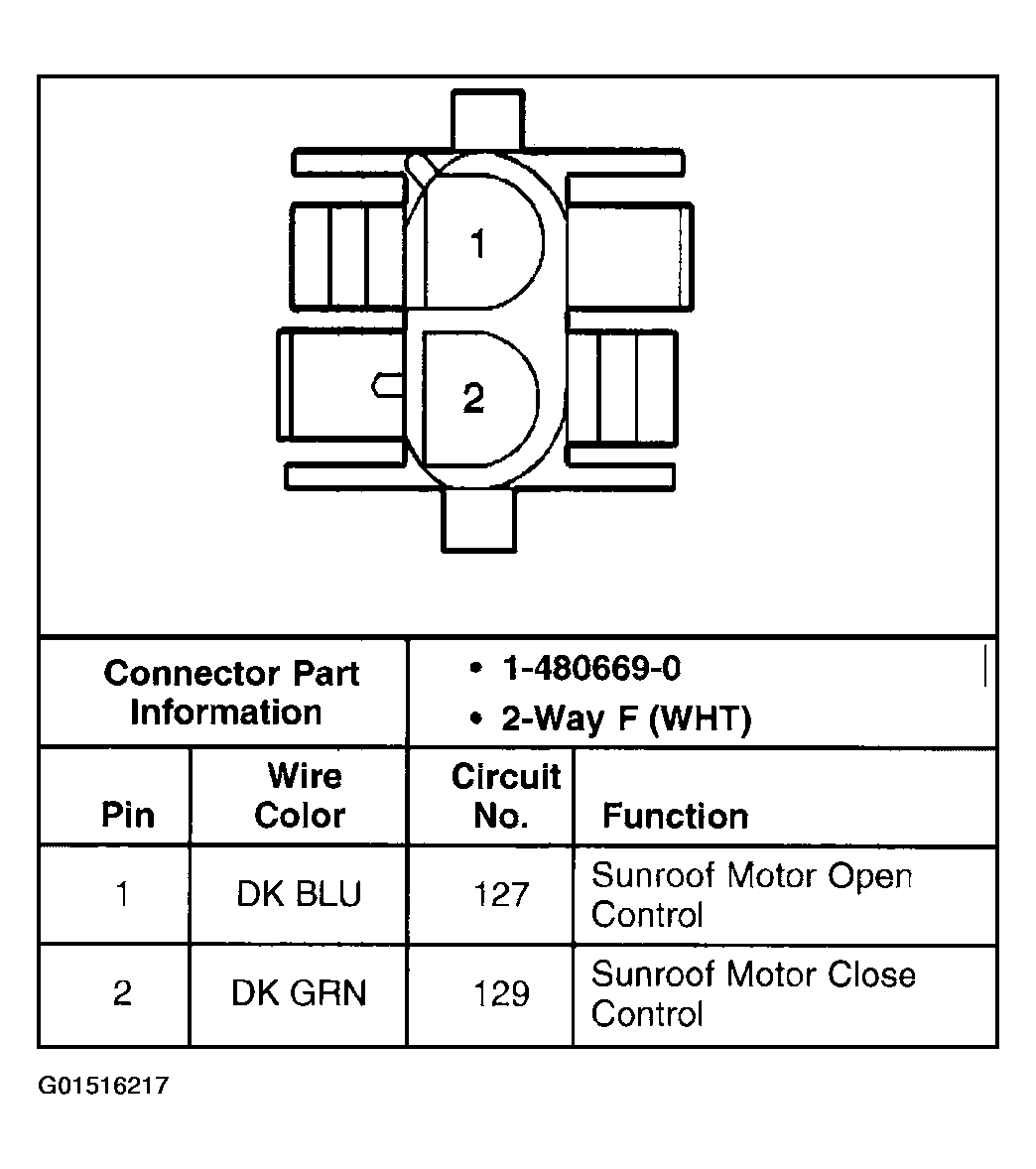

Fig 4: Identifying Sunroof Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Sunroof Positioning Encoding Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

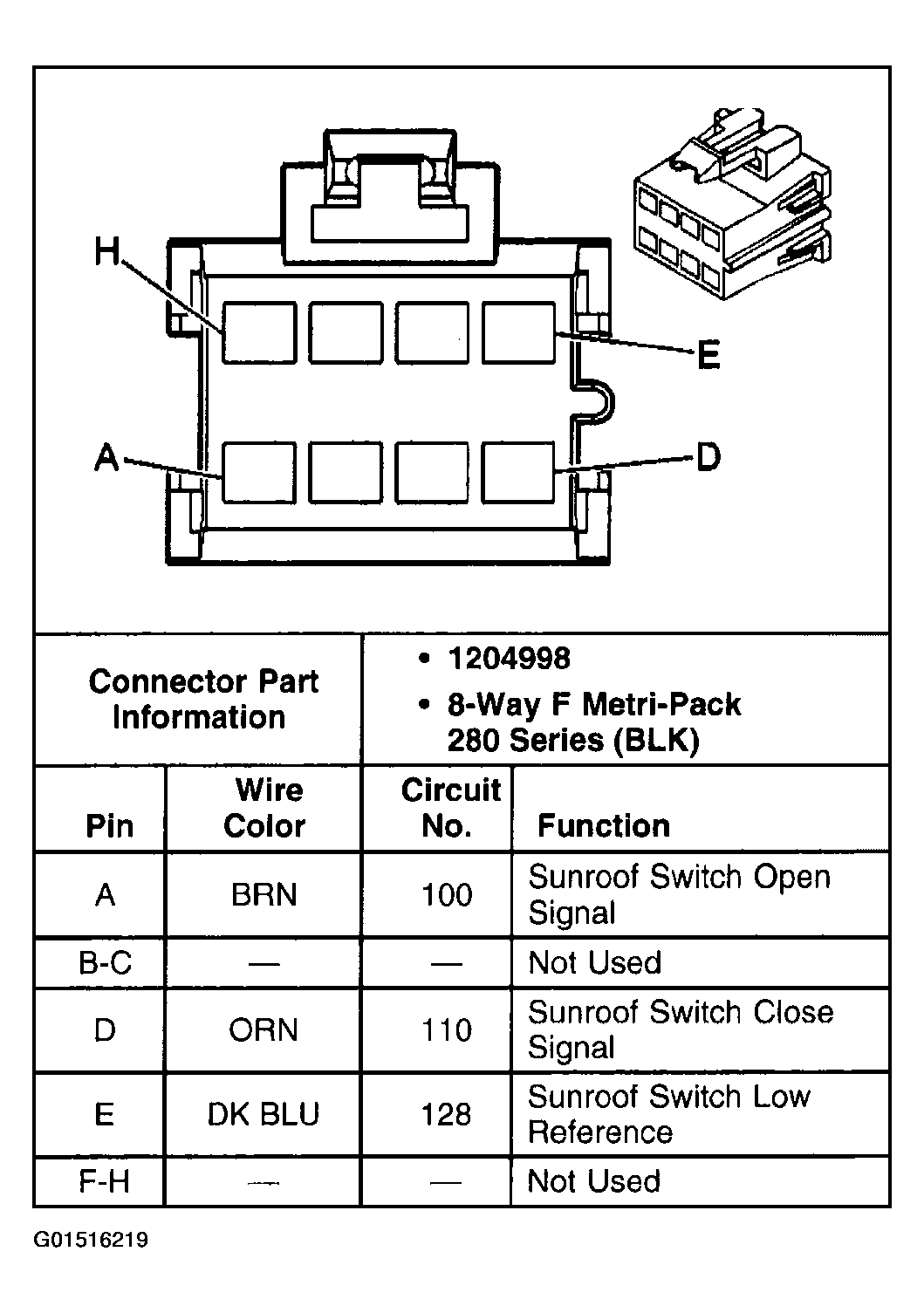

Fig 6: Identifying Sunroof Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.
