Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power sunroof switch to the bezel, pressing until fully seated.
    Fig 1: Installing Power Sunroof Switch To Bezel
    G01516247Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the power sunroof switch.
    Fig 2: Connecting Electrical Connector To Power Sunroof Switch
    G01516248Courtesy of GENERAL MOTORS CORP.
  3. Install the power sunroof switch to the roof, pressing into place until fully seated.

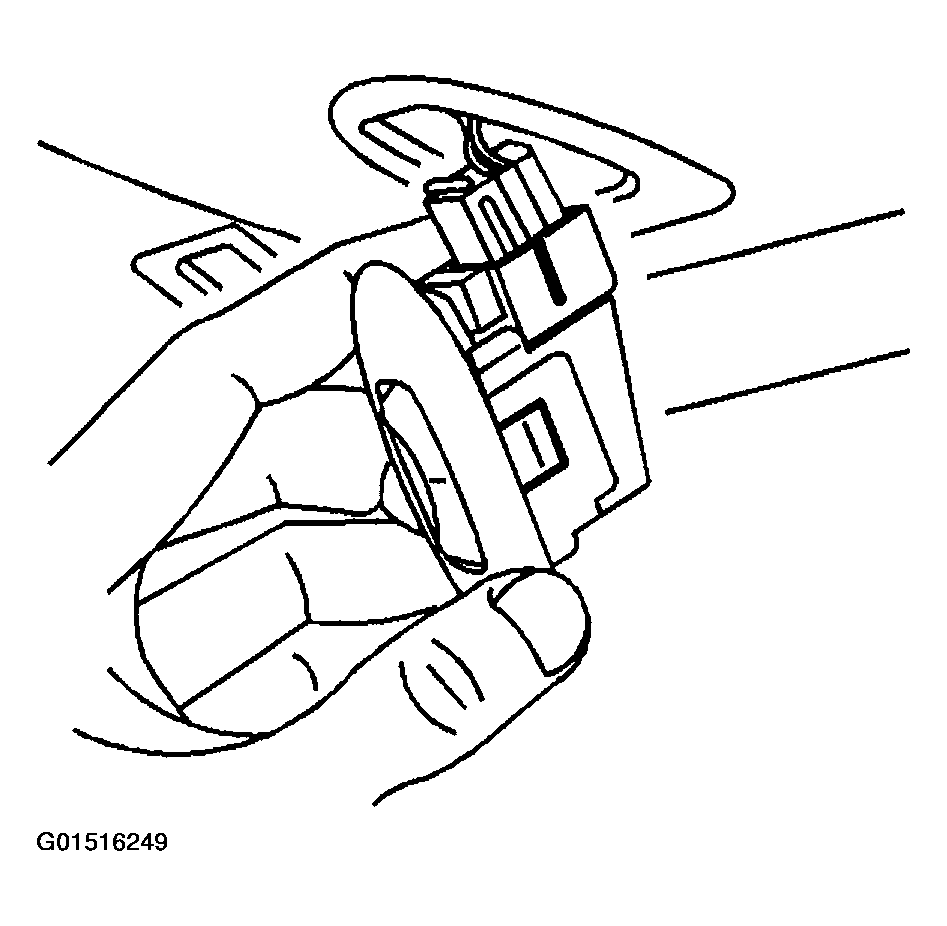

    Fig 3: Installing Power Sunroof Switch To Roof
    G01516249Courtesy of GENERAL MOTORS CORP.
