Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Ensure that the information logo stencil on the sunroof window panel is at the rear of the opening.

Position the sunroof window panel into the sunroof module.

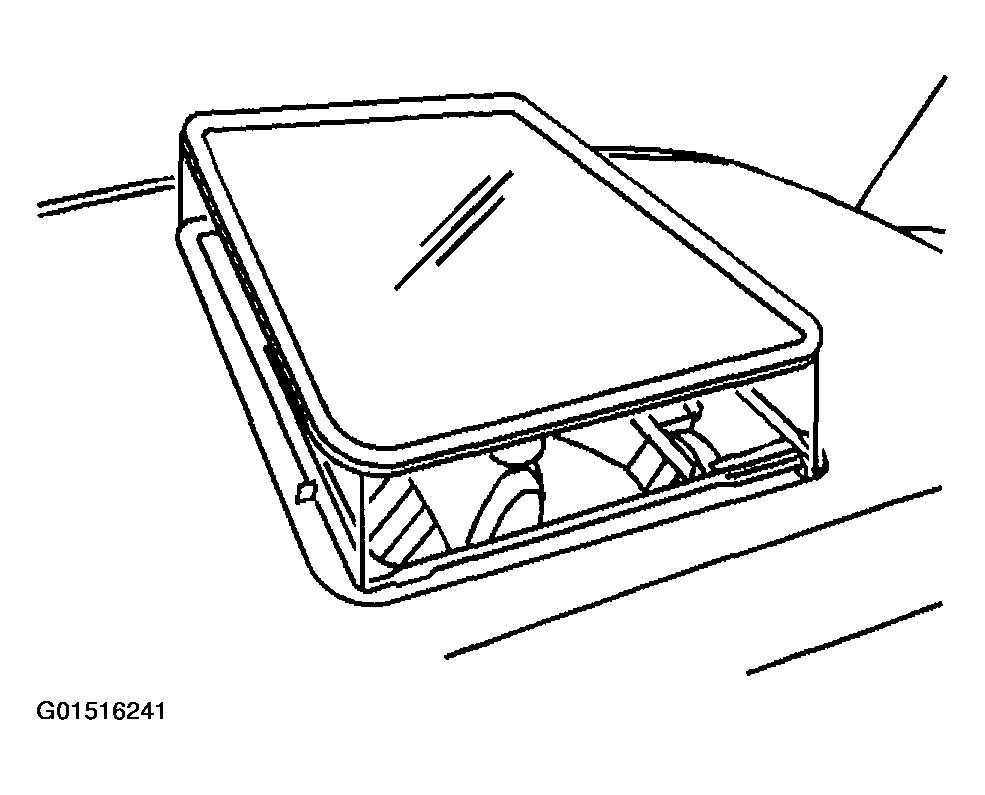

Fig 1: Positioning Sunroof Window Panel Into Sunroof Module
Courtesy of GENERAL MOTORS CORP.
Install the sunroof window panel screws to the sunroof module.
Tighten

Tighten the sunroof window panel screws to 4 N.m (35 lb in).
Adjust the sunroof window panel as necessary. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT .
Inspect the sunroof window panel for proper operation.
Close the sunshade.

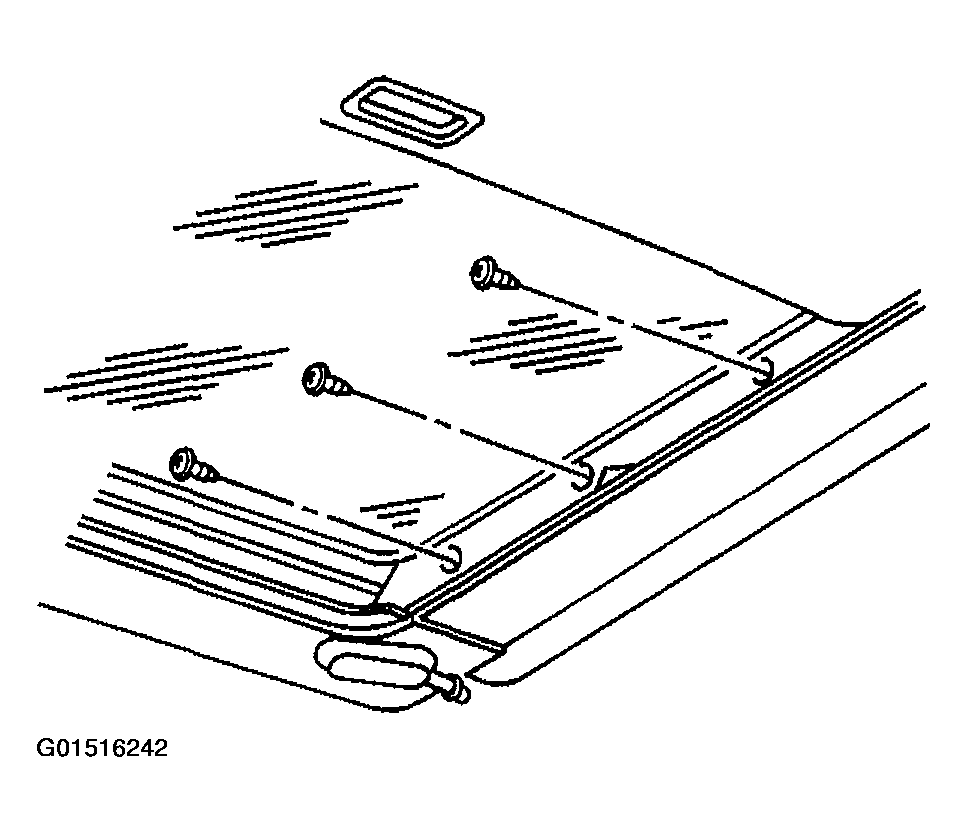

Fig 2: Installing Sunroof Window Panel Screws To Sunroof Module
Courtesy of GENERAL MOTORS CORP.
