Symptom List: Notes
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

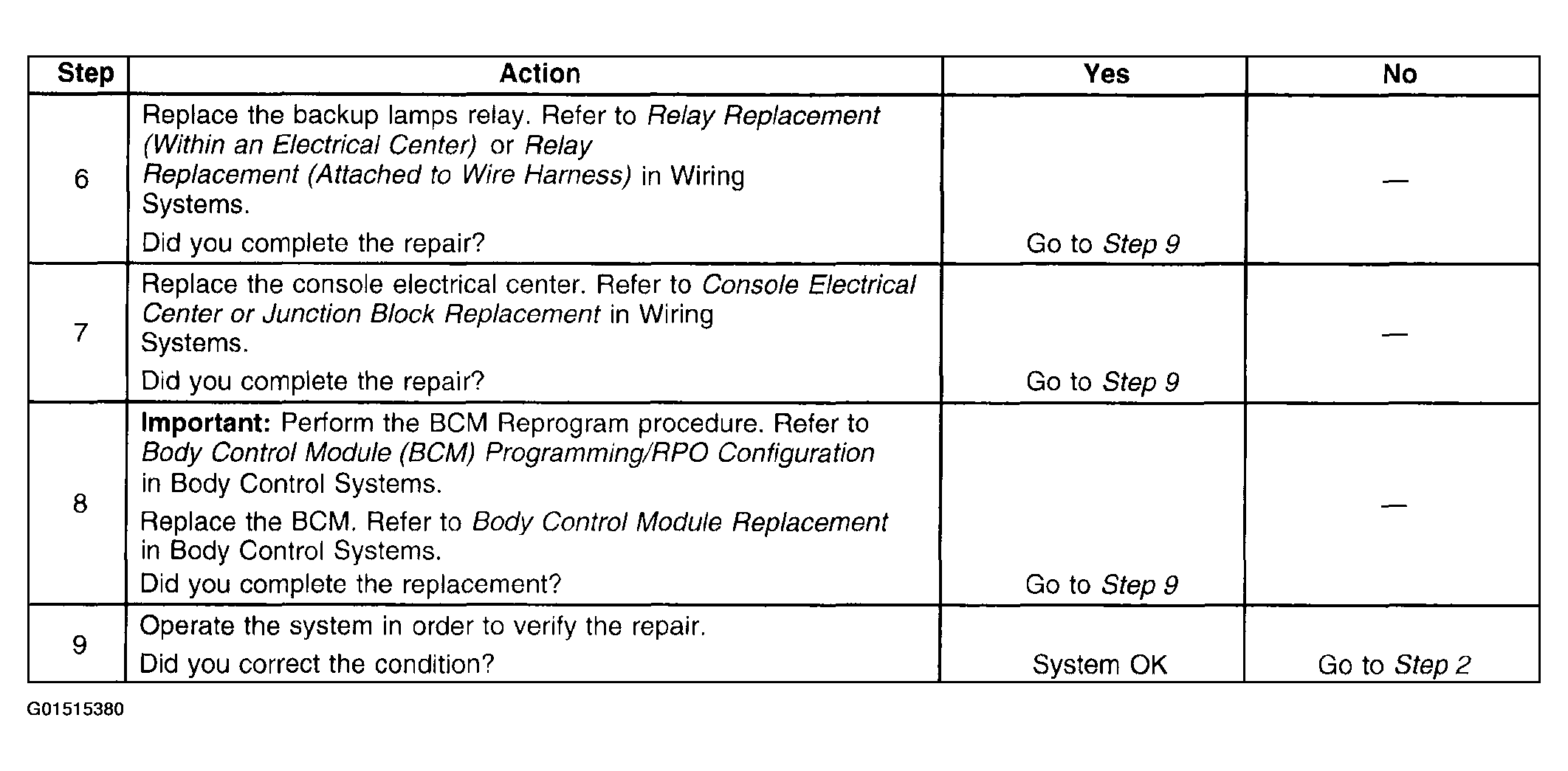

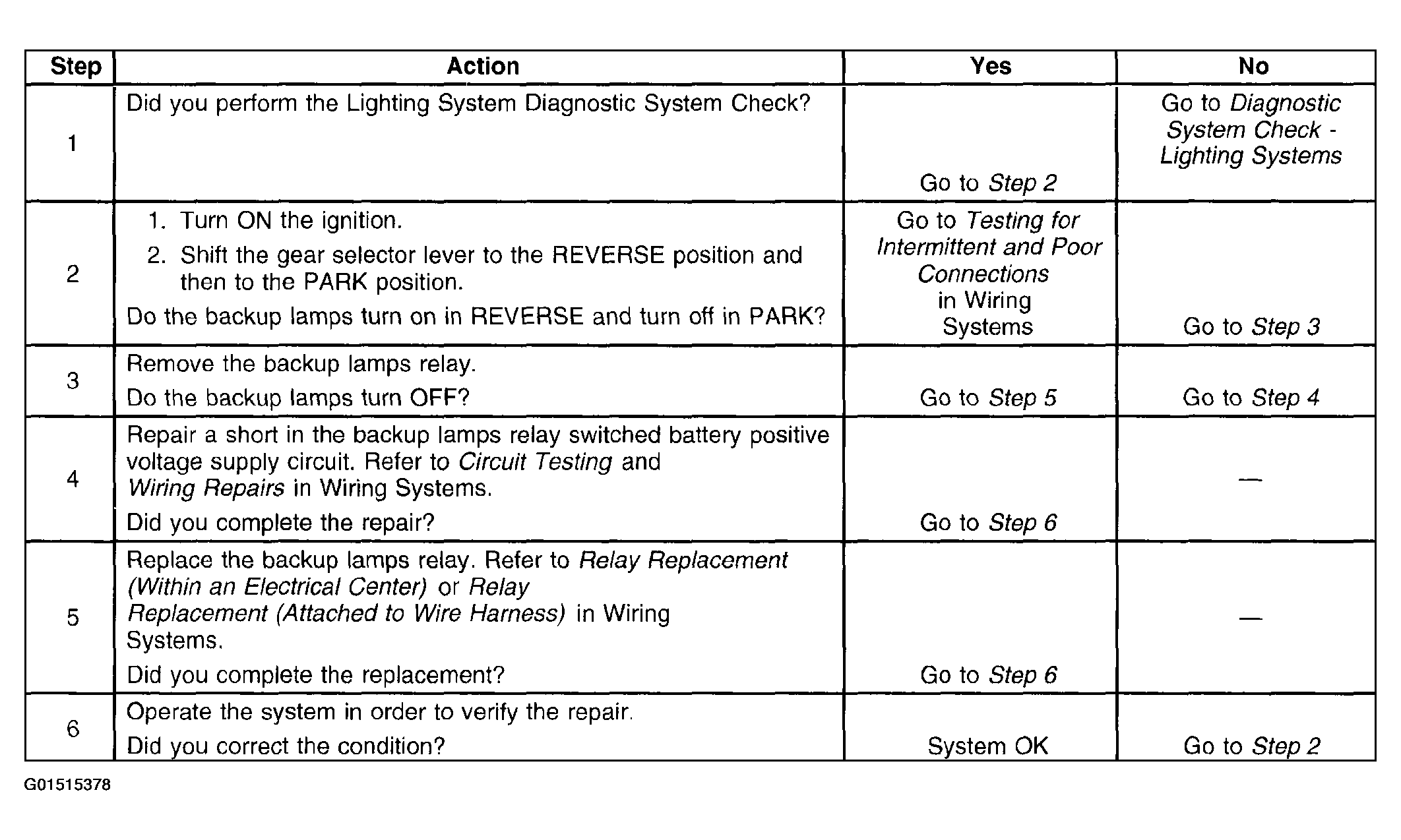

- Backup Lamps Always On. See Figure

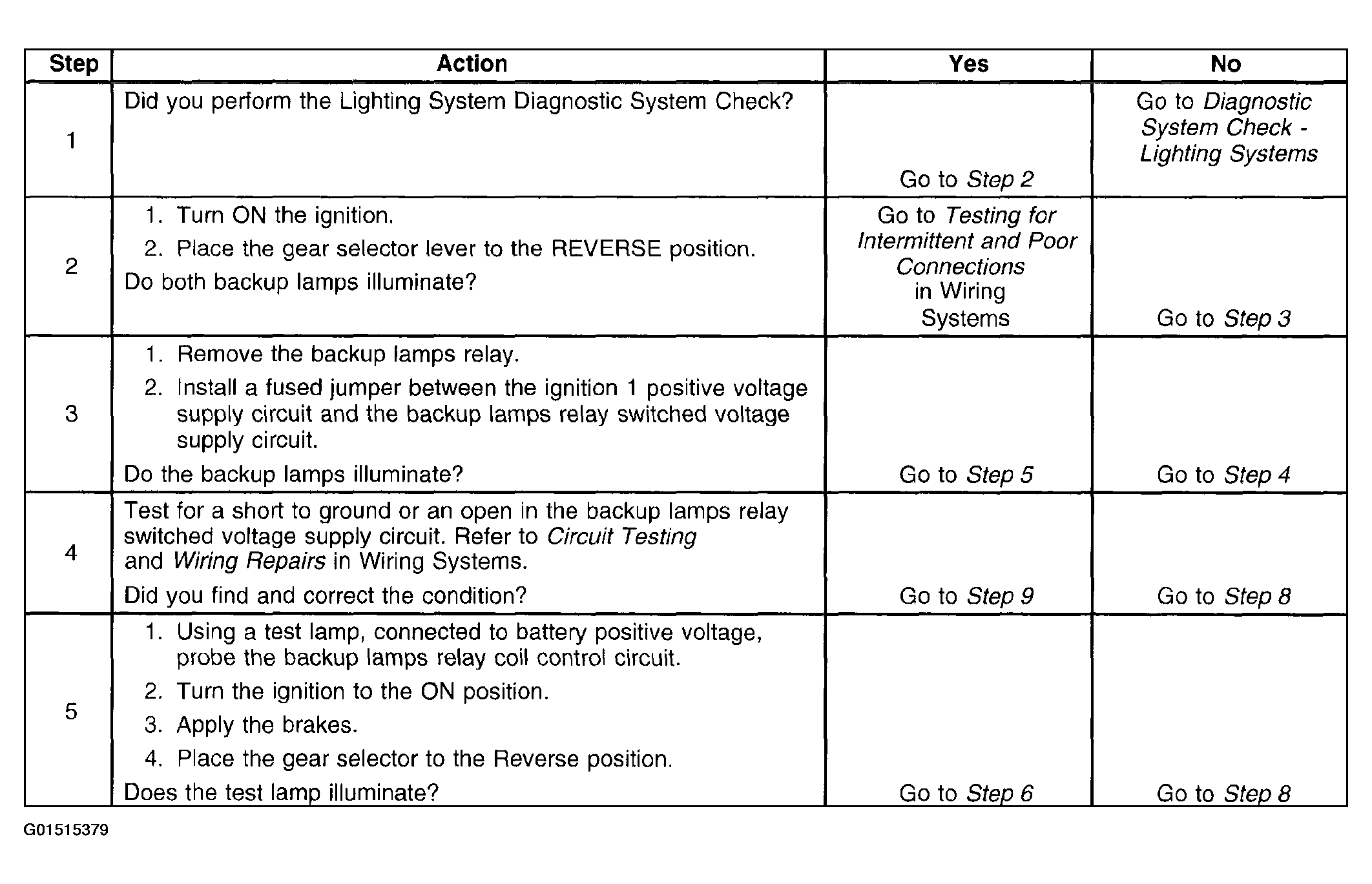

- Backup Lamps Inoperative, See Figure
- Courtesy Lamps Inoperative, See Figure

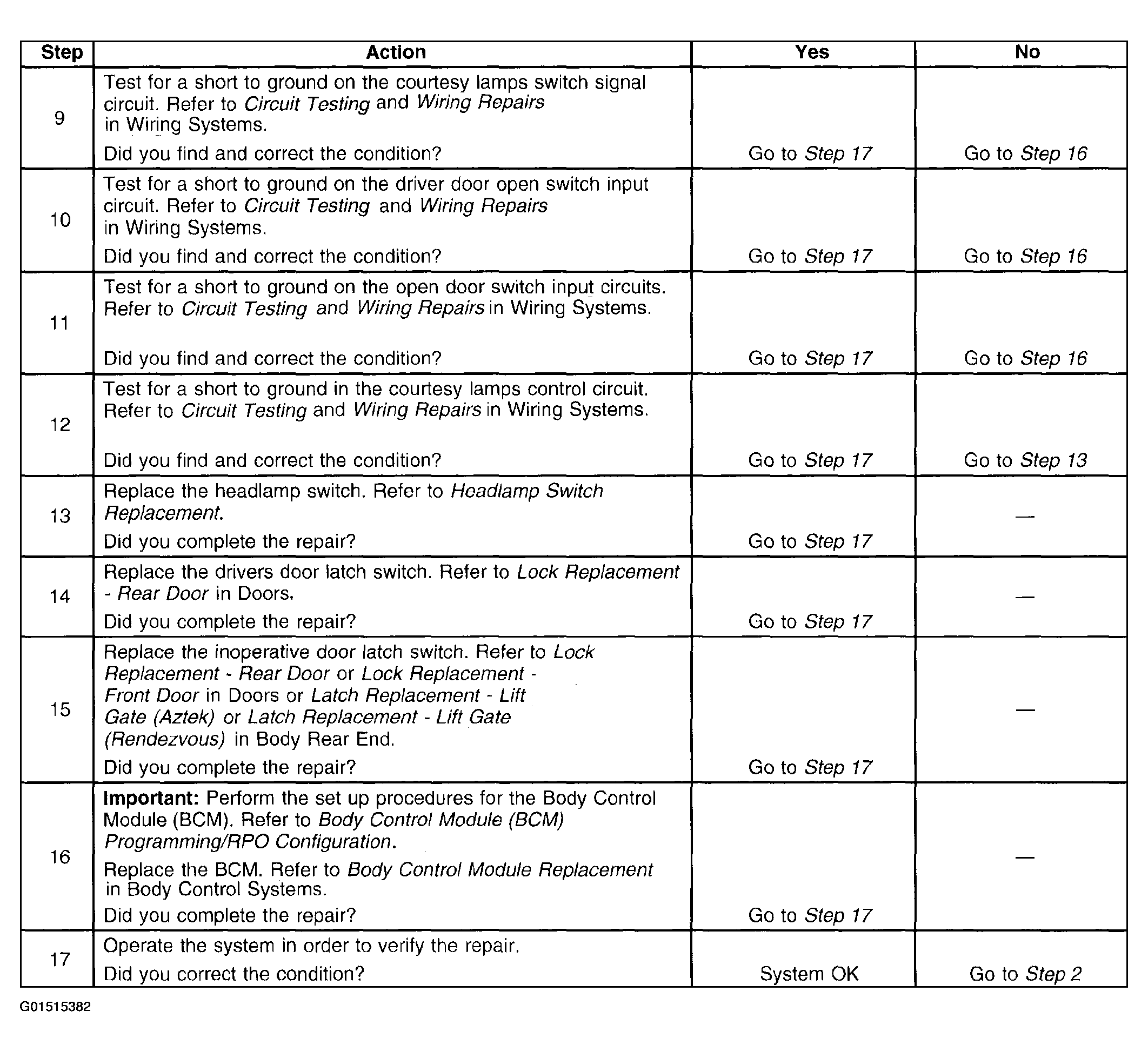

- Courtesy Lamps Always On. See Figure

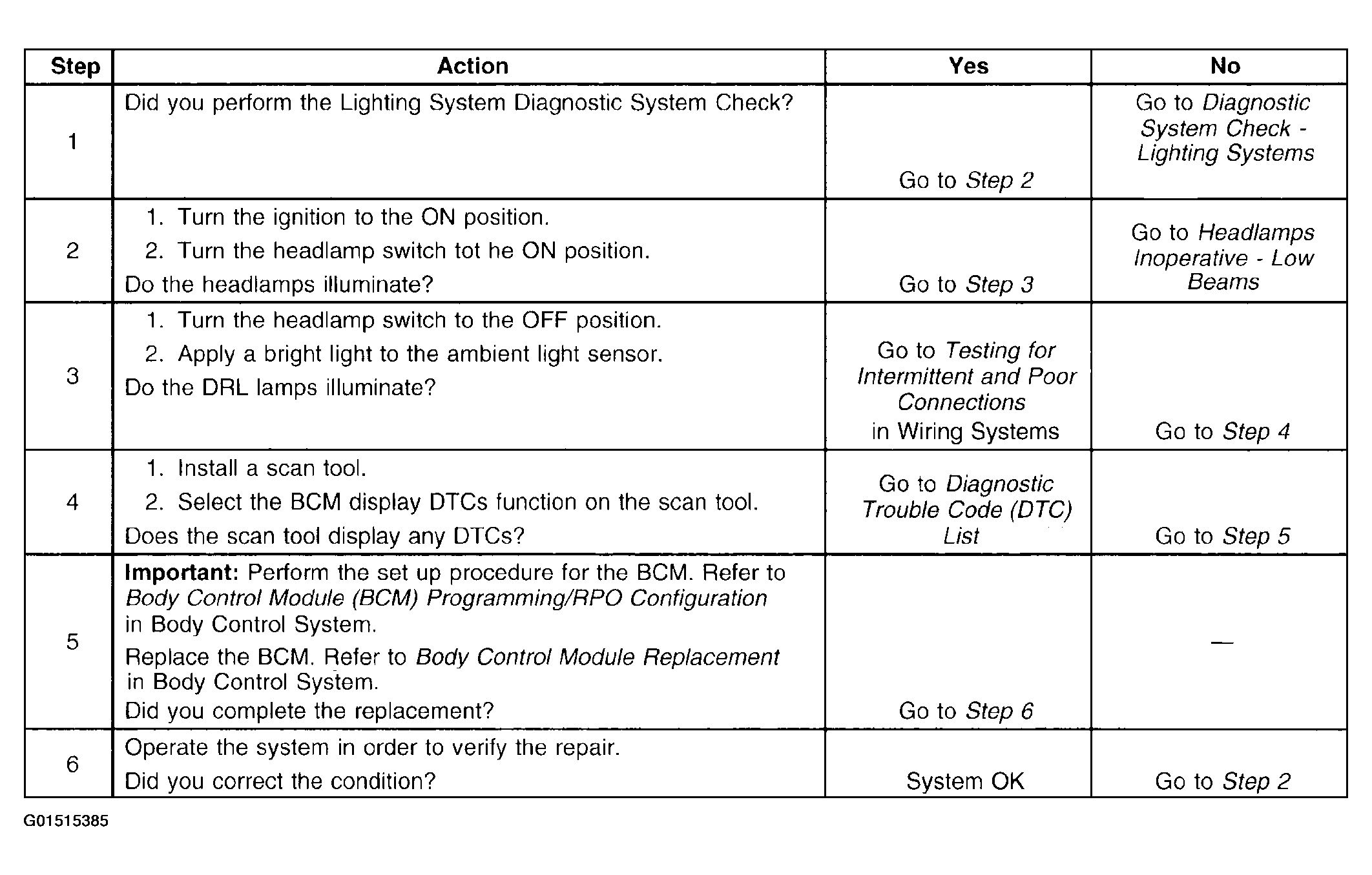

- Daytime Running Lamps (DRL) Inoperative, See Figure

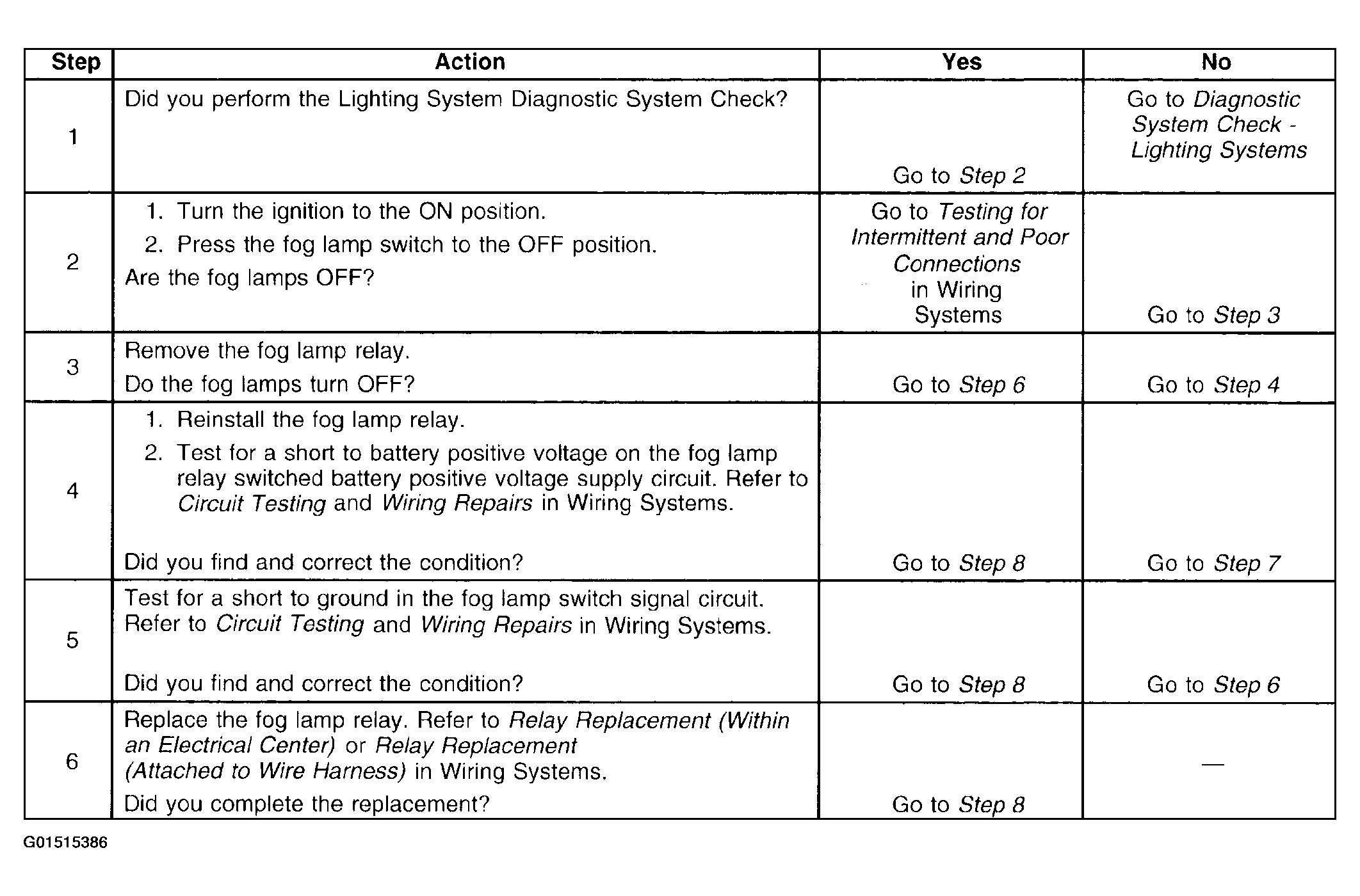

- Fog Lamps Always On. See Figure

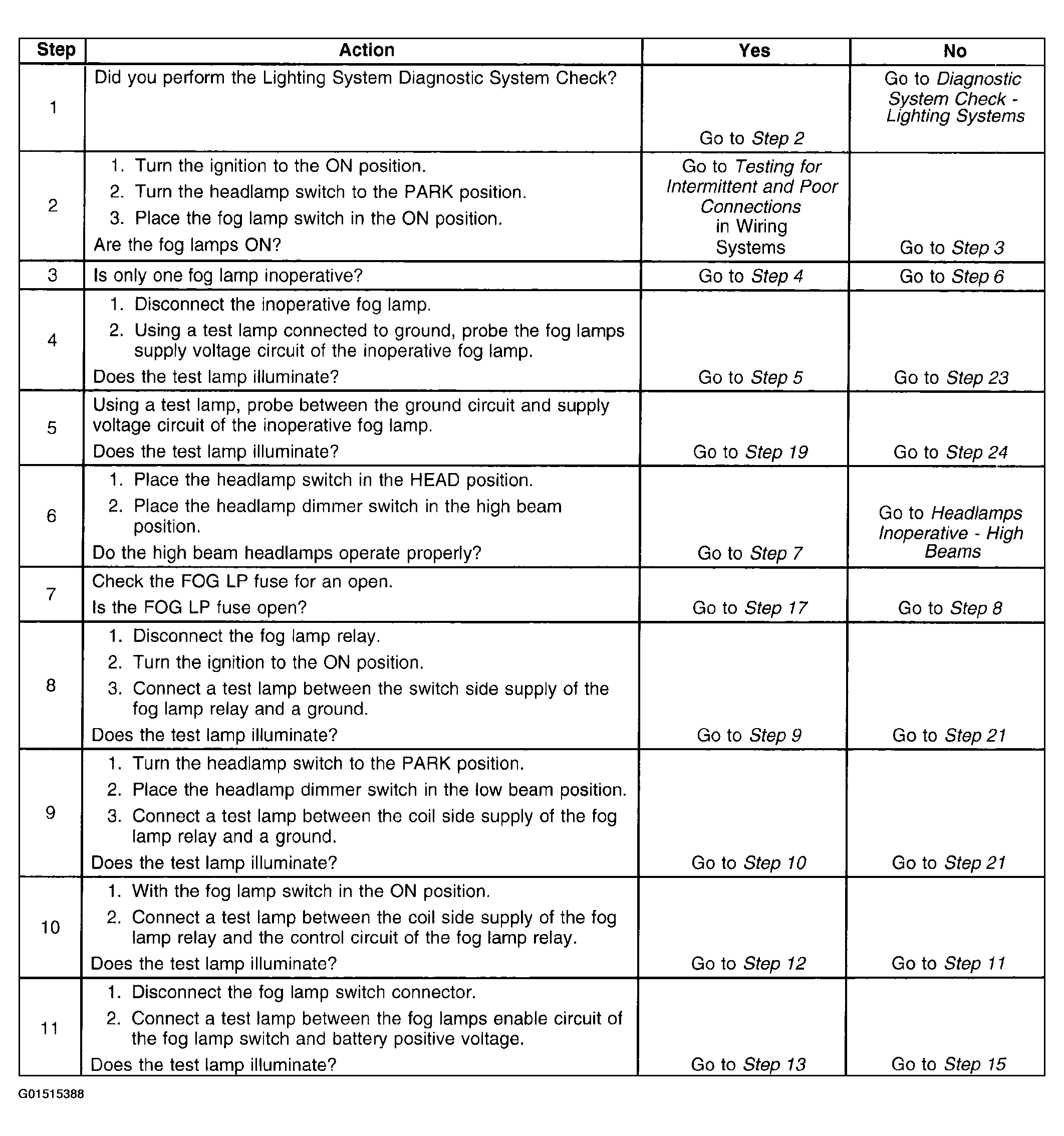

- Fog Lamps Inoperative, See Figure

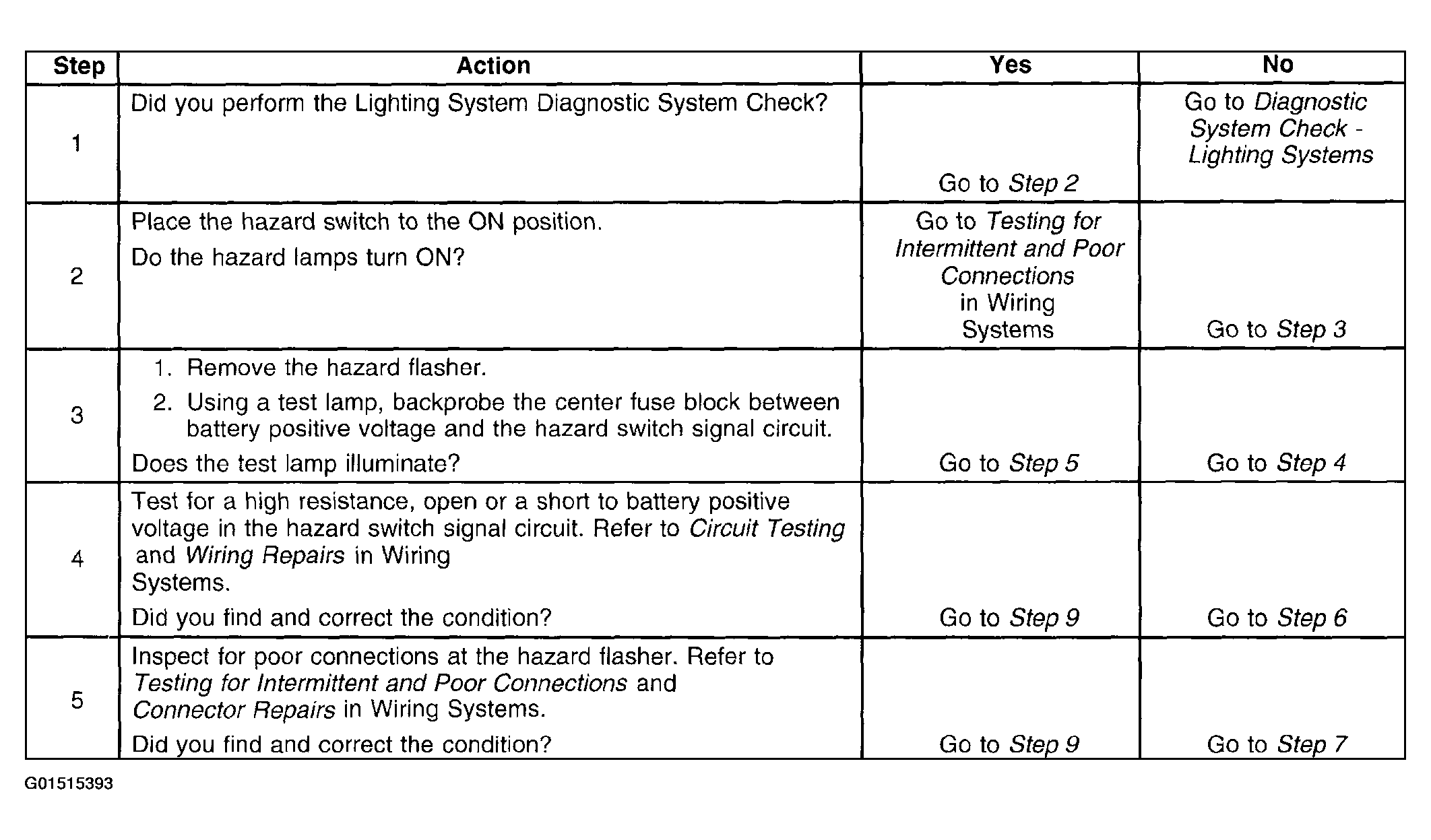

- Hazard Lamps Inoperative, See Figure

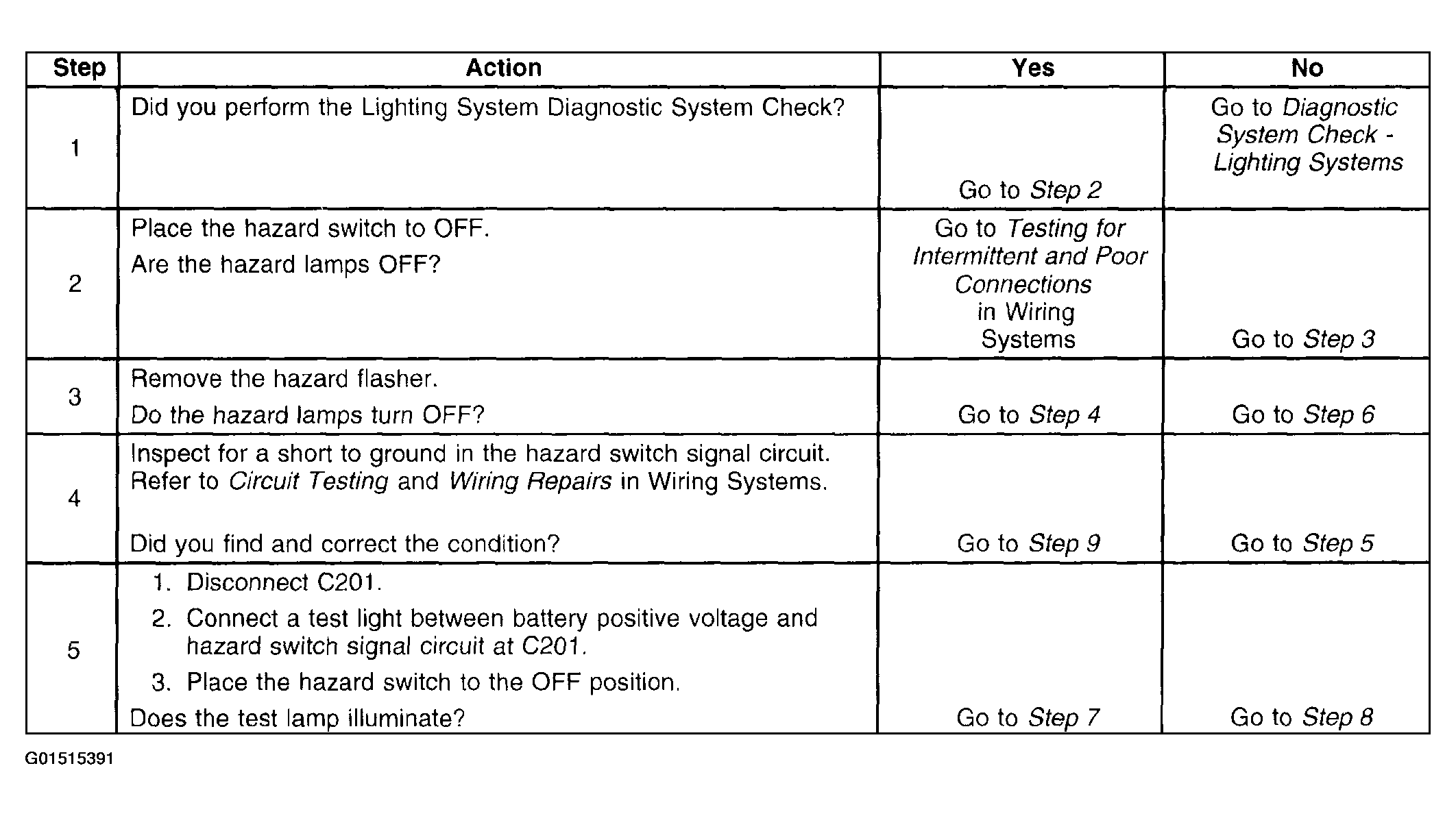

- Hazard Lamps Always On. See Figure

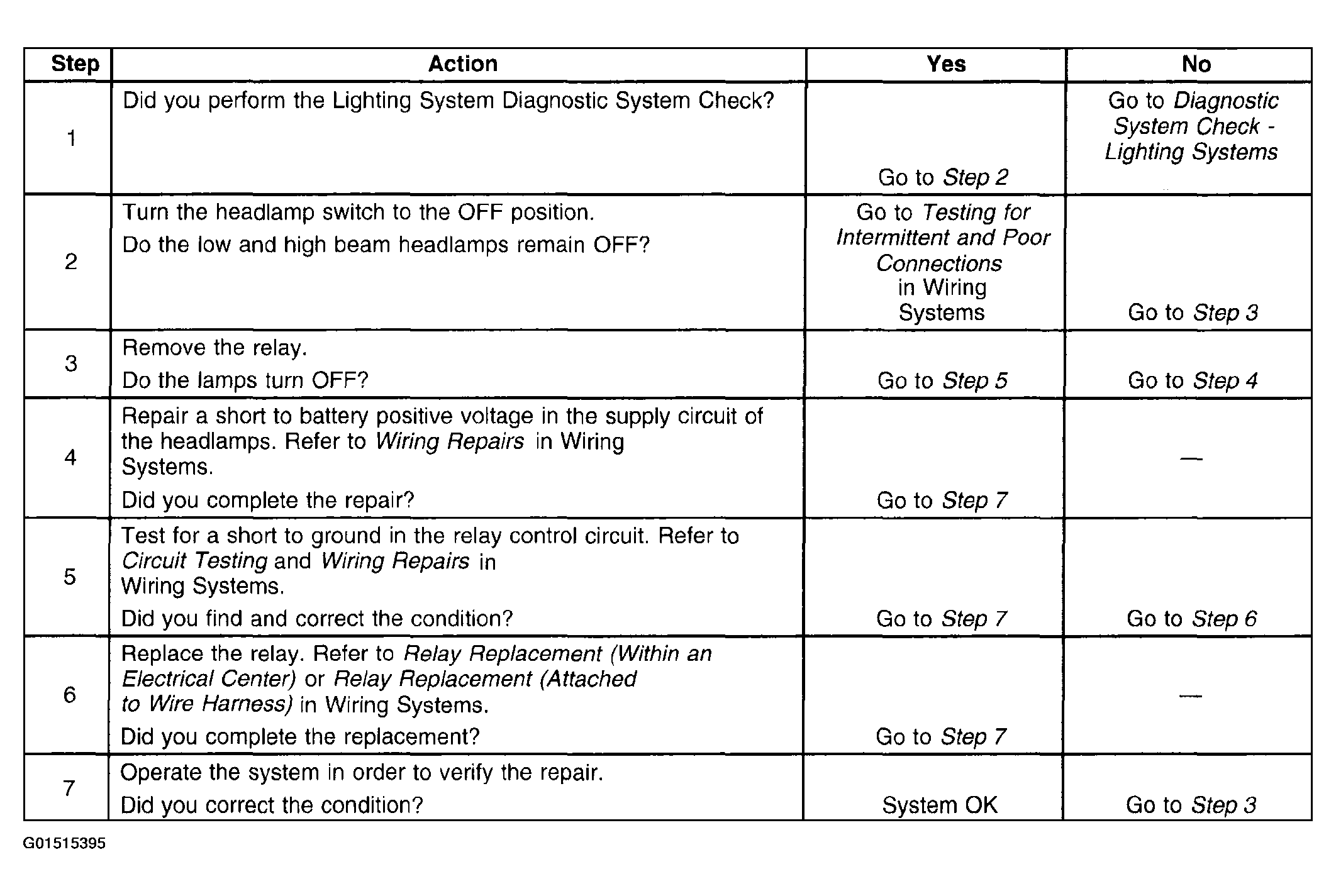

- Headlamps Always On - Low Or High Beam, See Figure

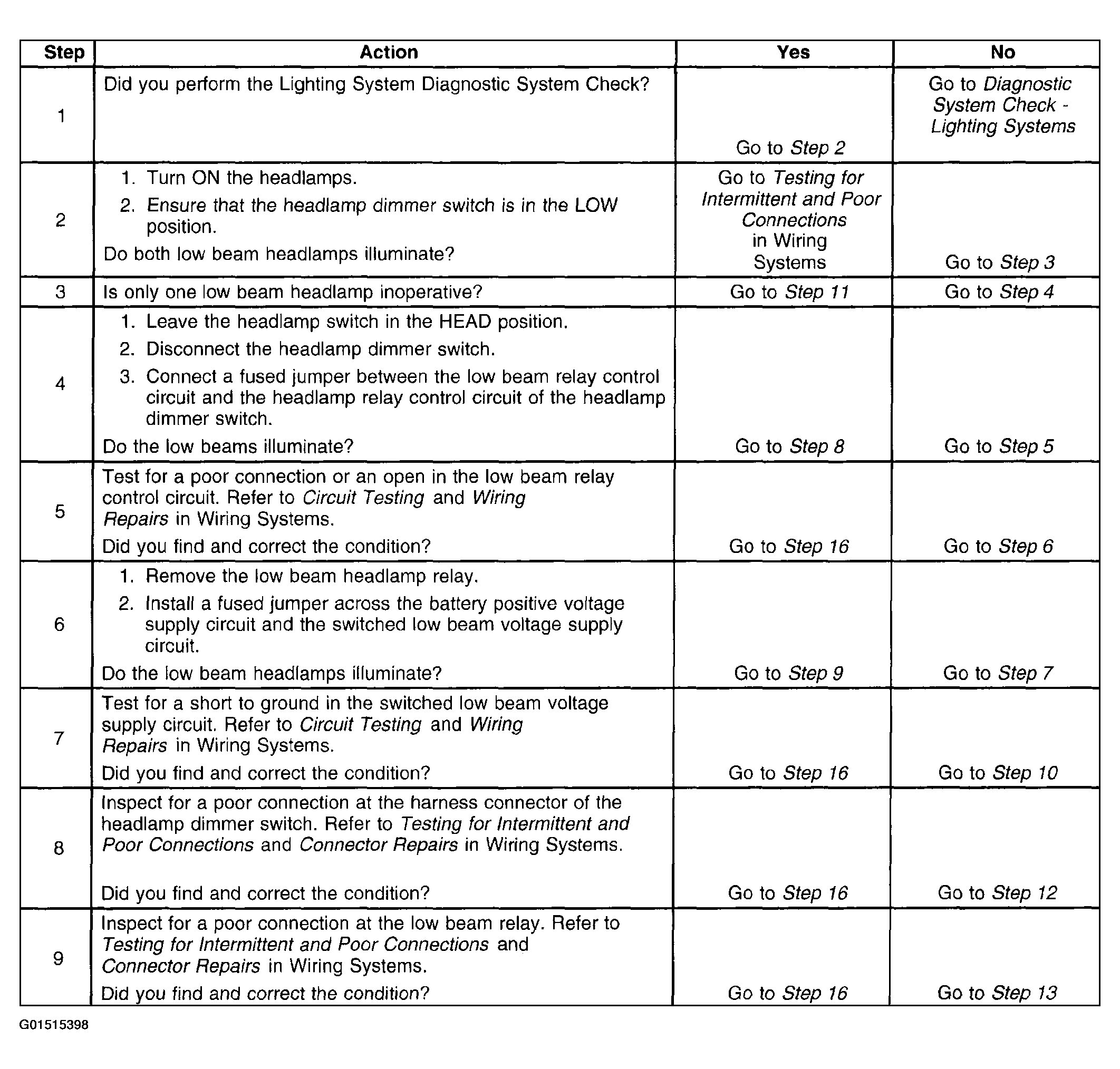

- Headlamps Inoperative - Low Beams, See Figure

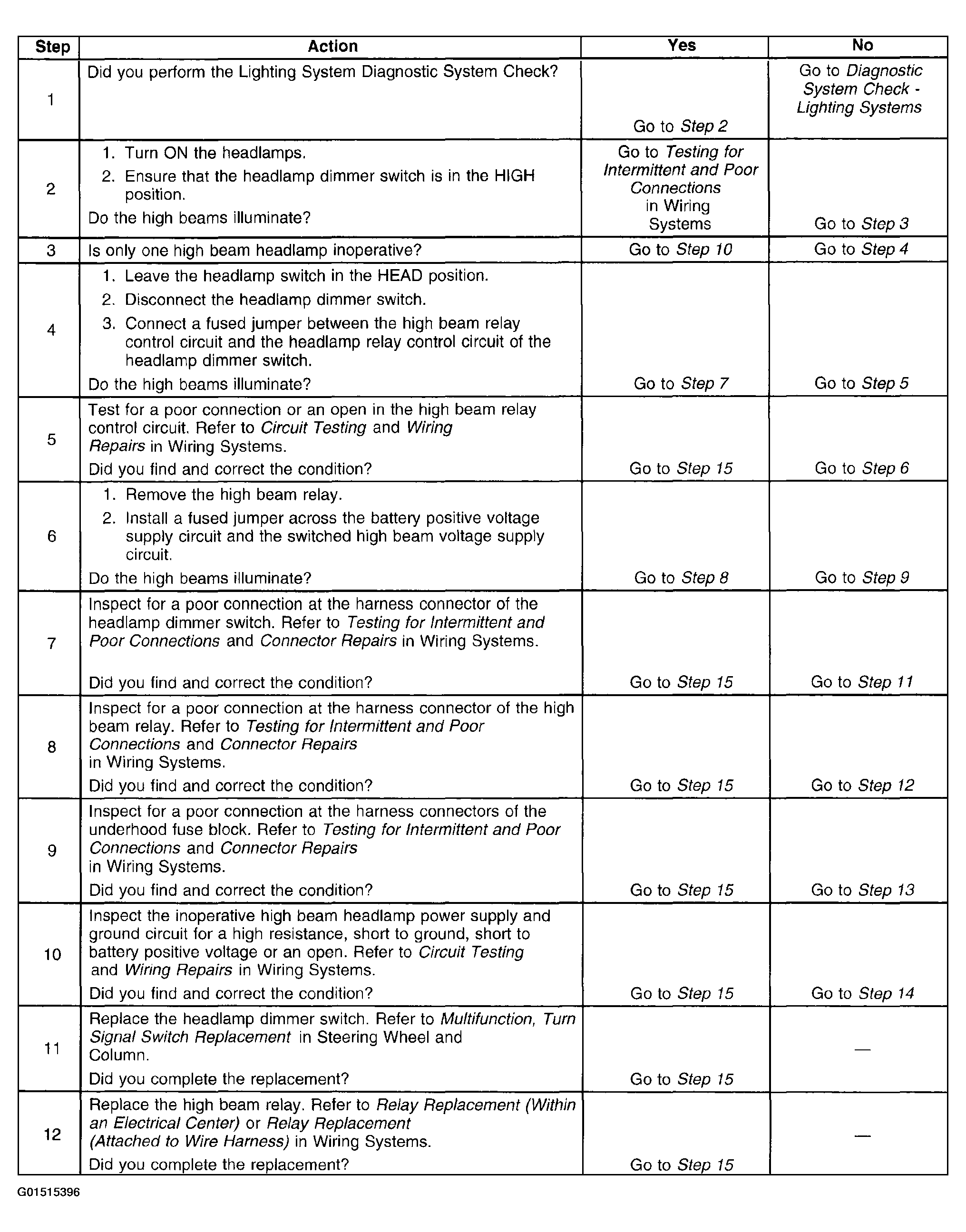

- Headlamps Inoperative - High Beams, See Figure

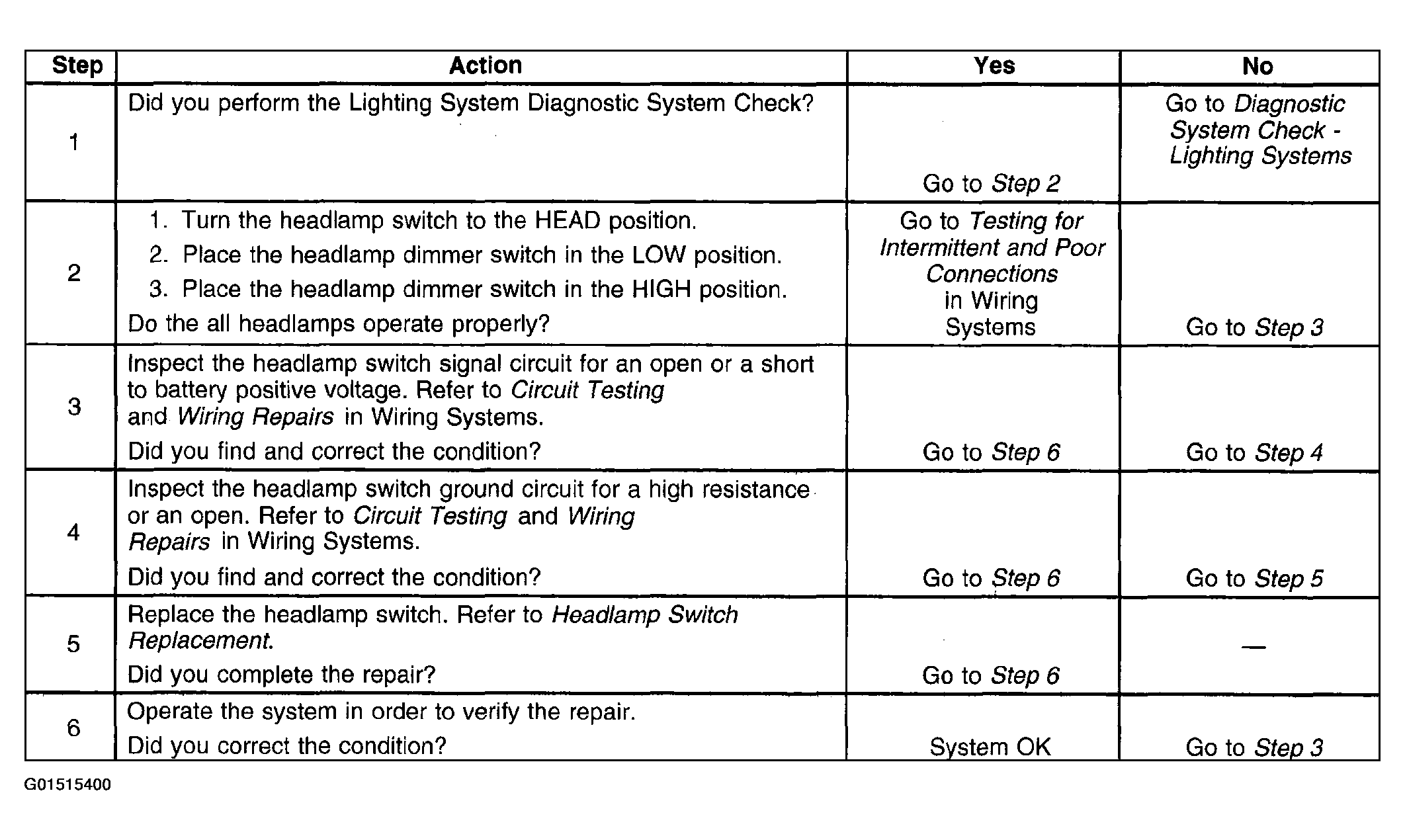

- Headlamps Inoperative - Low And High Beams, See Figure

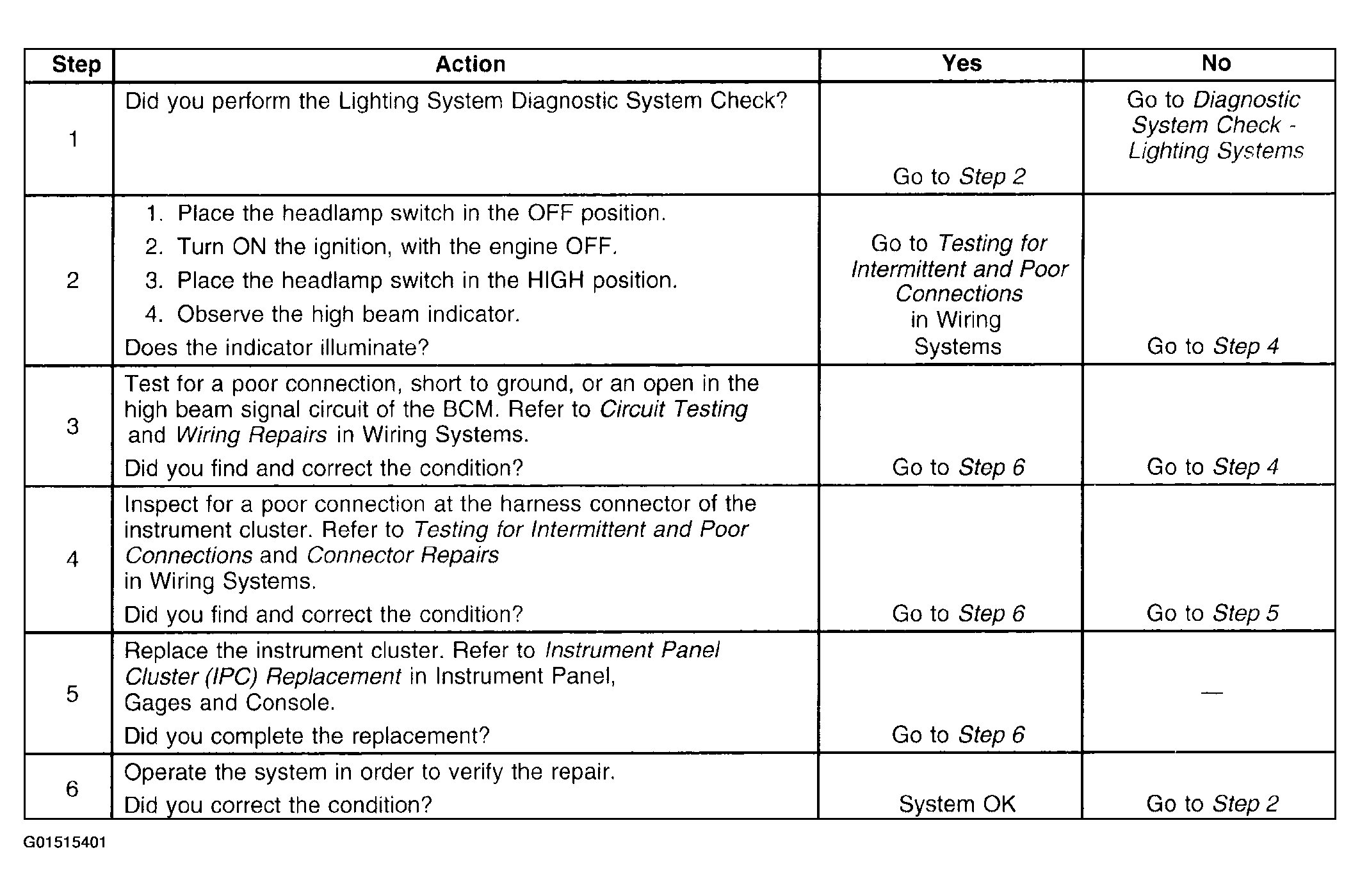

- High Beam Indicator Inoperative, See Figure

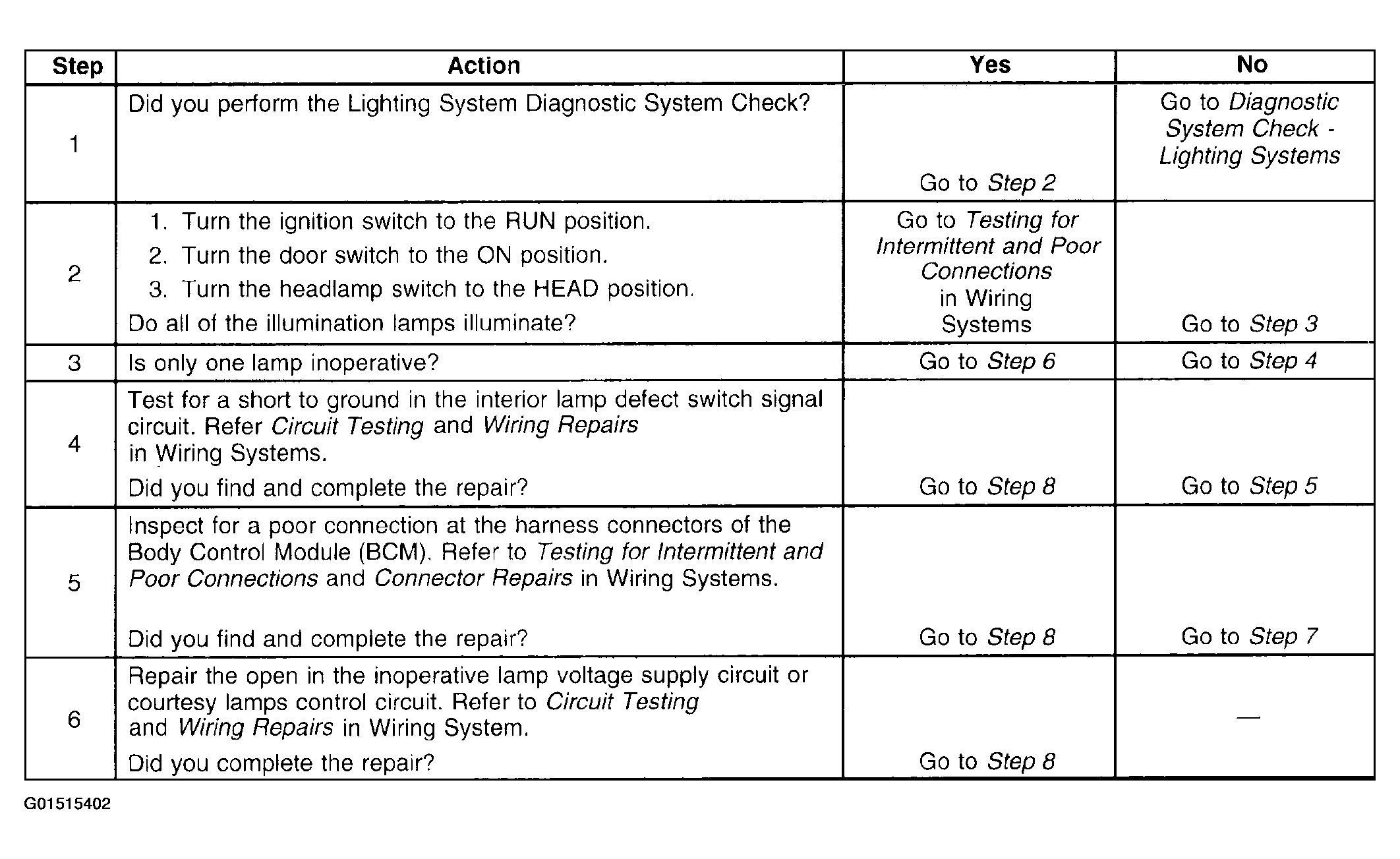

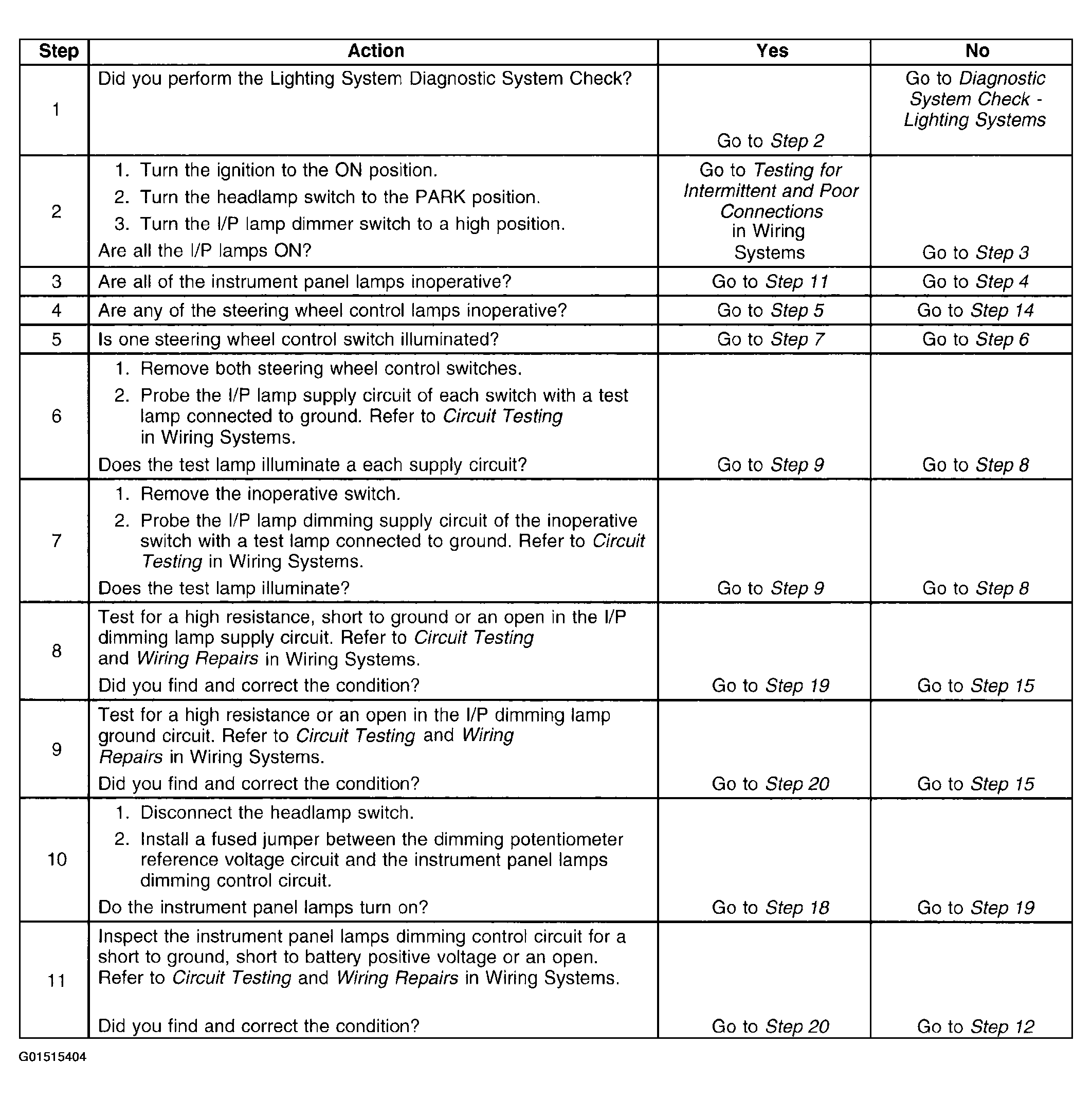

- Interior Backlighting Inoperative, See Figure
- Illuminated Entry Lamps Inoperative, See Figure

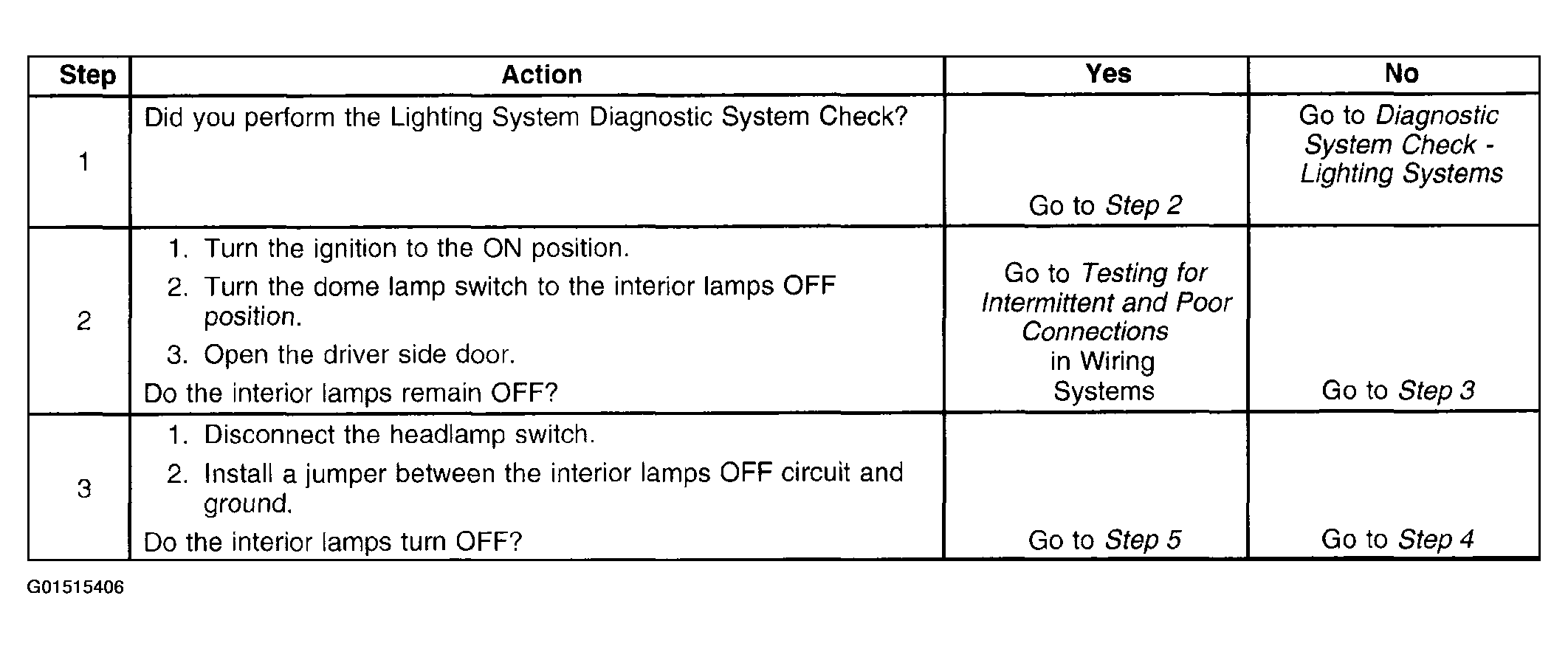

- Interior Lamps Off Switch Inoperative, See Figure

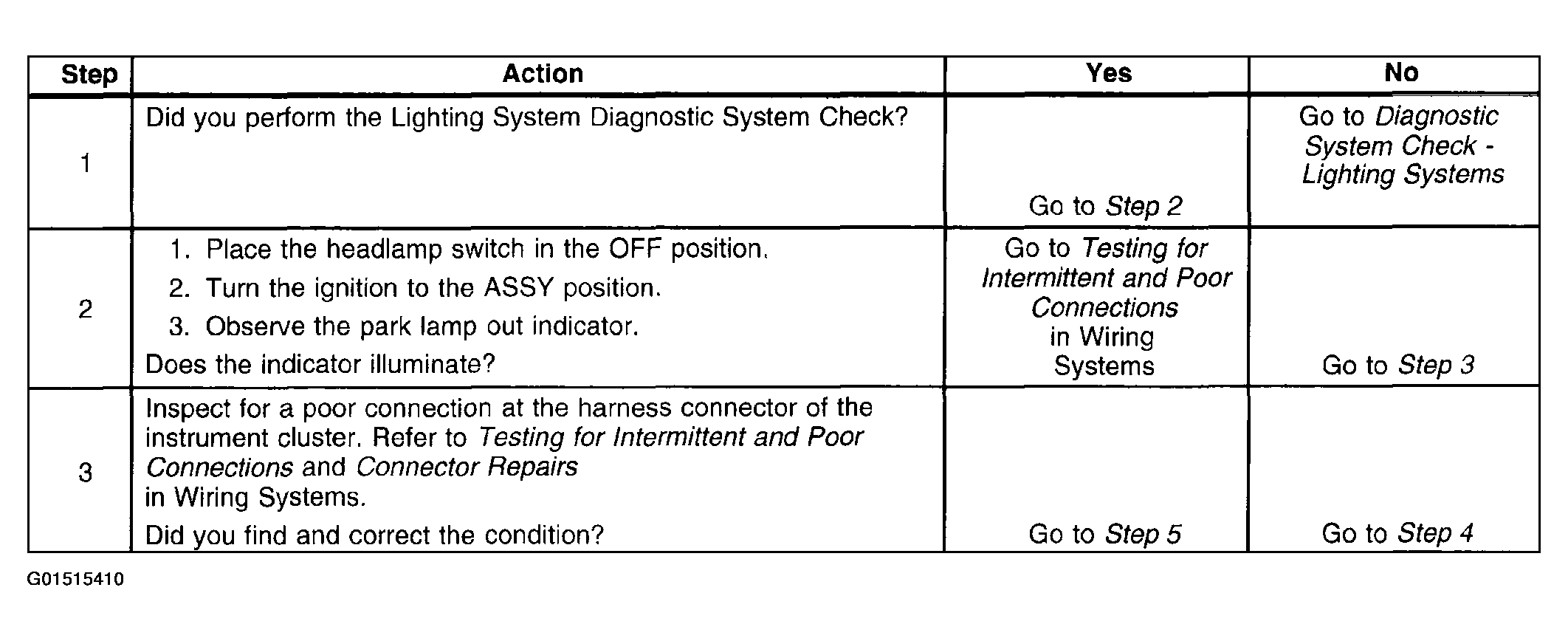

- Park Lamp Out Indicator Inoperative, See Figure

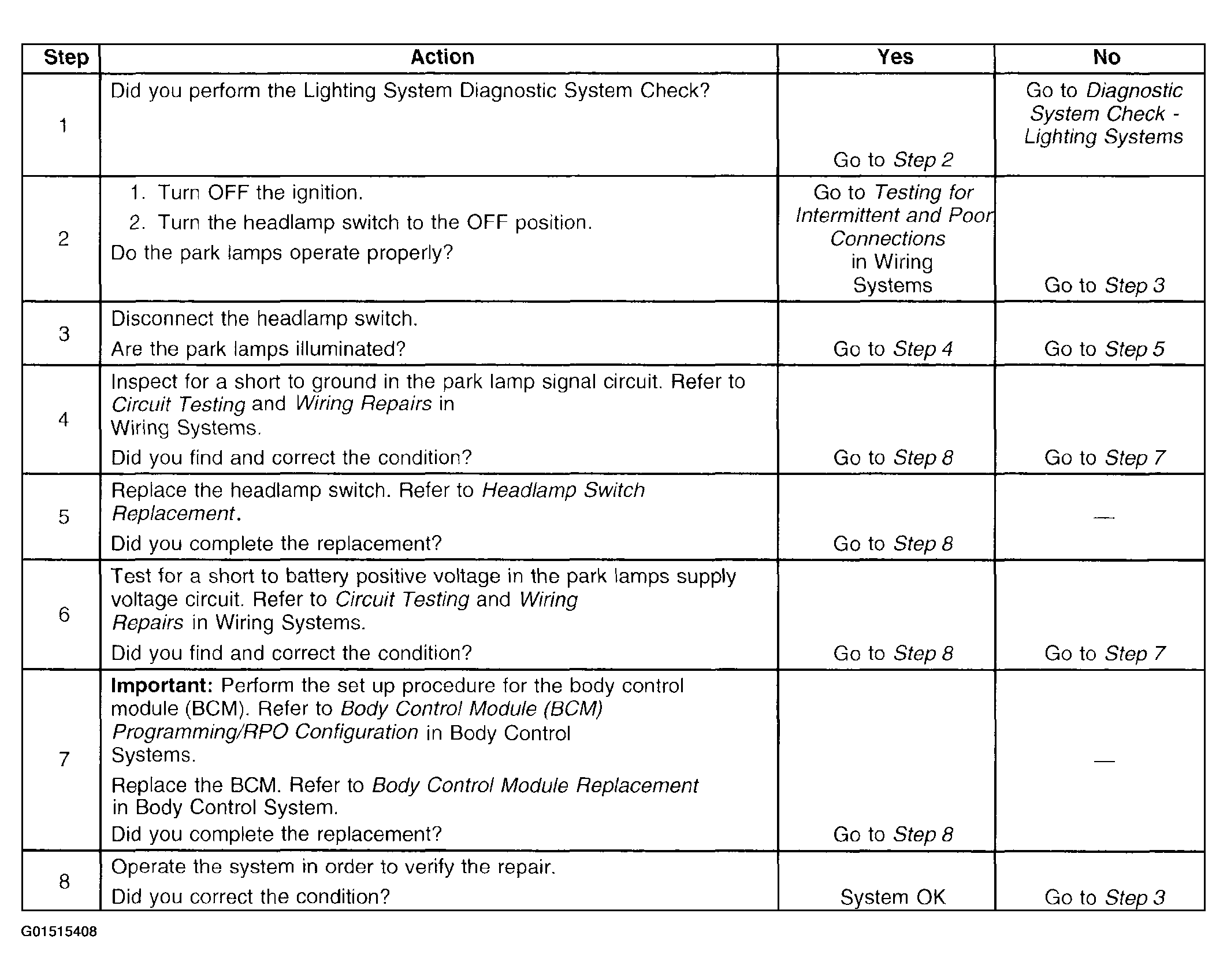

- Park Lamps Always On. See Figure

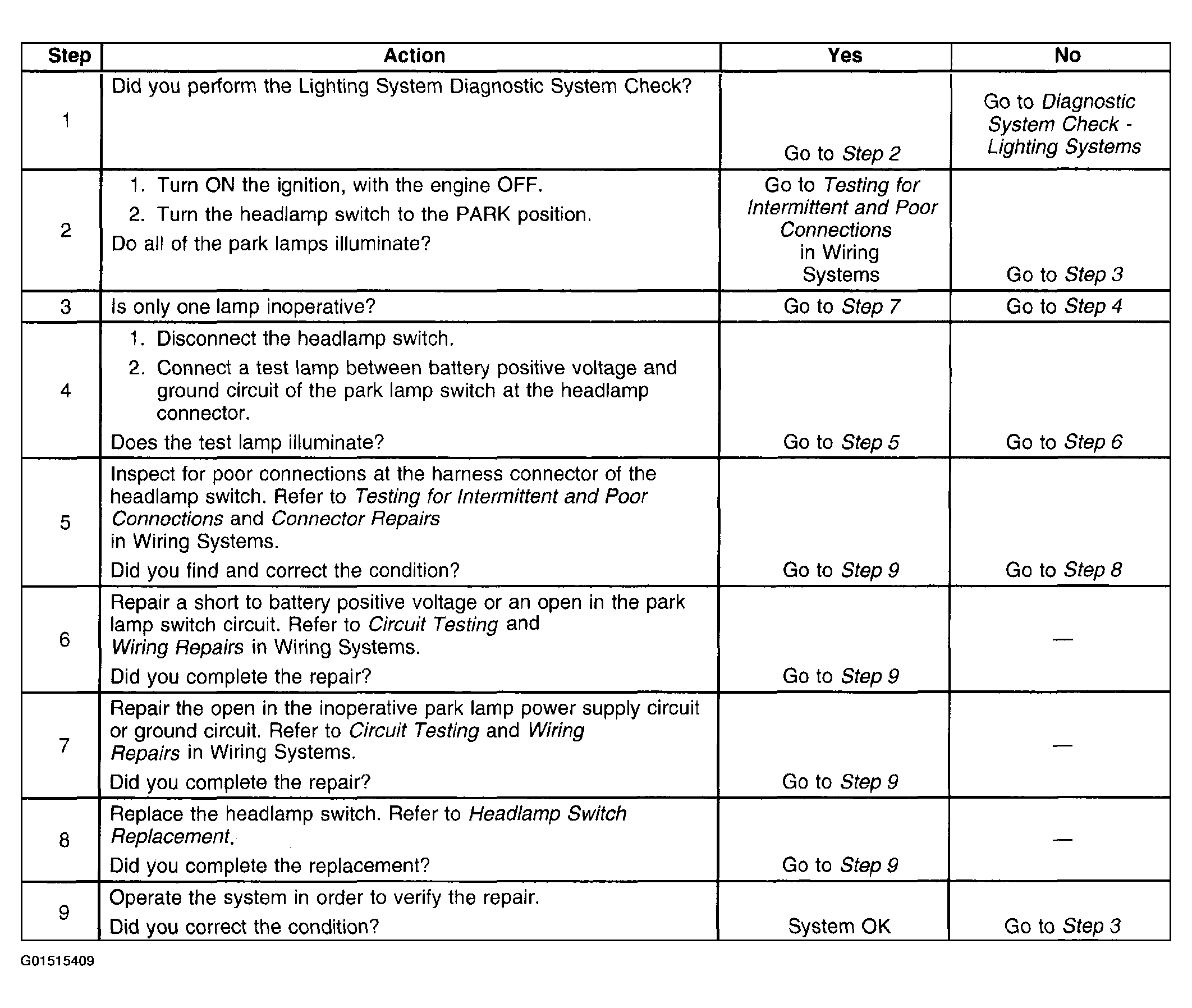

- Park Lamps Inoperative, See Figure

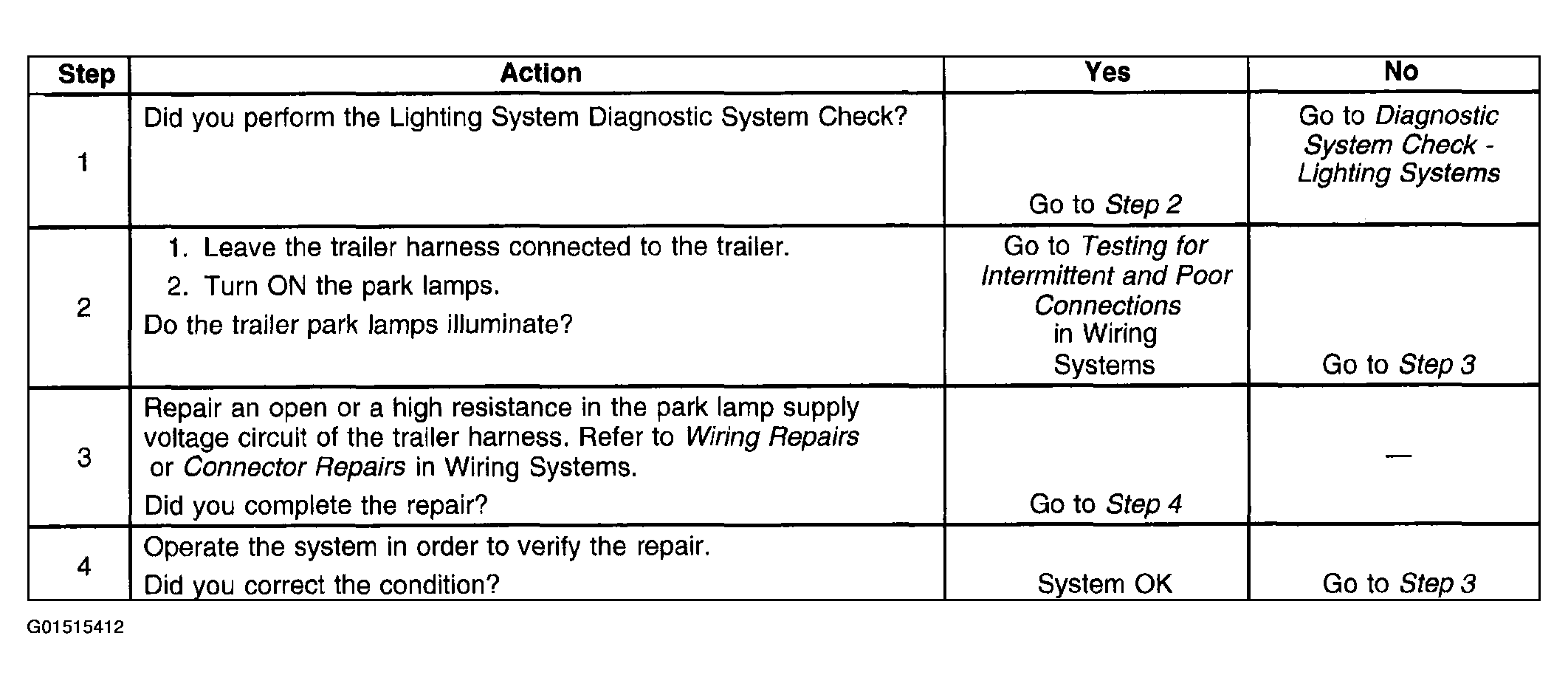

- Park Lamps Inoperative - Output At Trailer/Upfitter Connector, See Figure

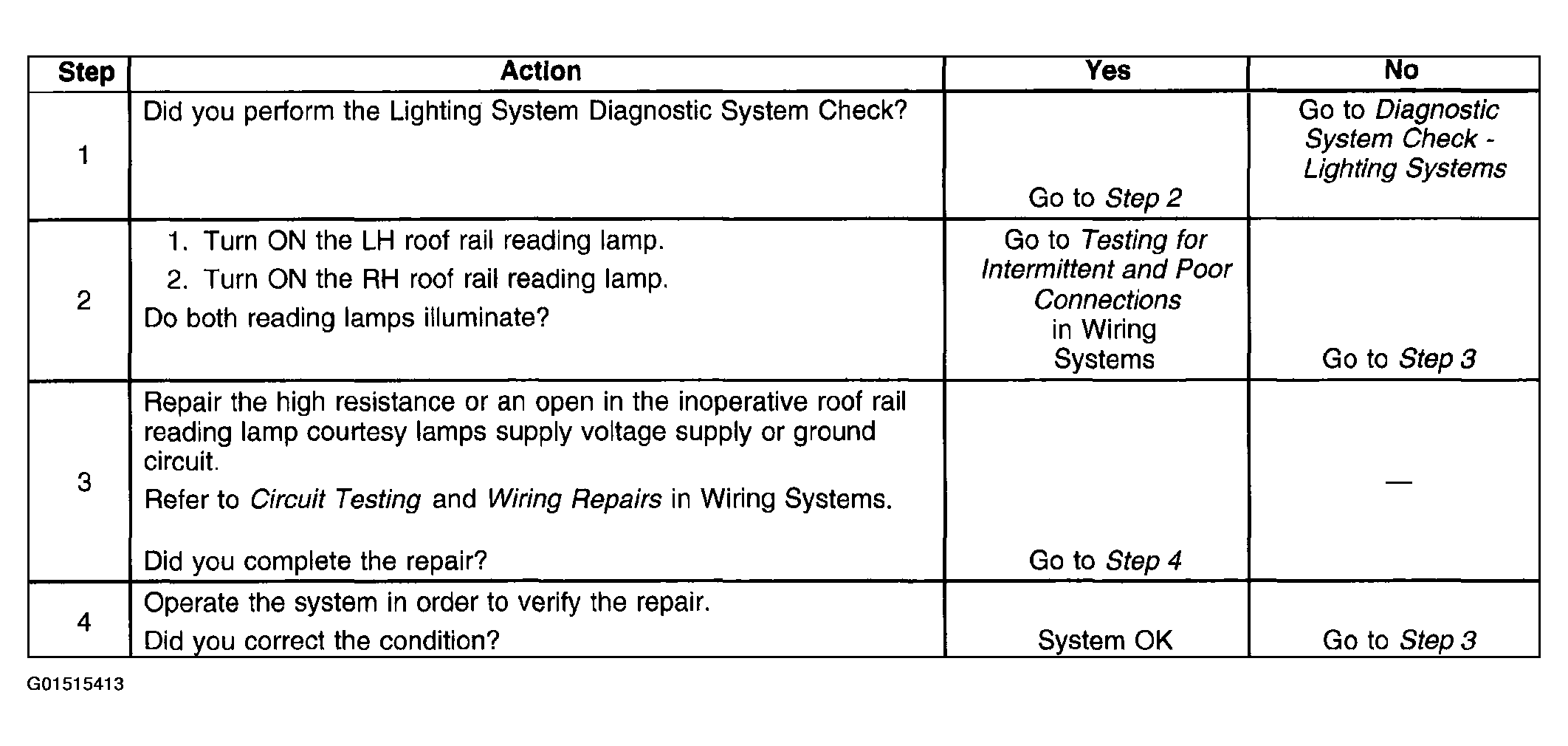

- Reading Lamp(s) Inoperative, See Figure

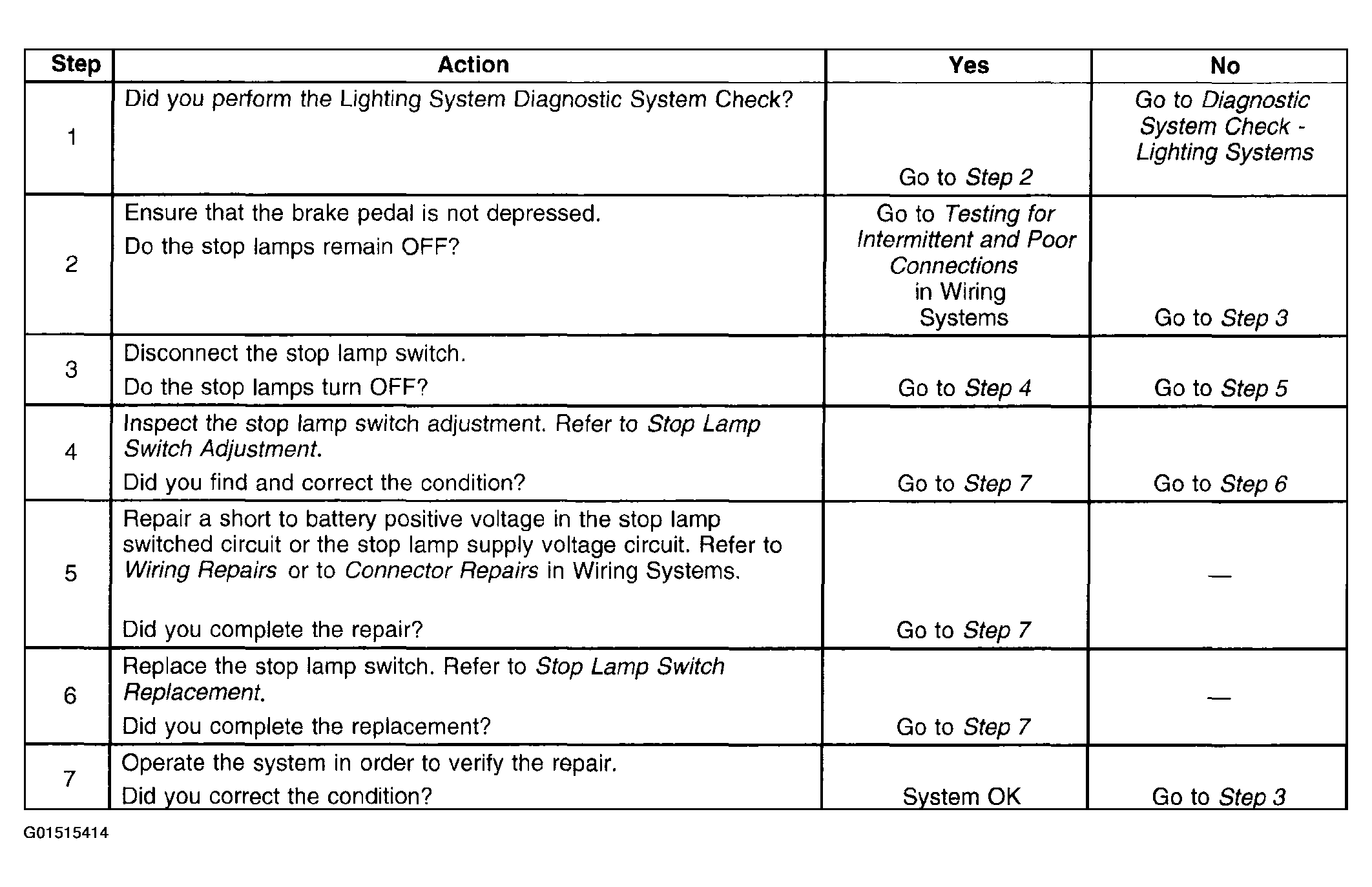

- Stop Lamps Always On. See Figure

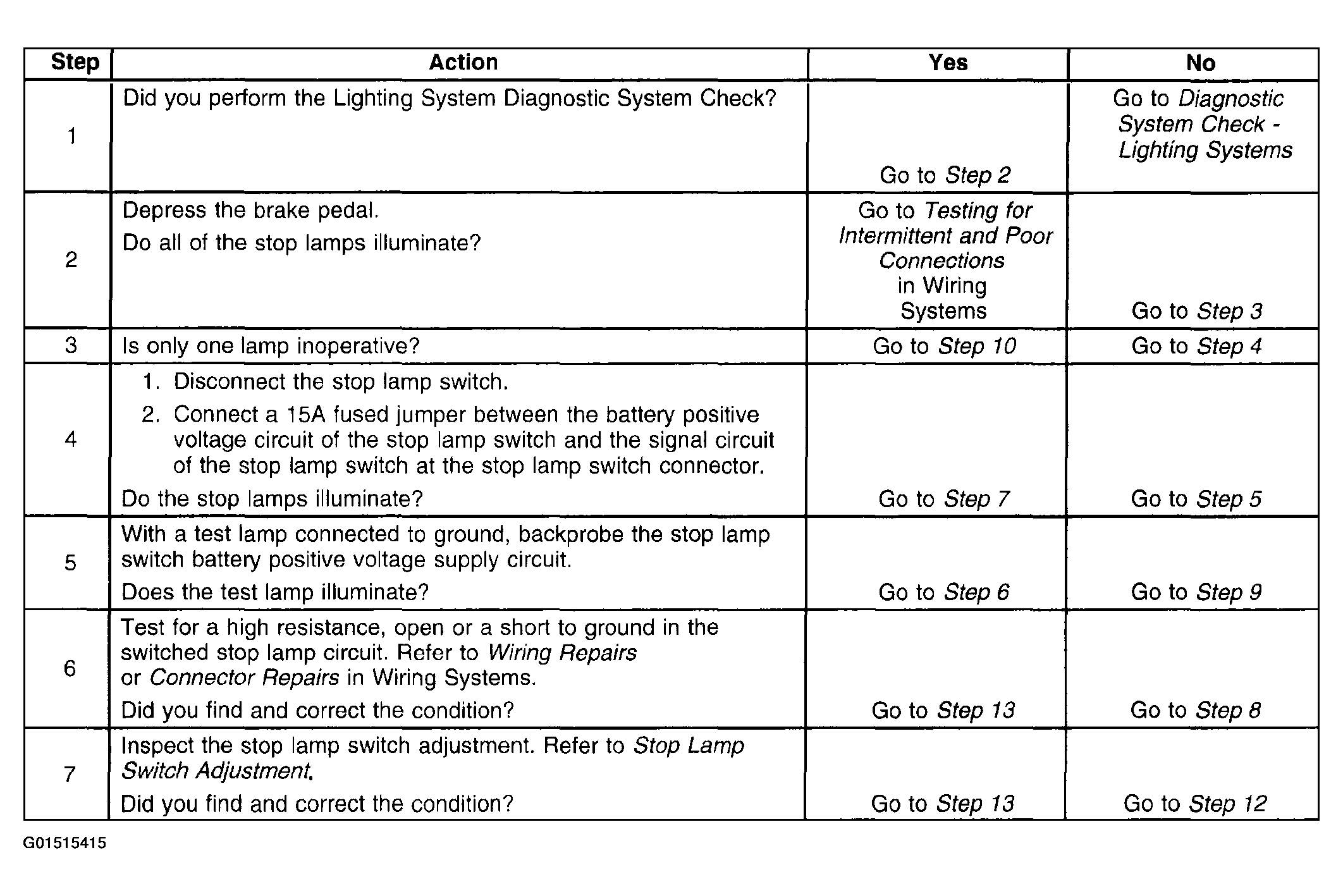

- Stop Lamps Inoperative, See Figure

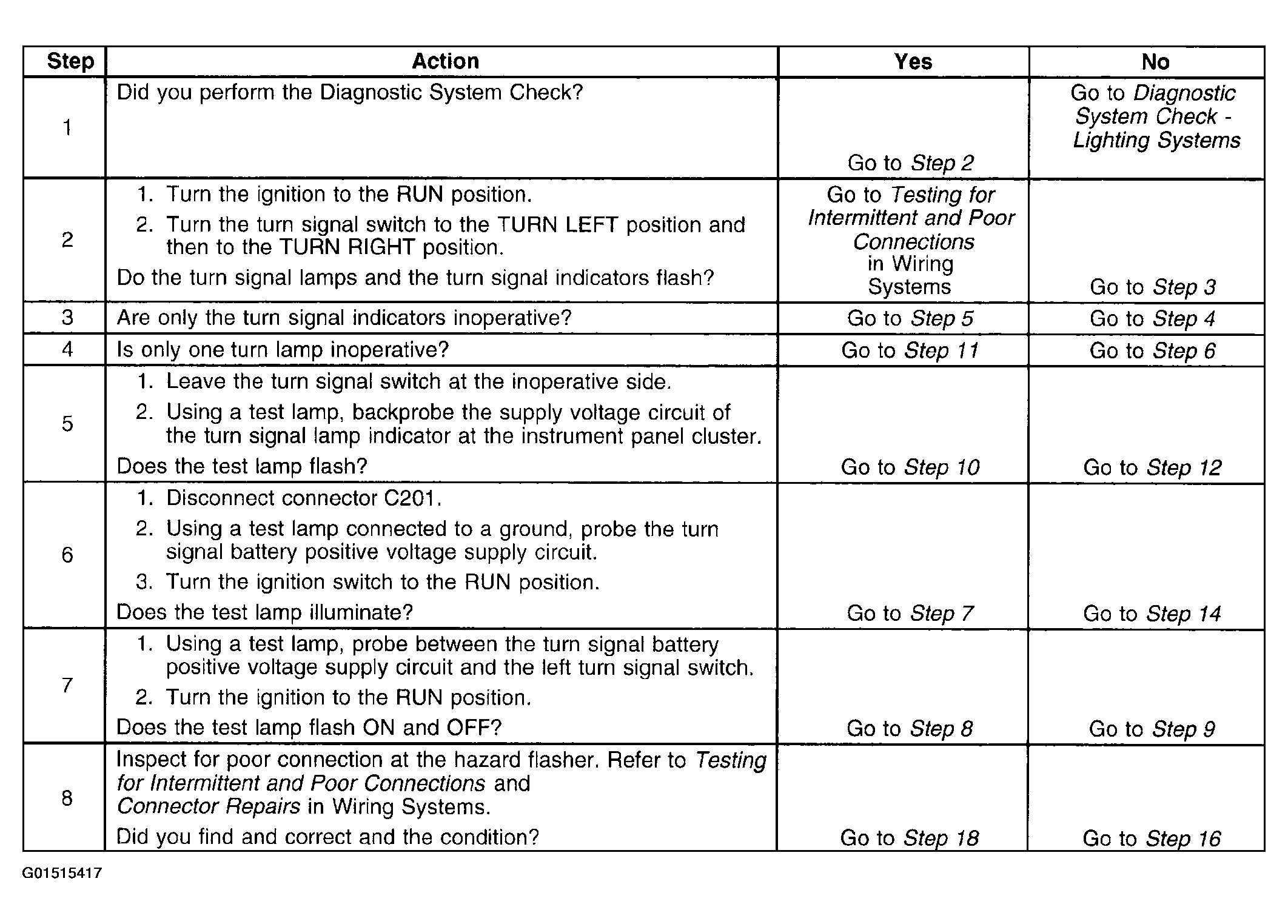

- Turn Signal Lamps And/Or Indicators Inoperative, See Figure

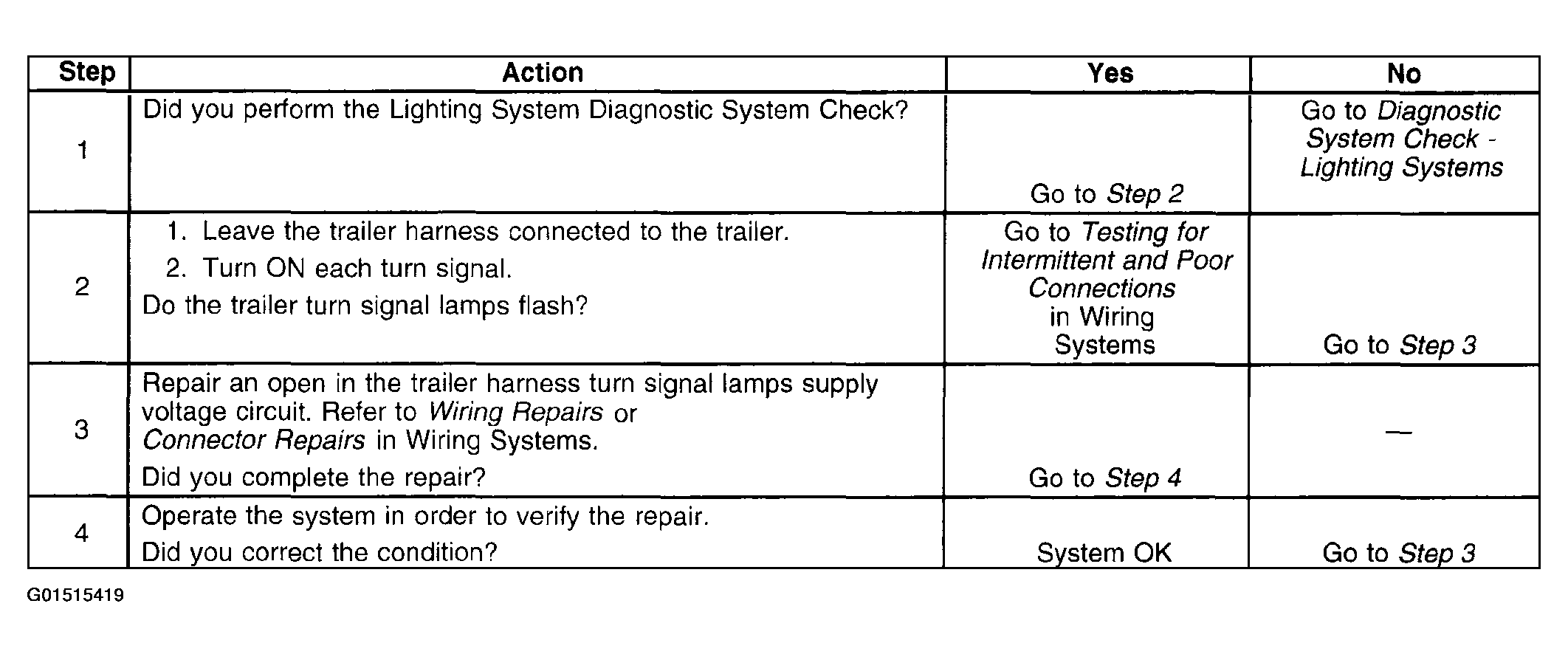

- Turn Signal Lamps Inoperative - Output At Trailer/Upfitter Connector, See Figure
