Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Disconnect the electrical connector from the fog lamp.
Remove the nuts from the fog lamp.

Fig 1: Front Fog Lamp Removal Procedure - Aztek (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

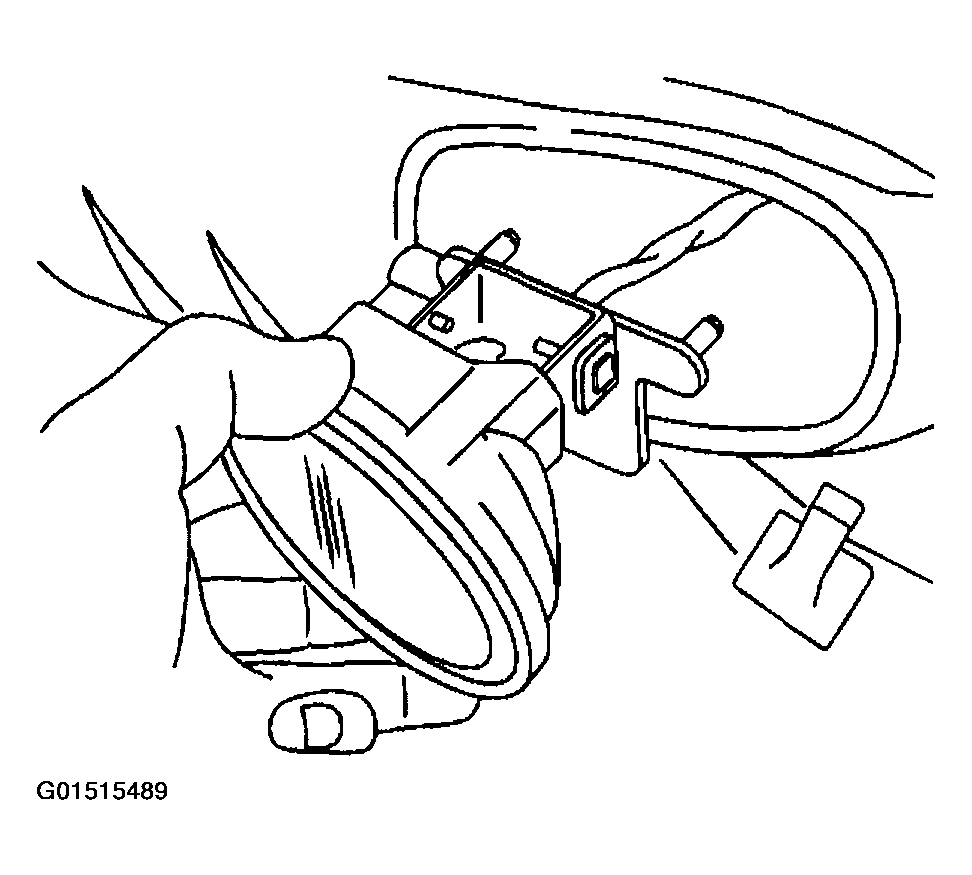

Remove the fog lamp from the front bumper fascia.

Fig 2: Front Fog Lamp Removal Procedure - Aztek (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

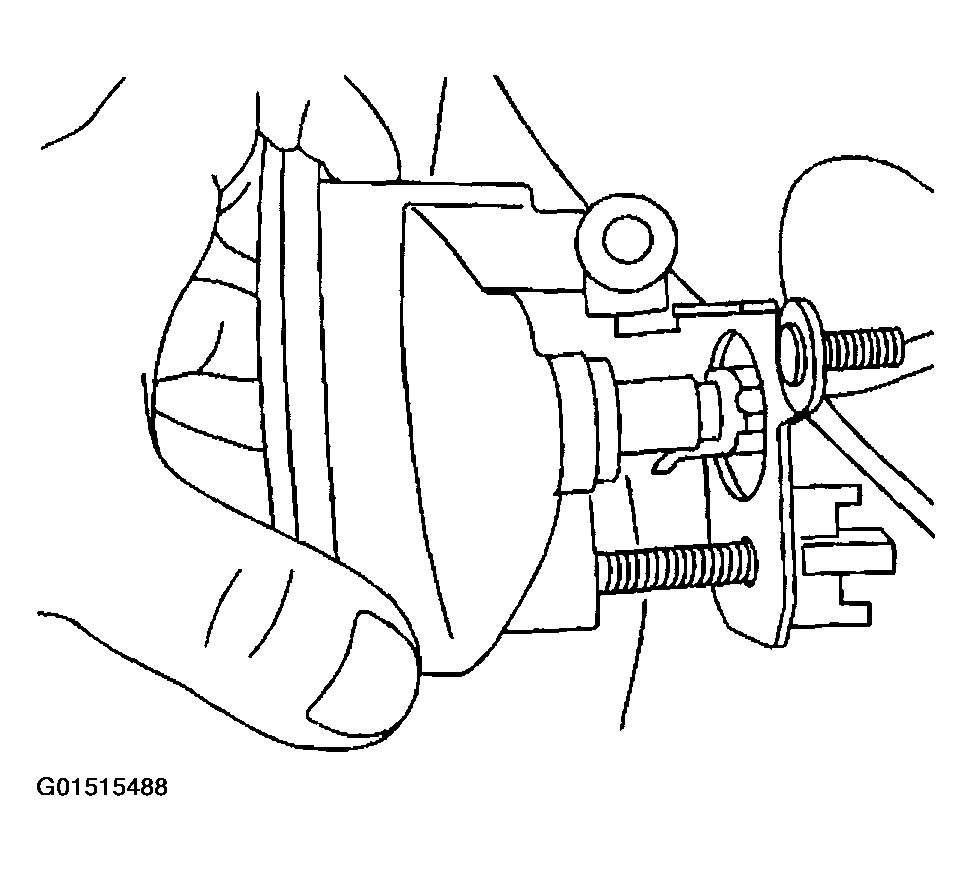

Remove the fog lamp bulb from the fog lamp, turning counterclockwise, if required.

Fig 3: Front Fog Lamp Removal Procedure - Aztek (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
