Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
  2. Grasp the fog lamp switch and pull firmly to release the retaining tabs from the I/P carrier.

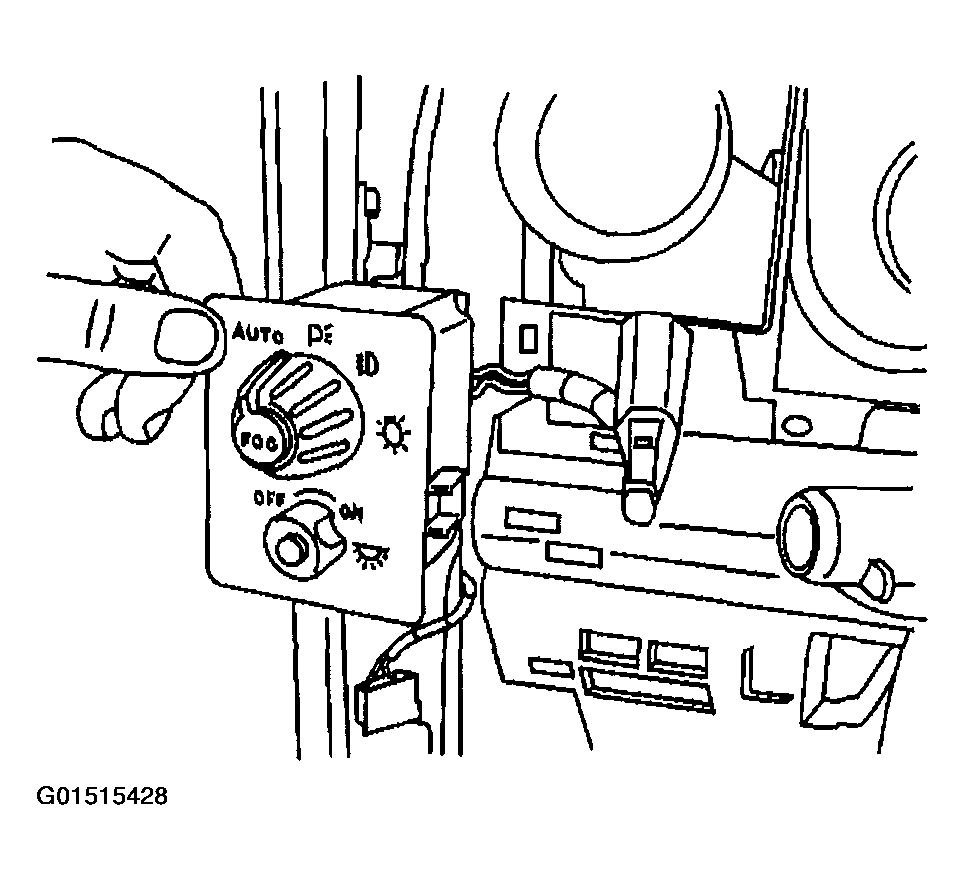

    Fig 1: Fog Lamp Switch - Front Removal Procedure (1 Of 2)
    G01515428Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the fog lamp switch.
  4. Remove the fog lamp switch.

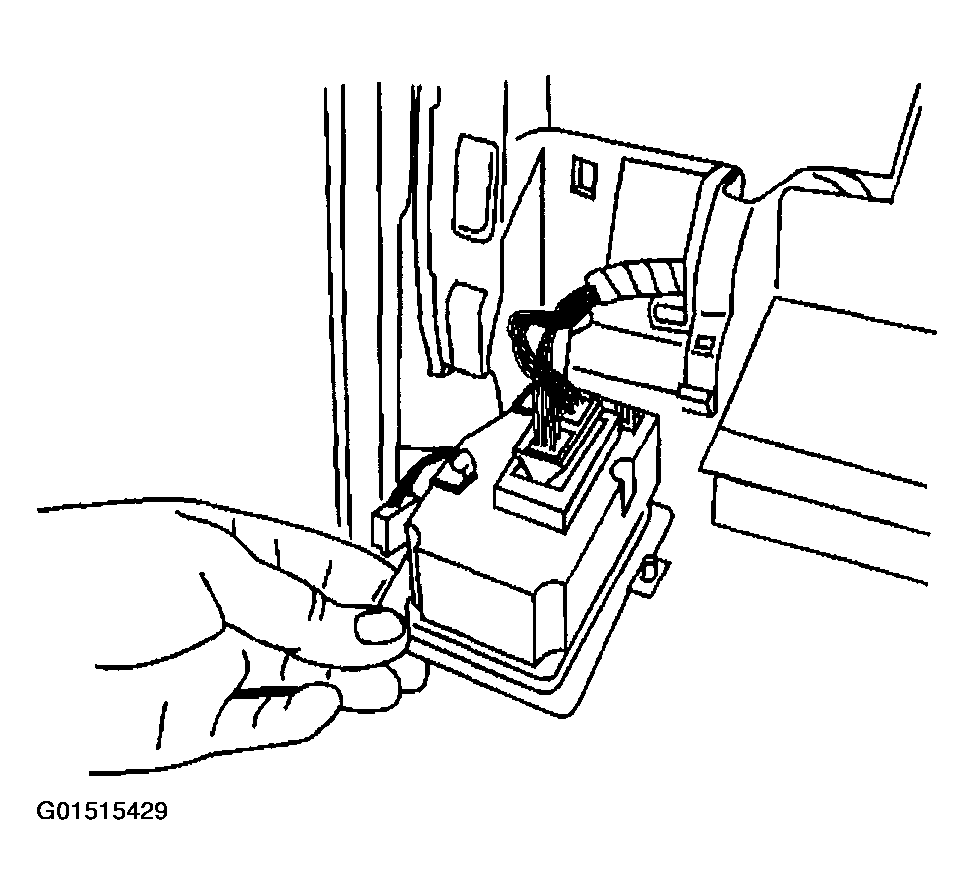

    Fig 2: Fog Lamp Switch - Front Removal Procedure (2 Of 2)
    G01515429Courtesy of GENERAL MOTORS CORP.
