Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws from the high mounted stop lamp.

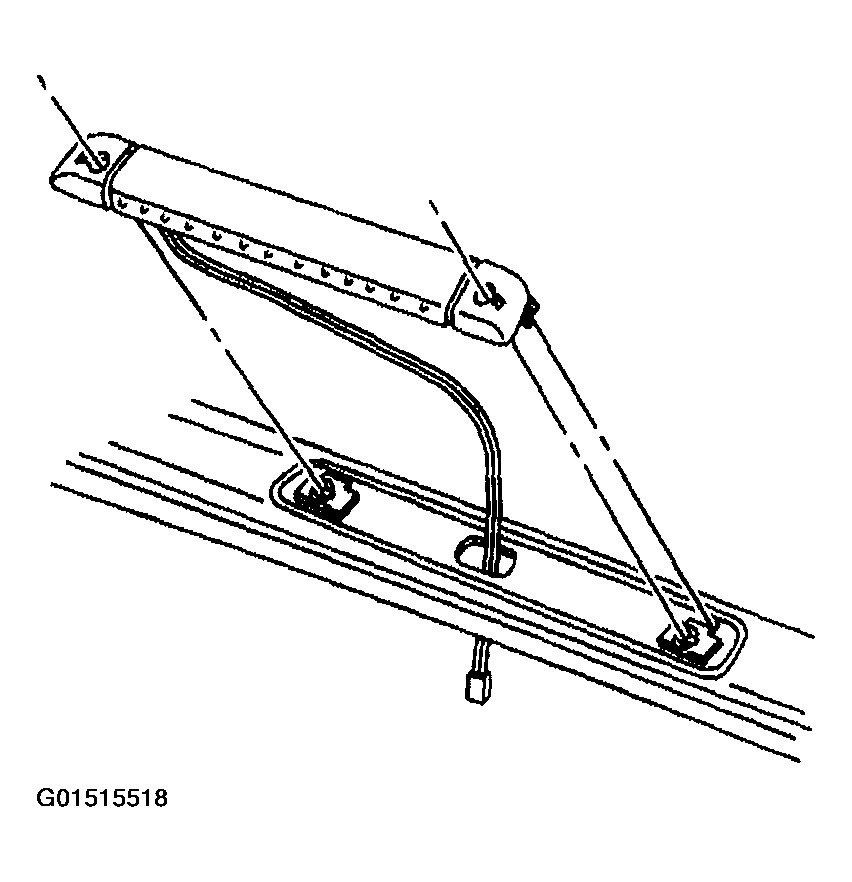

Fig 1: High Mounted Stop Lamp Removal - Aztek (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the high mounted stop lamp from the roof panel.
Disconnect the electrical connector from the high mounted stop lamp.

Fig 2: High Mounted Stop Lamp Removal - Aztek (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the high mounted stop lamp plastic retainer nuts from the roof panel, using a small flat-bladed tool.

Fig 3: High Mounted Stop Lamp Removal - Aztek (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
