Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the instrument panel compartment lamp switch socket.
  2. Connect the electrical connector to the instrument panel compartment lamp switch.
  3. Align the instrument panel compartment lamp switch into instrument panel compartment.
  4. Install the instrument panel compartment lamp switch.

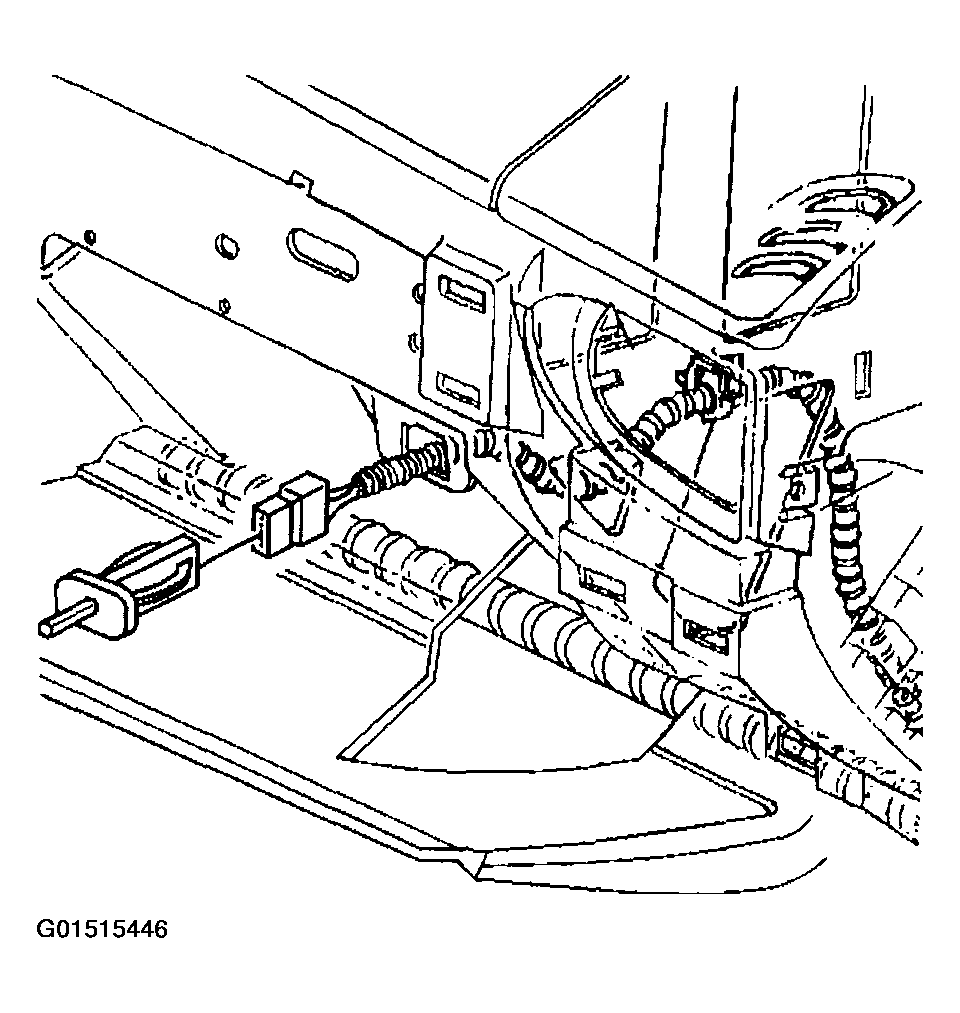

    Fig 1: Instrument Panel (I/P) Compartment Lamp Switch Installation
    G01515446Courtesy of GENERAL MOTORS CORP.

    Press the instrument panel compartment lamp switch until retainers are fully seated.
