Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the front parking/sidemarker lamp socket, if replacing the bulb.

Fig 1: Park/Turn Signal Lamp Installation - Aztek (1 Of 7)
Courtesy of GENERAL MOTORS CORP.

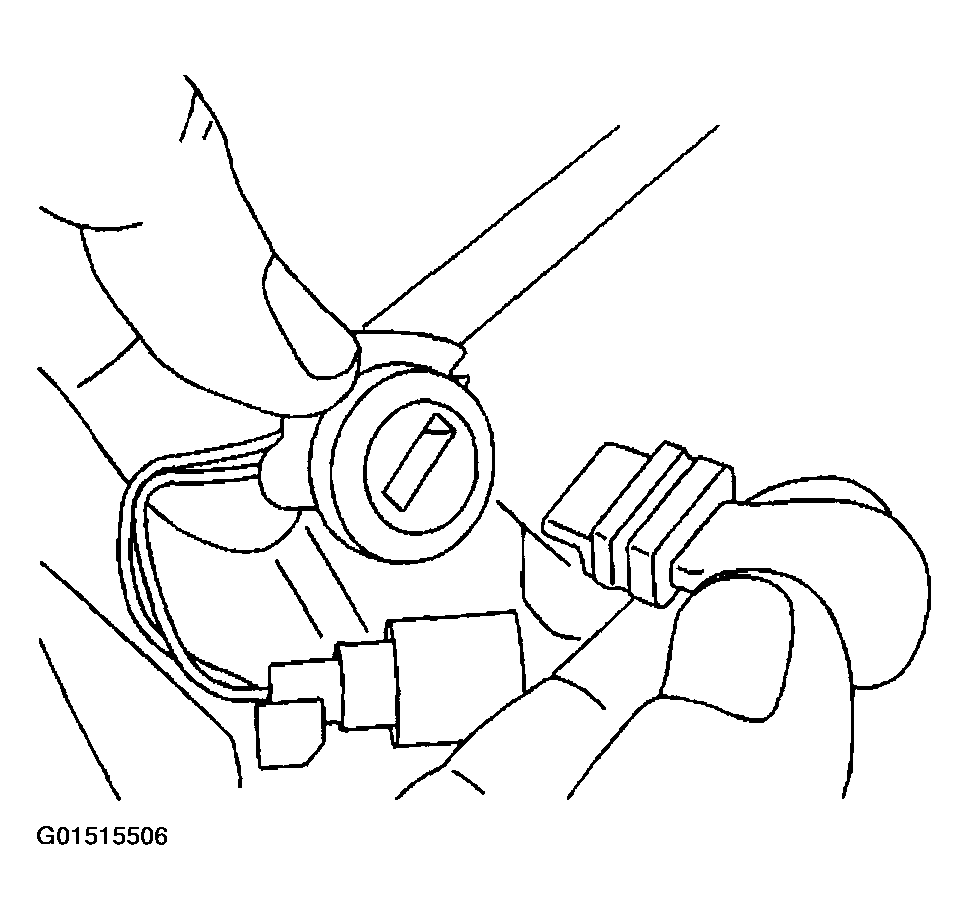

Install the front parking/sidemarker lamp socket, turning the socket clockwise until the locking tab is fully seated.

Fig 2: Park/Turn Signal Lamp Installation - Aztek (2 Of 7)
Courtesy of GENERAL MOTORS CORP.

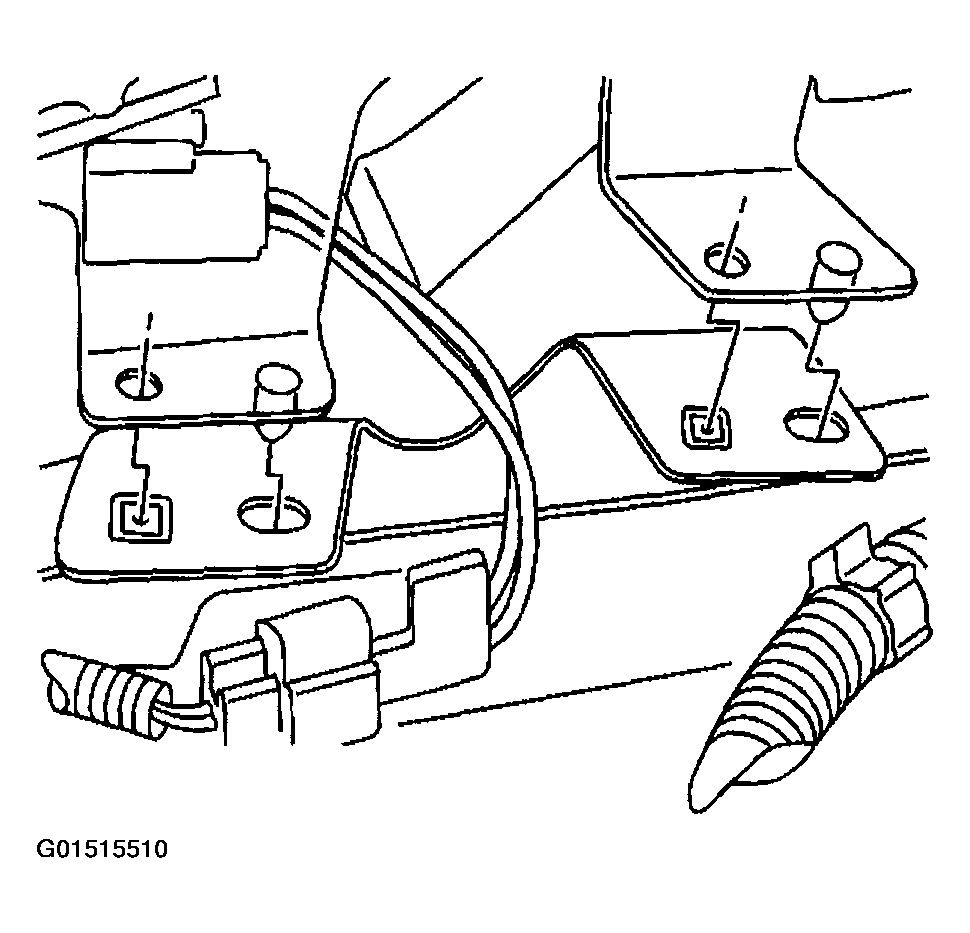

Connect the front parking/sidemarker lamp wiring harness to the pinch-weld flange.

Fig 3: Park/Turn Signal Lamp Installation - Aztek (3 Of 7)
Courtesy of GENERAL MOTORS CORP.

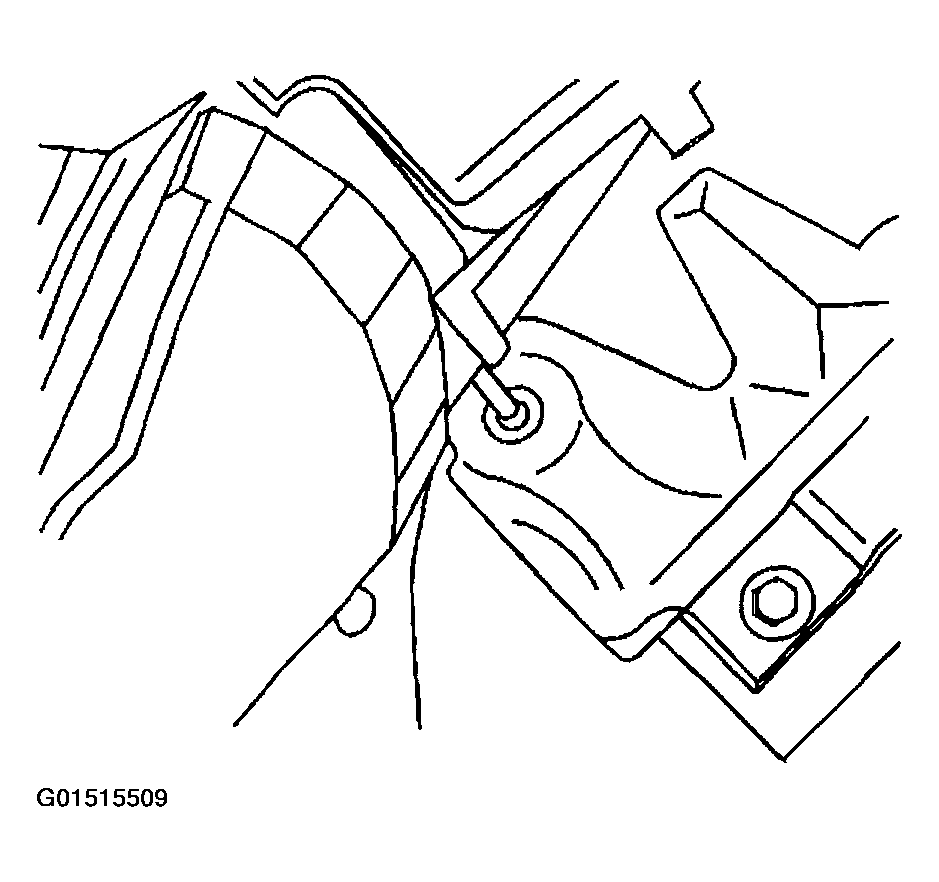

Align the ball stud of the front parking/sidemarker lamp to the grommet in the fender reinforcement.

Fig 4: Park/Turn Signal Lamp Installation - Aztek (4 Of 7)
Courtesy of GENERAL MOTORS CORP.

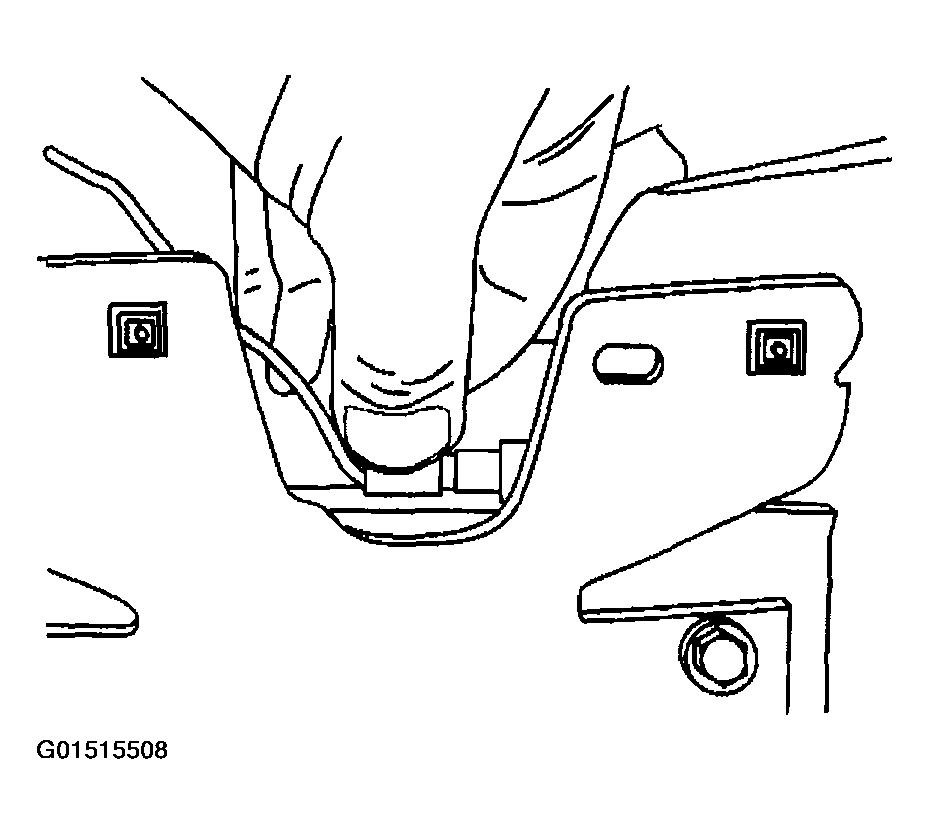

Position the alignment pins of the front parking/sidemarker lamp to the to the holes in the fender reinforcement.

Fig 5: Park/Turn Signal Lamp Installation - Aztek (5 Of 7)
Courtesy of GENERAL MOTORS CORP.

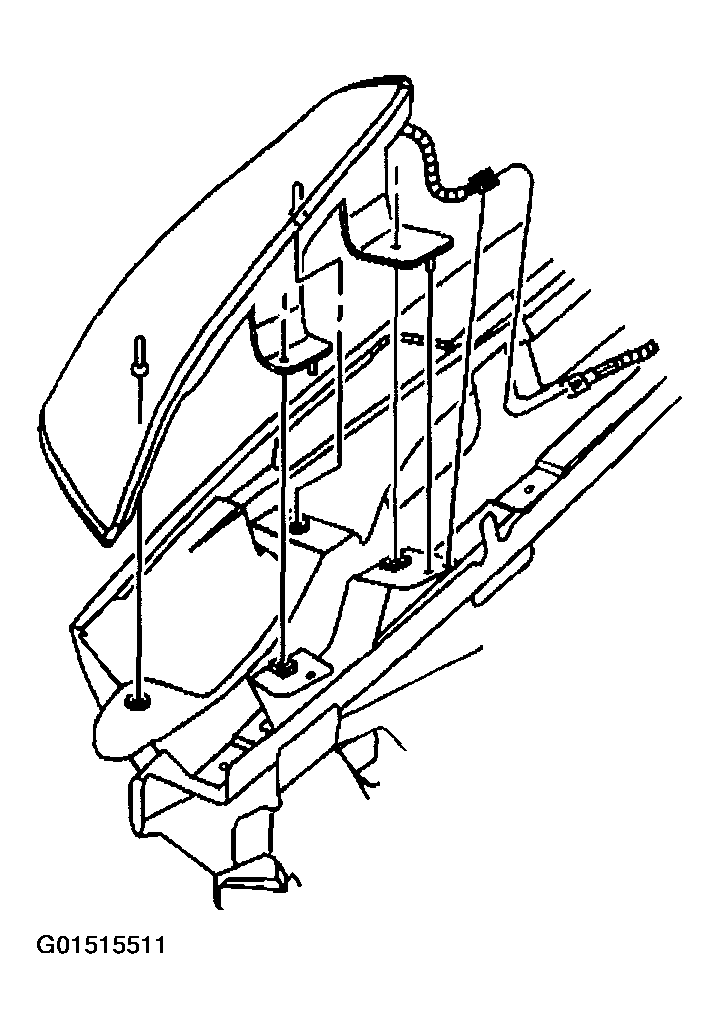

Install the front parking/sidemarker lamp to the front fender, pressing into place until fully seated.

Fig 6: Park/Turn Signal Lamp Installation - Aztek (6 Of 7)
Courtesy of GENERAL MOTORS CORP.

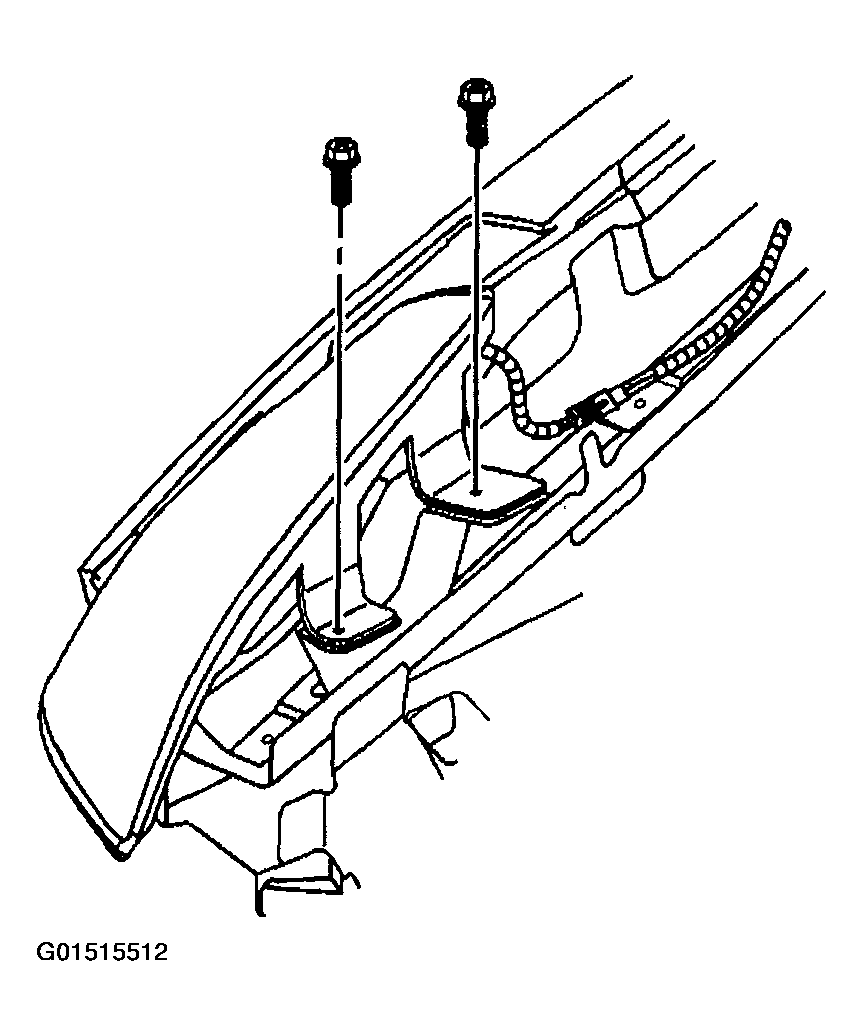

Install the screws to the front parking/sidemarker lamp.
Tighten

Tighten the front parking/sidemarker lamp screws to 2 N.m (18 lb in).
Close the hood.

Fig 7: Park/Turn Signal Lamp Installation - Aztek (7 Of 7)
Courtesy of GENERAL MOTORS CORP.
