Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed tool, gently pry the second seat audio control out from the overhead console.

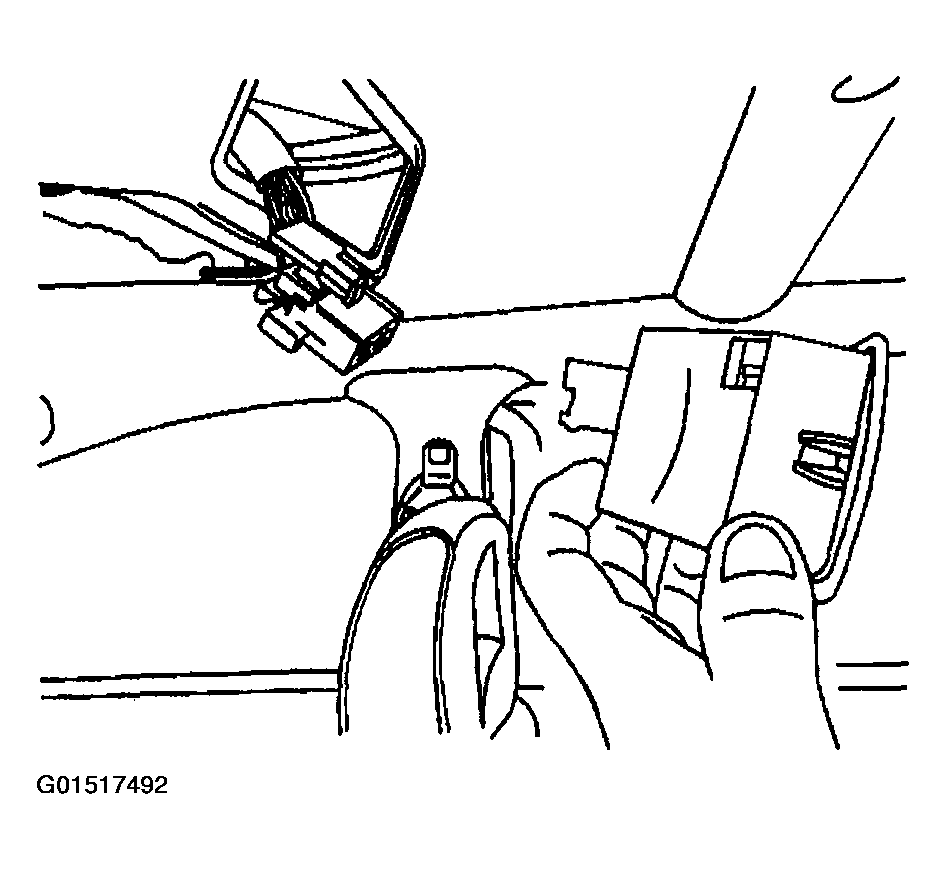

    Fig 1: Removing Second Seat Audio Control From Overhead Console
    G01517492Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.

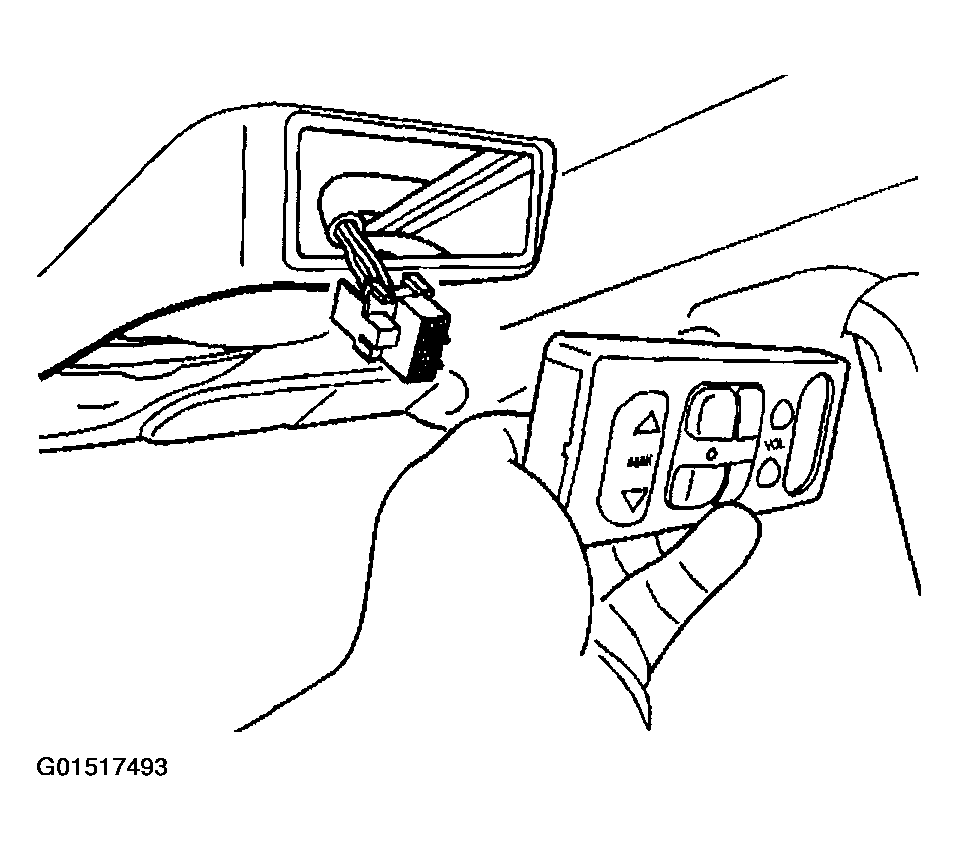

    Fig 2: Disconnecting Electrical Connector
    G01517493Courtesy of GENERAL MOTORS CORP.
