Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum control assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the vacuum control assembly retaining screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

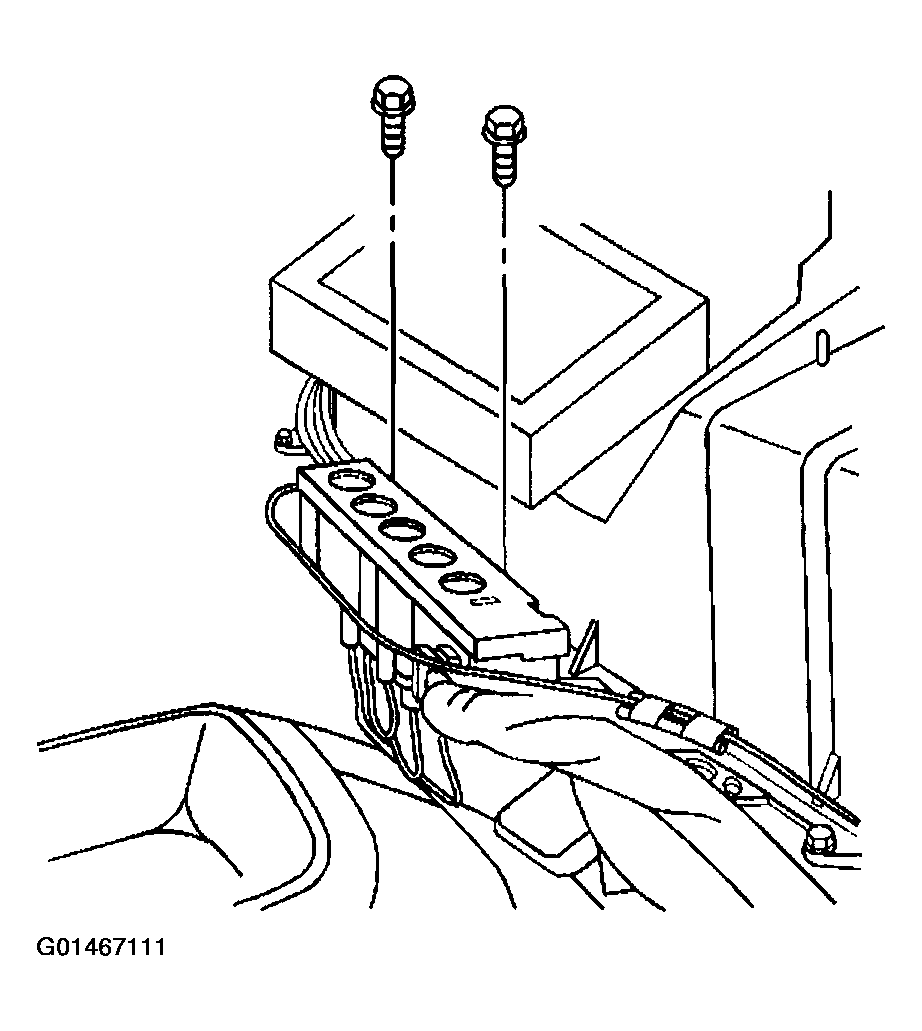

    Fig 1: Vacuum Control Assembly Retaining Screws
    G01467111Courtesy of GENERAL MOTORS CORP.
  3. Connect the vacuum harness connector to the vacuum control assembly.
  4. Connect the electrical connector (4) to the vacuum control assembly (5).
  5. Install the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.

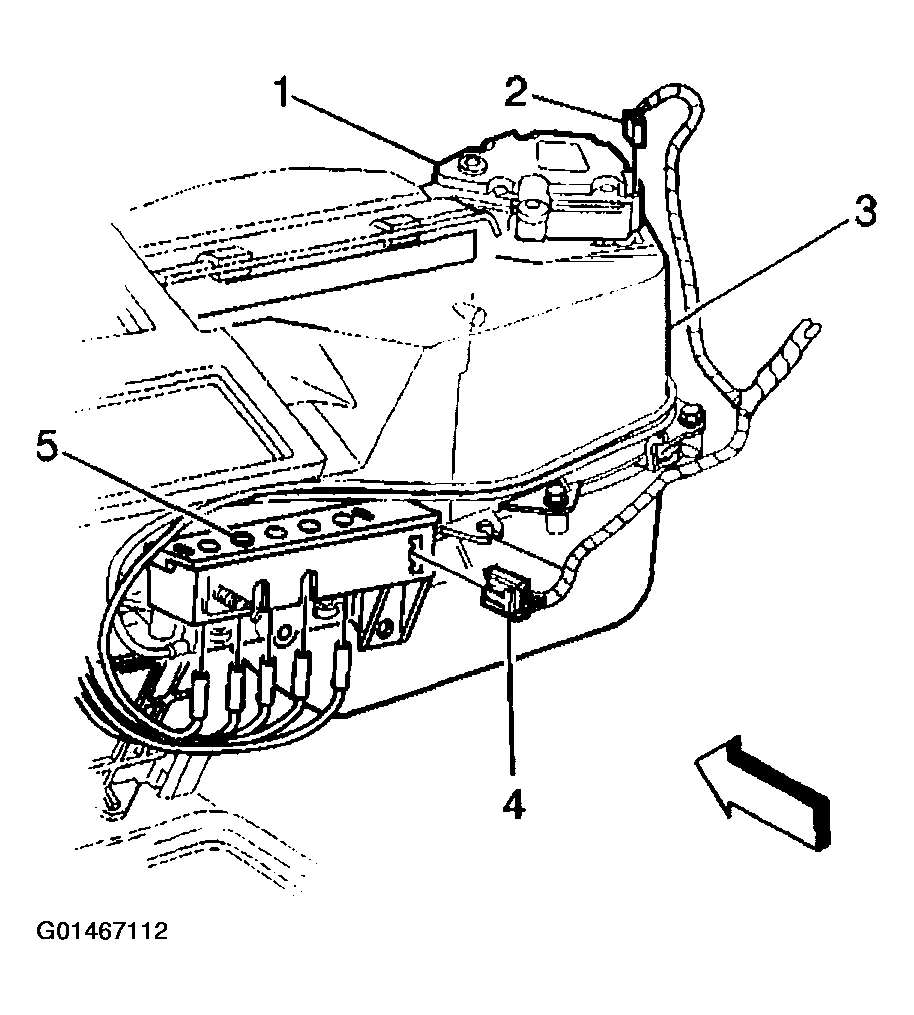

    Fig 2: Connecting Electrical Connector To Vacuum Control Assembly
    G01467112Courtesy of GENERAL MOTORS CORP.
