Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

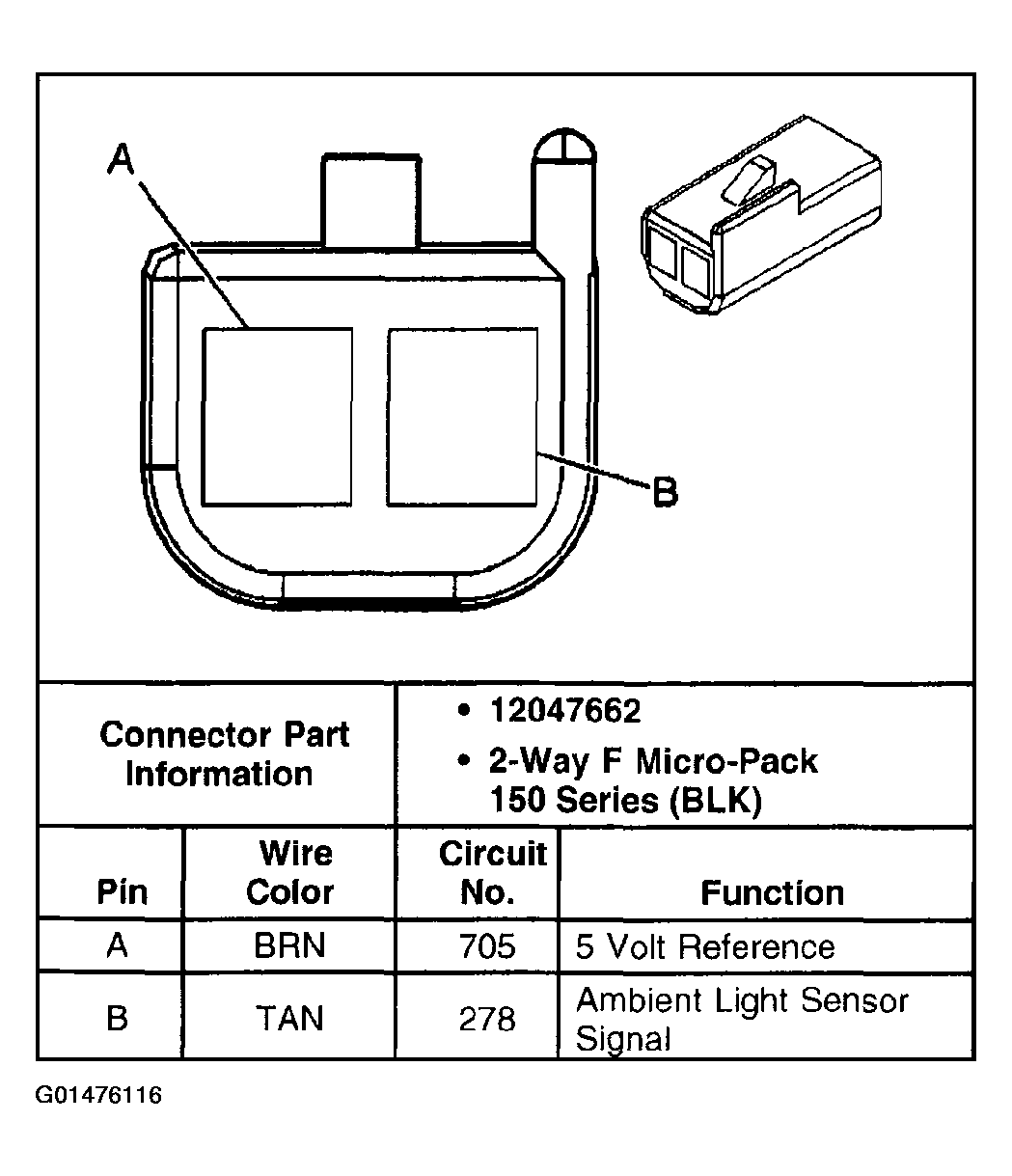

Fig 1: Ambient Light Sensor

G01476116

Courtesy of GENERAL MOTORS CORP.

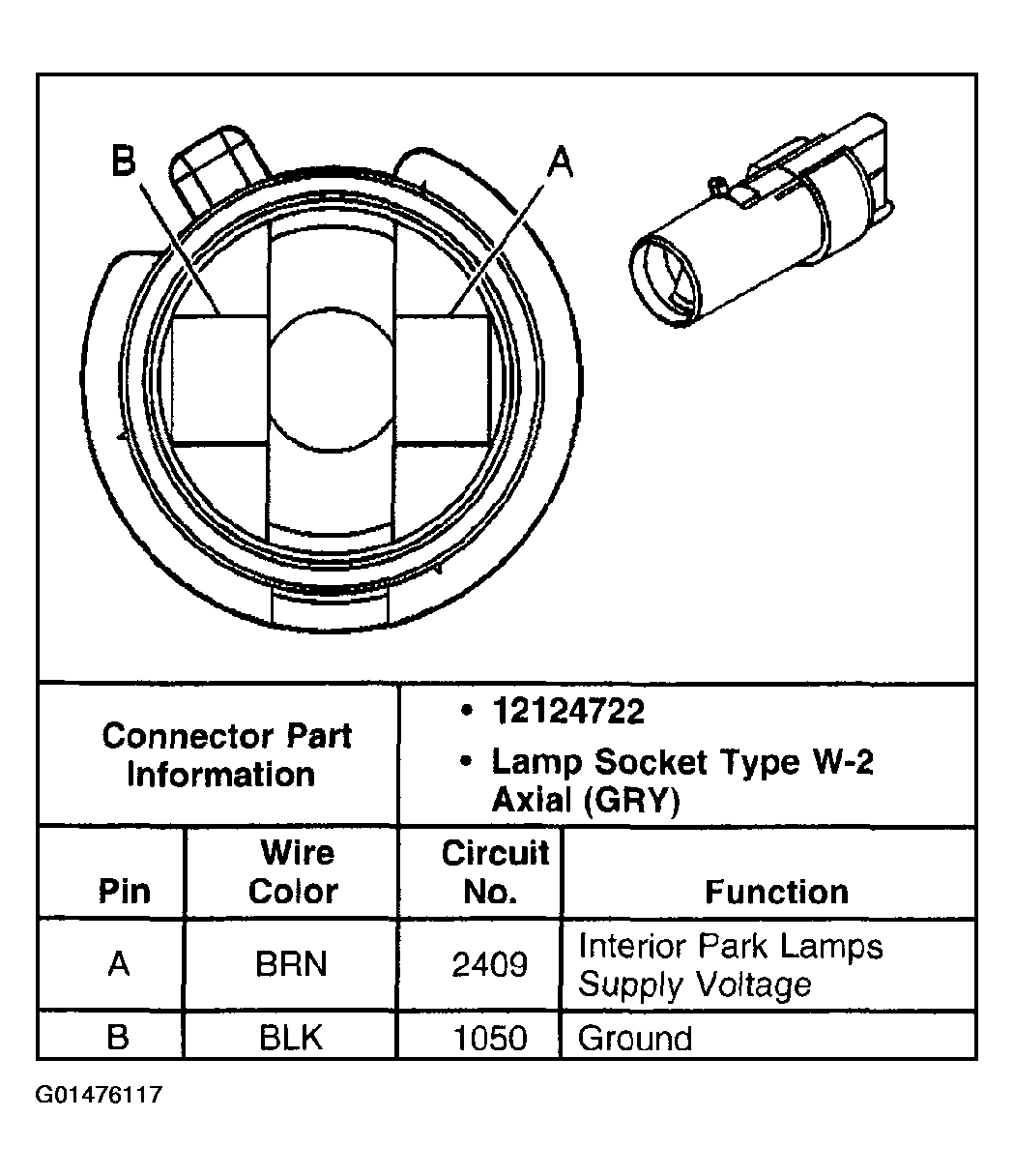

Fig 2: Ashtray Lamp

G01476117

Courtesy of GENERAL MOTORS CORP.

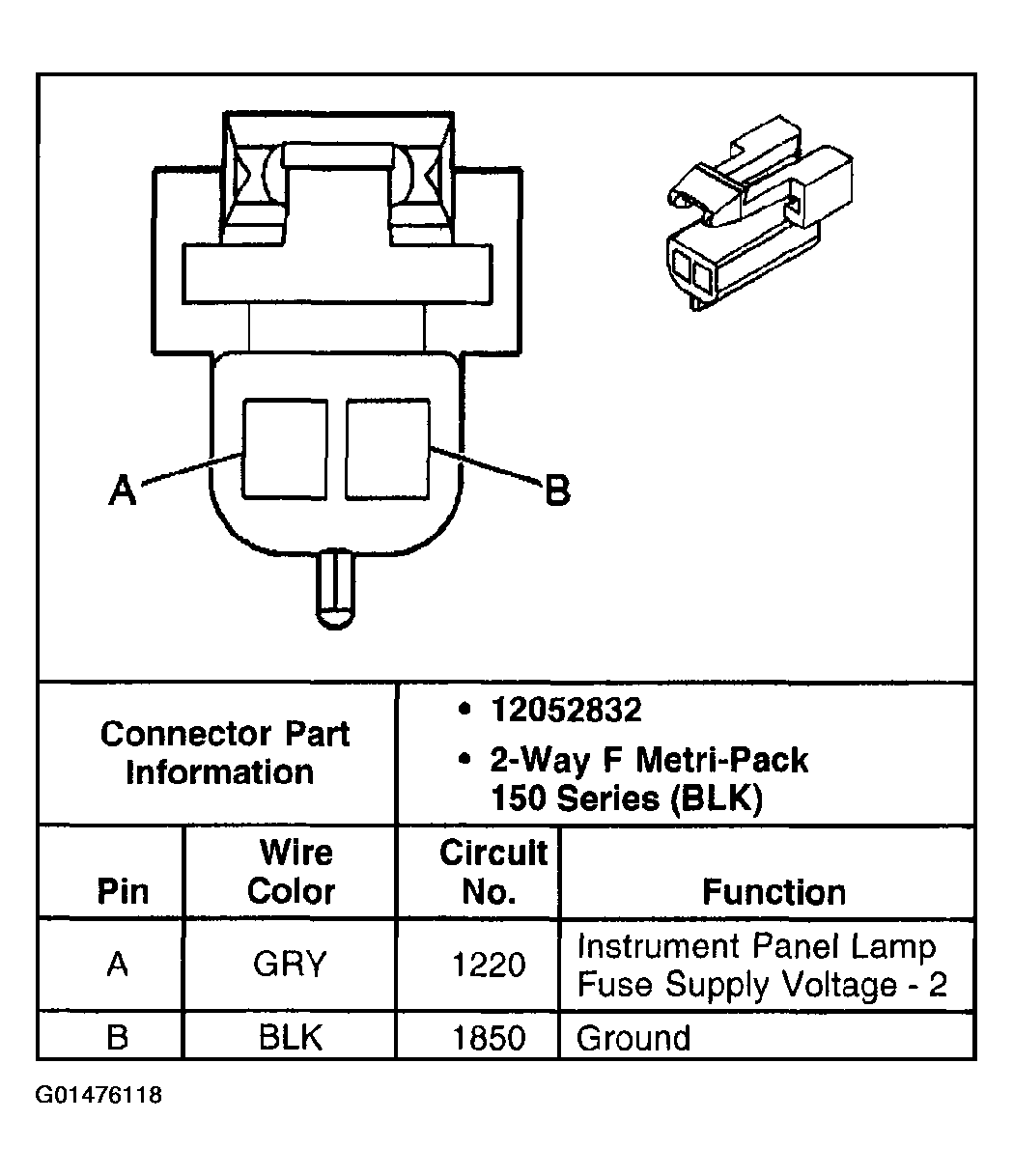

Fig 3: Automatic Transmission Shift Lever Position Indicator

G01476118

Courtesy of GENERAL MOTORS CORP.

Fig 4: Backup Lamp - Left-Pickup

G01476119

Courtesy of GENERAL MOTORS CORP.

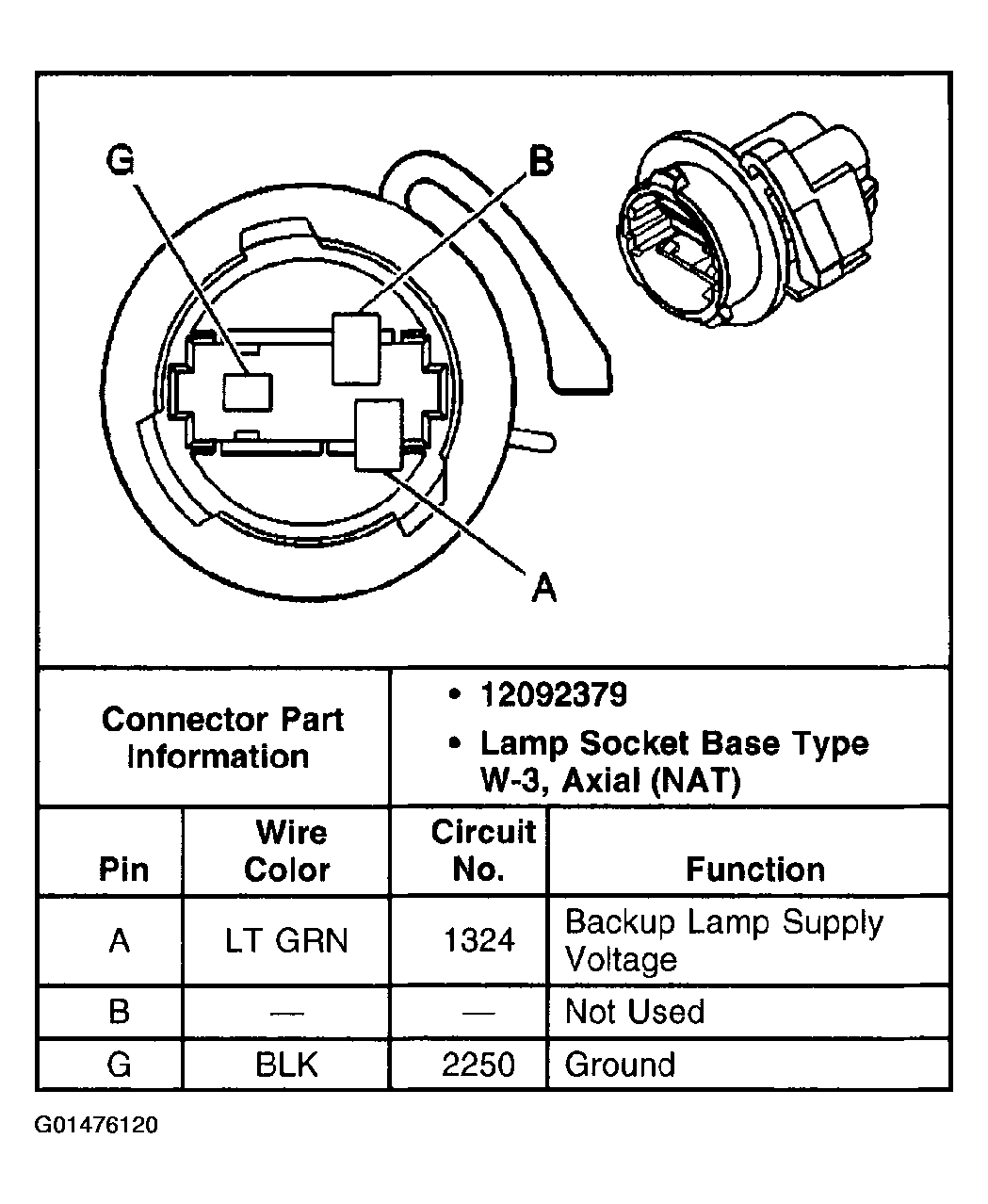

Fig 5: Backup Lamp - Right-Pickup

G01476120

Courtesy of GENERAL MOTORS CORP.

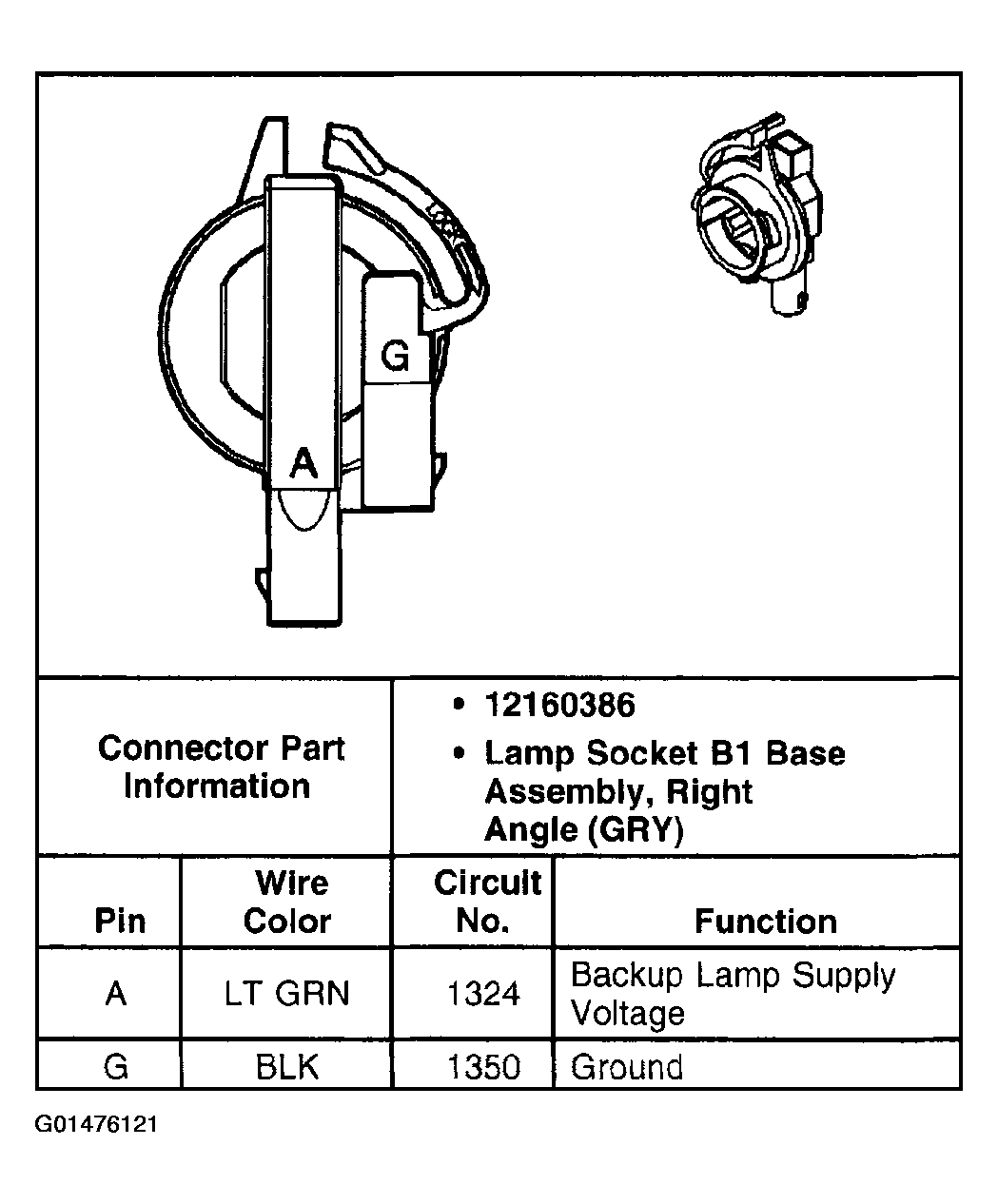

Fig 6: Backup Lamp - Left/Right (Export Utility)

G01476121

Courtesy of GENERAL MOTORS CORP.

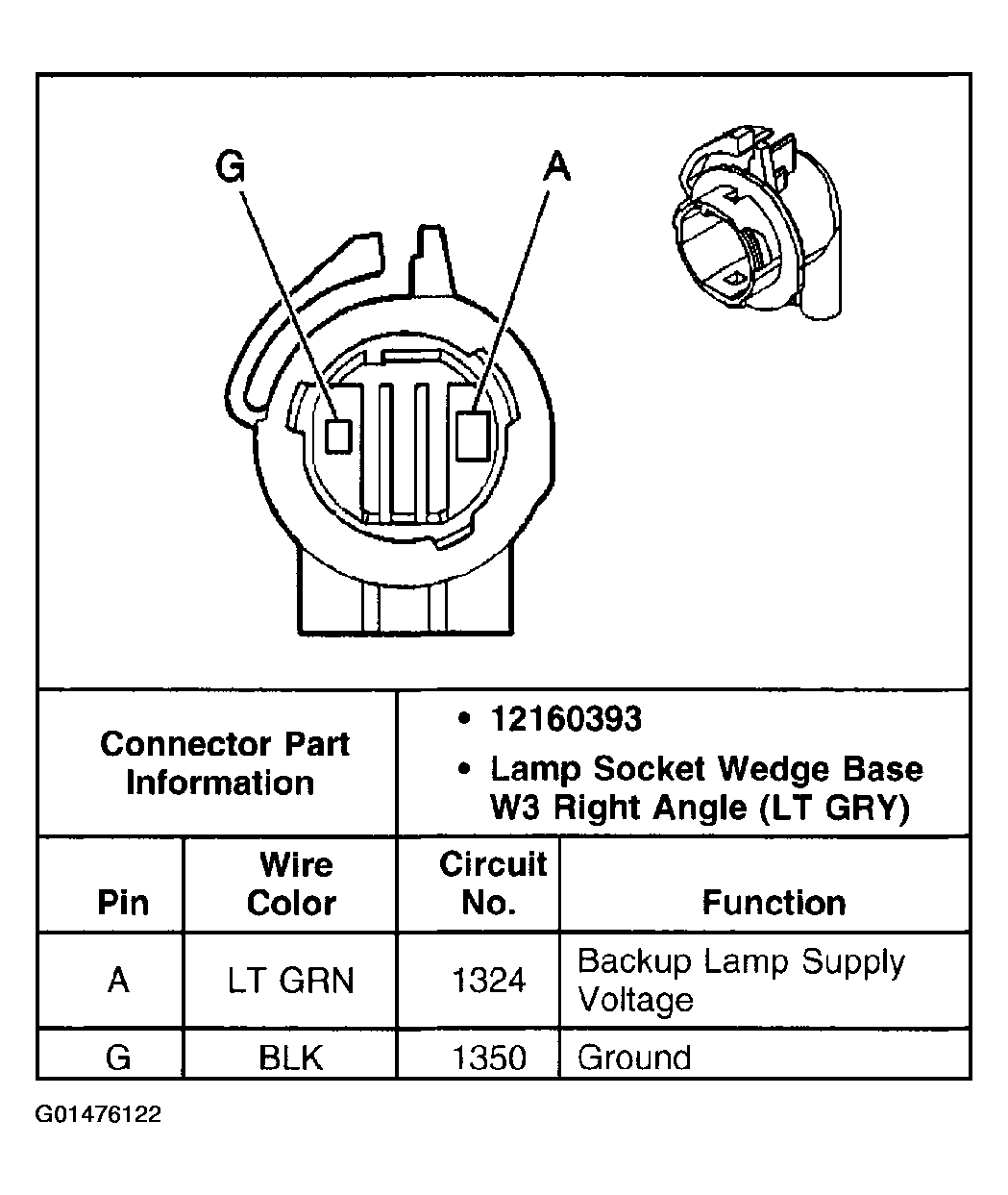

Fig 7: Backup Lamp - Left/Right (Domestic Utility)

G01476122

Courtesy of GENERAL MOTORS CORP.

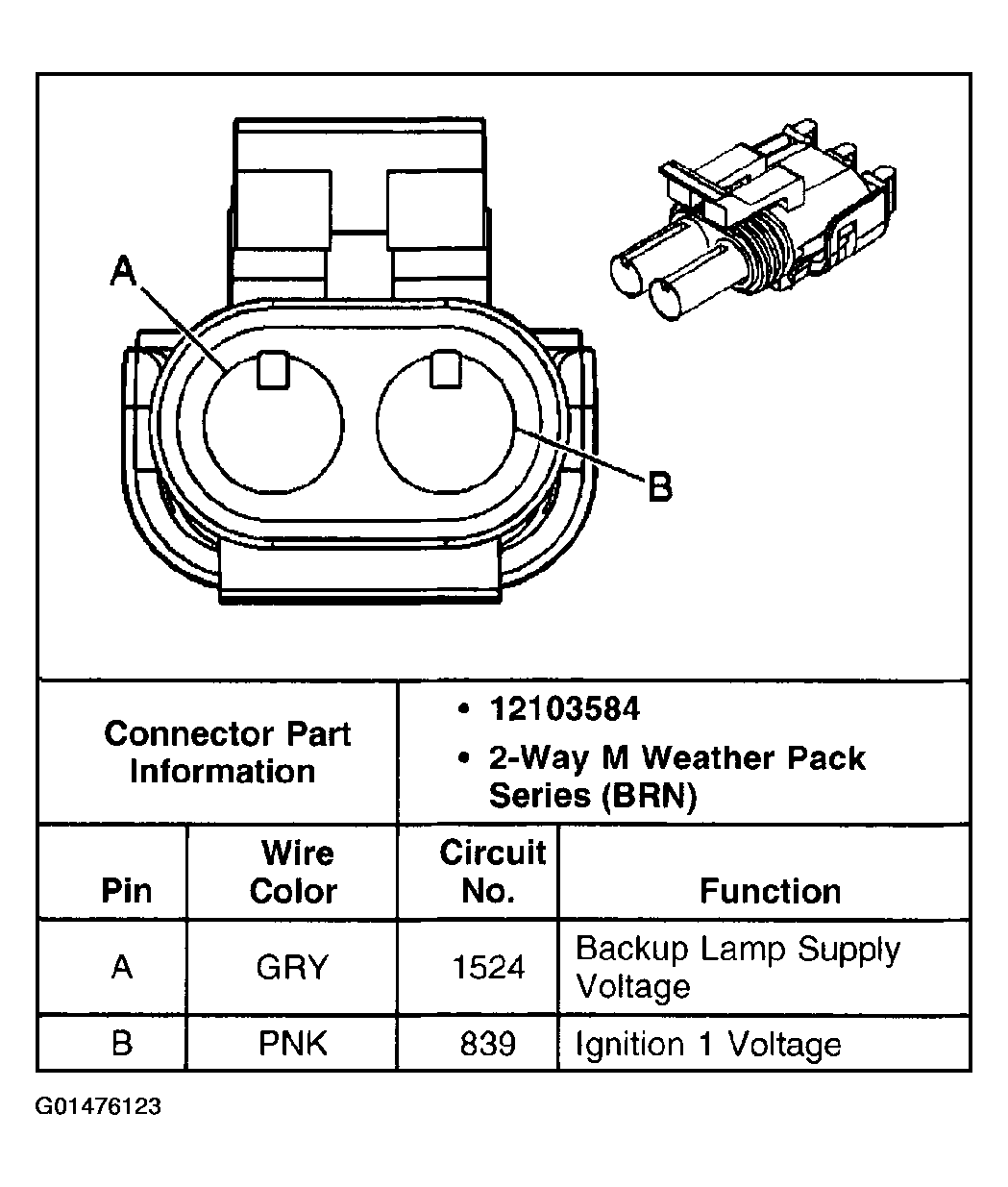

Fig 8: Backup Lamp Switch (W/ M/T)

G01476123

Courtesy of GENERAL MOTORS CORP.

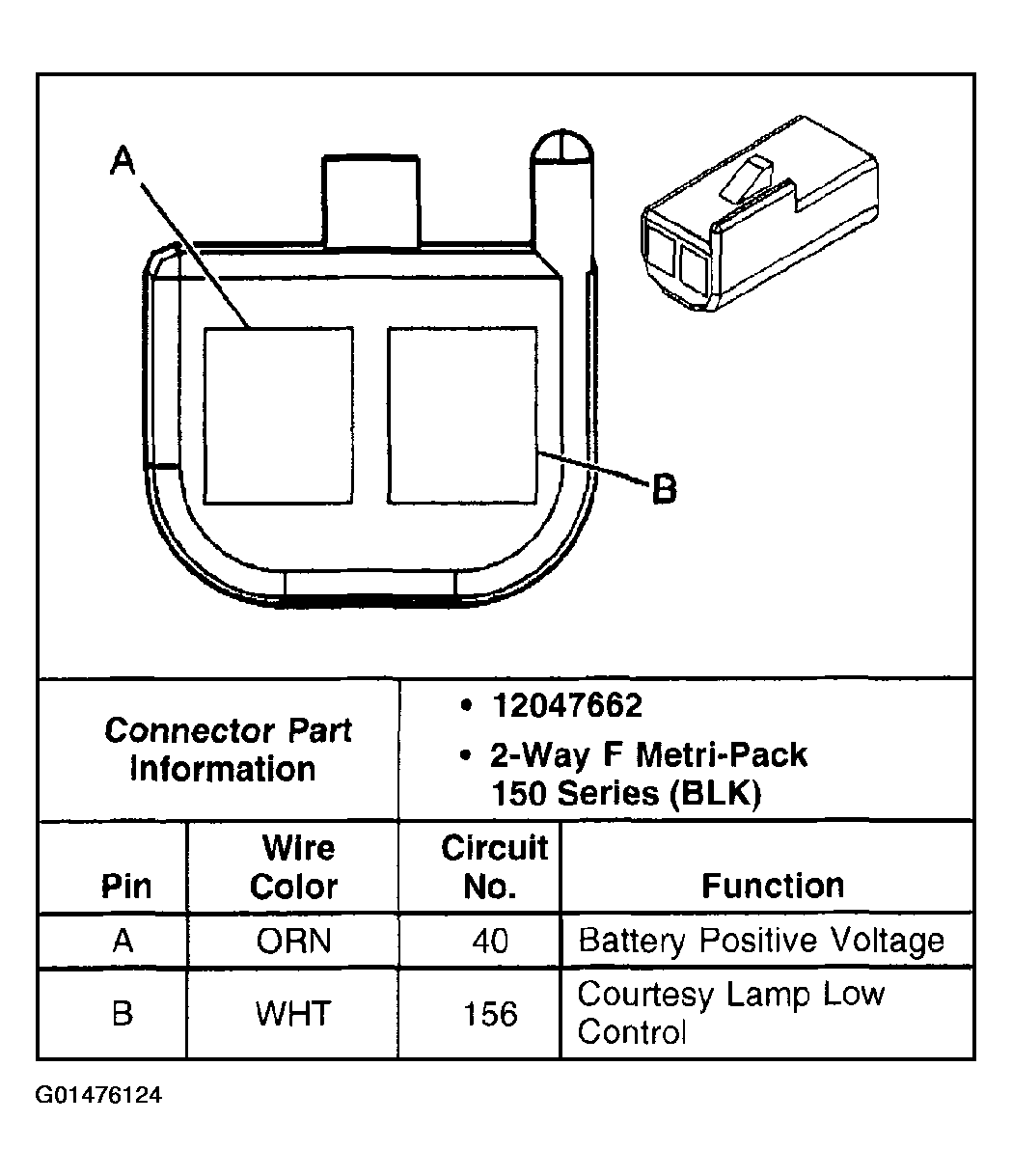

Fig 9: Cargo Lamp (Utility)

G01476124

Courtesy of GENERAL MOTORS CORP.

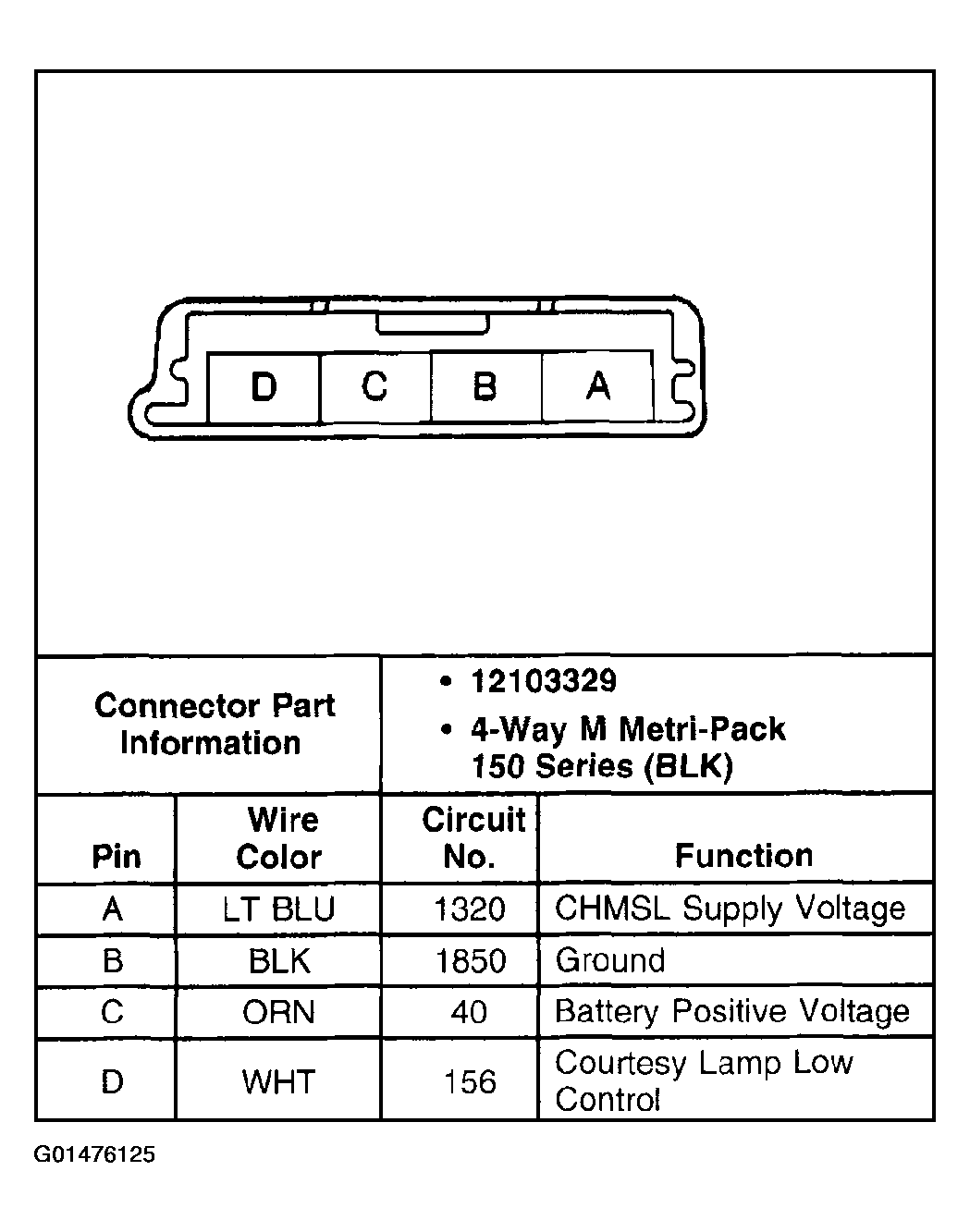

Fig 10: Center High Mounted Stop Lamp (Pickup)

G01476125

Courtesy of GENERAL MOTORS CORP.

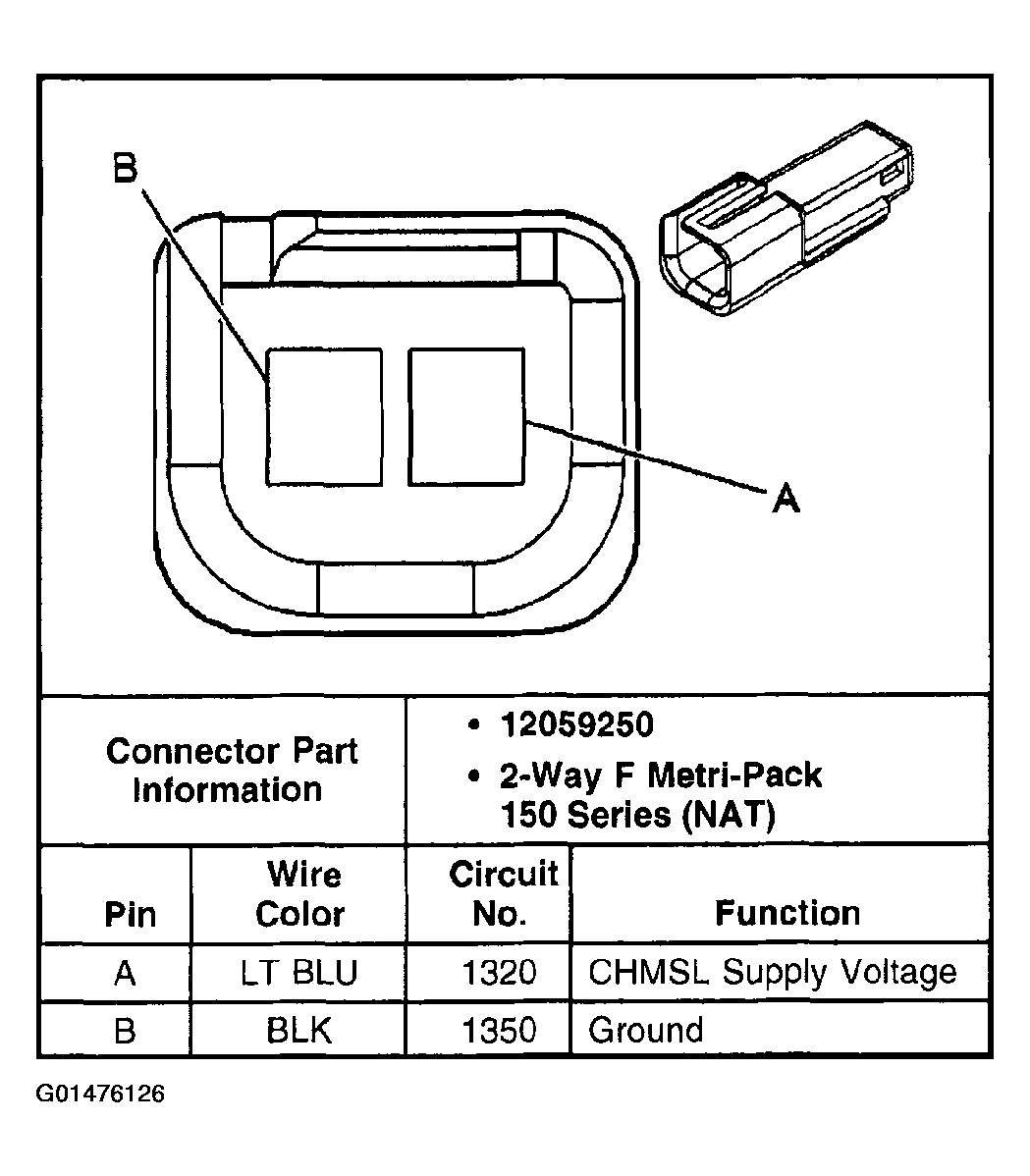

Fig 11: Center High Mounted Stop Lamp (Utility W/ Endgate)

G01476126

Courtesy of GENERAL MOTORS CORP.

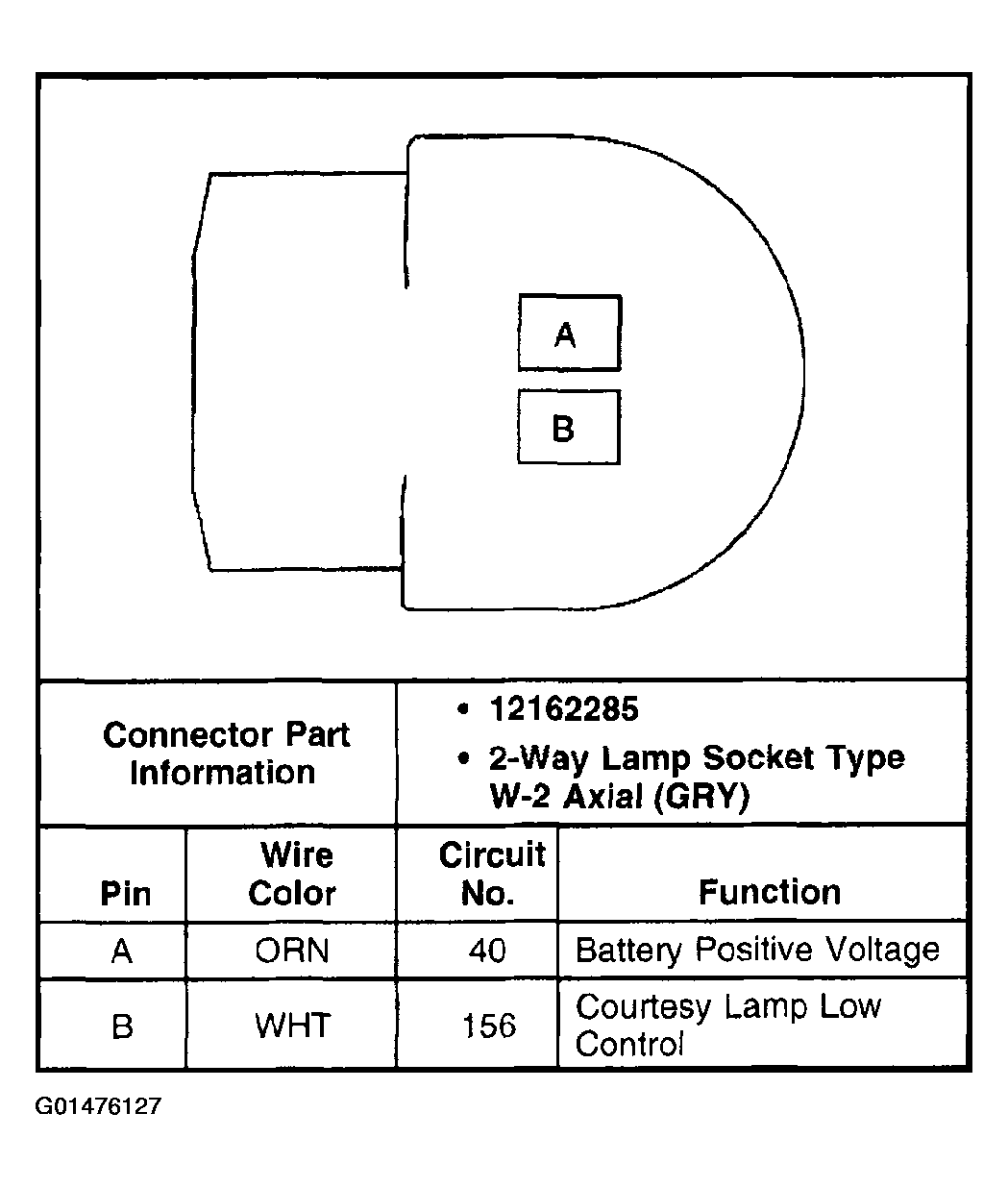

Fig 12: Courtesy Lamp - Left/Right Console Connector And Description

G01476127

Courtesy of GENERAL MOTORS CORP.

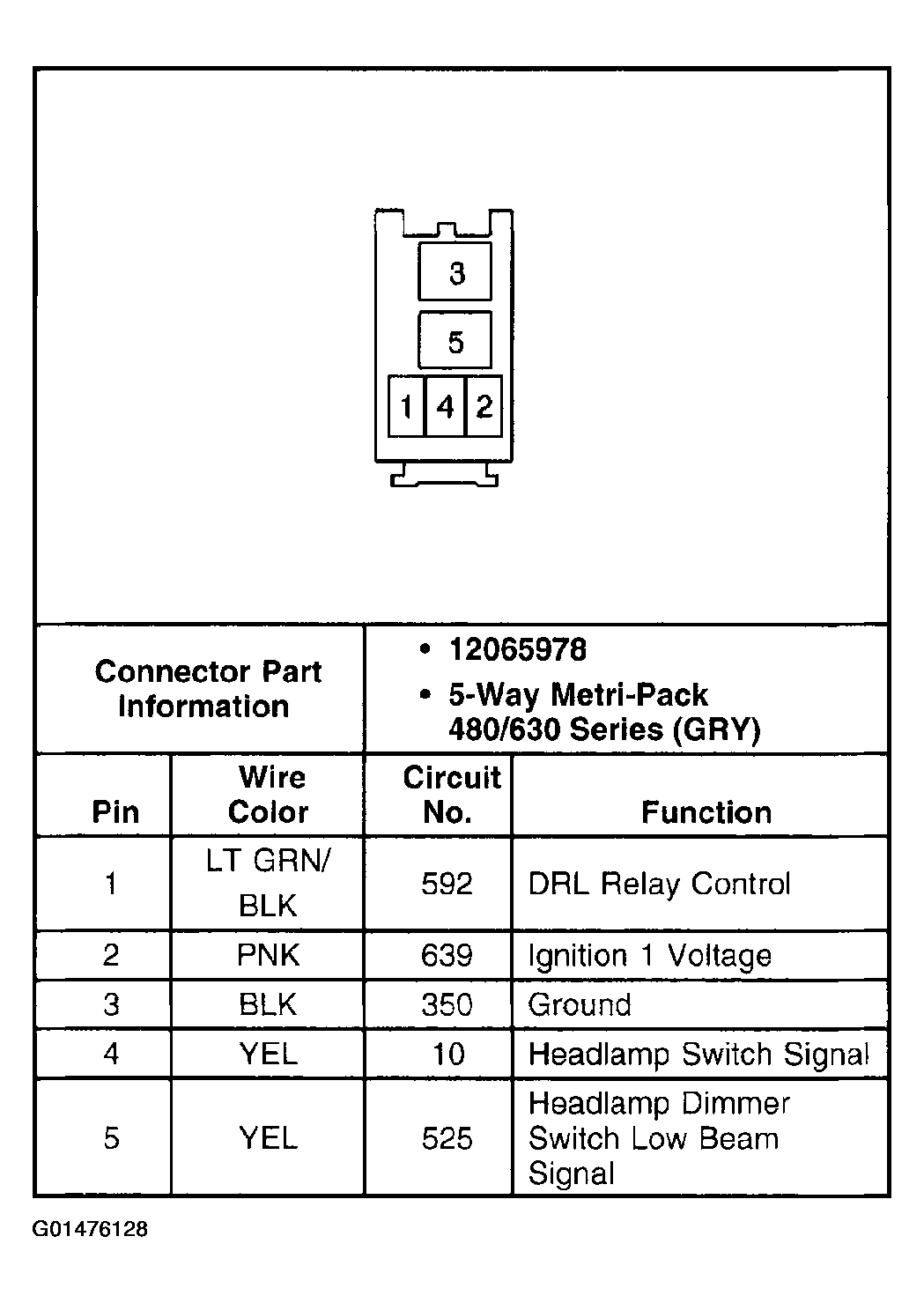

Fig 13: Daytime Running Lamps Relay (W/ ZR2)

G01476128

Courtesy of GENERAL MOTORS CORP.

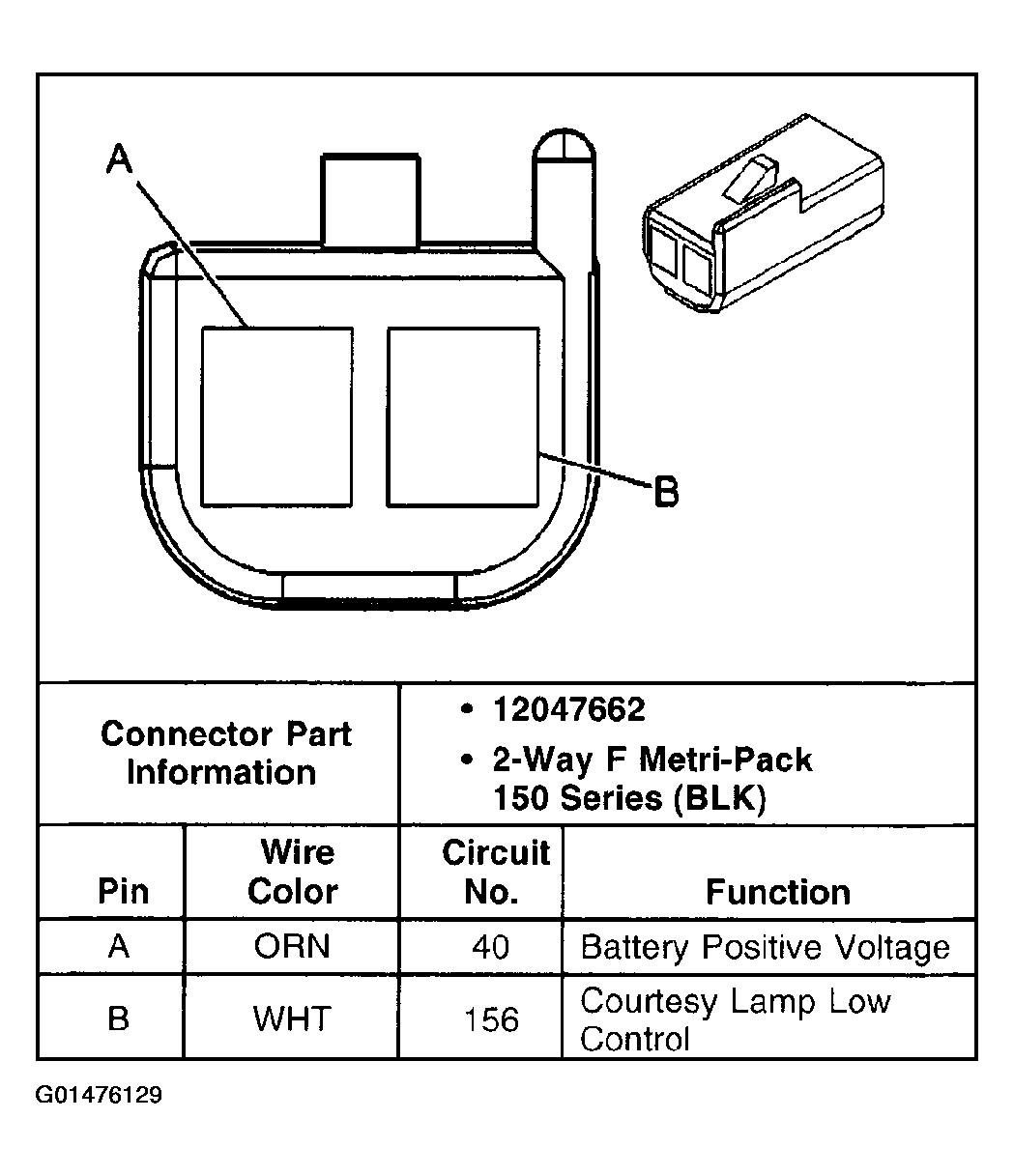

Fig 14: Dome Lamp - Utility

G01476129

Courtesy of GENERAL MOTORS CORP.

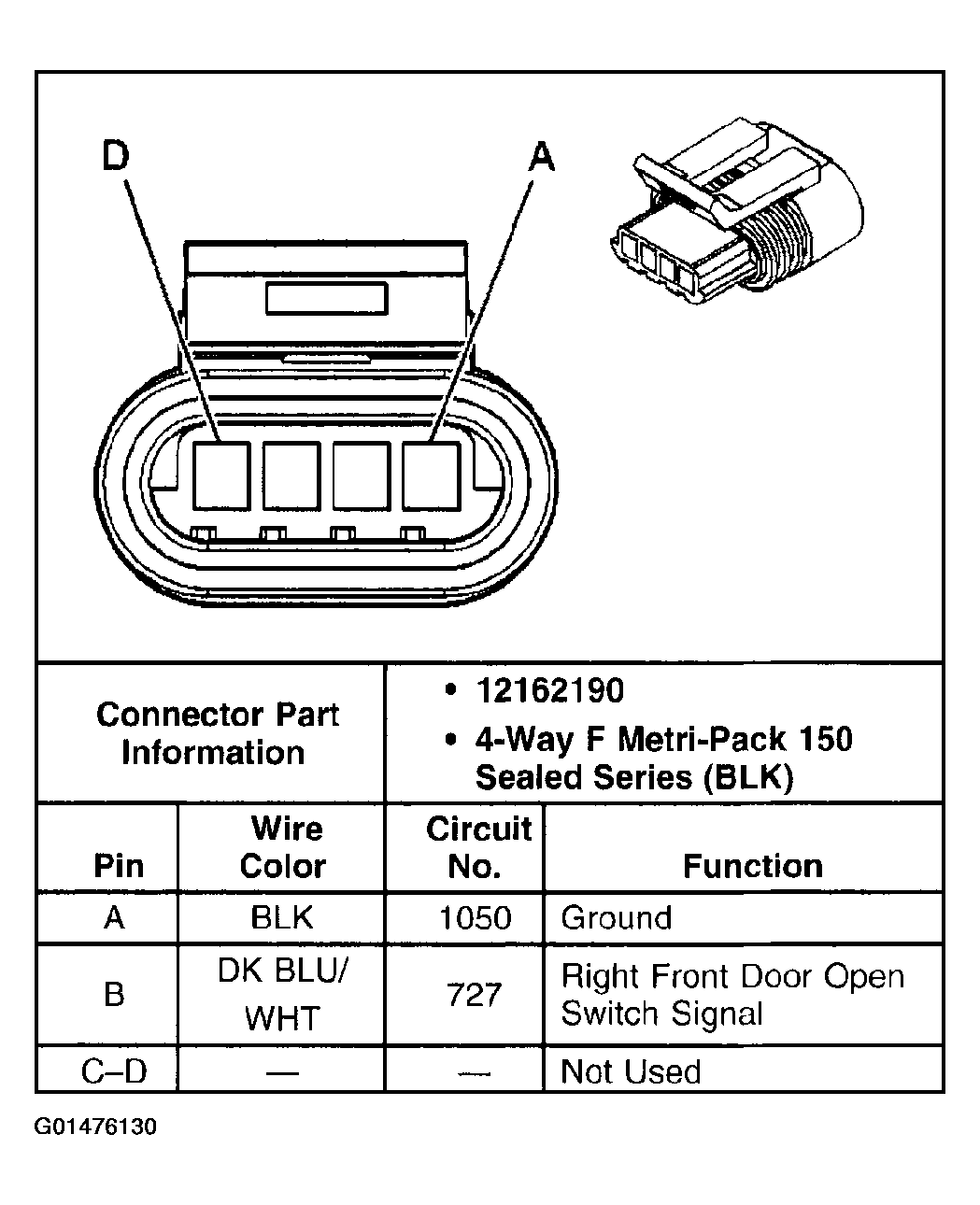

Fig 15: Door Handle Switch - Right

G01476130

Courtesy of GENERAL MOTORS CORP.

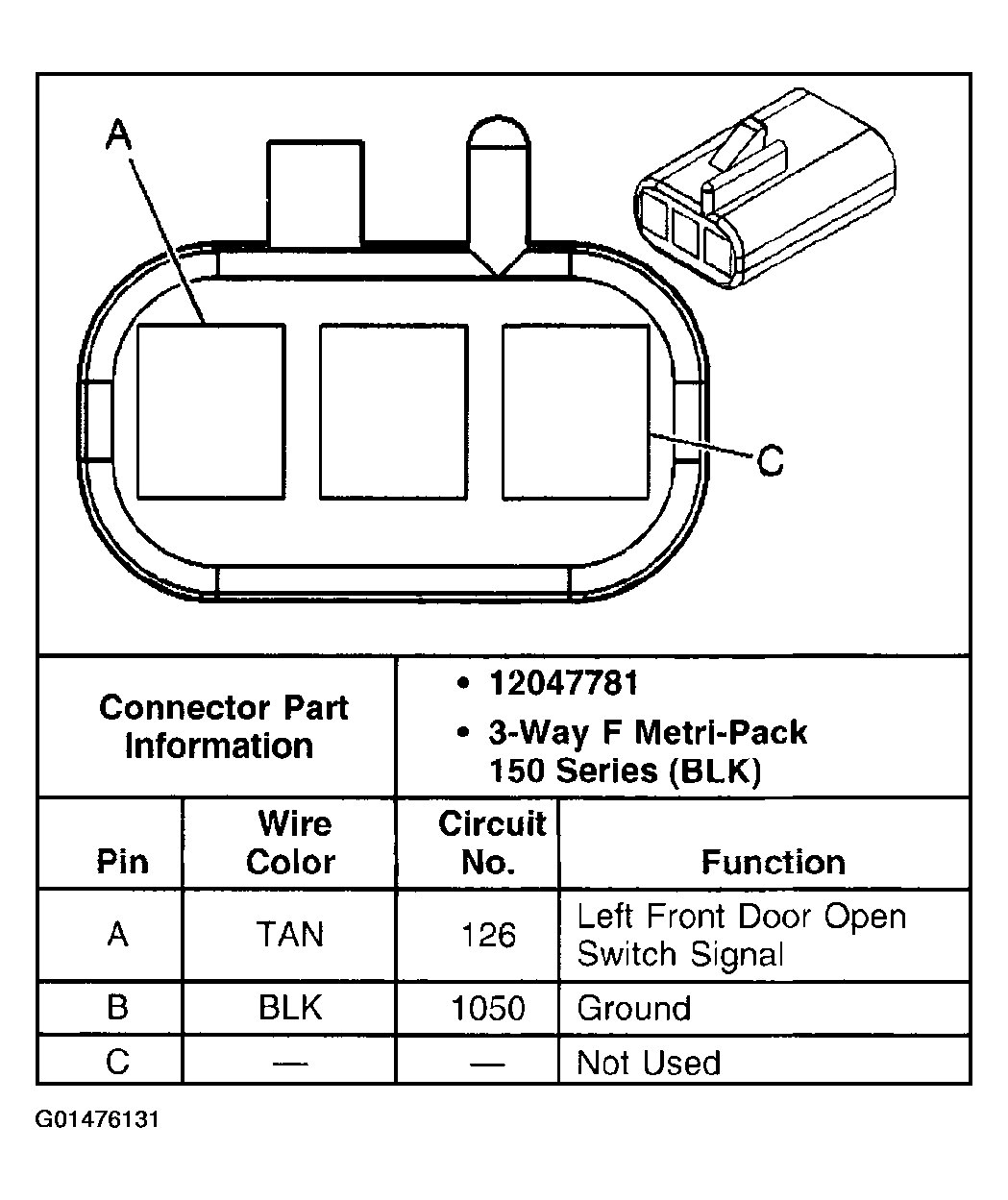

Fig 16: Door Jamb Switch - Driver

G01476131

Courtesy of GENERAL MOTORS CORP.

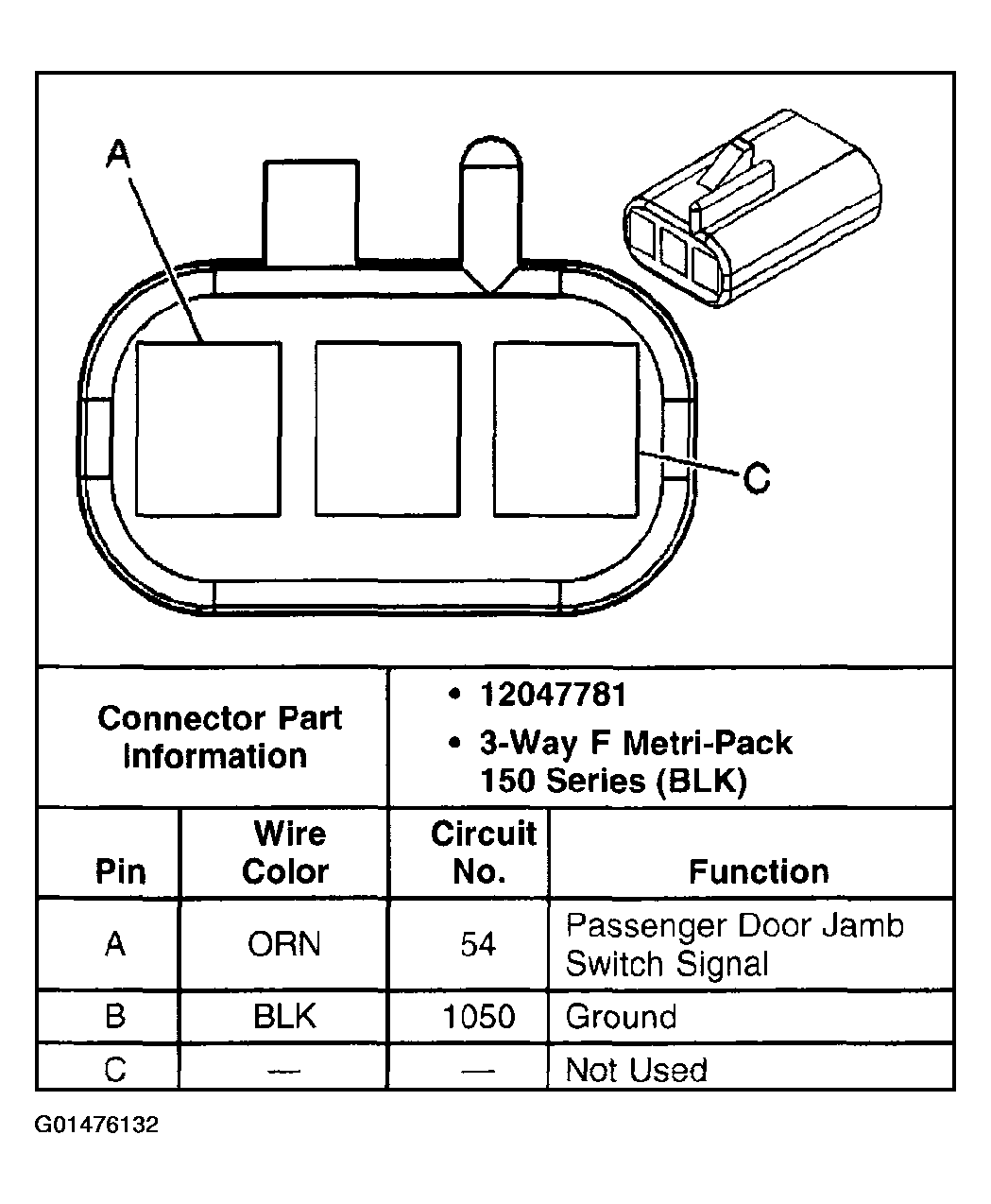

Fig 17: Door Jamb Switch - Front Passenger (Pickup)

G01476132

Courtesy of GENERAL MOTORS CORP.

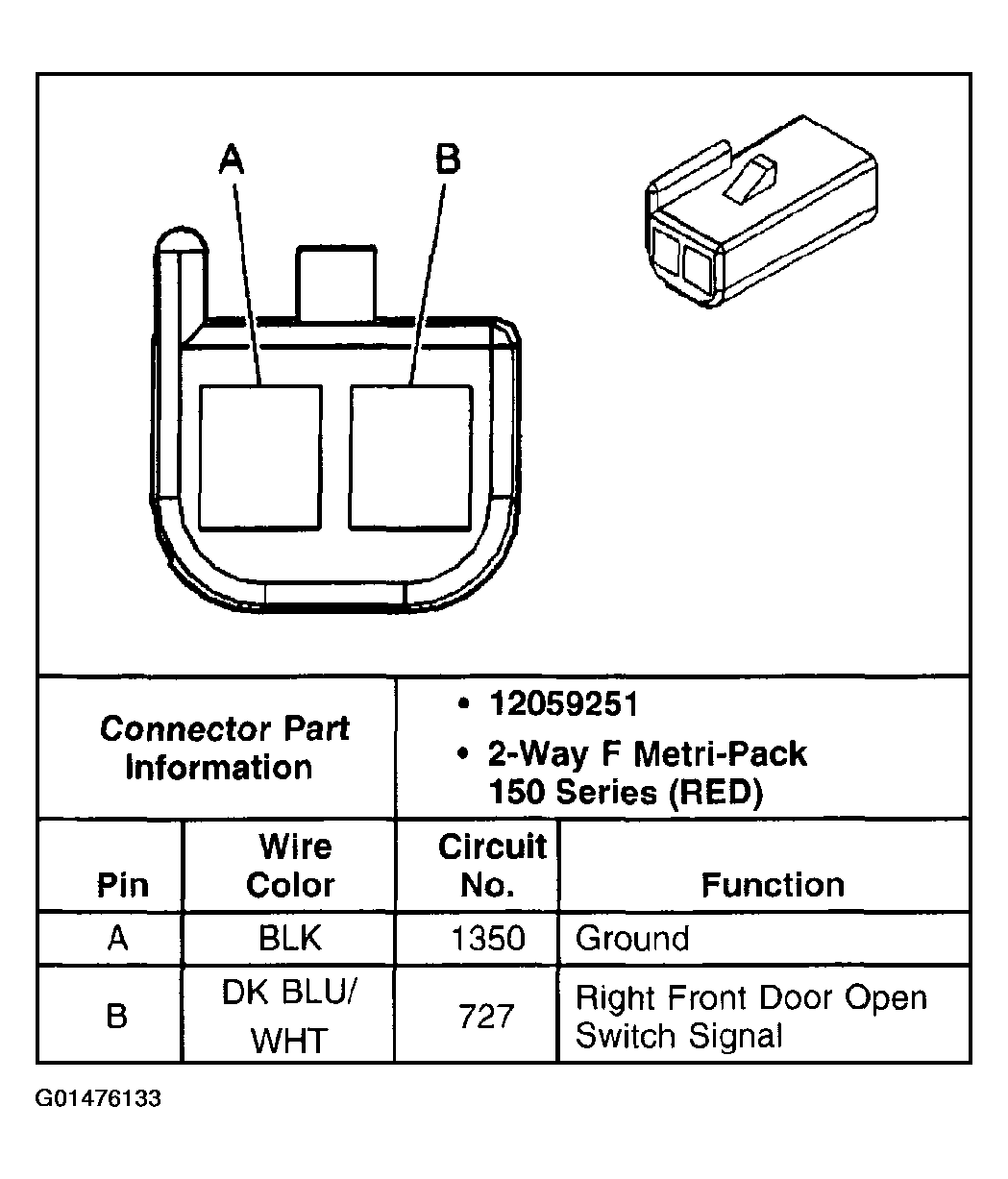

Fig 18: Door Jamb Switch - LR/RR (Utility)

G01476133

Courtesy of GENERAL MOTORS CORP.

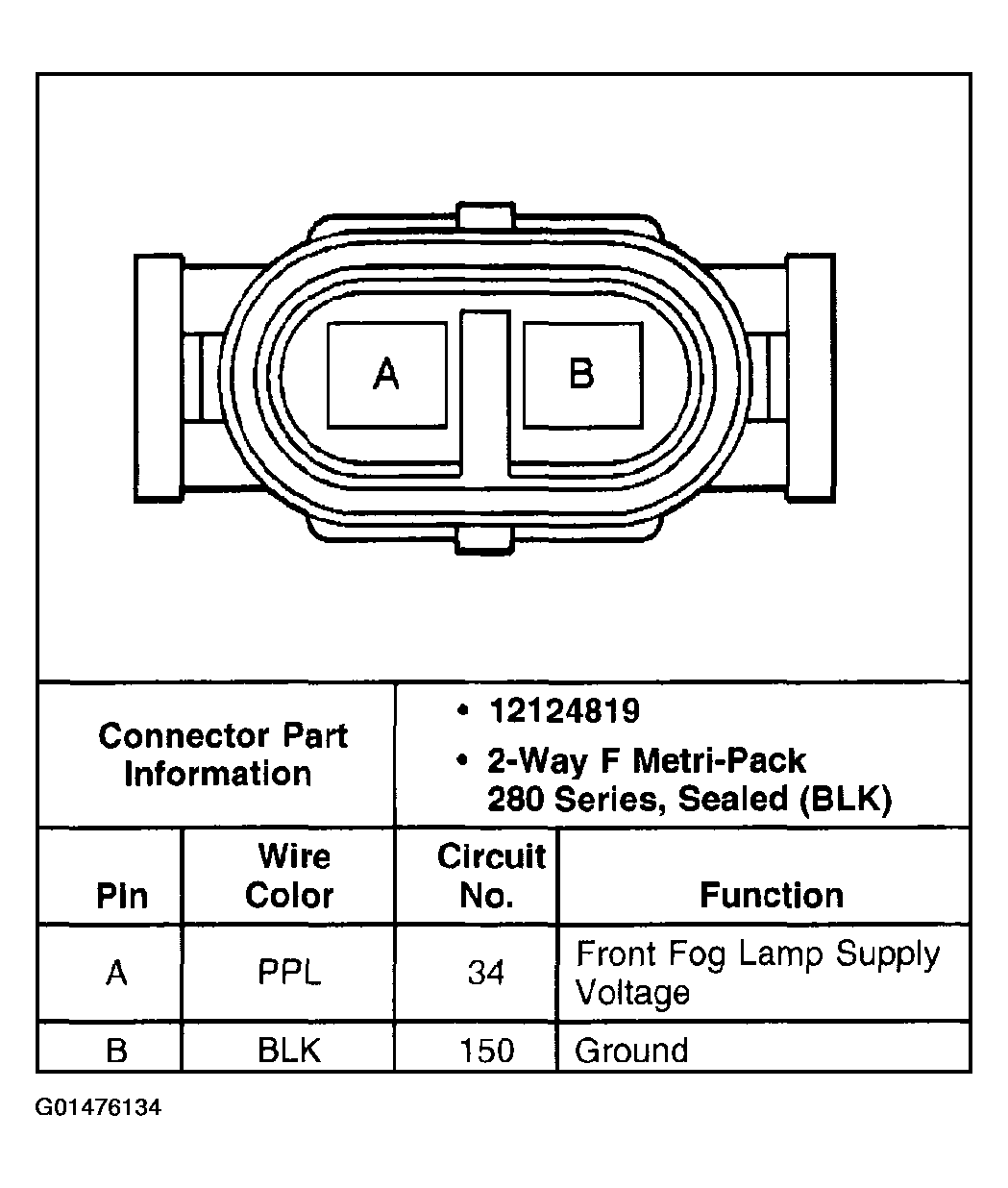

Fig 19: Fog Lamp - LF

G01476134

Courtesy of GENERAL MOTORS CORP.

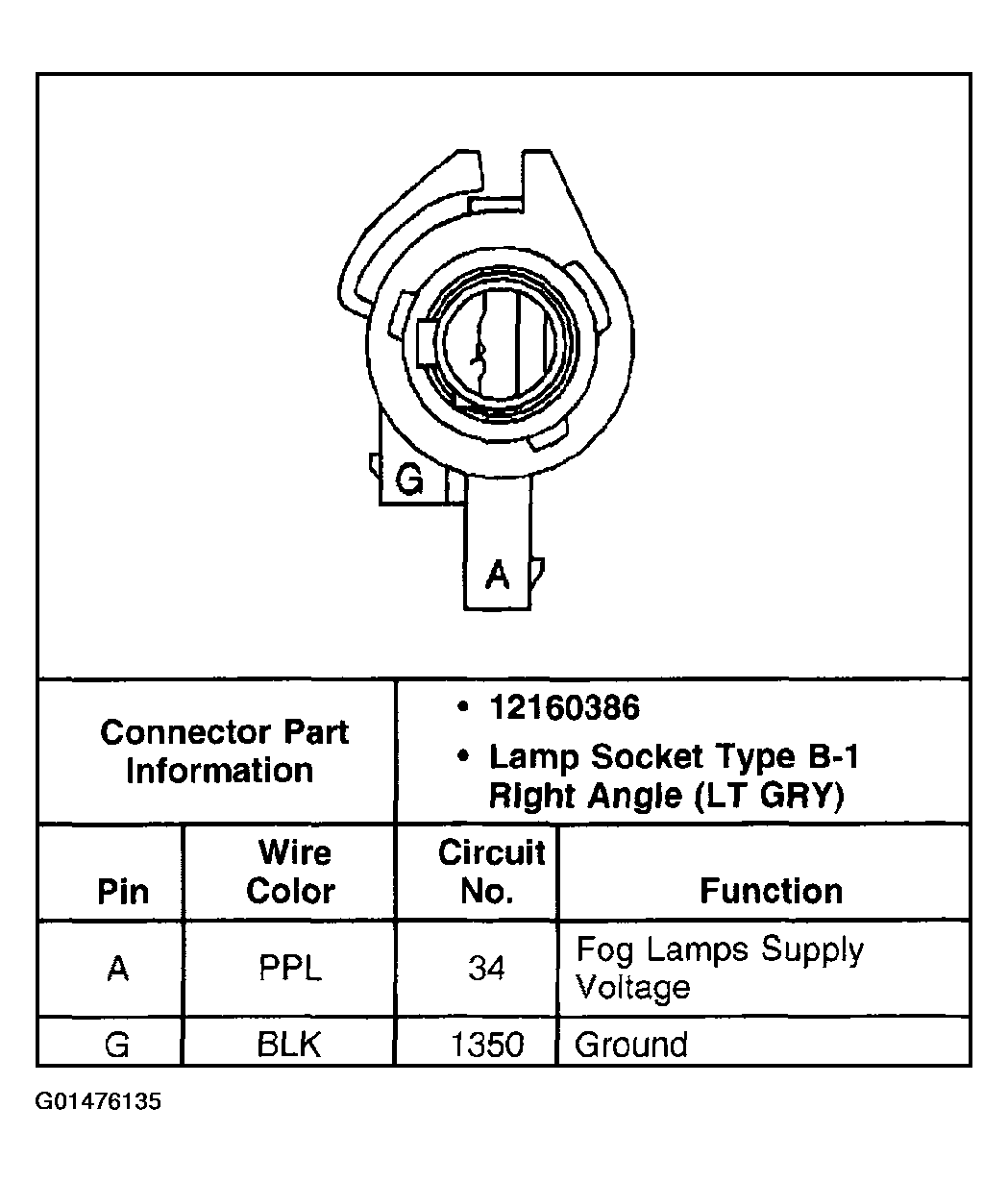

Fig 20: Fog Lamp - LR/RR (Export)

G01476135

Courtesy of GENERAL MOTORS CORP.

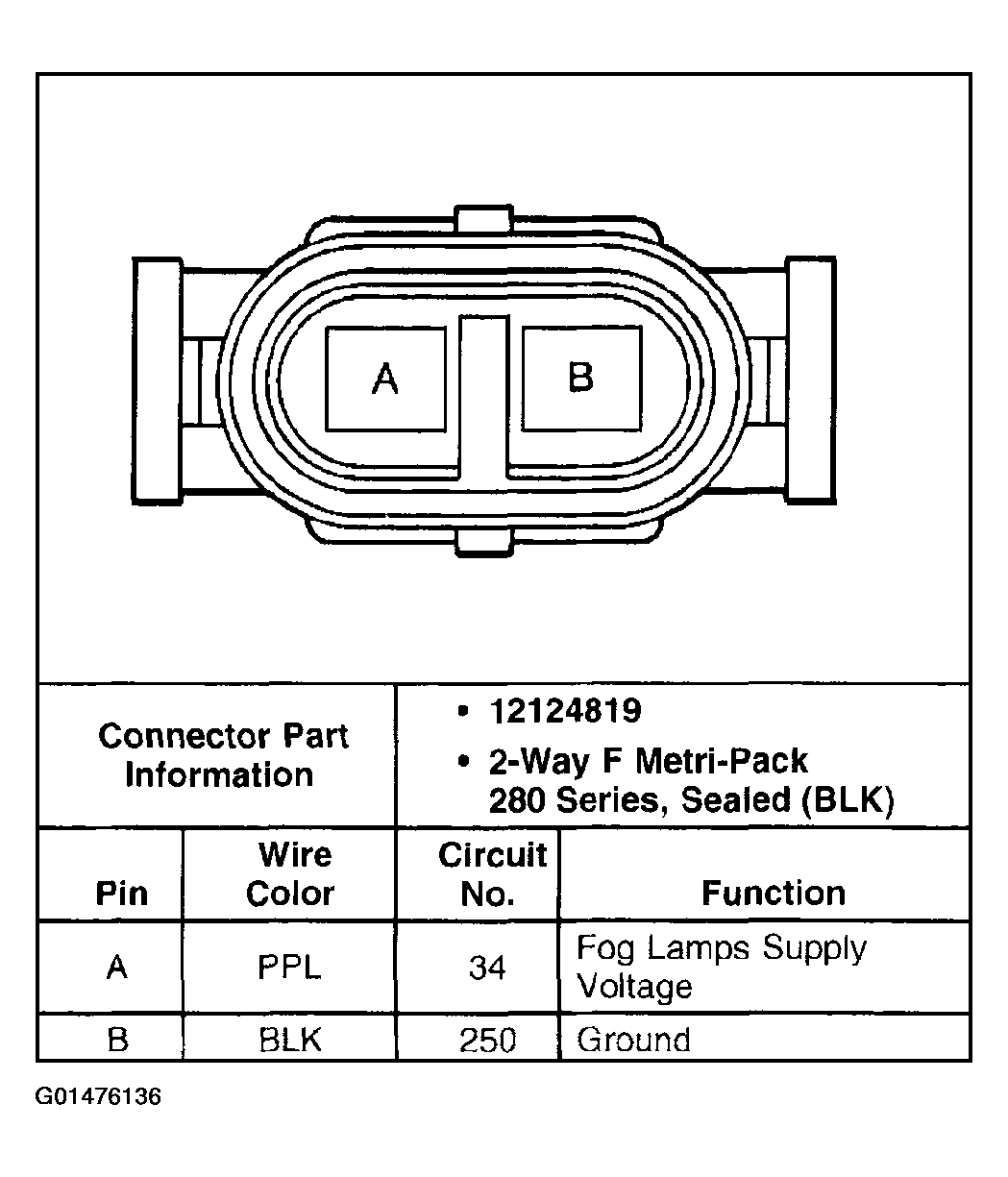

Fig 21: Fog Lamp - RF

G01476136

Courtesy of GENERAL MOTORS CORP.

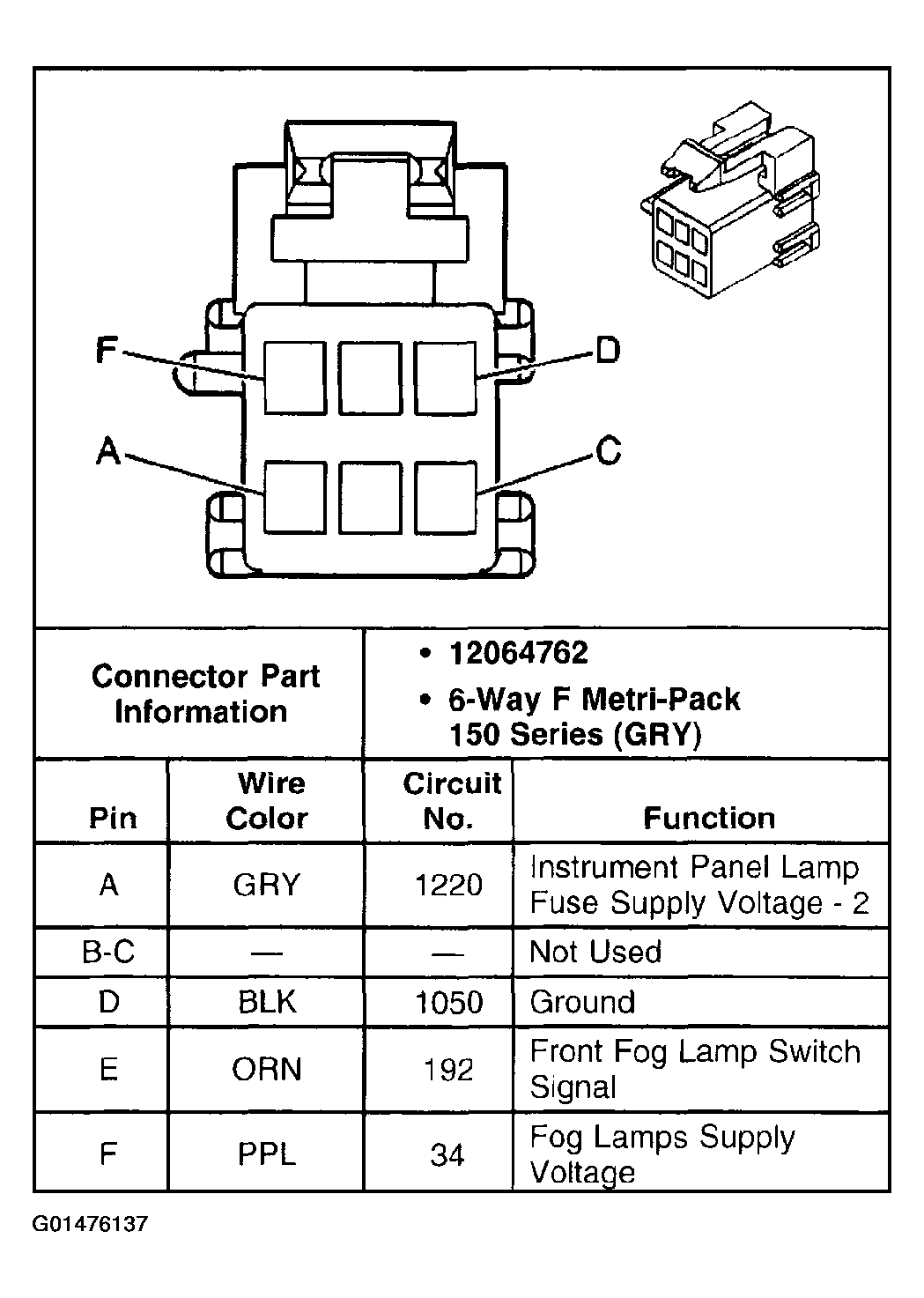

Fig 22: Fog Lamp Switch - Front

G01476137

Courtesy of GENERAL MOTORS CORP.

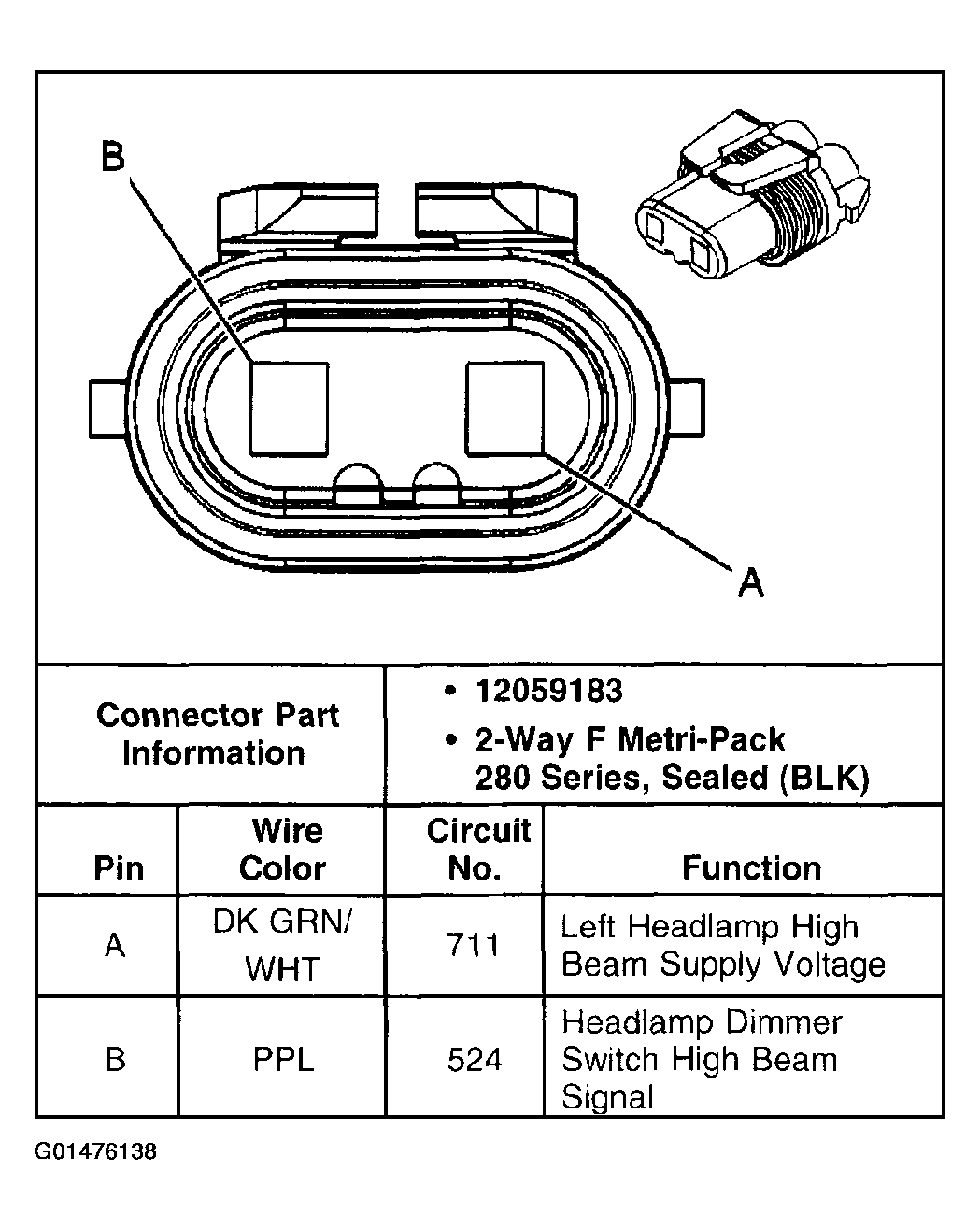

Fig 23: Headlamp - High Beam - Left

G01476138

Courtesy of GENERAL MOTORS CORP.

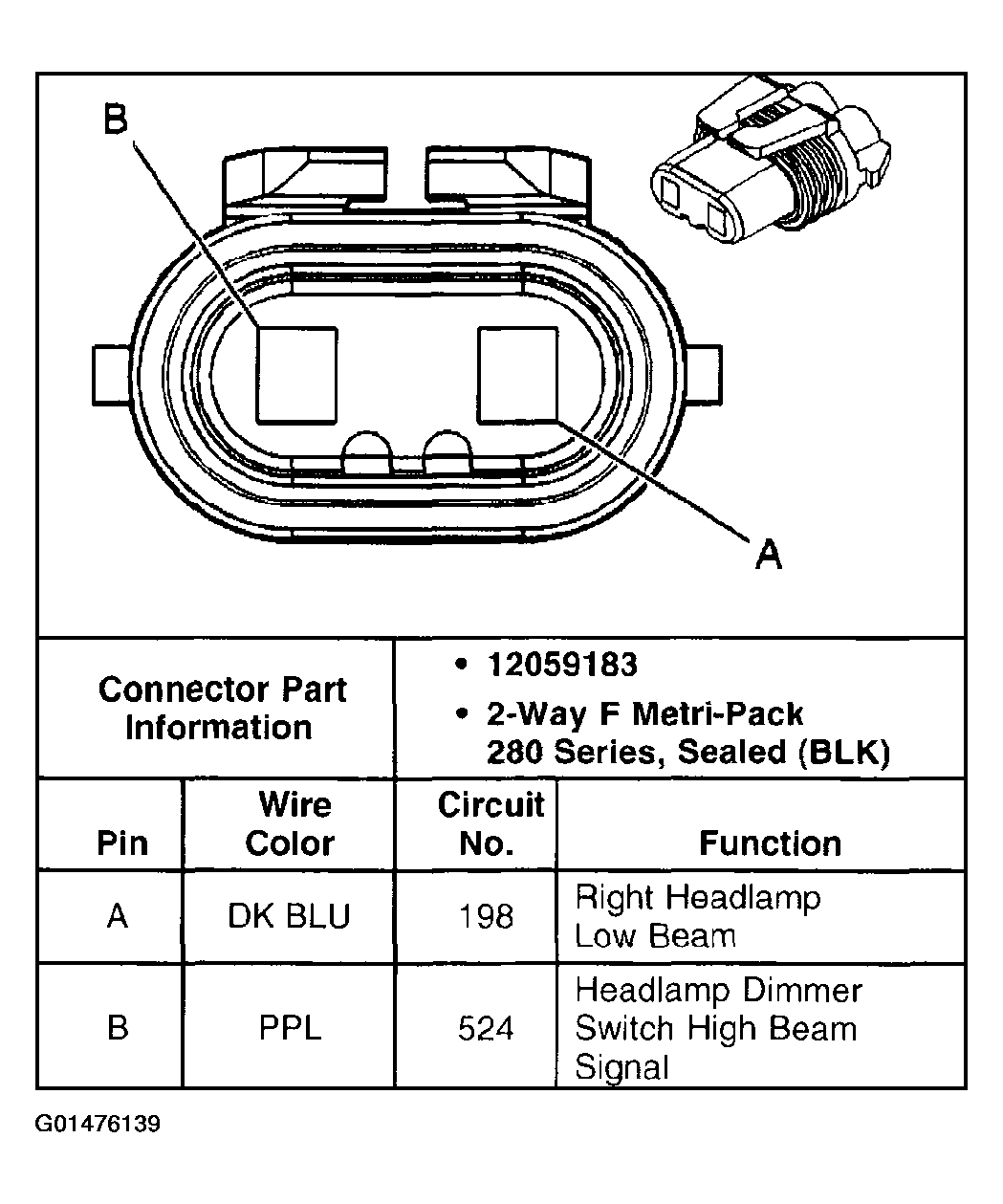

Fig 24: Headlamp - High Beam - Right

G01476139

Courtesy of GENERAL MOTORS CORP.

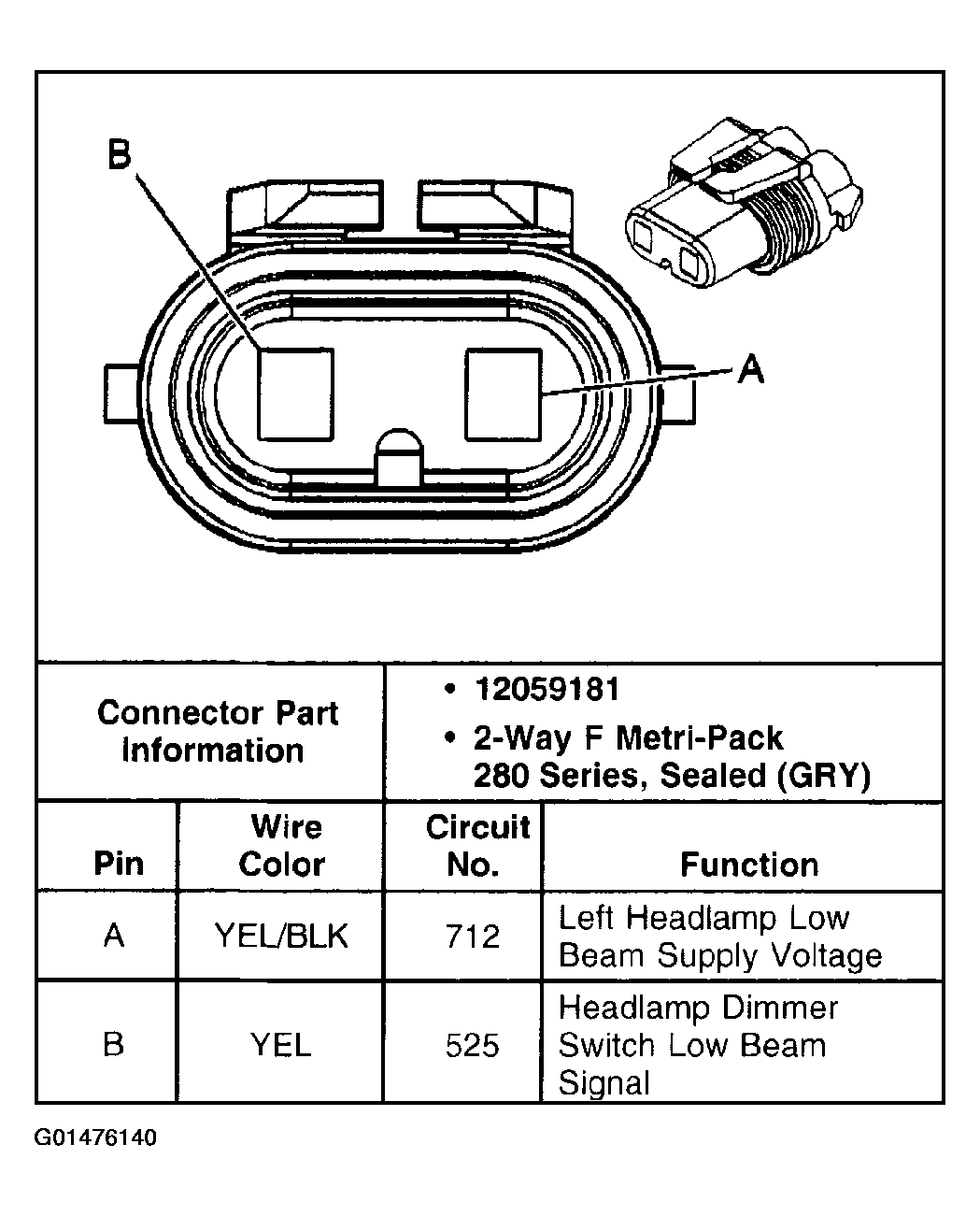

Fig 25: Headlamp - Low Beam - Left

G01476140

Courtesy of GENERAL MOTORS CORP.

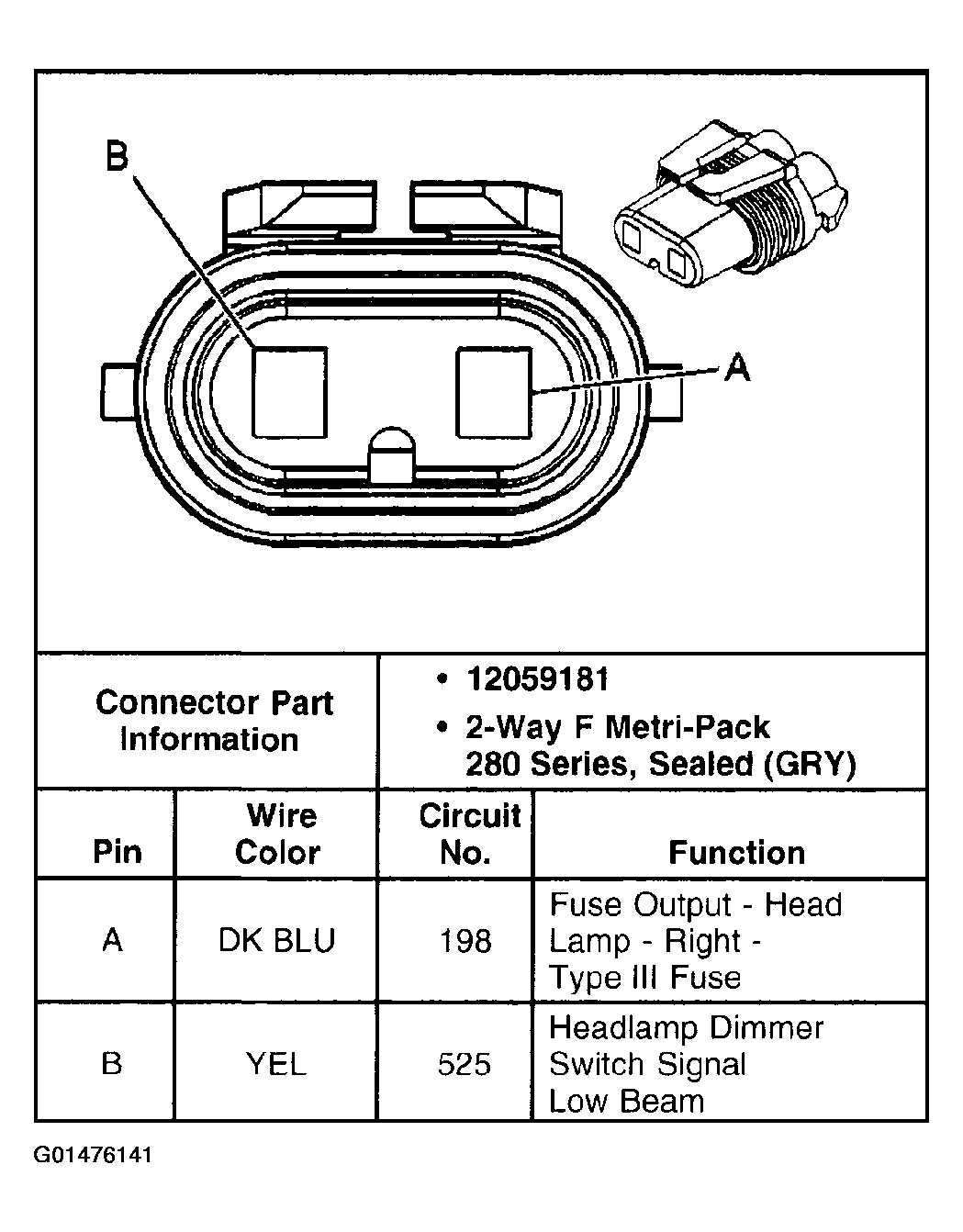

Fig 26: Headlamp - Low Beam - Right

G01476141

Courtesy of GENERAL MOTORS CORP.

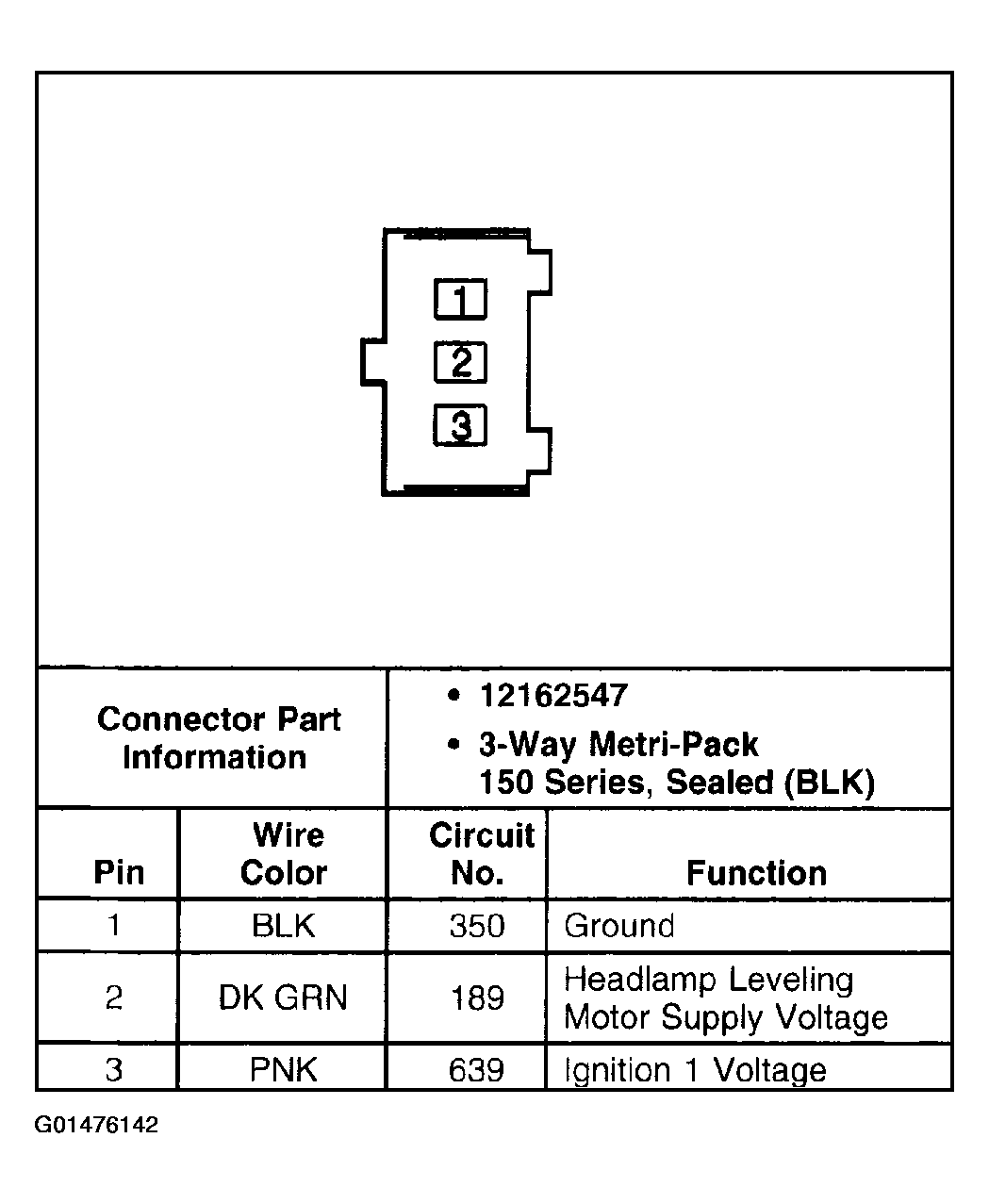

Fig 27: Headlamp Leveling Actuator Motor - Left/Right (Export)

G01476142

Courtesy of GENERAL MOTORS CORP.

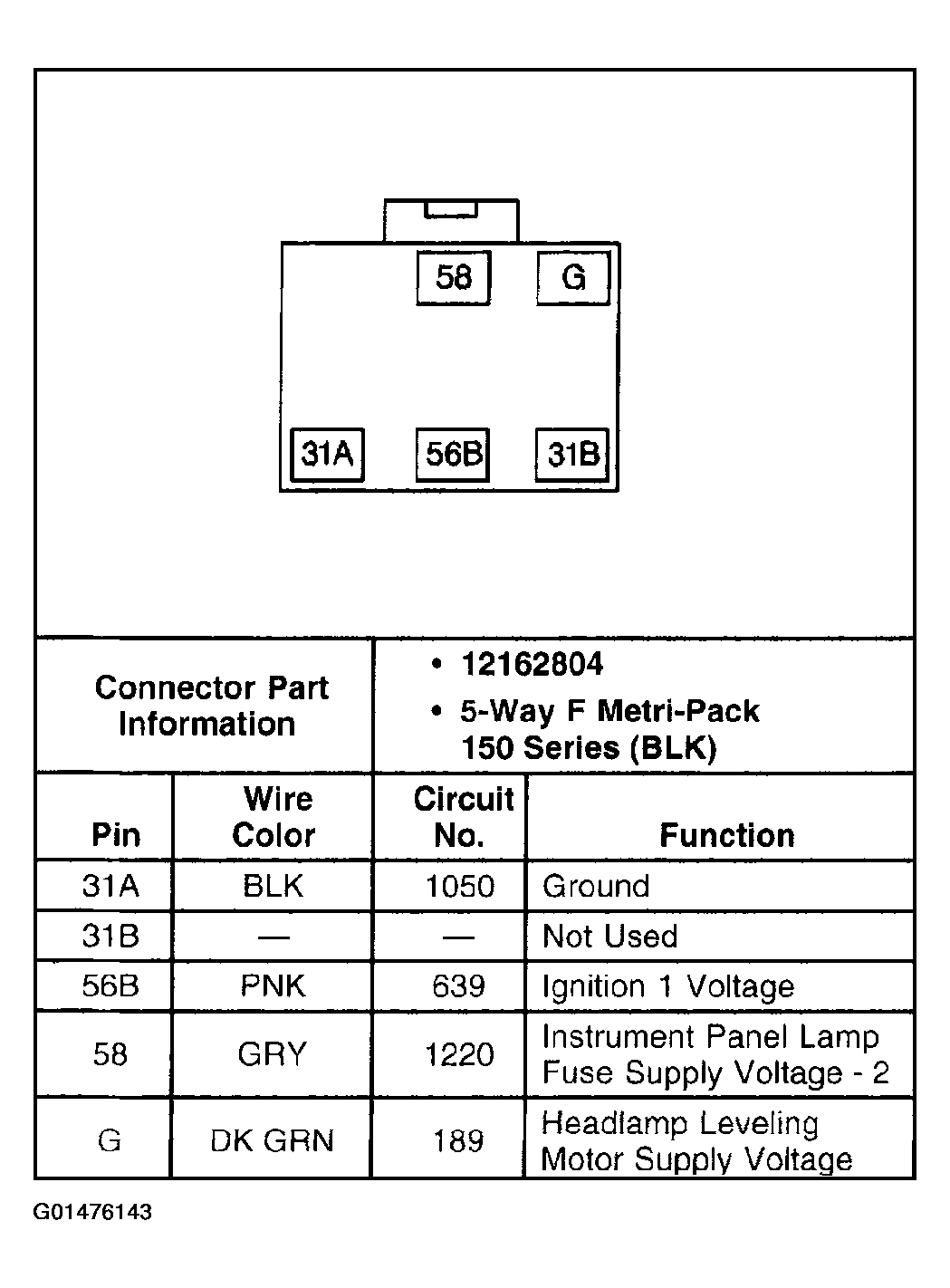

Fig 28: Identifying Headlamp Leveling Switch - Export

G01476143

Courtesy of GENERAL MOTORS CORP.

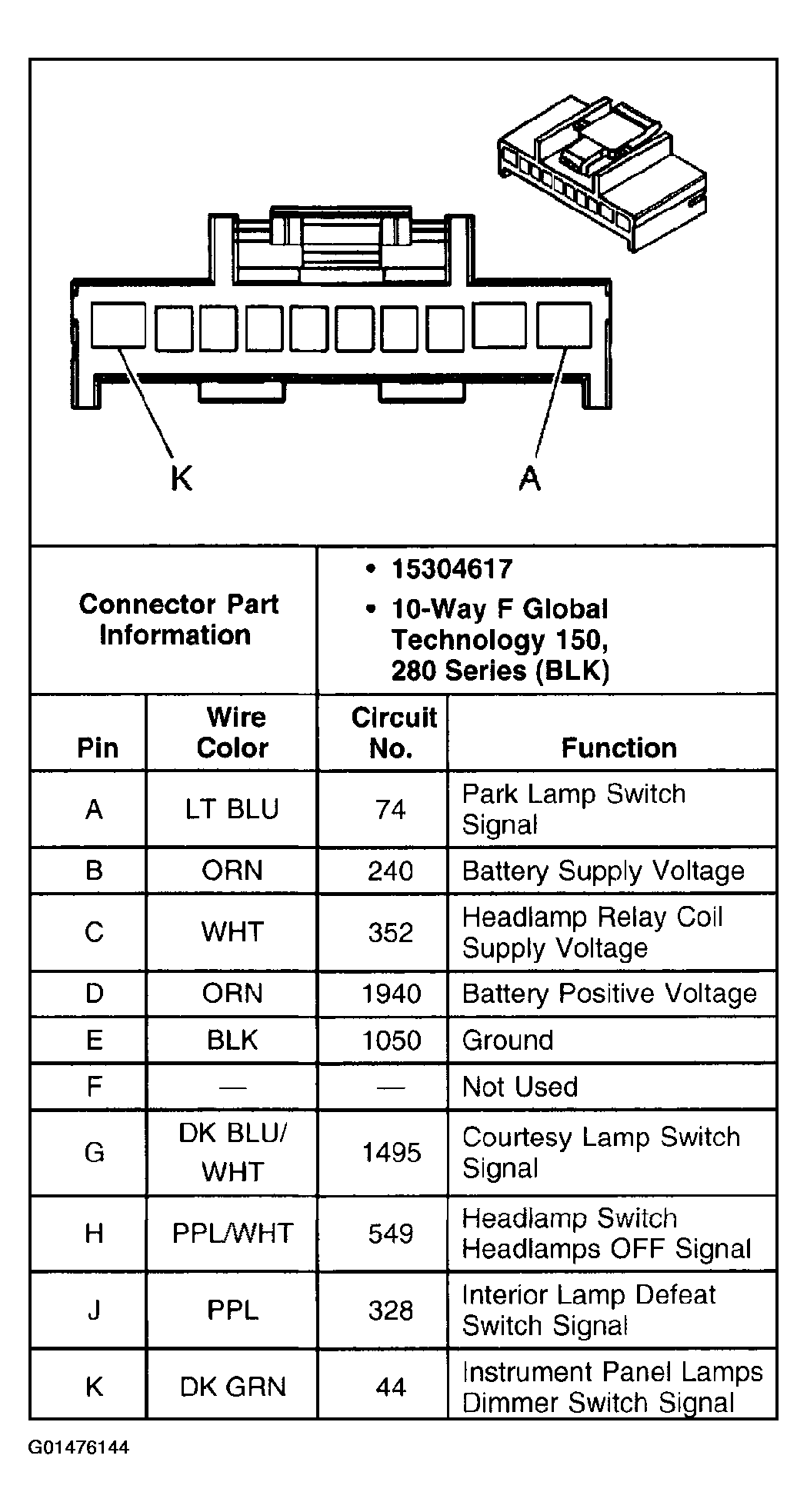

Fig 29: Headlamp Switch

G01476144

Courtesy of GENERAL MOTORS CORP.

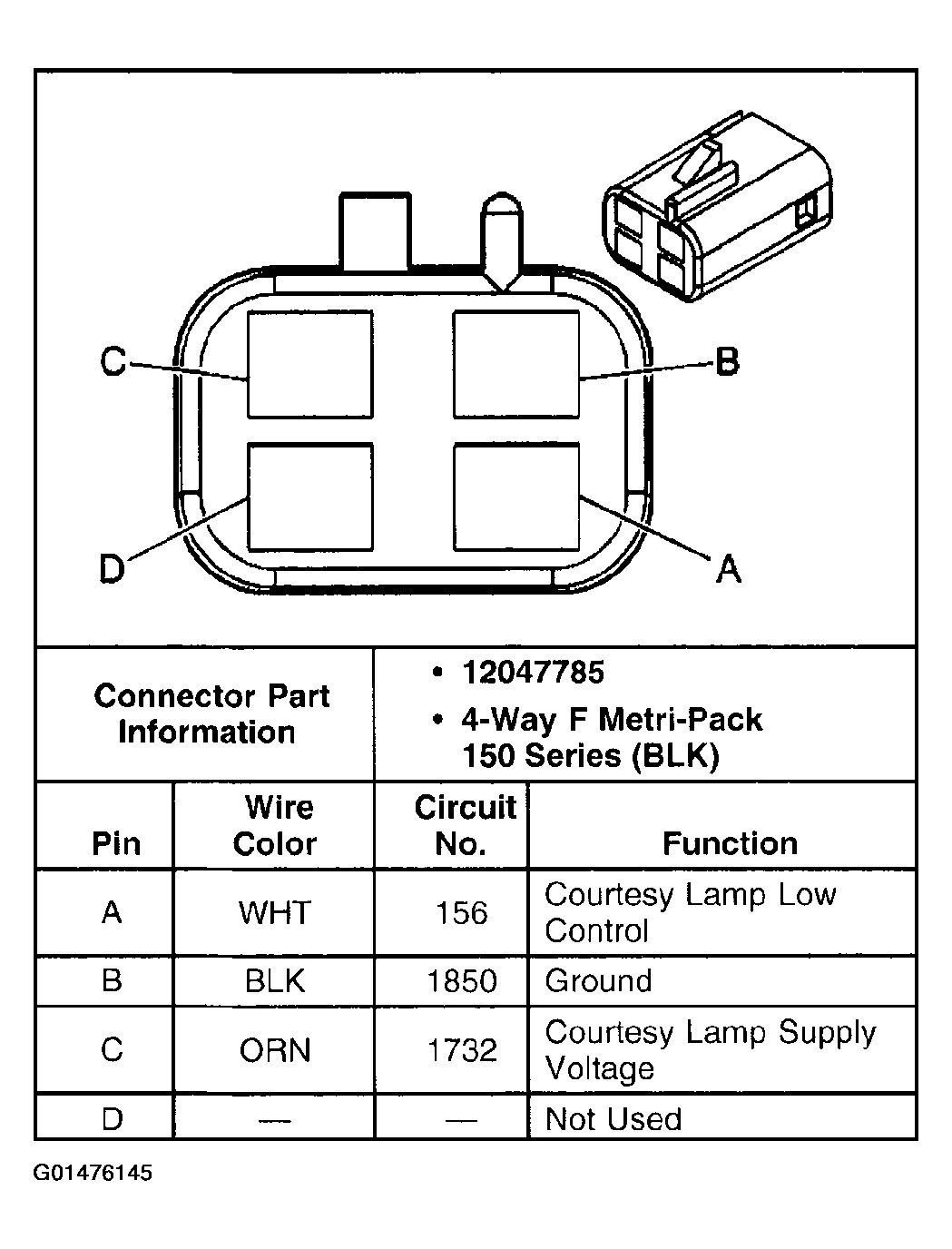

Fig 30: Inside Rear View Mirror (W/ Reading Lamps)

G01476145

Courtesy of GENERAL MOTORS CORP.

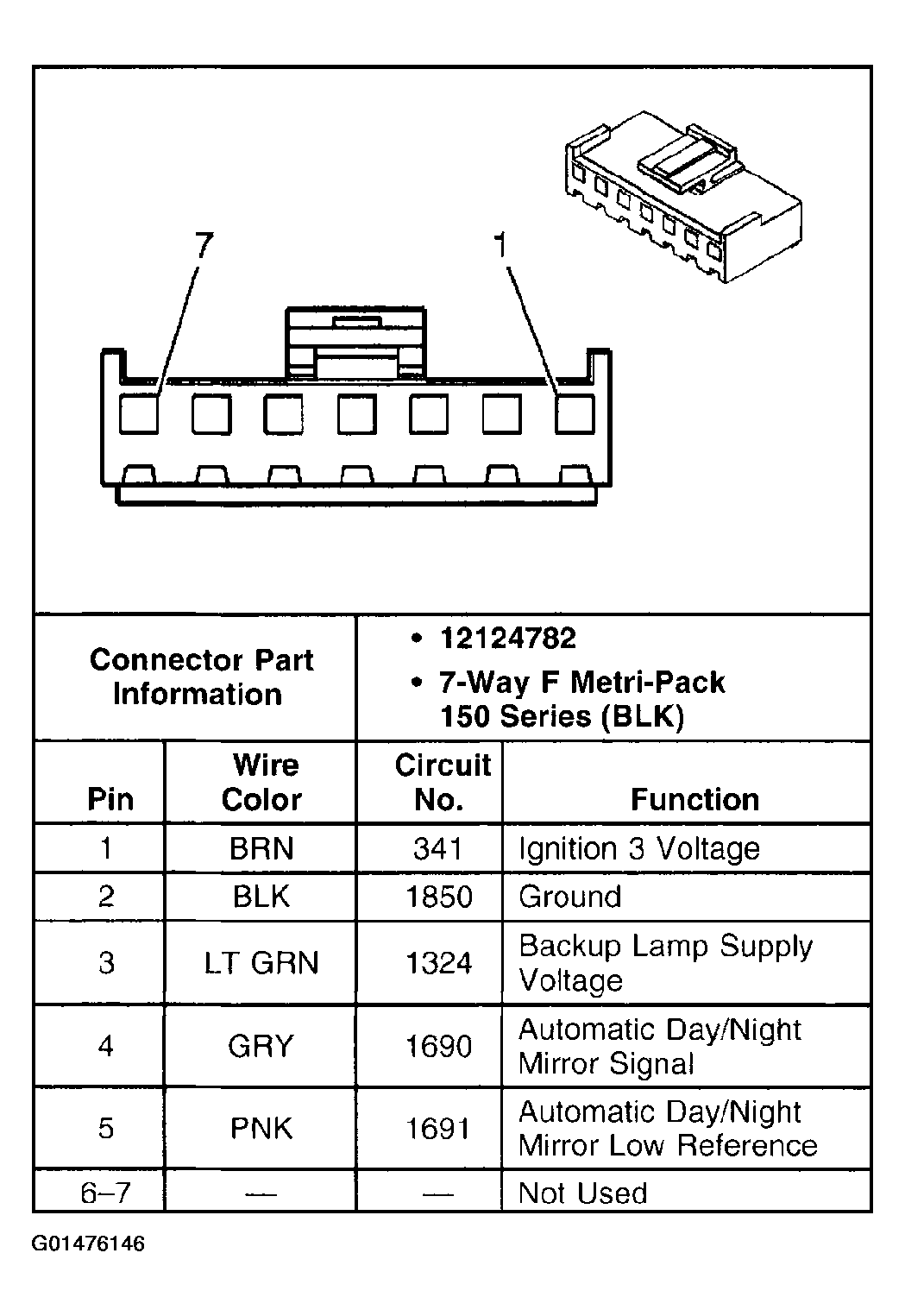

Fig 31: Inside Rear View Mirror (W/ Light Sensor & Reading Lamps)

G01476146

Courtesy of GENERAL MOTORS CORP.

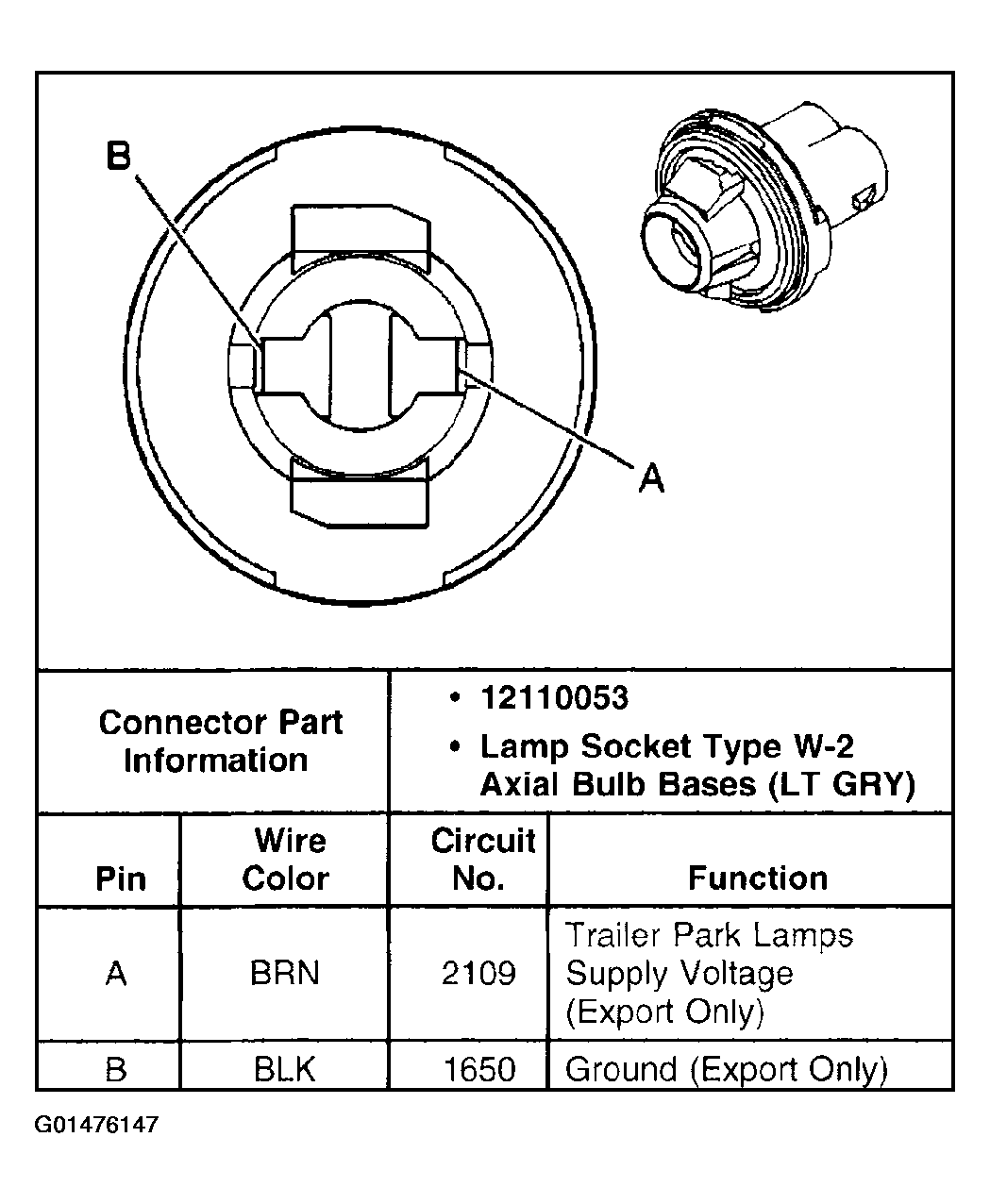

Fig 32: License Lamp - Center (Export)

G01476147

Courtesy of GENERAL MOTORS CORP.

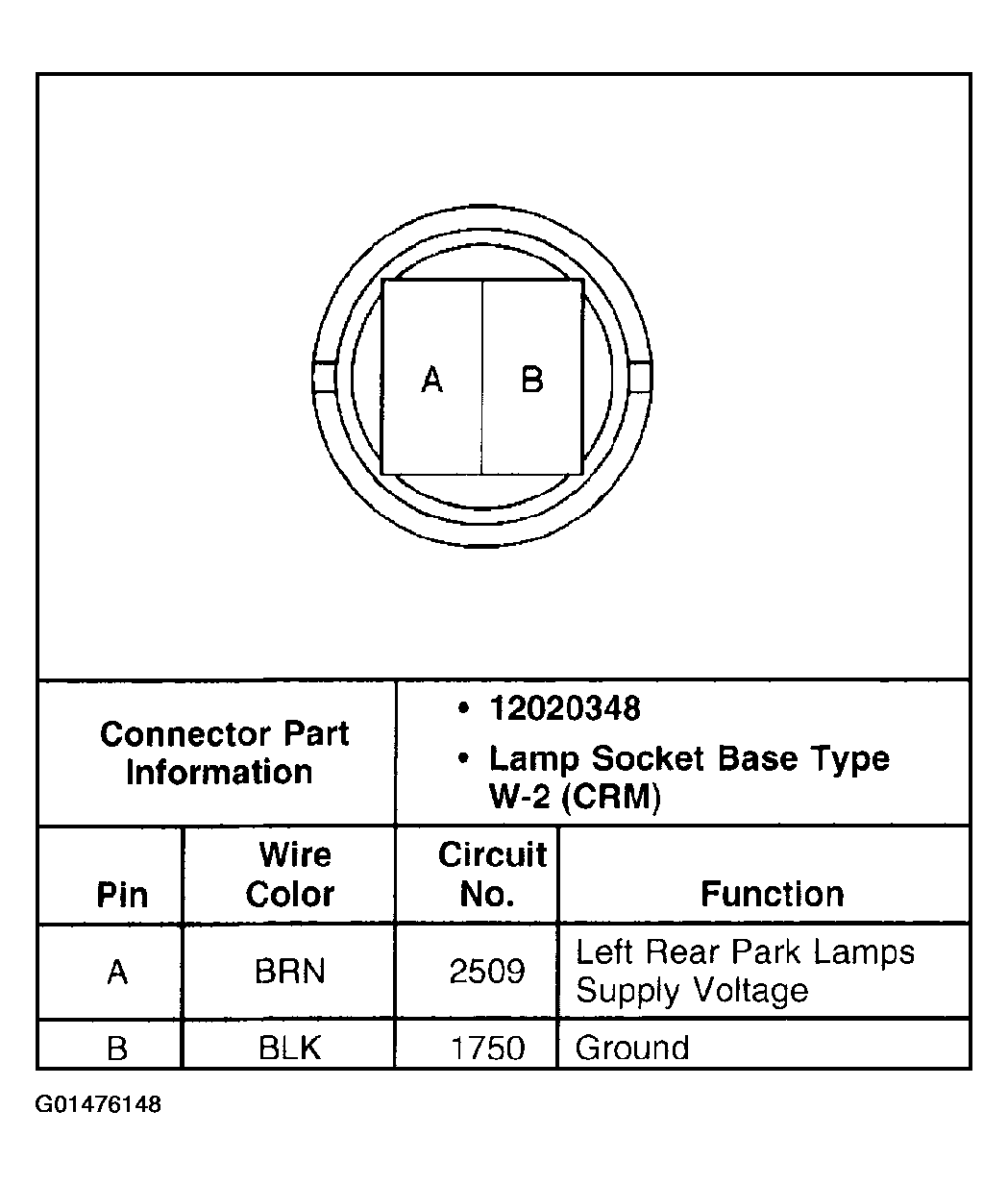

Fig 33: License Lamp - LR (Pickup W/O Rear Step Bumper)

G01476148

Courtesy of GENERAL MOTORS CORP.

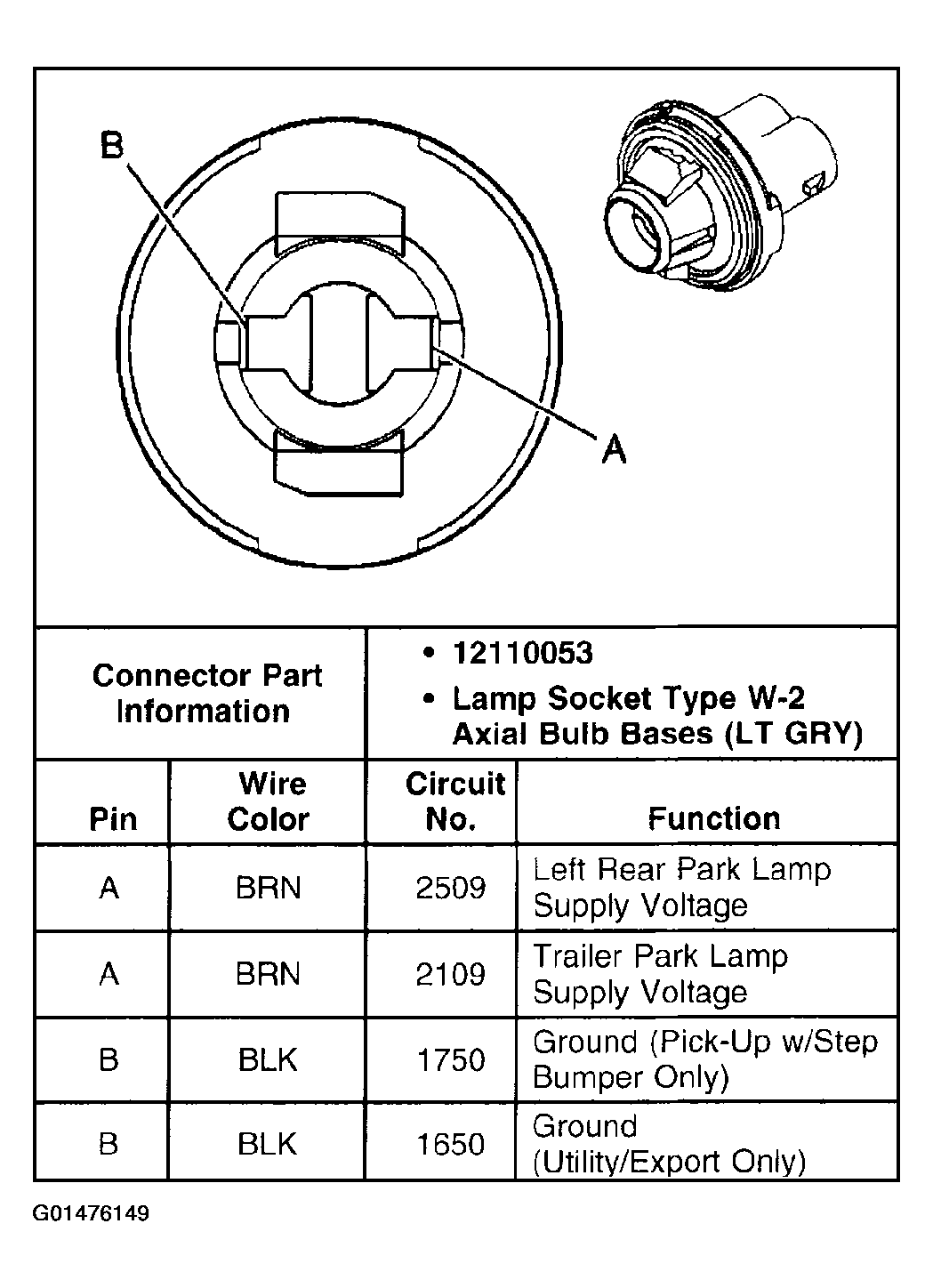

Fig 34: License Lamp - LR (Utility, Export & Pickup W/ Step Bumper)

G01476149

Courtesy of GENERAL MOTORS CORP.

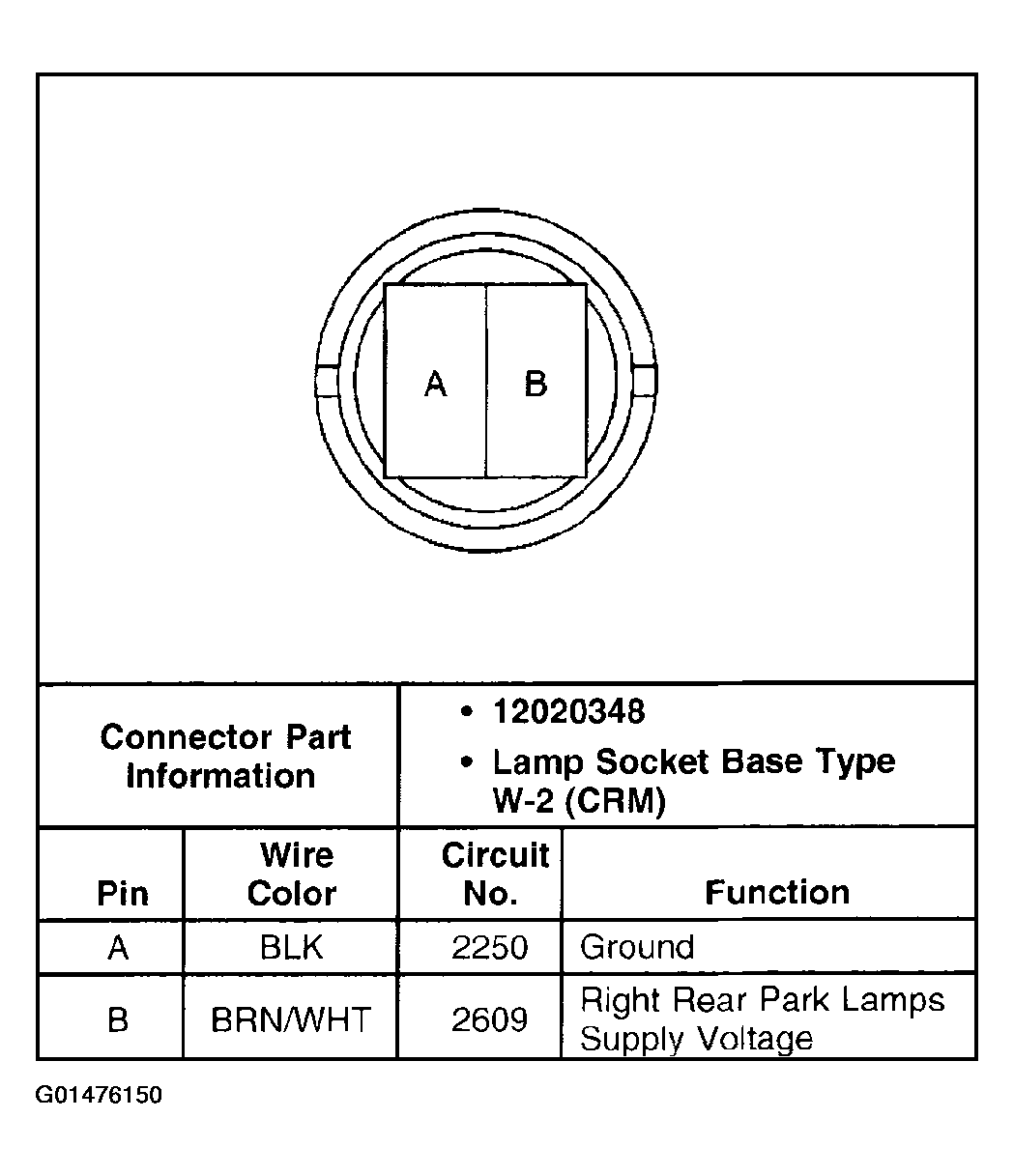

Fig 35: License Lamp - RR (Pickup W/O Rear Step Bumper)

G01476150

Courtesy of GENERAL MOTORS CORP.

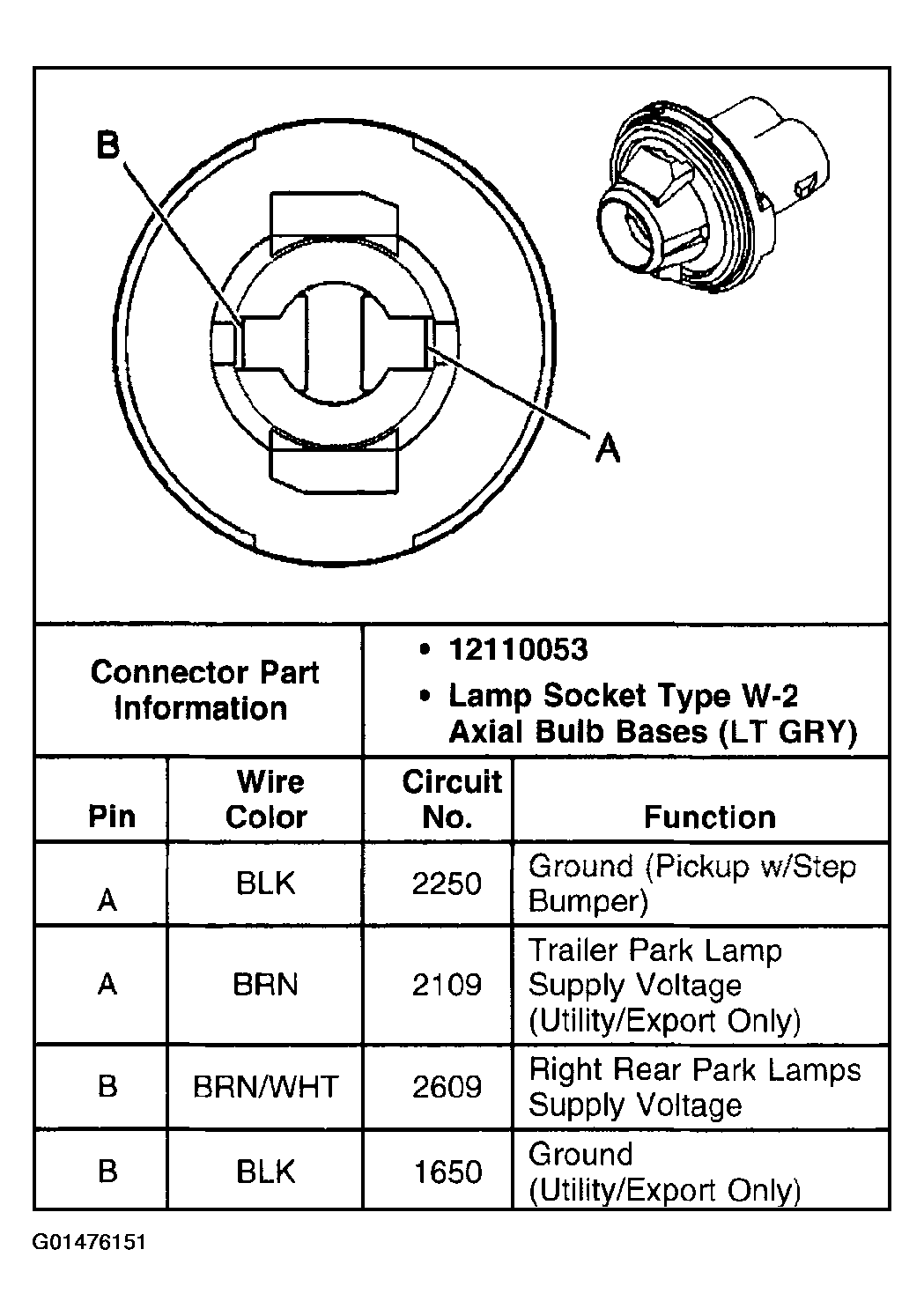

Fig 36: License Lamp - RR (Utility, Export & Pickup W/ Step Bumper)

G01476151

Courtesy of GENERAL MOTORS CORP.

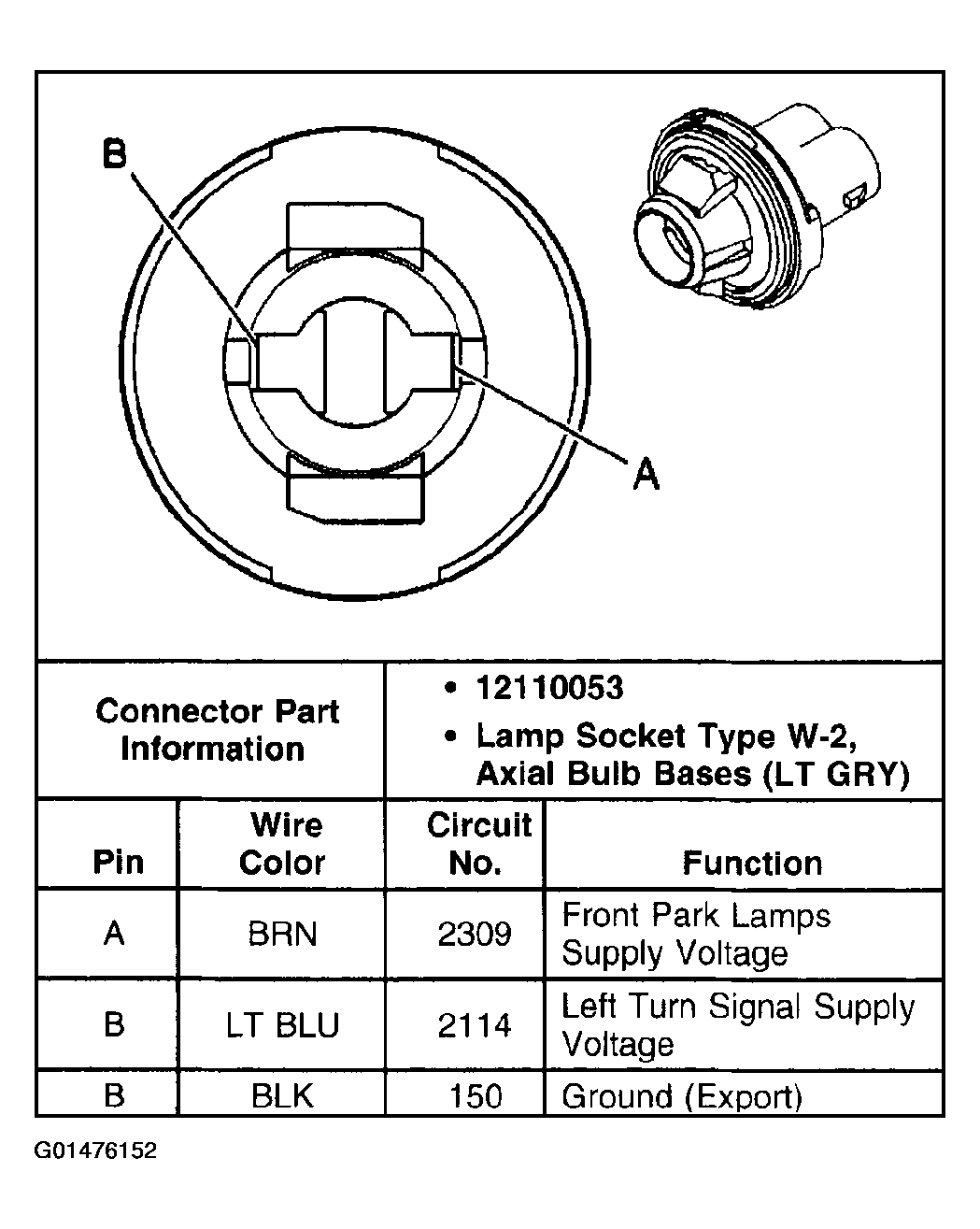

Fig 37: Marker Lamp - LF

G01476152

Courtesy of GENERAL MOTORS CORP.

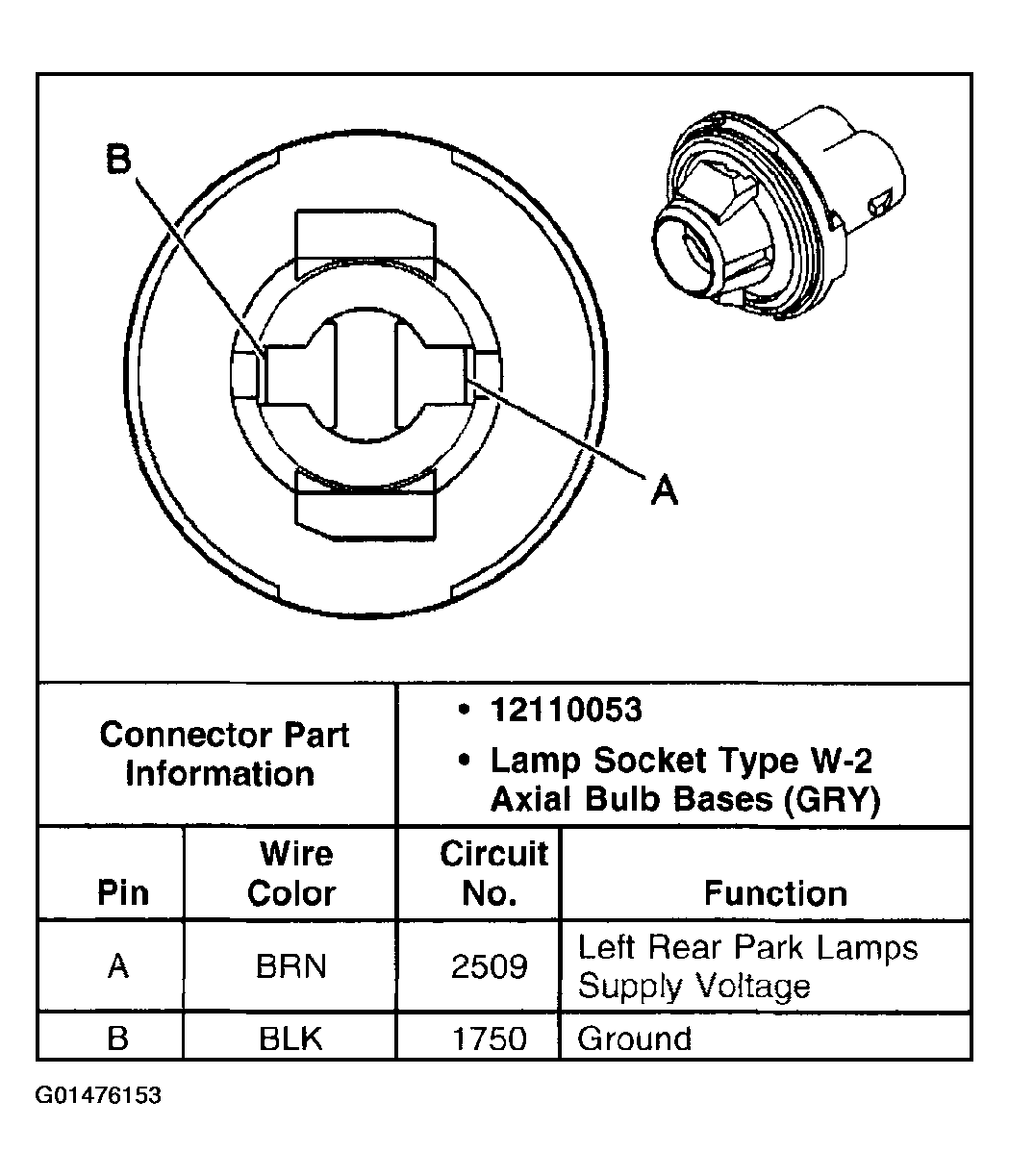

Fig 38: Marker Lamp - LR

G01476153

Courtesy of GENERAL MOTORS CORP.

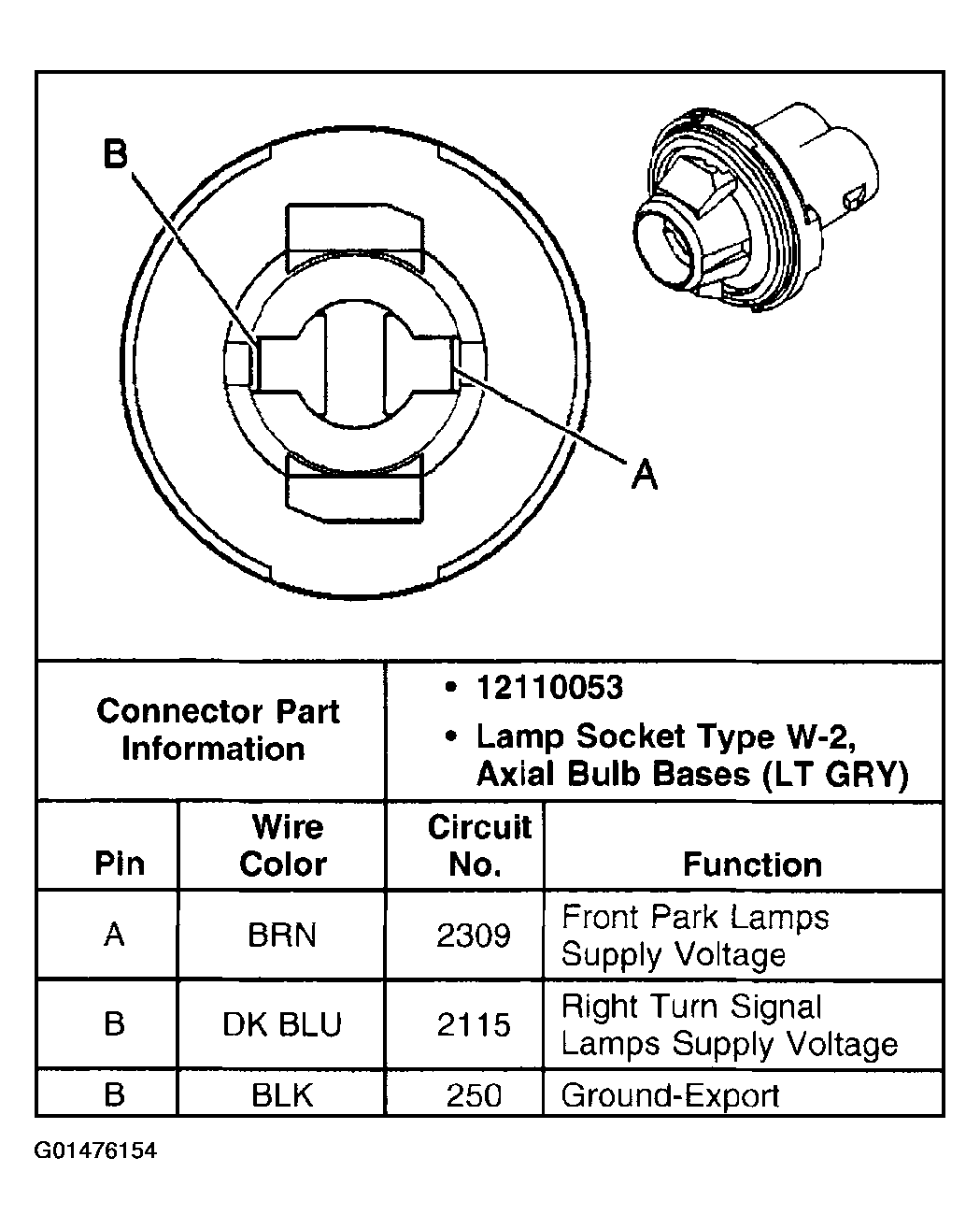

Fig 39: Marker Lamp - RF

G01476154

Courtesy of GENERAL MOTORS CORP.

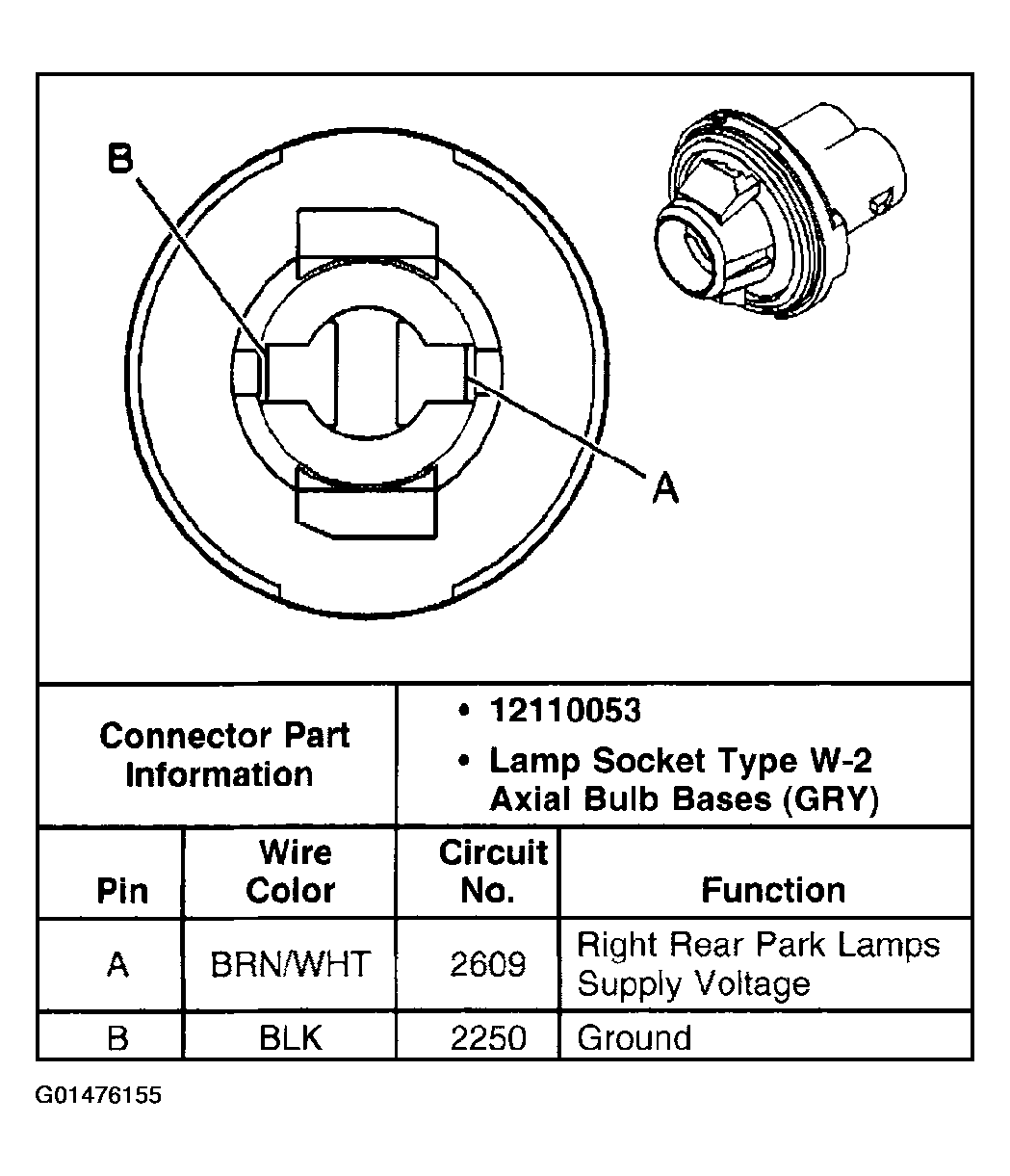

Fig 40: Marker Lamp - RR

G01476155

Courtesy of GENERAL MOTORS CORP.

Fig 41: Park/Turn Signal Lamp - LF

G01476156

Courtesy of GENERAL MOTORS CORP.

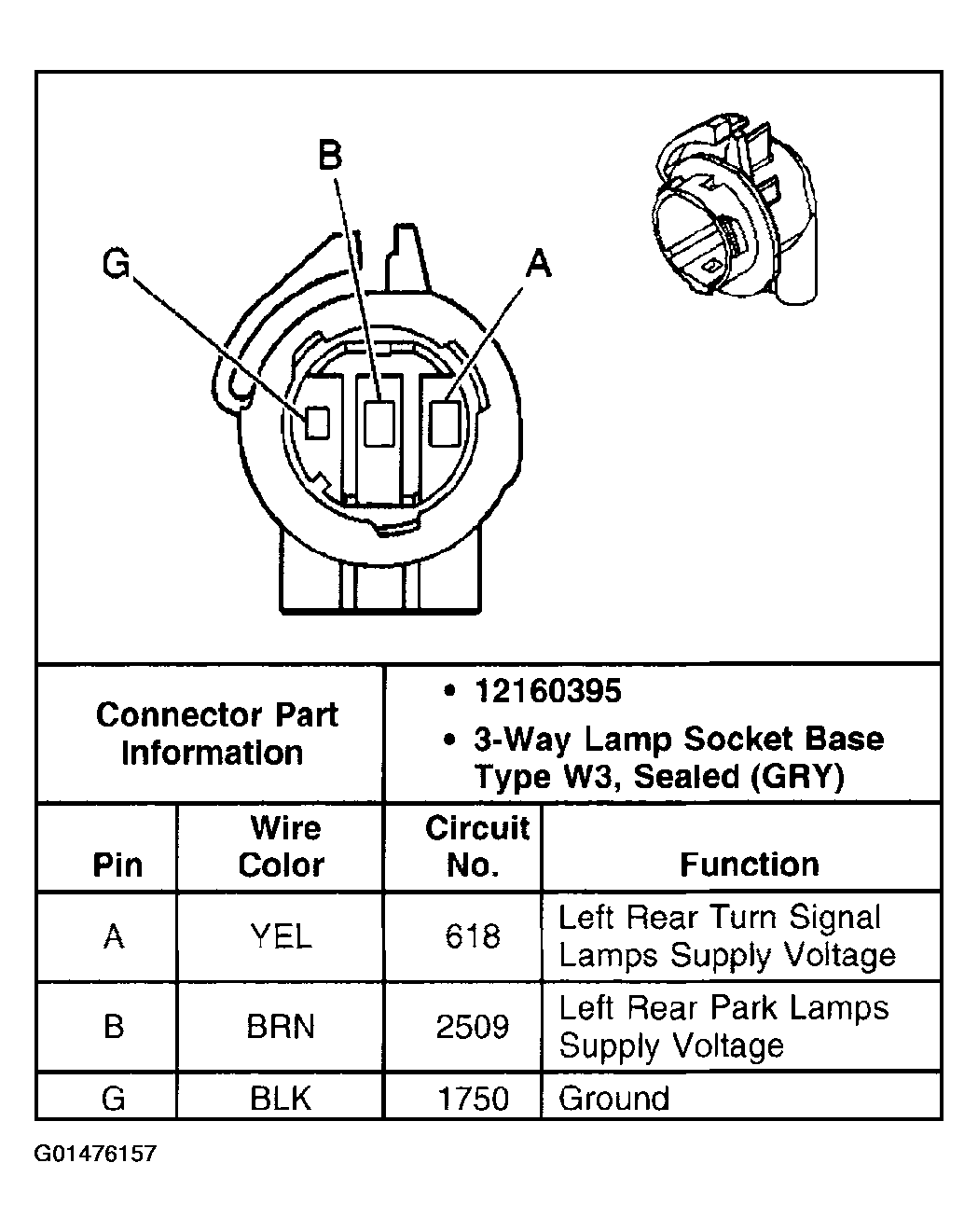

Fig 42: Park/Turn Signal Lamp - LR (Pickup)

G01476157

Courtesy of GENERAL MOTORS CORP.

Fig 43: Park/Turn Signal Lamp - LR (Utility)

G01476158

Courtesy of GENERAL MOTORS CORP.

Fig 44: Park/Turn Signal Lamp - RF

G01476159

Courtesy of GENERAL MOTORS CORP.

Fig 45: Park/Turn Signal Lamp - RR (Pickup)

G01476160

Courtesy of GENERAL MOTORS CORP.

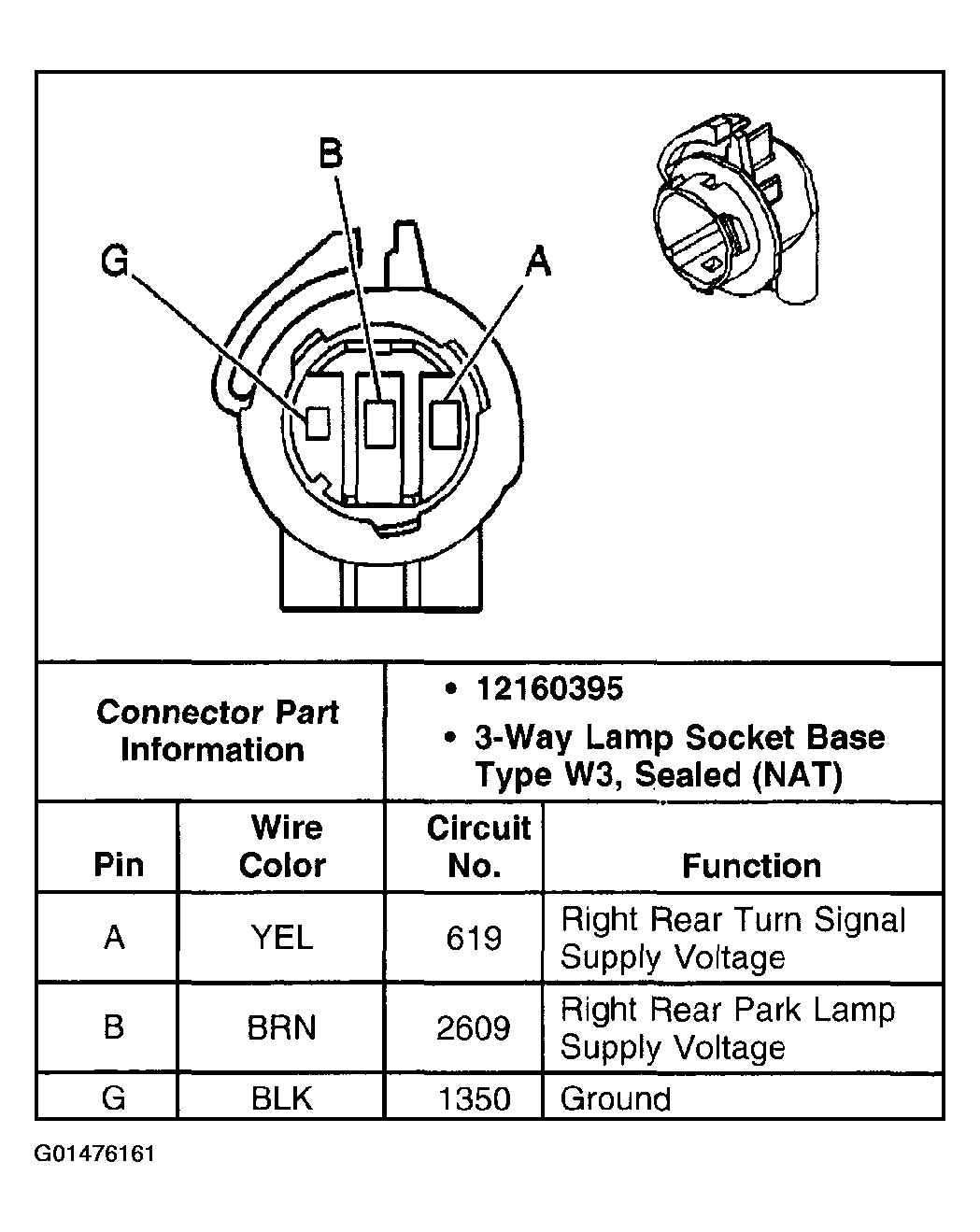

Fig 46: Park/Turn Signal Lamp - RR (Utility)

G01476161

Courtesy of GENERAL MOTORS CORP.

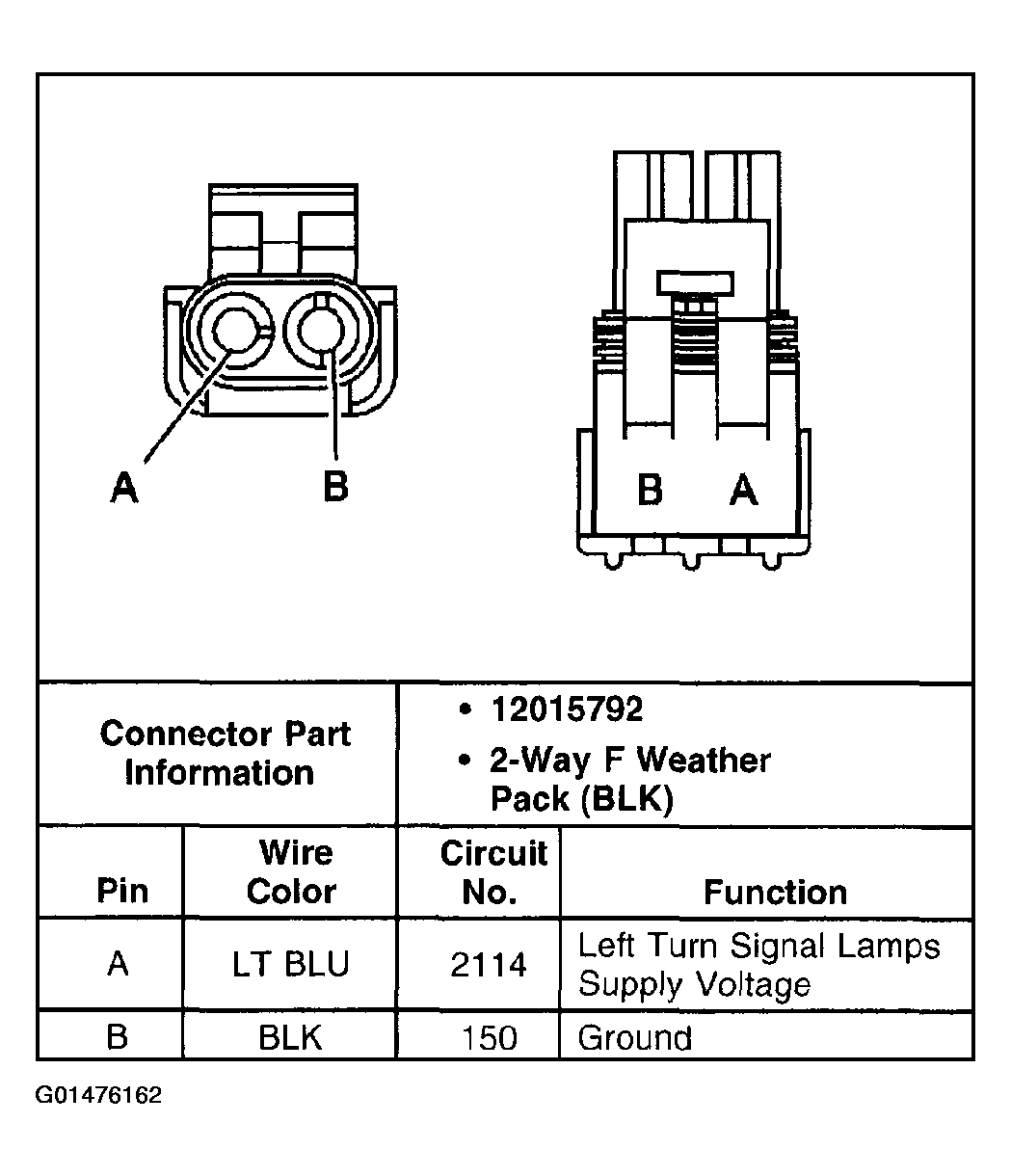

Fig 47: Repeater Lamp - Left (Export)

G01476162

Courtesy of GENERAL MOTORS CORP.

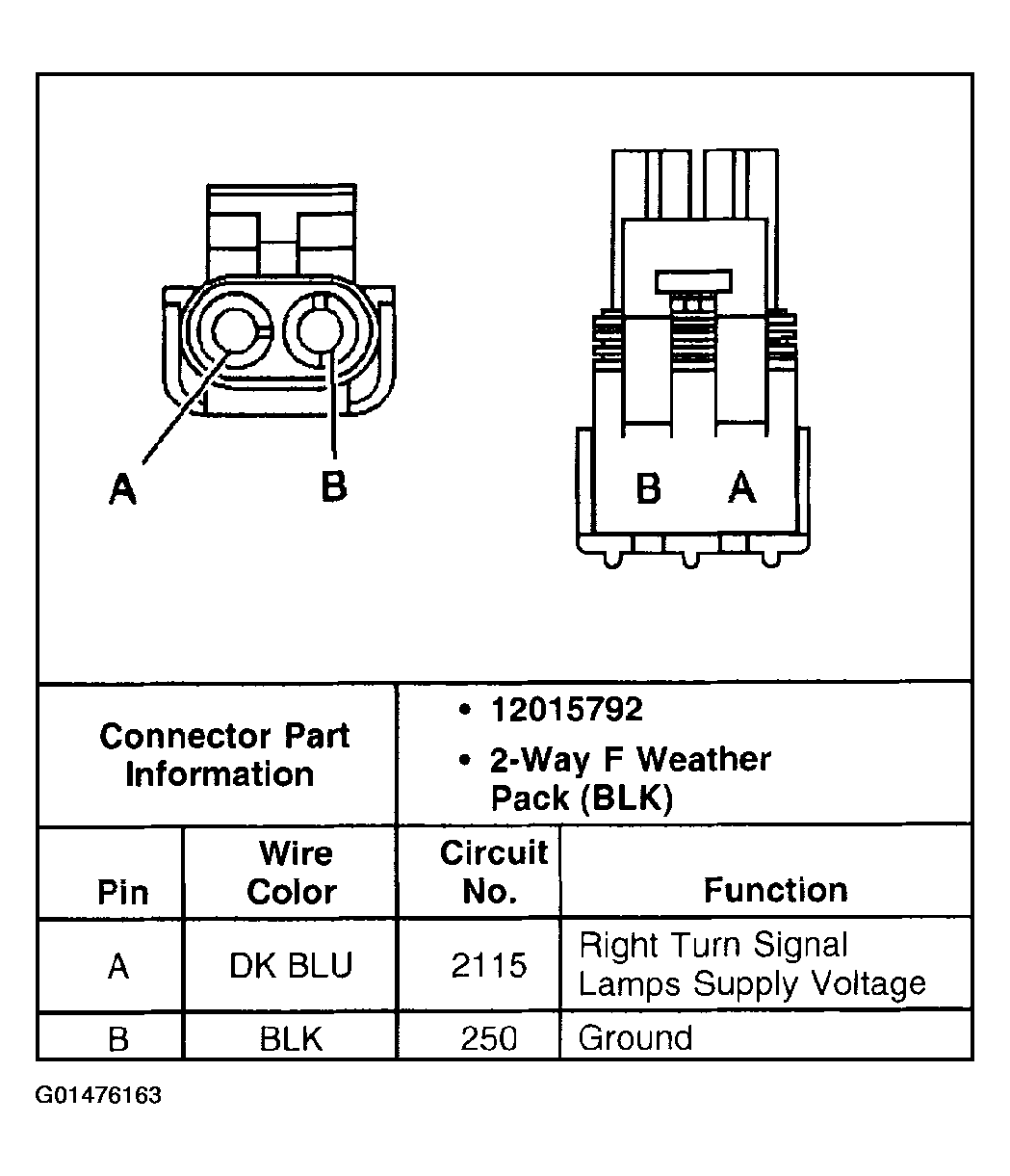

Fig 48: Repeater Lamp - Right (Export)

G01476163

Courtesy of GENERAL MOTORS CORP.

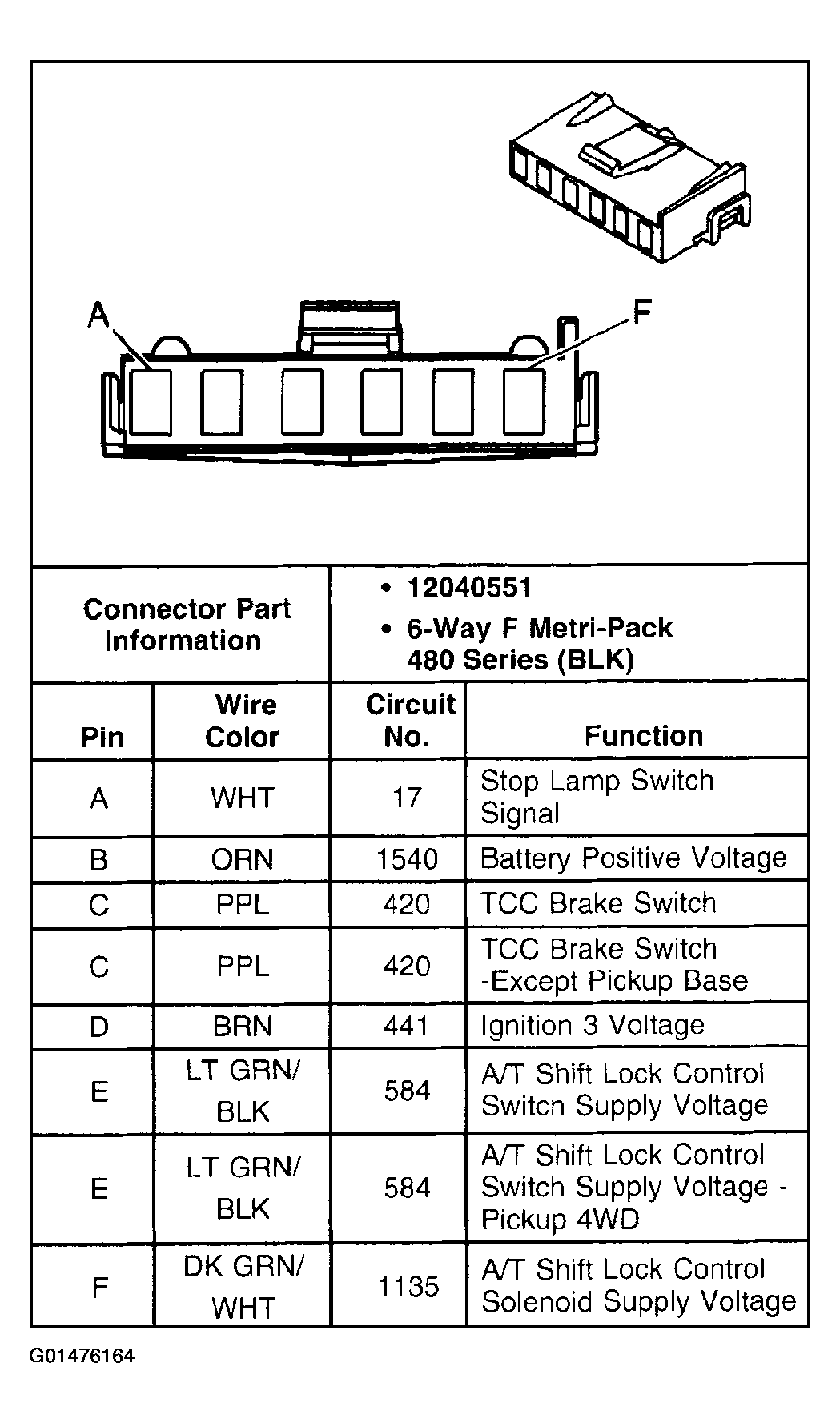

Fig 49: Stop Lamp Switch

G01476164

Courtesy of GENERAL MOTORS CORP.

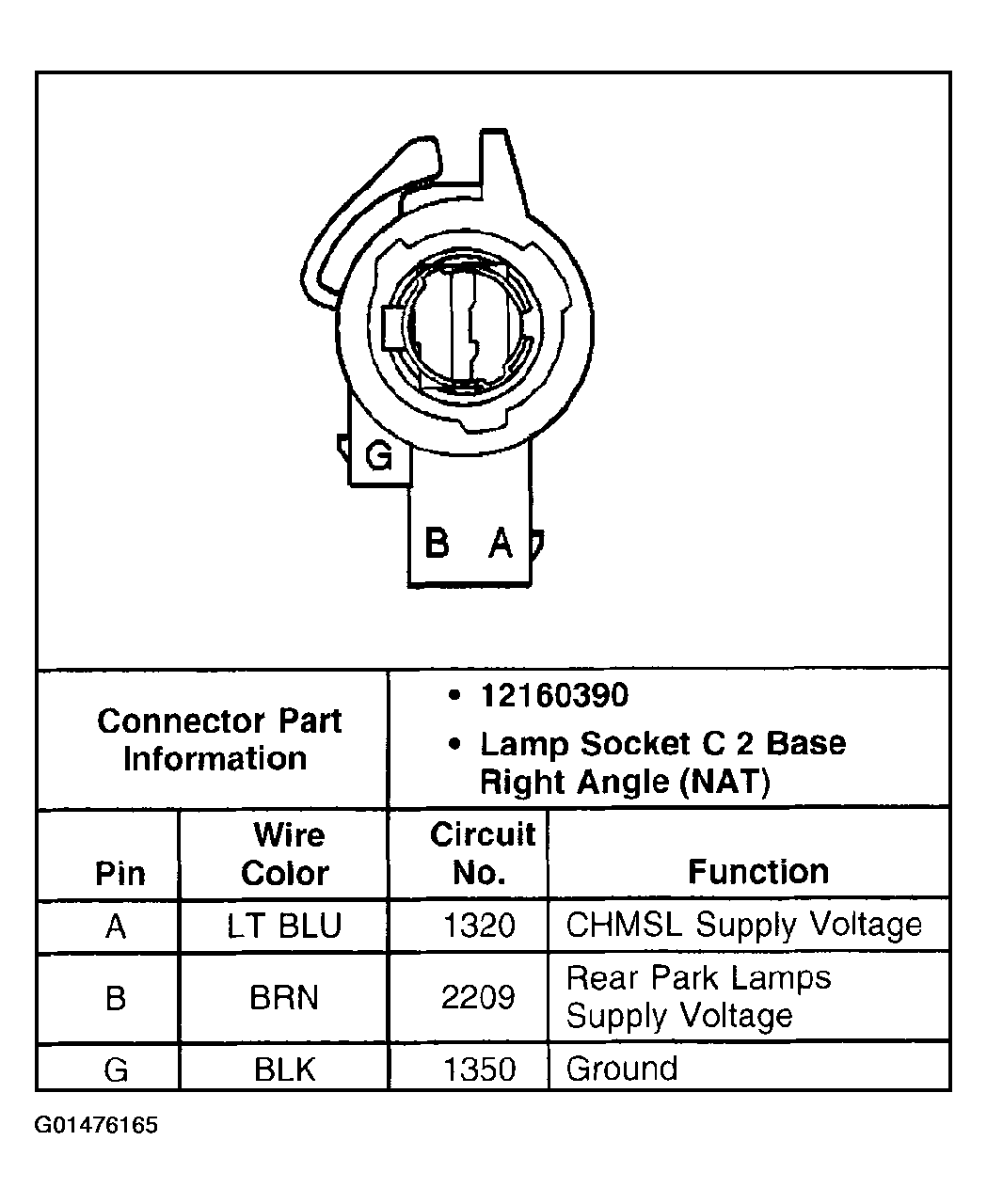

Fig 50: Tail/Stop Lamp - Left/Right (Export)

G01476165

Courtesy of GENERAL MOTORS CORP.

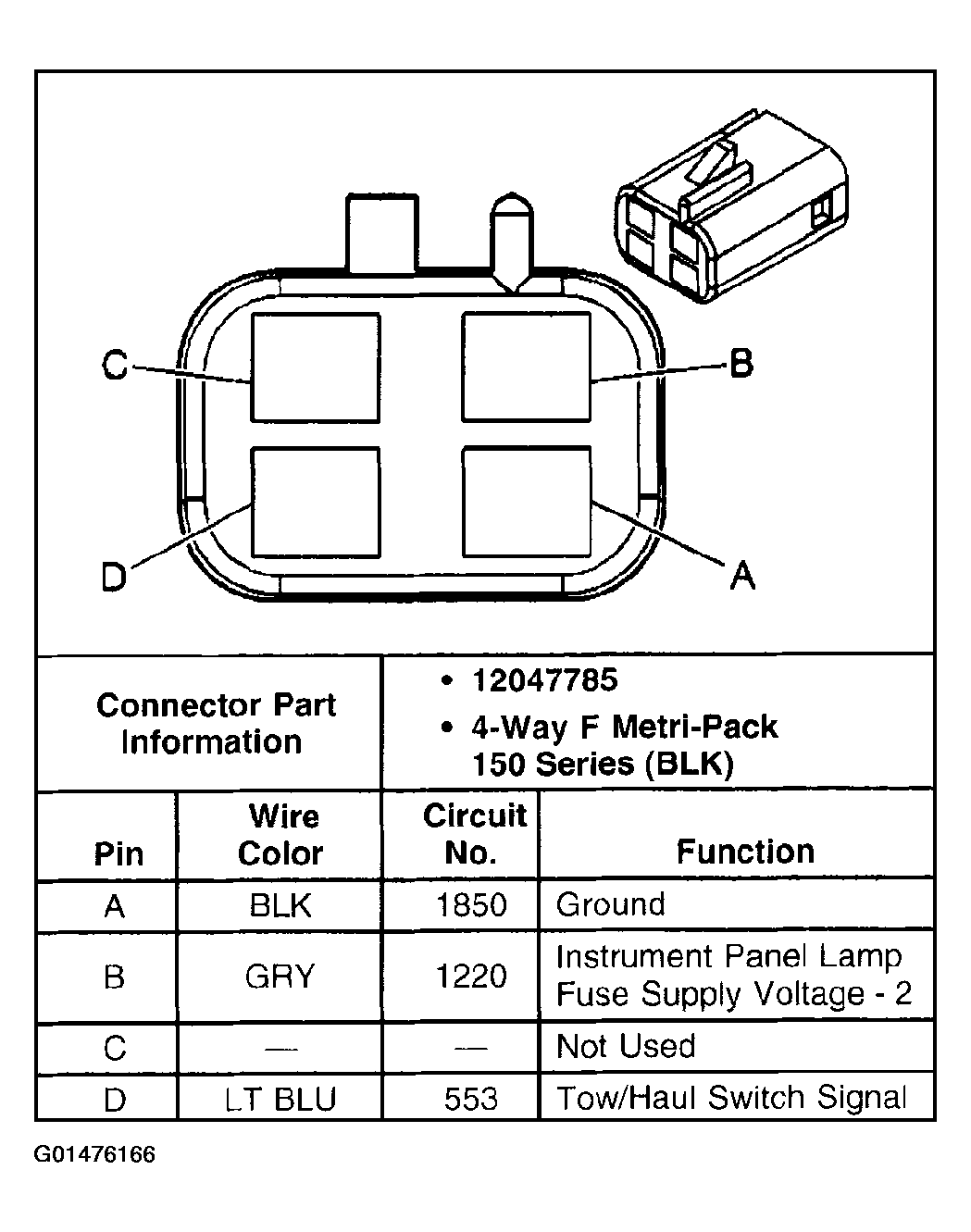

Fig 51: Tow/Haul Switch

G01476166

Courtesy of GENERAL MOTORS CORP.

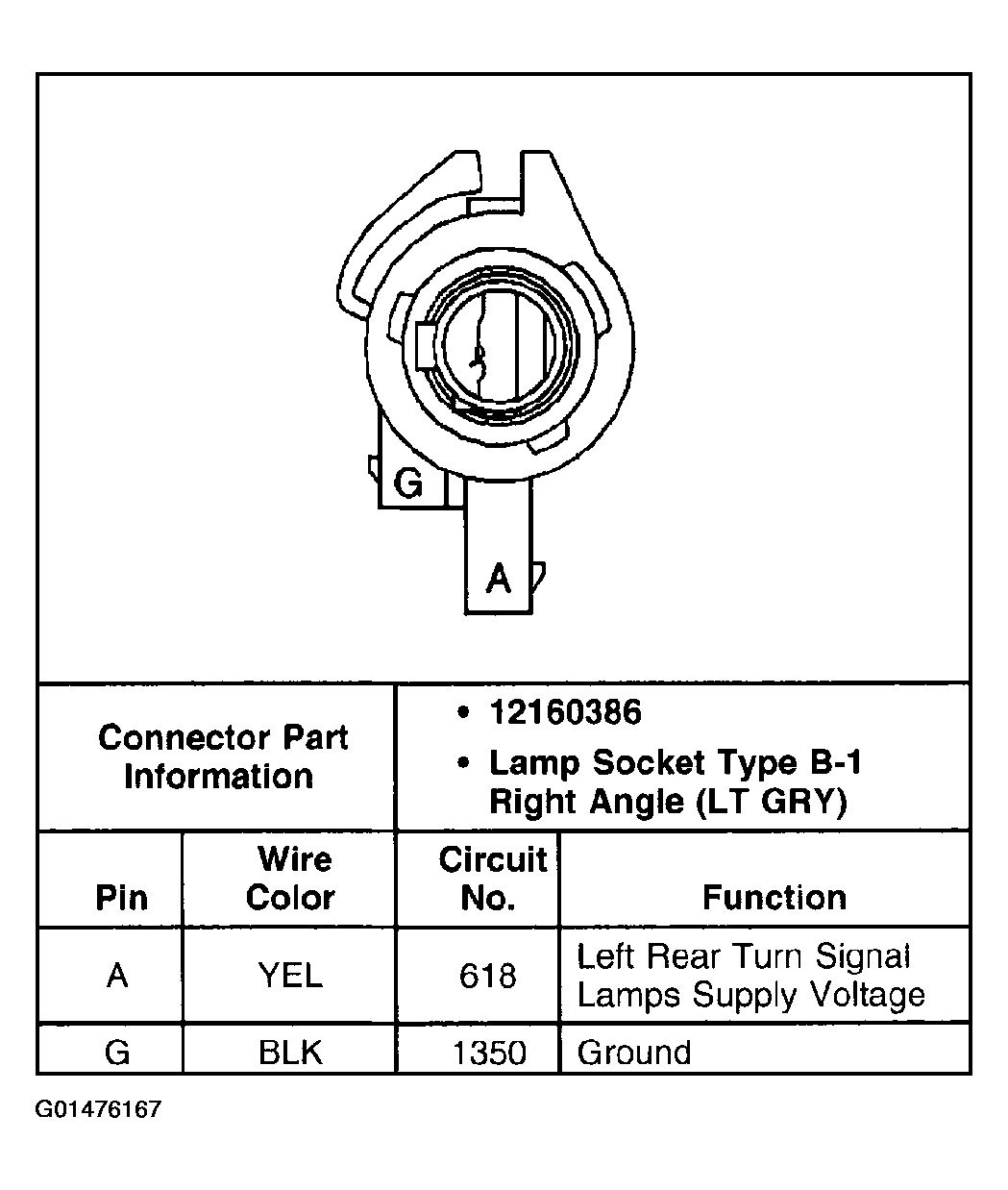

Fig 52: Turn Signal Lamp - LR (Export)

G01476167

Courtesy of GENERAL MOTORS CORP.

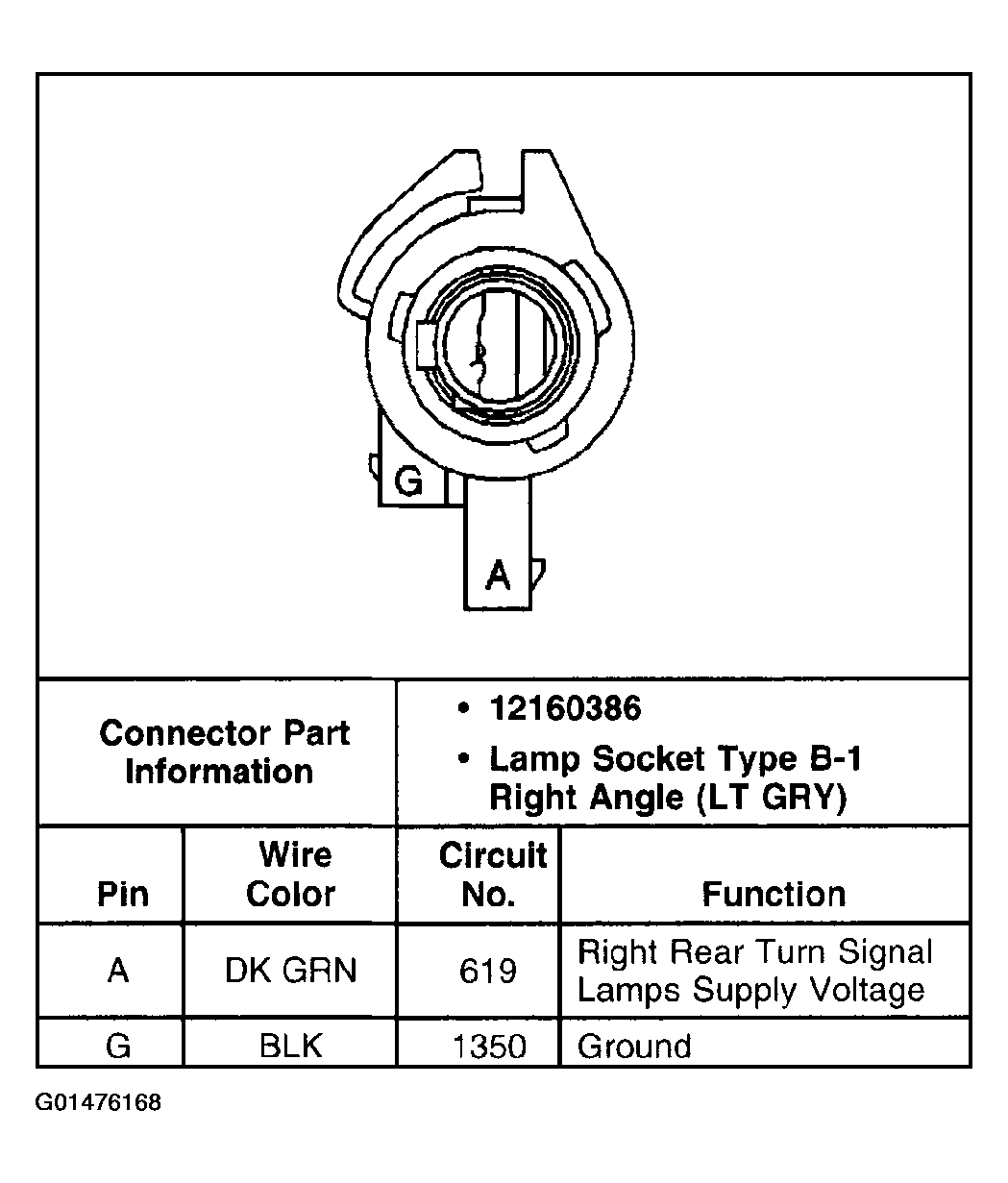

Fig 53: Turn Signal Lamp - RR (Export)

G01476168

Courtesy of GENERAL MOTORS CORP.

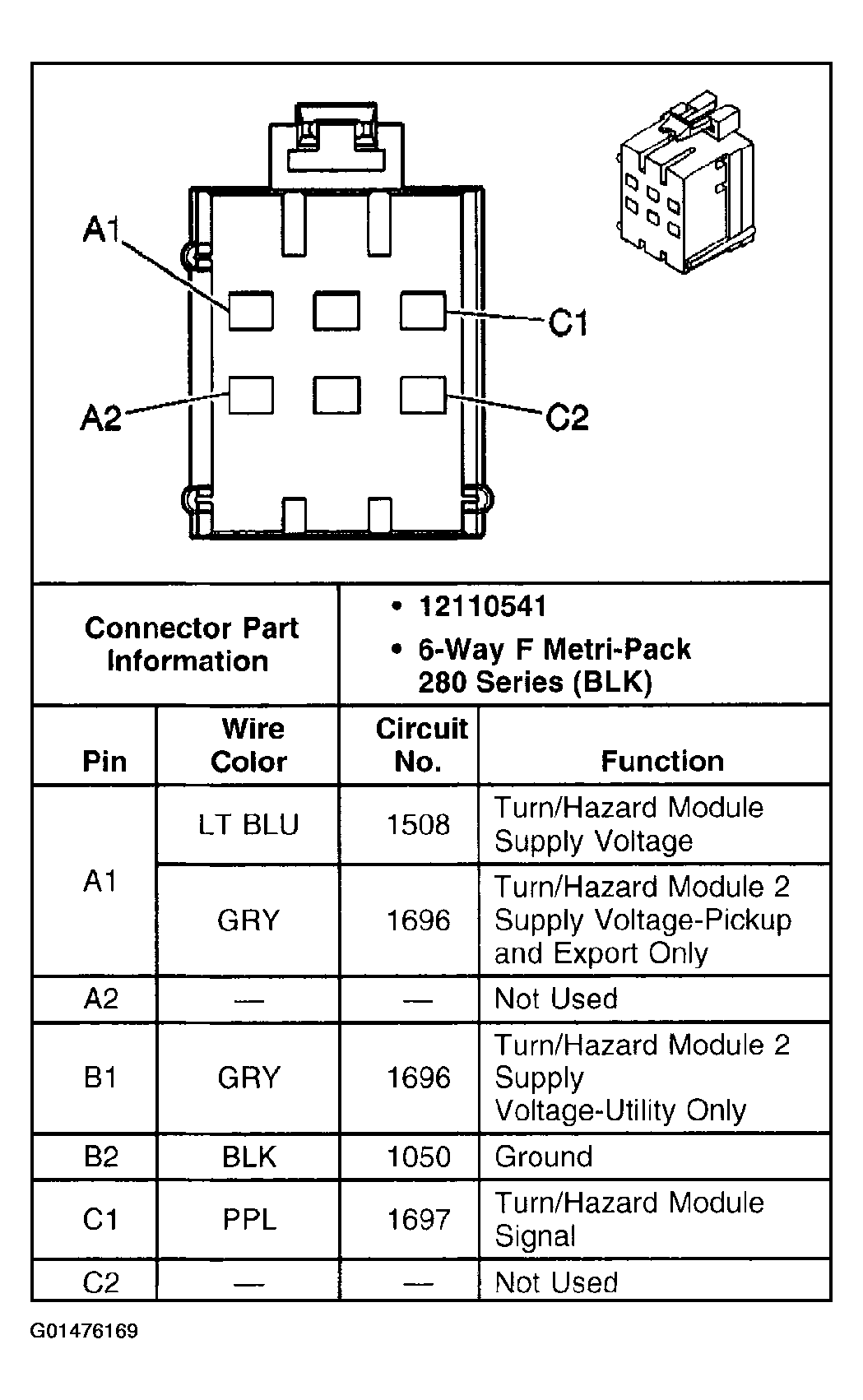

Fig 54: Turn Signal/Hazard Flasher Module

G01476169

Courtesy of GENERAL MOTORS CORP.

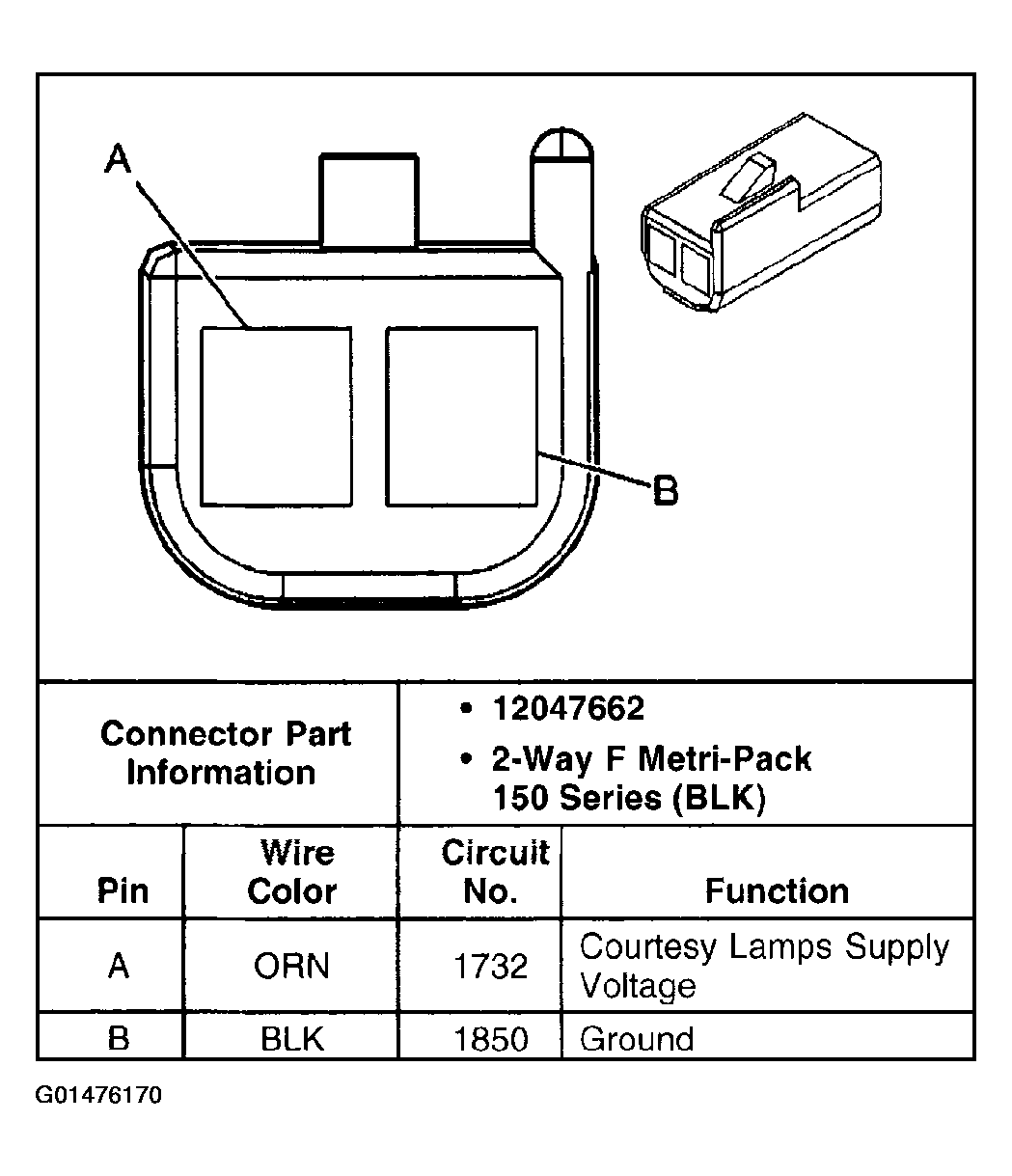

Fig 55: Vanity Mirror Lamp - Left/Right

G01476170

Courtesy of GENERAL MOTORS CORP.
