Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control cable to the vehicle.
Remove all bends and twists from the cruise control module ribbon and cable, by rotating until removed.

Fig 1: Removing Bends & Twists From Cruise Control Module Ribbon & Cable
Courtesy of GENERAL MOTORS CORP.

Important:
- Do not twist the cruise control module ribbon (1).
- Pull the cruise control cable (2) to verify retention to the ribbon (1).
Attach the cruise control cable bead (2) to the cruise control module ribbon (1).

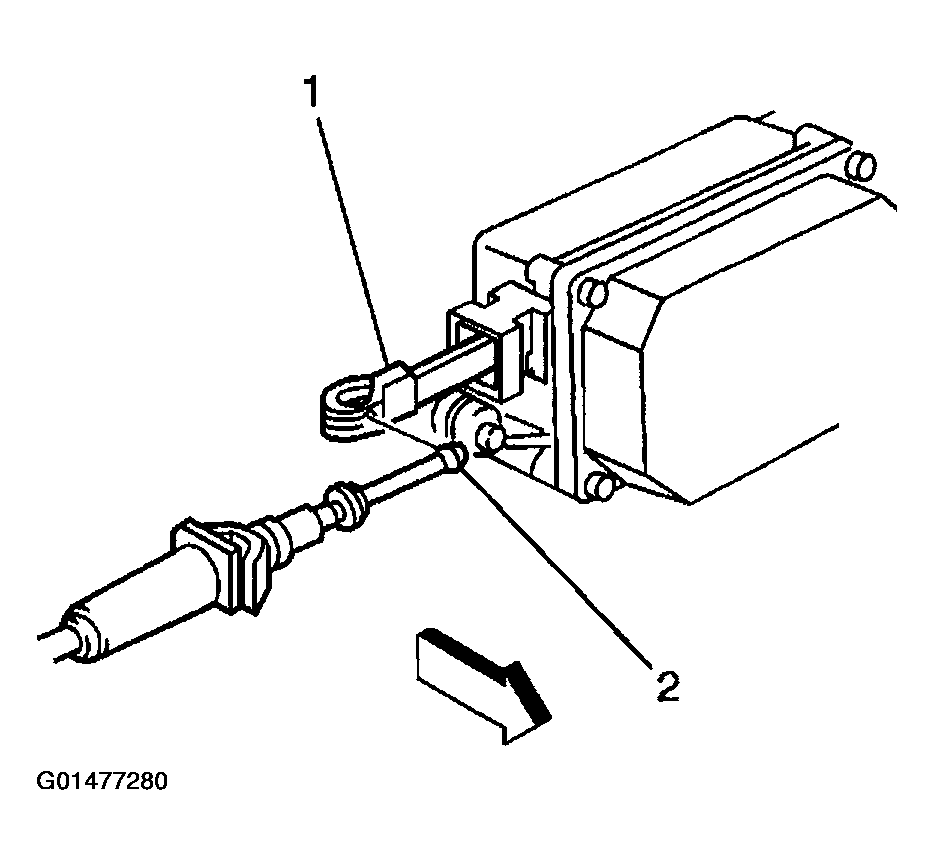

Fig 2: Attaching Cruise Control Cable Bead To Cruise Control Module Ribbon
Courtesy of GENERAL MOTORS CORP.
Check the orientation of the cruise control ribbon buckle to the cable end fitting.

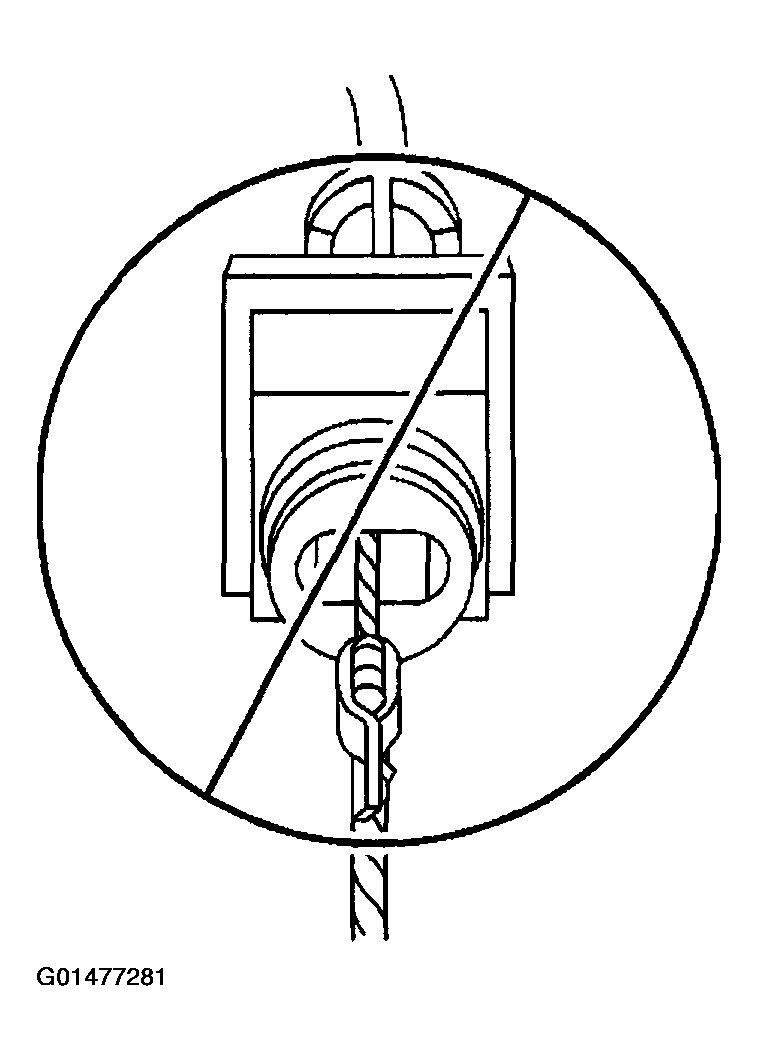

Fig 3: Checking Orientation Of Cruise Control Ribbon Buckle To Cable End Fitting
Courtesy of GENERAL MOTORS CORP.
Slide the cruise control cable conduit over the ribbon.
1. Install the tangs to the cruise control module housing.
2. Ensure that the tangs snap securely into place.
Fig 4: Sliding Cruise Control Cable Conduit Over Ribbon
Courtesy of GENERAL MOTORS CORP.
Snap the cruise control cable engine-end fitting (2) over the stud (1) on the throttle cam lever.

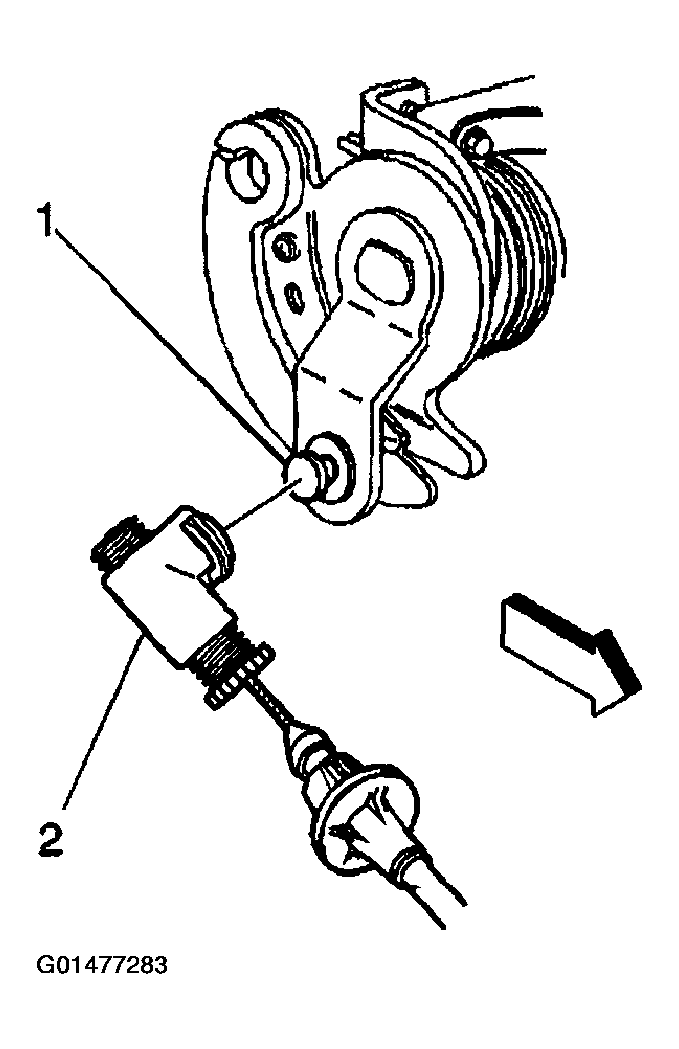

Fig 5: Snapping Cruise Control Cable Engine-End Fitting Over Stud On Throttle Cam Lever
Courtesy of GENERAL MOTORS CORP.
Connect the cruise control cable conduit fitting to the round hole in the engine cable bracket.
Ensure that the tabs snap securely into the hole.

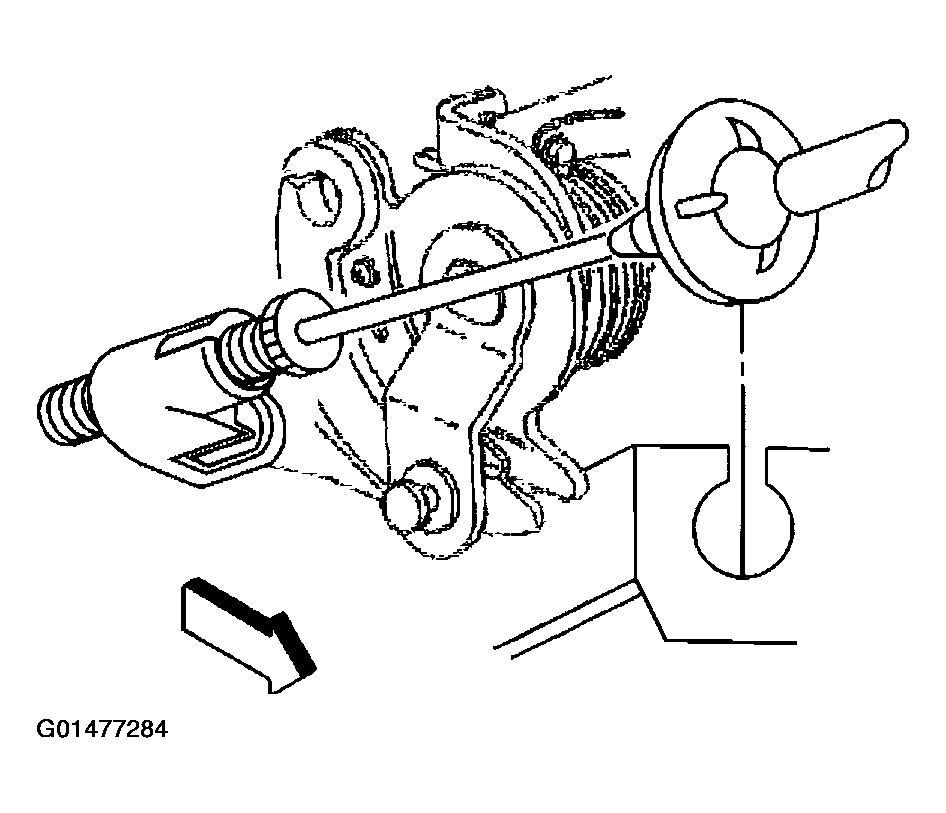

Fig 6: Connecting Cruise Control Cable Conduit Fitting To Round Hole In Engine Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the cruise control cable locator clip to the rectangular hole in the routing bracket.
1. Route the cruise control cable above the accelerator cable.
2. Ensure that the clip snaps securely into place.

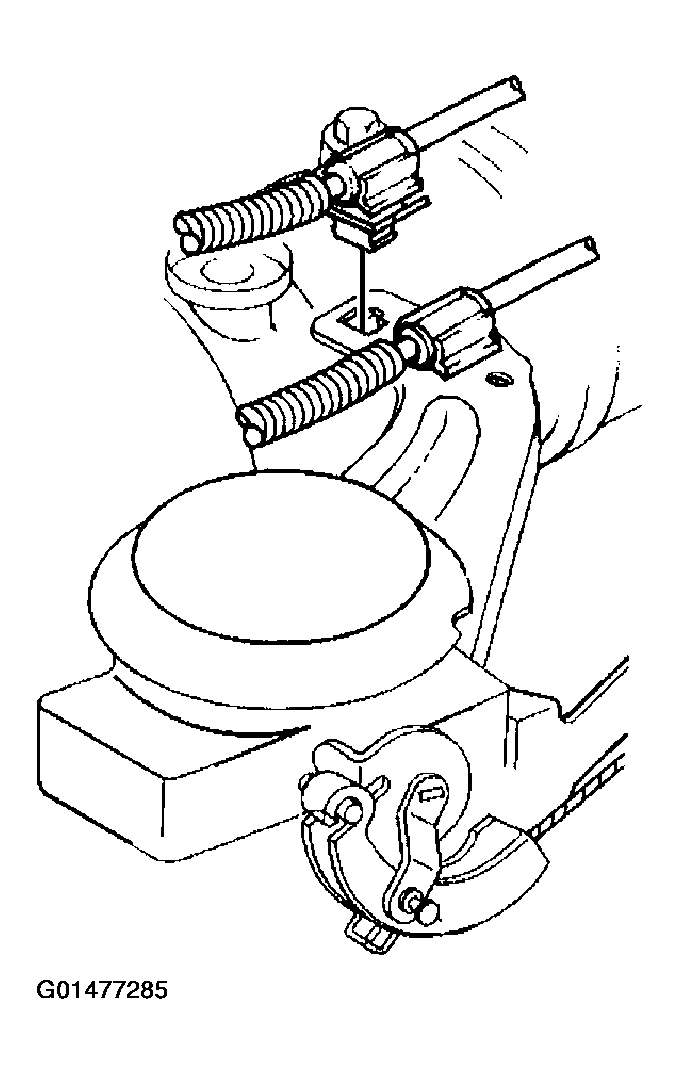

Fig 7: Connecting Cruise Control Cable Locator Clip To Rectangular Hole In Routing Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connection to the cruise control servo module.
Test the systems operation.
Perform the Cruise Control System Functional Test. Refer to DIAGNOSTIC SYSTEM CHECK - CRUISE CONTROL .
Close hood.

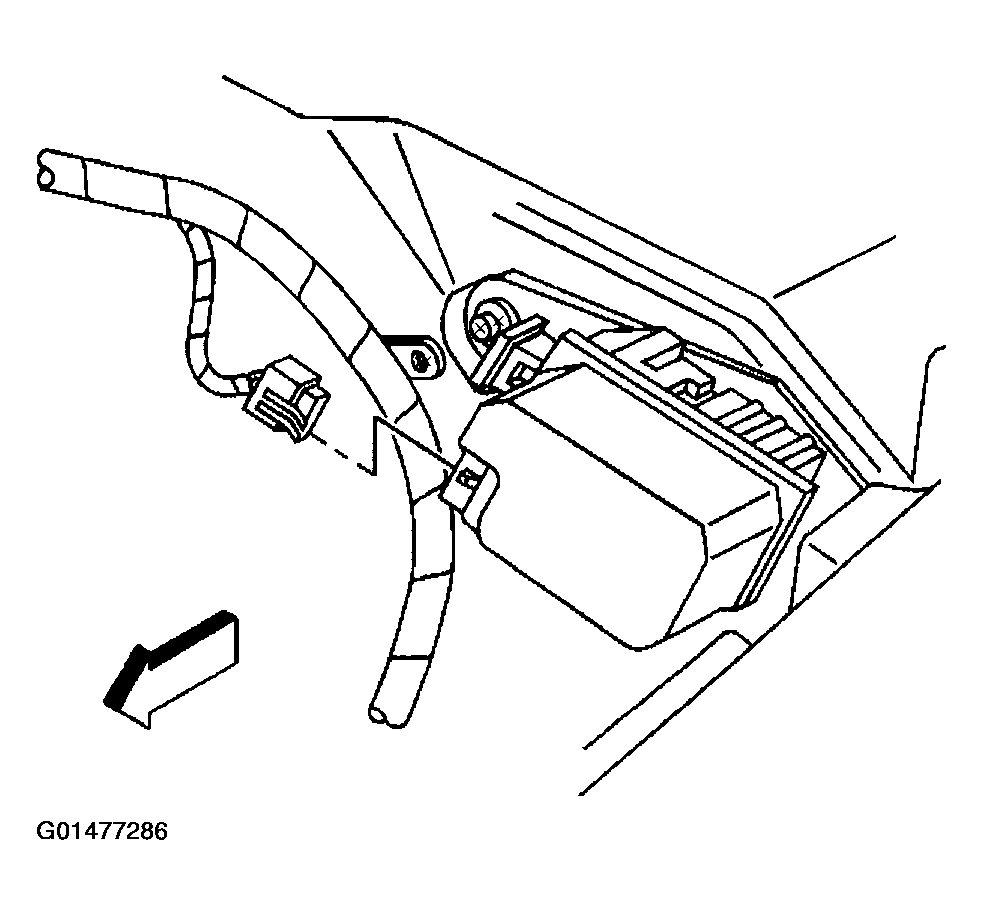

Fig 8: Connecting Electrical Connection To Cruise Control Servo Module
Courtesy of GENERAL MOTORS CORP.
