Power Seat Systems Component Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

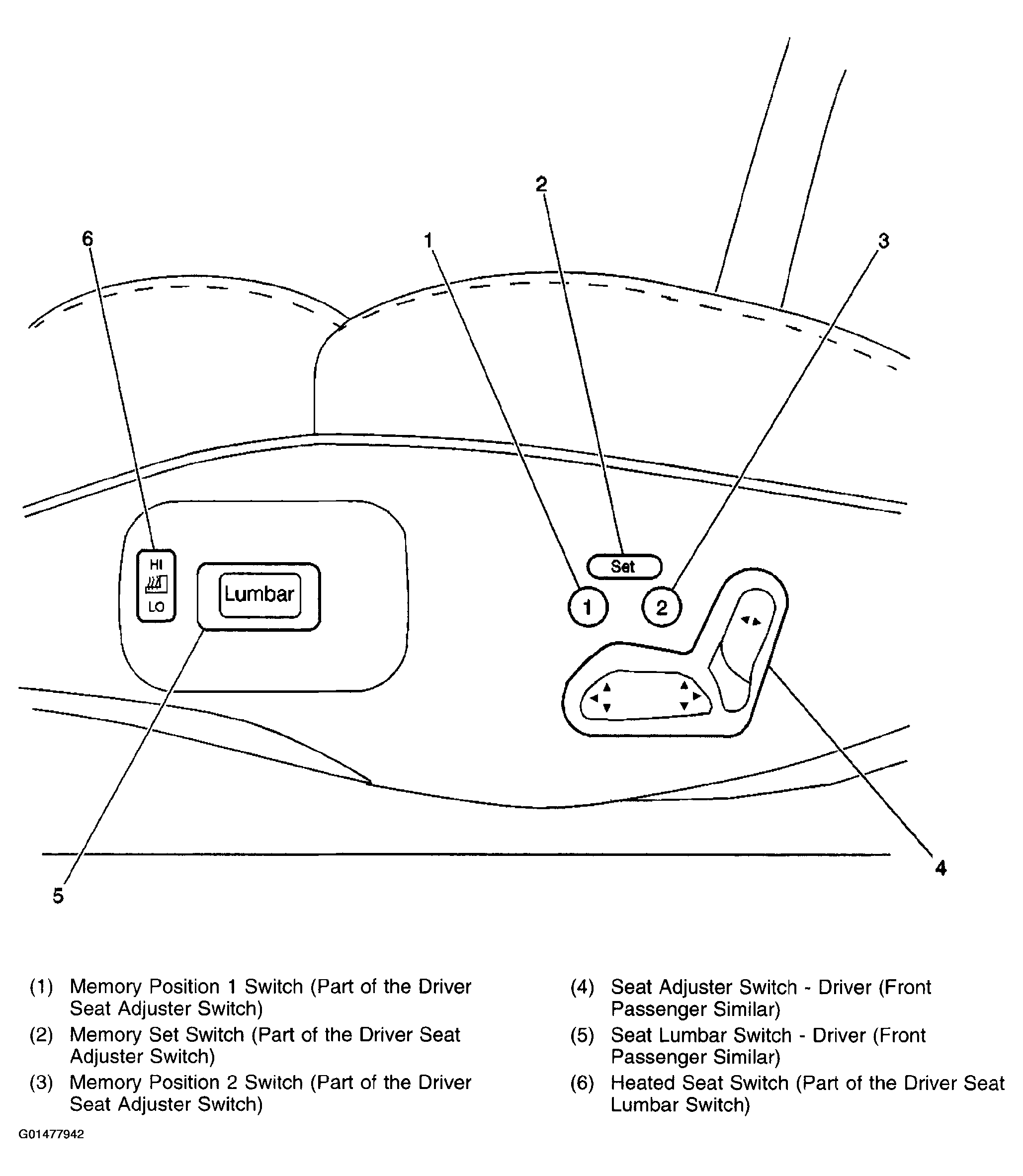

Fig 1: Seat Switches

Courtesy of GENERAL MOTORS CORP.

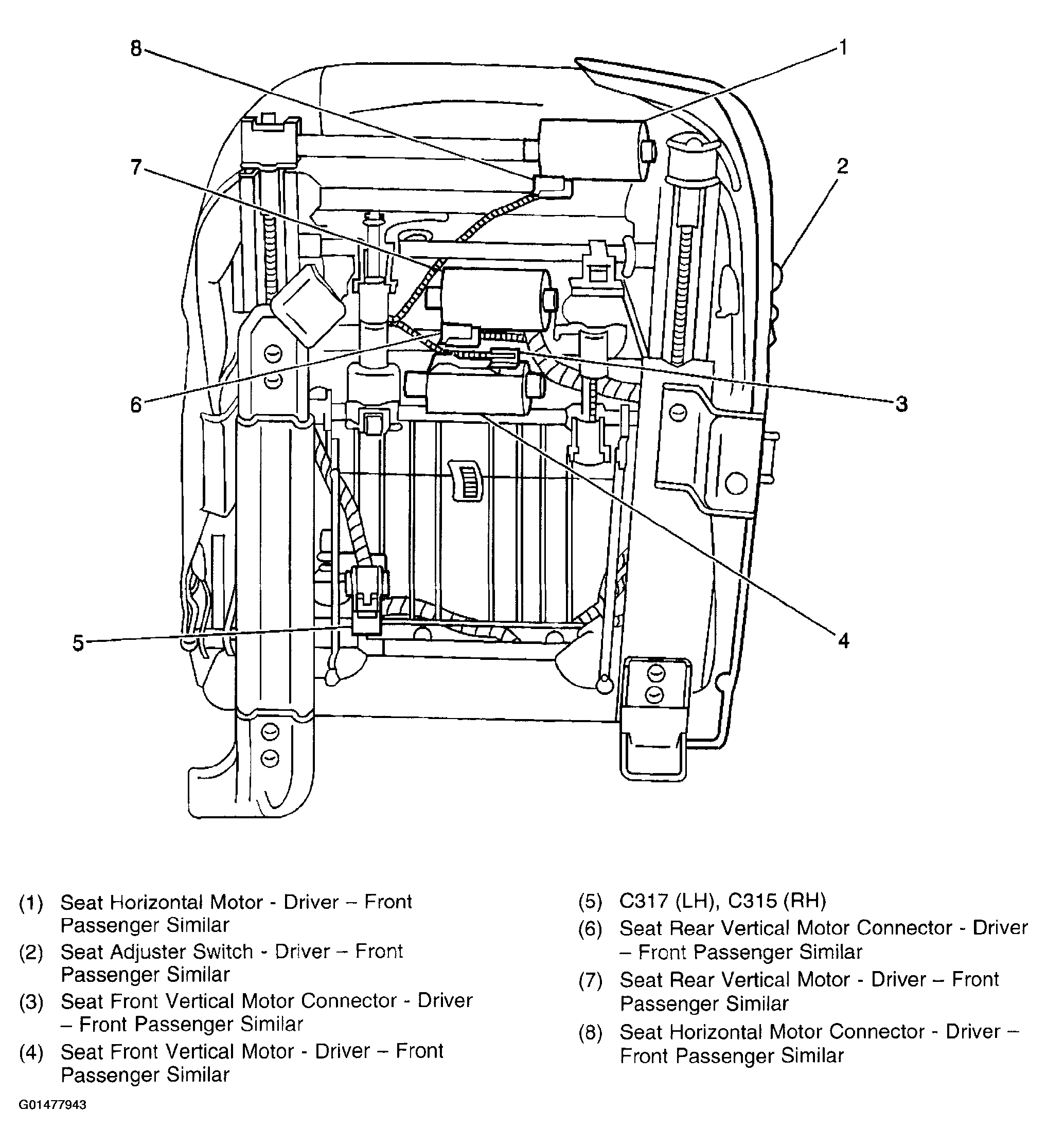

Fig 2: Seat Motors (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.

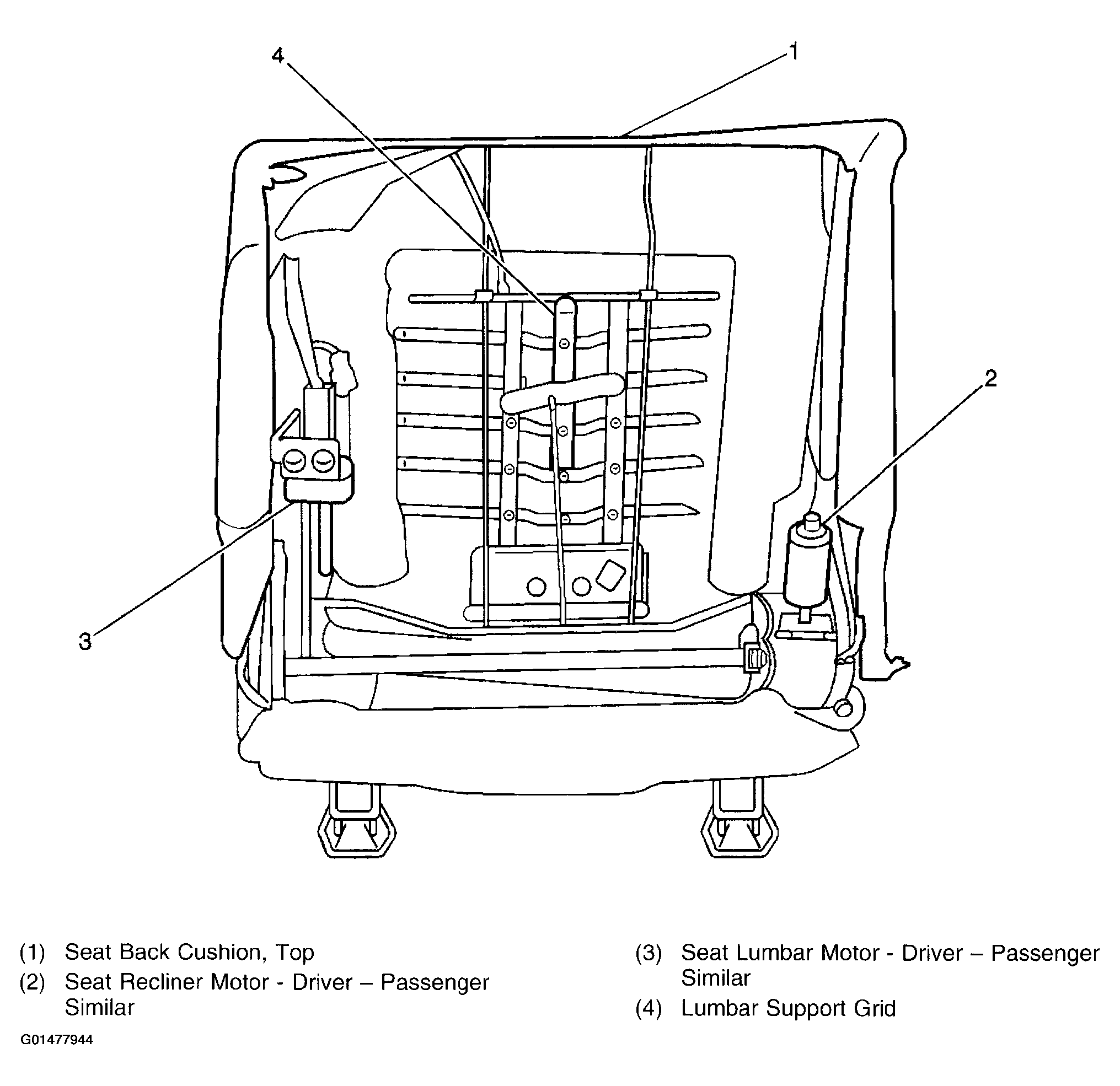

Fig 3: Seat Lumbar Motor & Seat Recliner Motor (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.

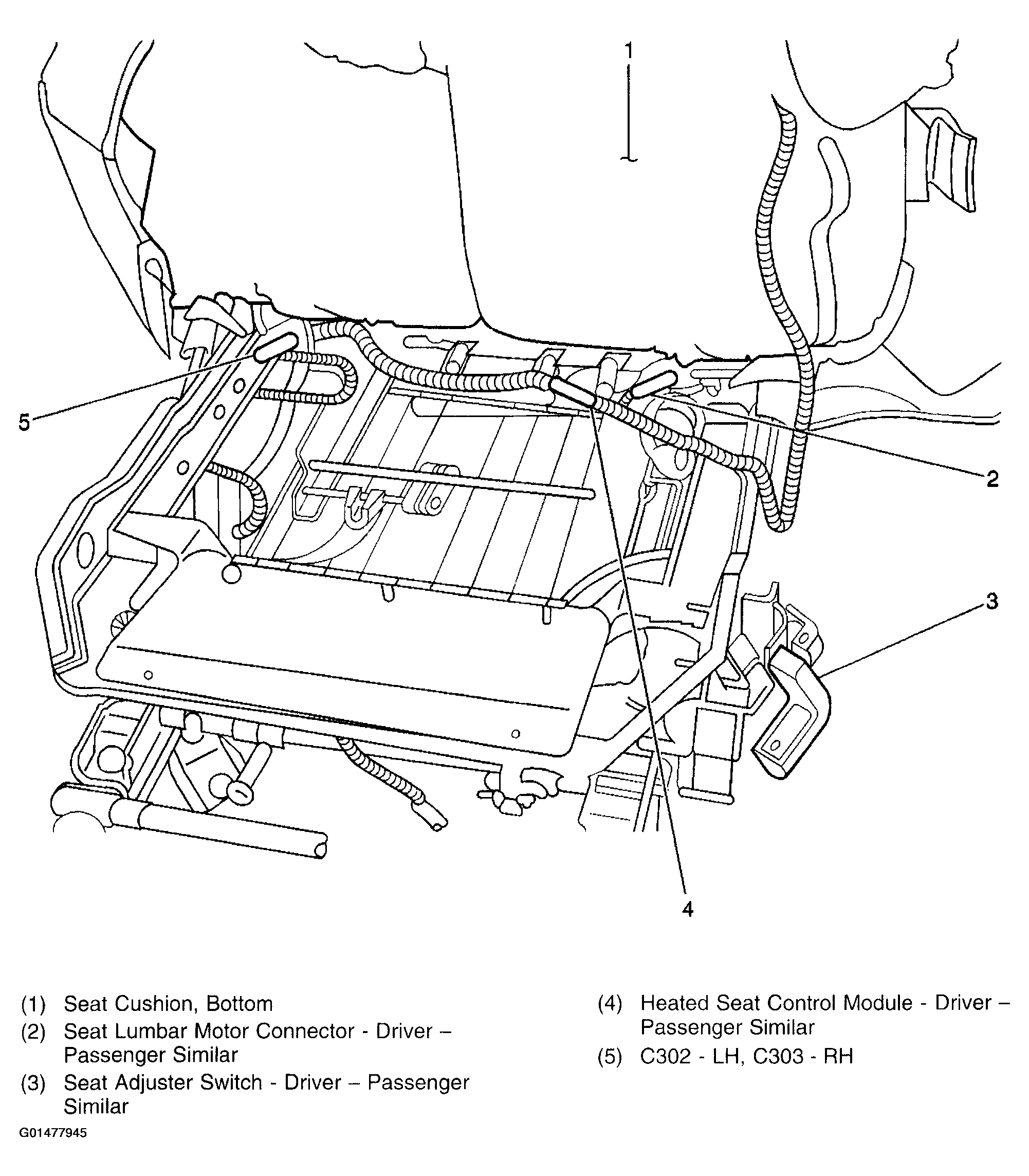

Fig 4: Seat Harness Routing (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.
