Fog Lamp Replacement - Front

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

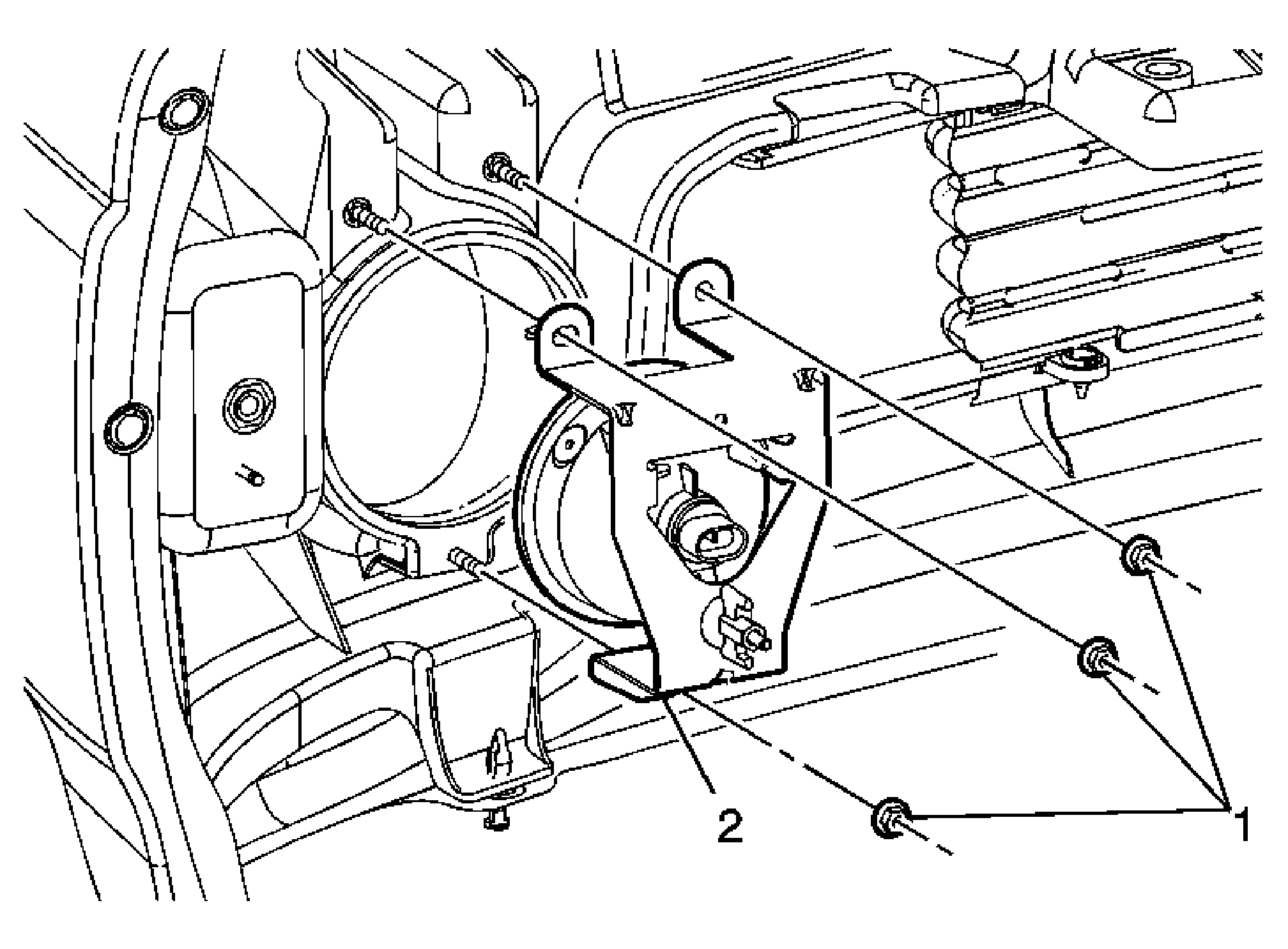

Fig 1: View Of Front Fog Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front wheelhouse panel. Refer to Wheelhouse Panel Replacement . Disconnect the fog lamp electrical connector.
1	Nuts, Front Fog Lamp Mounting Bracket (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Lamp Assembly, Front Fog (Qty: 1) Tip: Pull lamp assembly rearward off mounting studs.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front wheelhouse panel. Refer to Wheelhouse Panel Replacement .
Disconnect the fog lamp electrical connector.

Nuts, Front Fog Lamp Mounting Bracket (Qty: 3)

Tighten: 10 N.m (89 lb in)

Lamp Assembly, Front Fog (Qty: 1)
Tip: Pull lamp assembly rearward off mounting studs.
