Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW MAP sensor seal, if necessary.
  2. Install the MAP sensor.
    3. Fig 1: View Of MAP Sensor
    GM10933Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAP sensor electrical connector (2).

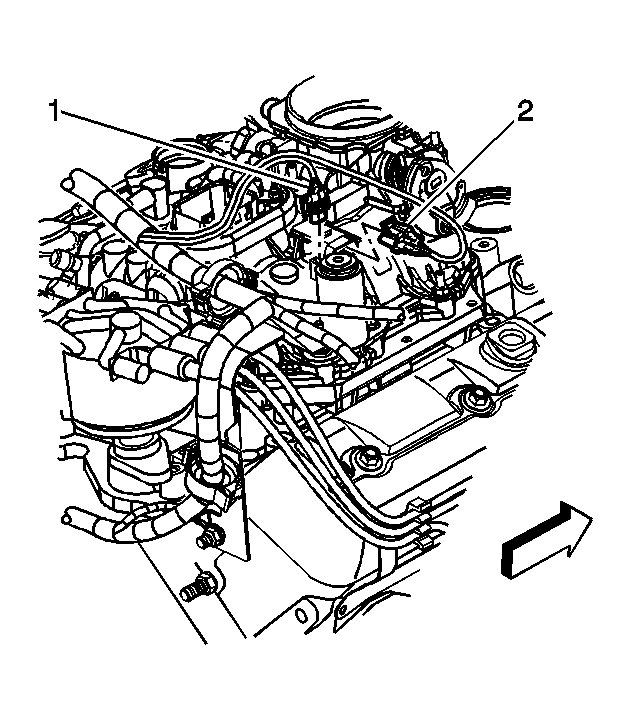

    4. Fig 2: EVAP Canister Purge Solenoid Valve & MAP Sensor
    GM782178Courtesy of GENERAL MOTORS CORP.
