Power Steering System Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

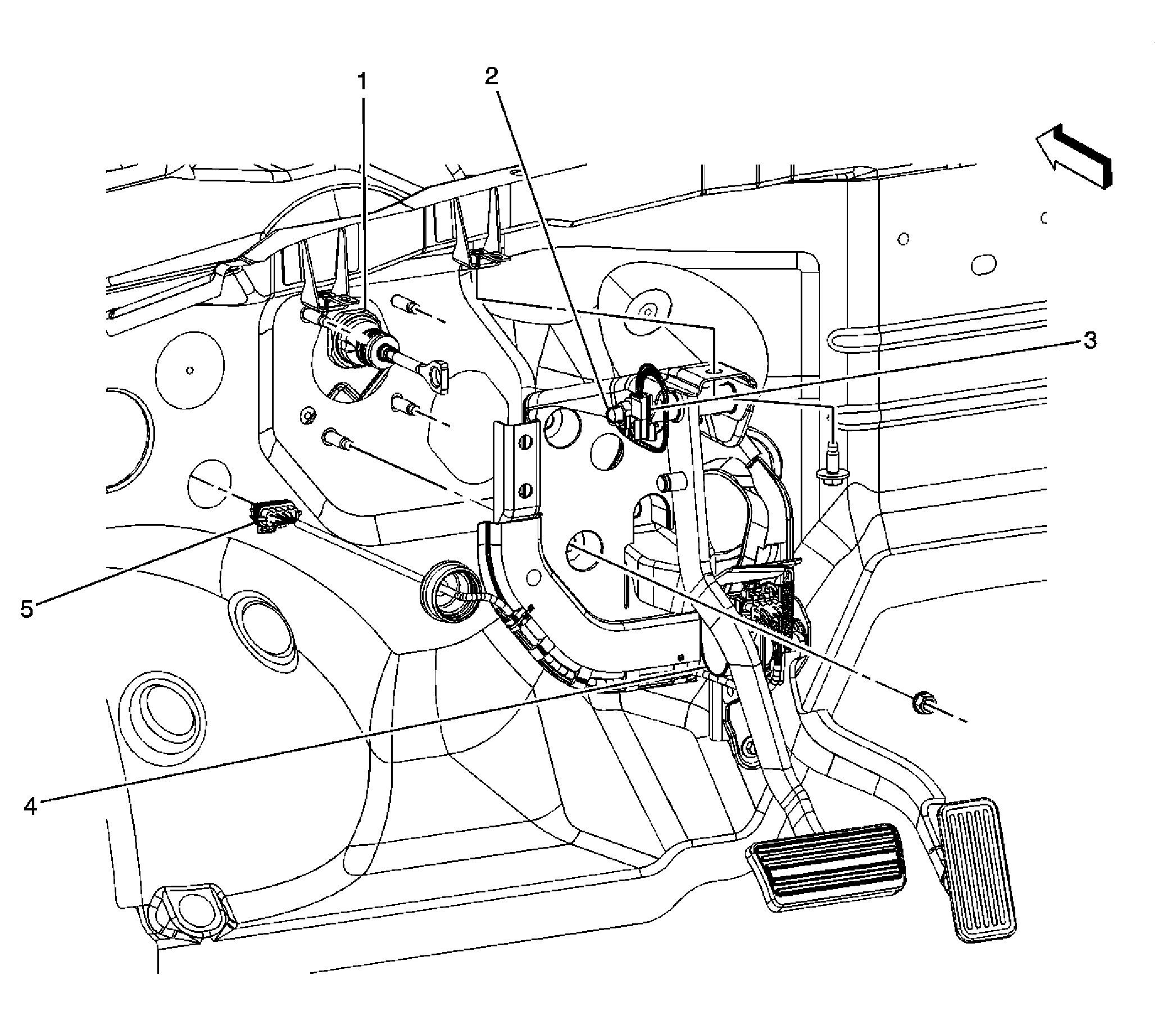

Fig 1: Brake and Accelerator Pedal Assembly (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Brake Booster
2	Brake Pedal Position Sensor
3	C205
4	Accelarator Pedal Position (APP) Sensor
5	Throttle Actuator Control (TAC) Module Connector

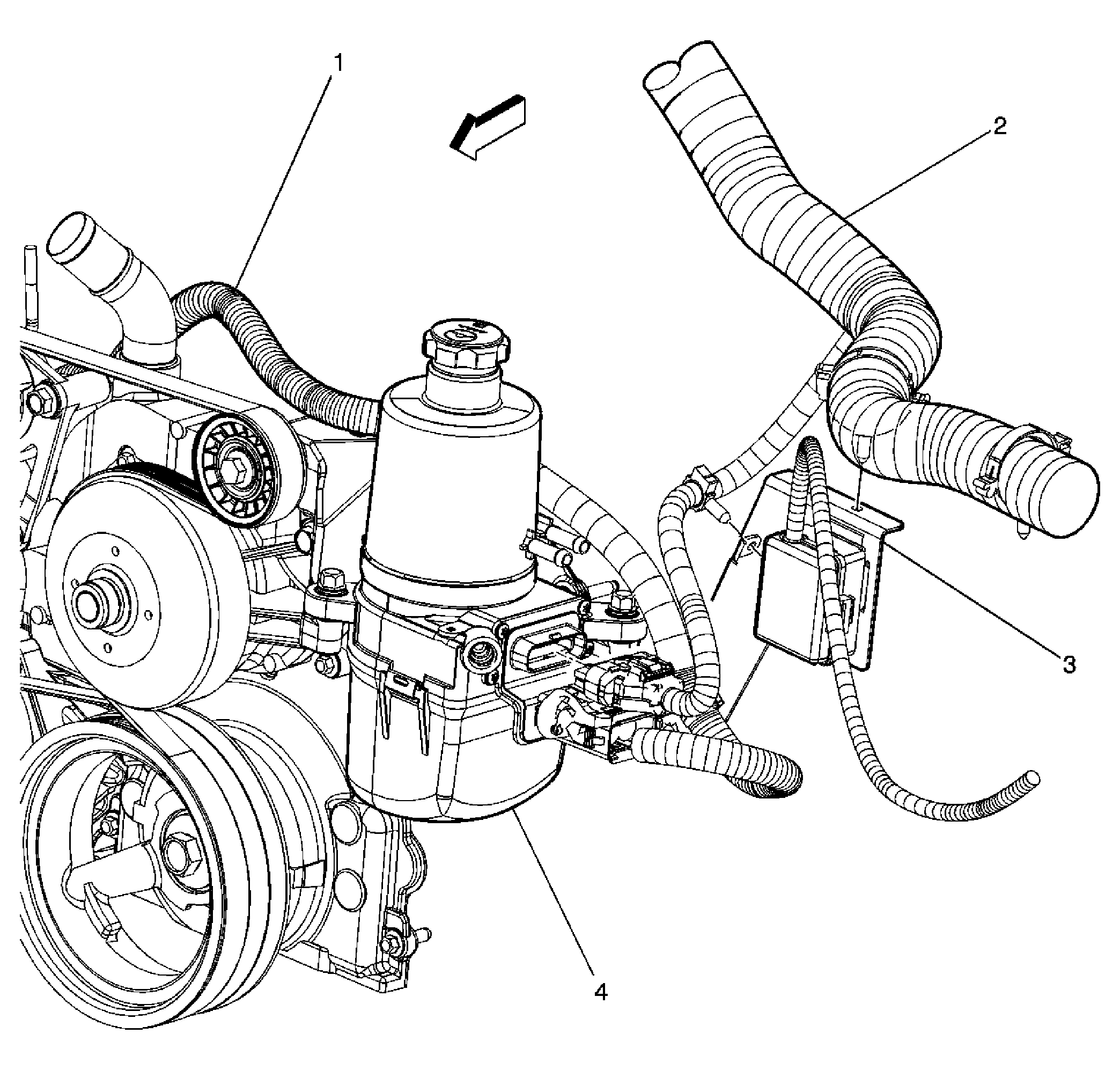

Fig 2: Electro Hydraulic Power Steering (EHPS) Module - Left Side of Engine (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	42V Harness
2	Engine Harness
3	Battery Cable Bracket
4	Electro Hydraulic Power Steering (EHPS) Module

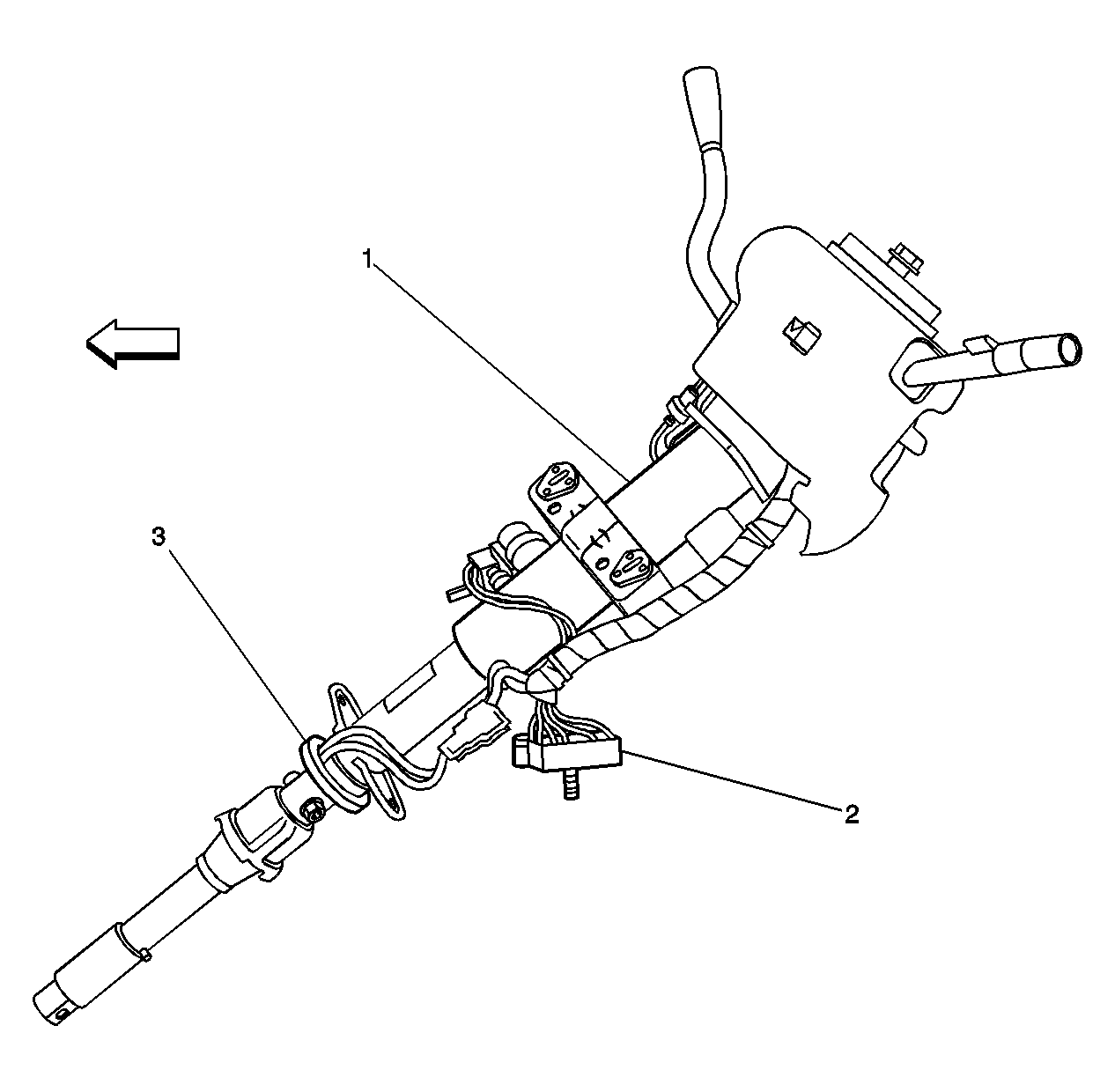

Fig 3: Steering Wheel Speed/Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	C201
3	Steering Wheel Speed/Position Sensor
