Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the O-ring (1) is installed.

Install the rear wheel position sensor (2) to the steering gear.

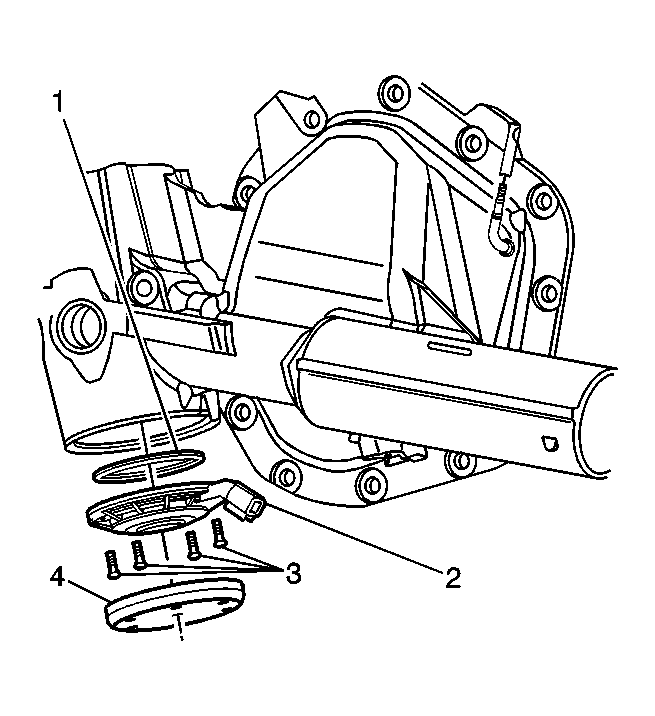

Fig 1: Installing Rear Wheel Position Sensor To The Steering Gear

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Be careful to maintain the position of the replacement sensor.

Remove the pin retaining the position of the new sensor and immediately install the sensor to the steering gear.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the rear wheel position sensor retaining bolts. Apply LOCTITE 242 blue.
Tighten: Tighten the bolts to 4 N.m (35 lb in).
Install the rear wheel position sensor cover (4).
Connect the electrical connector (1).

Fig 2: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the steering gear protection shield (1) and retaining bolts (3).
Tighten: Tighten the steering gear protection shield retaining bolts to 180 N.m (132 lb ft).

Fig 3: Installing Steering Gear Protection Shield And Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Perform a four wheel alignment. Refer to Measuring Wheel Alignment (w/Rear Wheel Steering) or Measuring Wheel Alignment (w/o Rear Wheel Steering) in Wheel Alignment.
