Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not install the retaining ring onto the fitting by pushing the retaining ring down over the fitting.

Hook one of the open ends of the retaining ring in one of the slots in the quick connector.

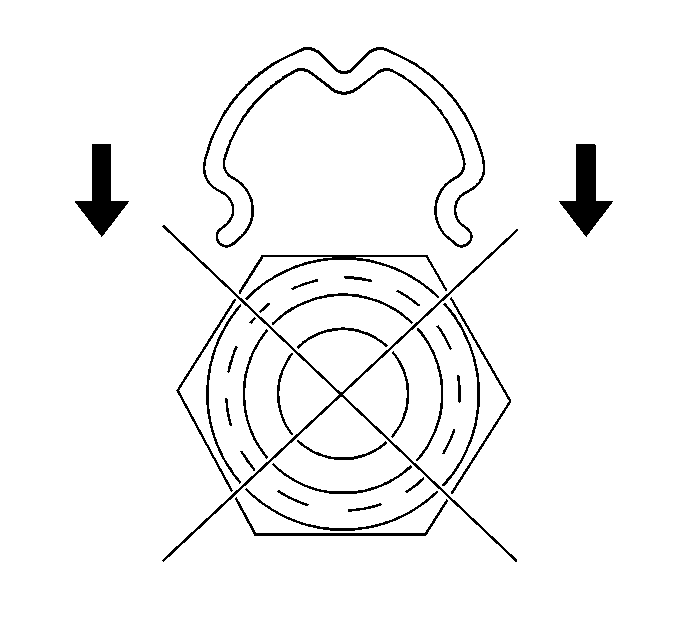

Fig 1: View Of Retaining Ring & Quick Connector

Courtesy of GENERAL MOTORS CORP.

Rotate the retaining ring around the connector until the retaining ring is positioned with all 3 ears through the 3 slots.

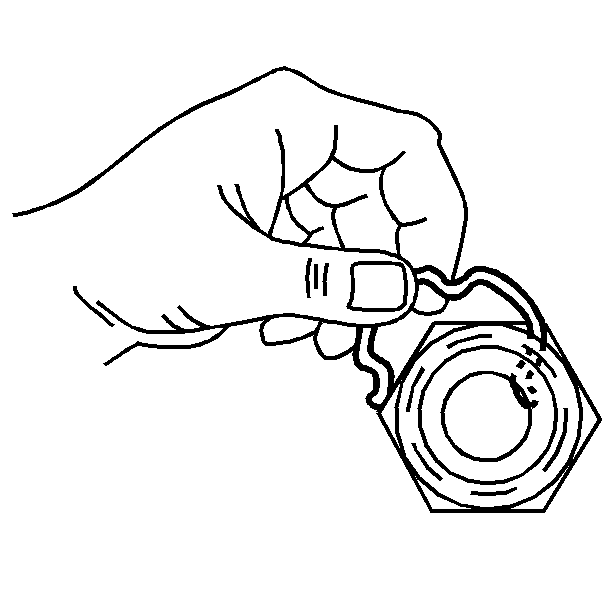

Fig 2: Hooking Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Ensure the 3 retaining ring ears can be seen from the inside of the connector and the retaining ring can move freely in the slots.
Install the SGCM radiator hose to the SGCM radiator quick connector fitting until a click is heard or felt.
Pull back on the SGCM radiator hose to ensure a proper connection.
