Connector Views

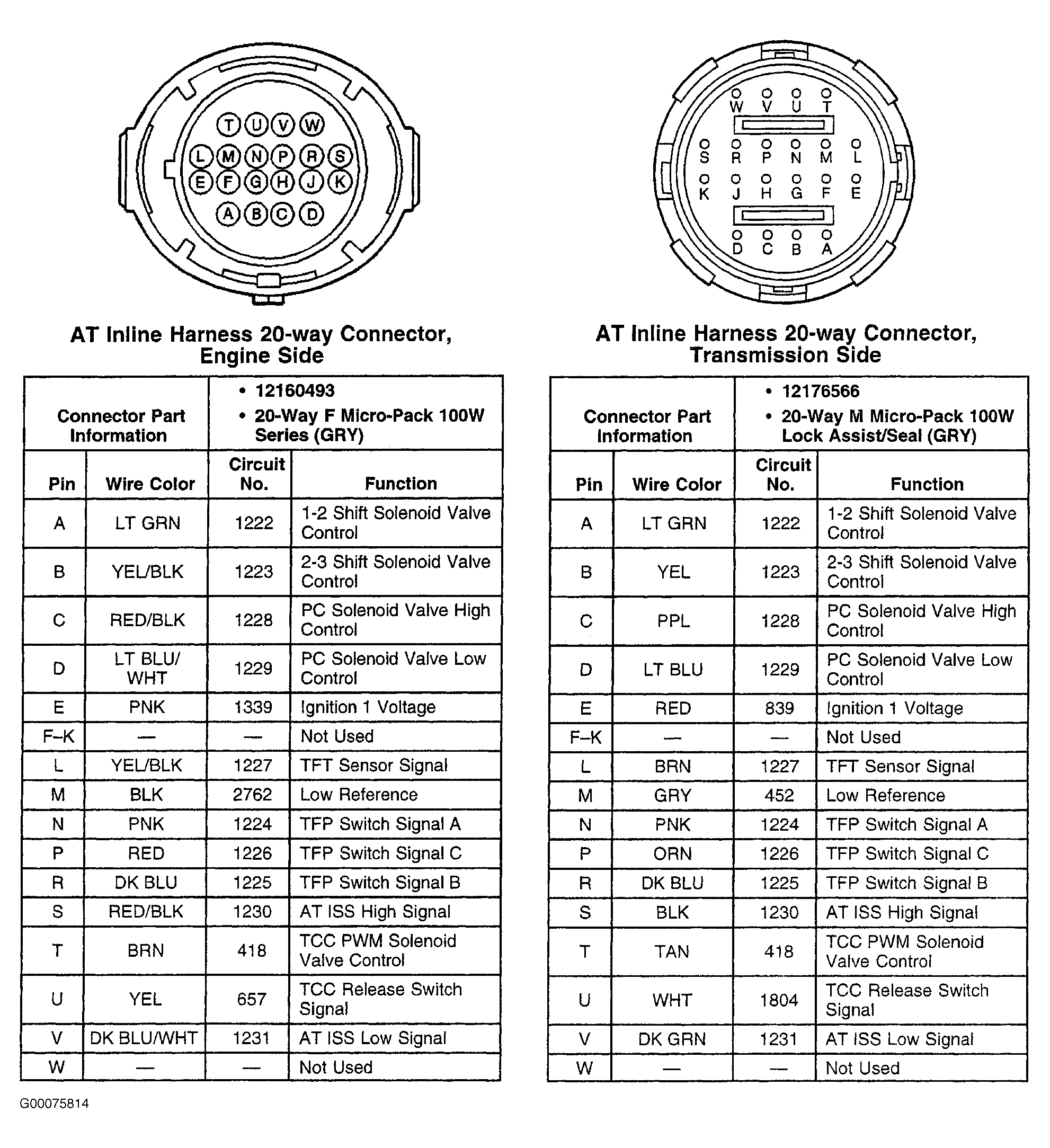

Fig 1: Identifying Transaxle In-line Harness 20-Way Connector Terminals

Courtesy of GENERAL MOTORS CORP.

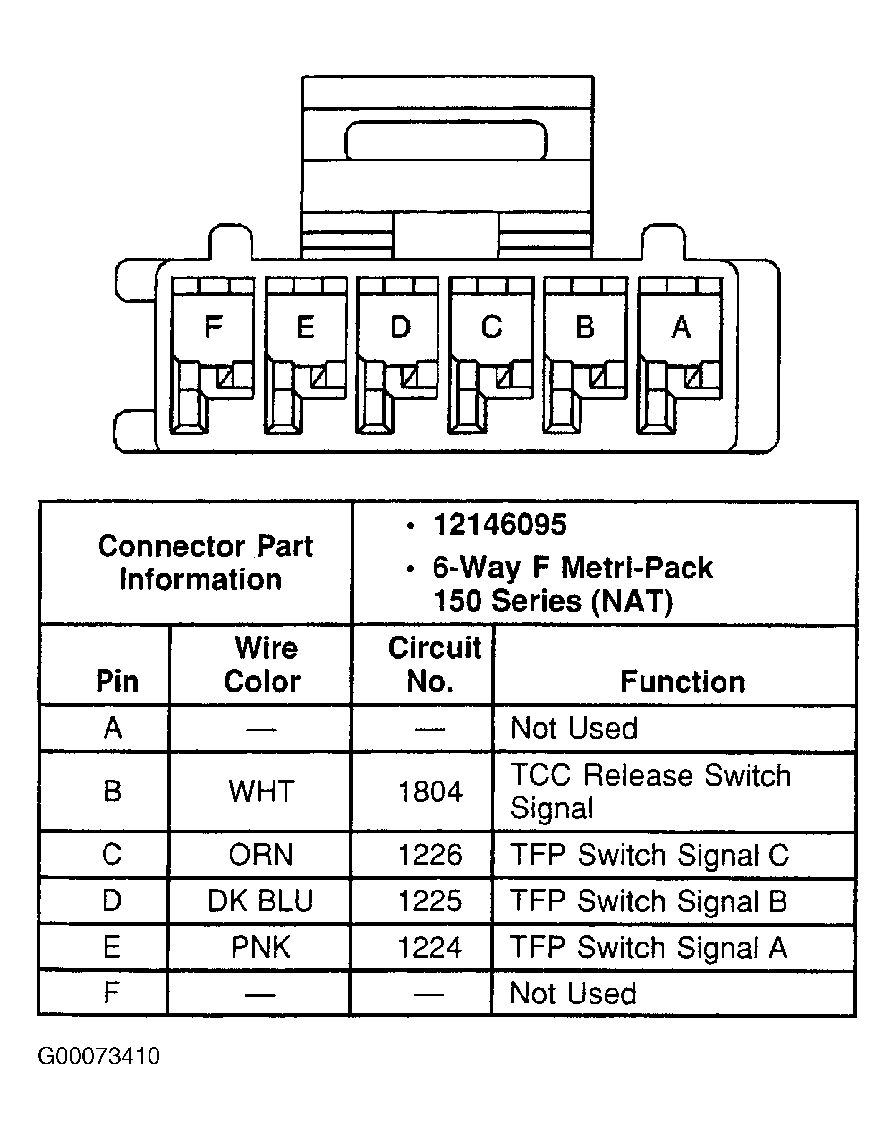

Fig 2: Identifying Transmission Fluid Pressure Manual Valve Position Switch Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

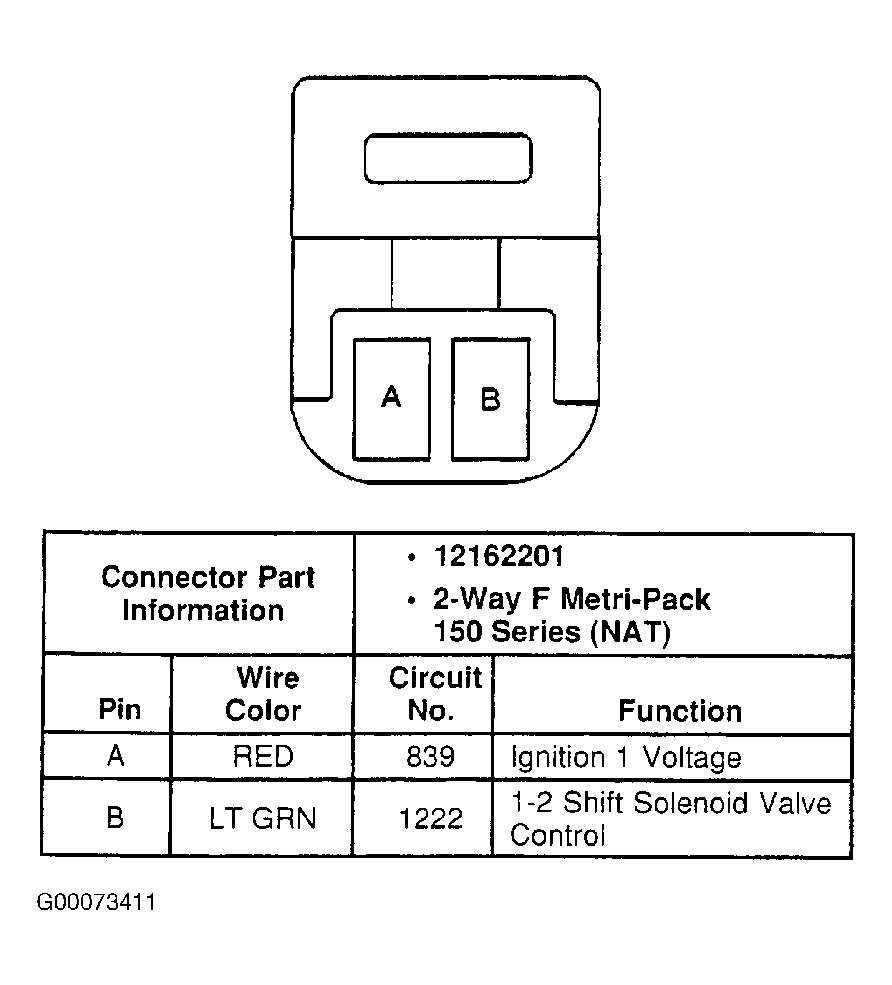

Fig 3: Identifying 1-2 Shift Solenoid Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

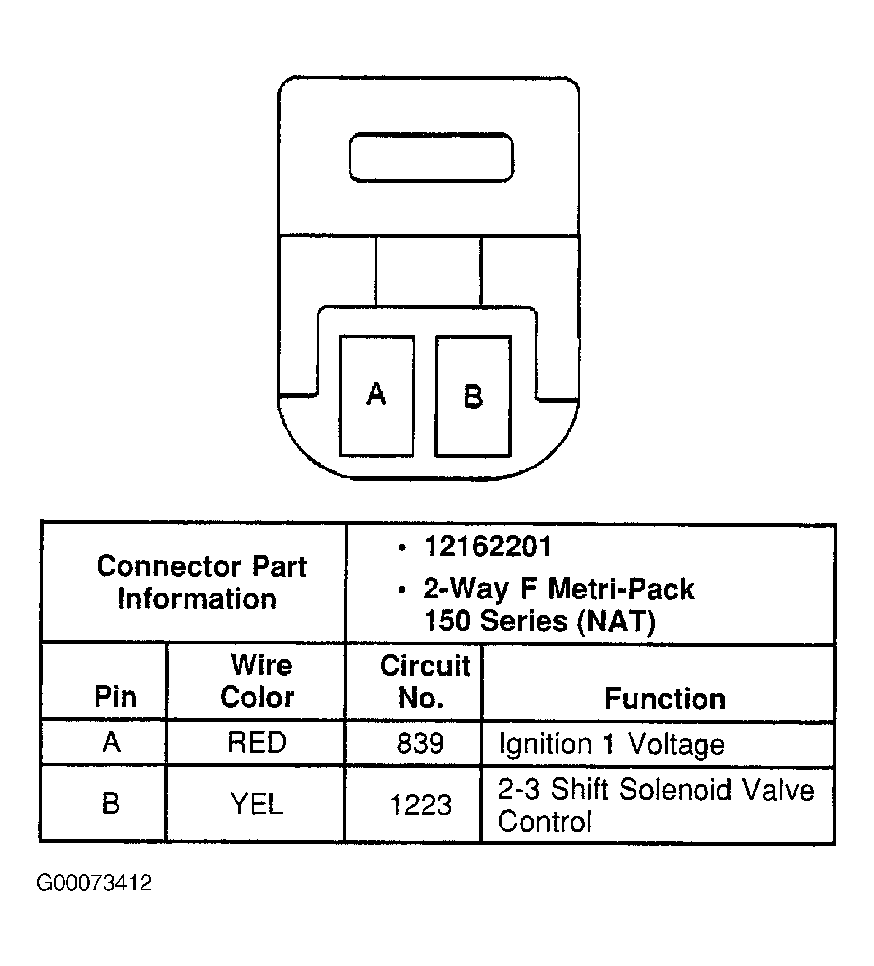

Fig 4: Identifying 2-3 Shift Solenoid Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

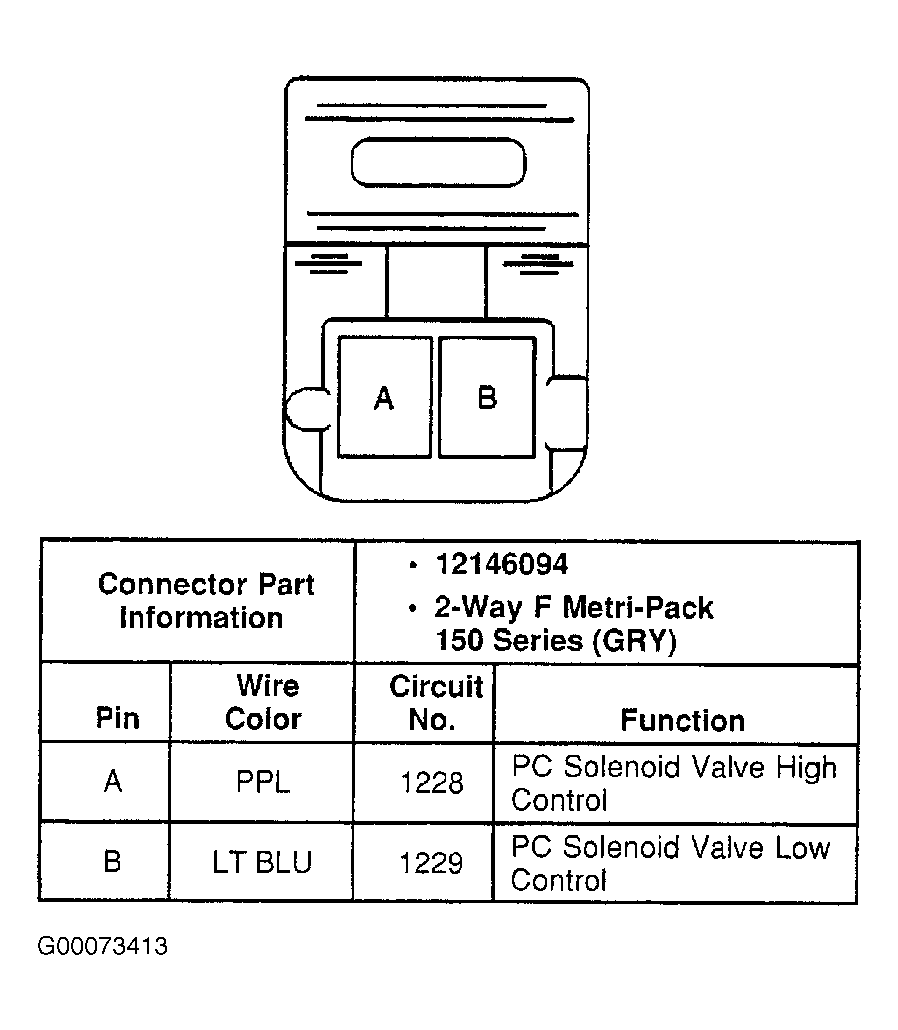

Fig 5: Identifying Pressure Control Solenoid Valve Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

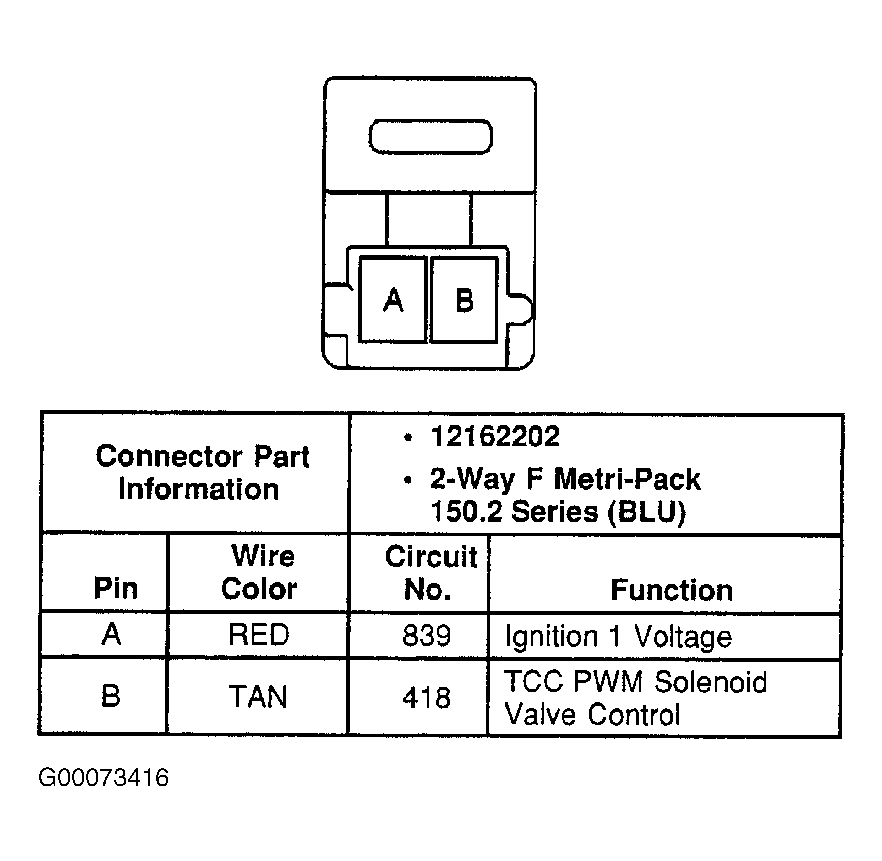

Fig 6: Identifying TCC Pulse Width Modulated Solenoid Valve Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

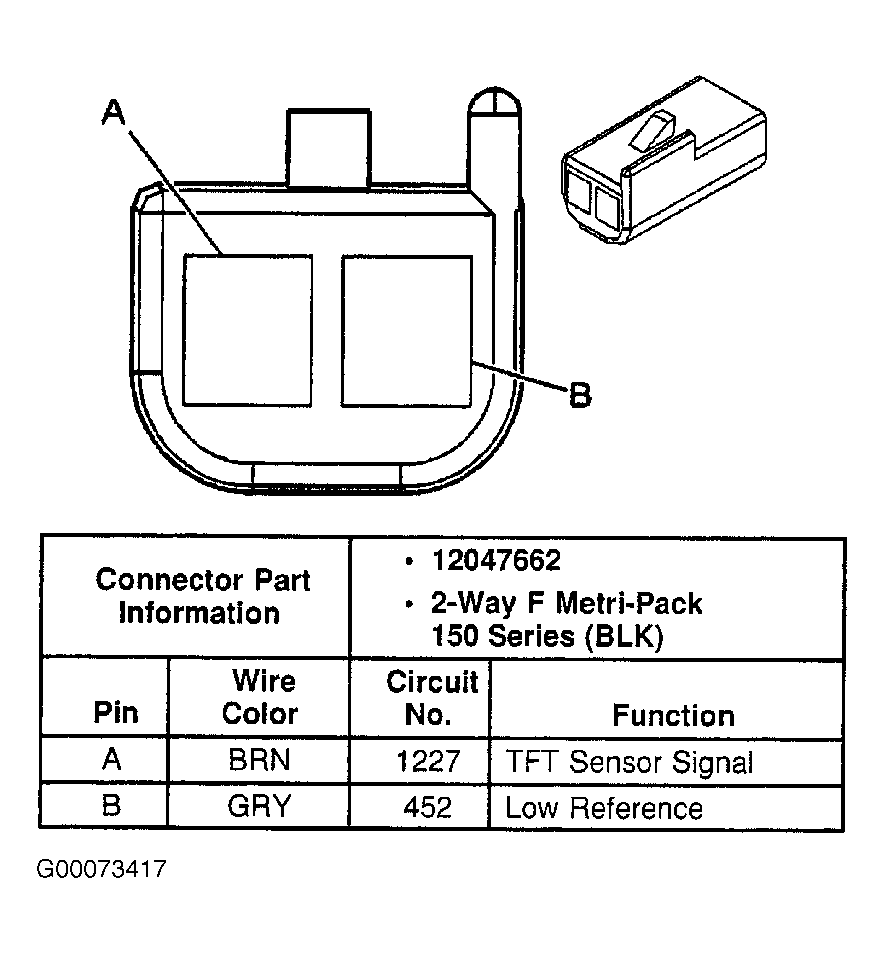

Fig 7: Identifying Transmission Fluid Temperature Sensor Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

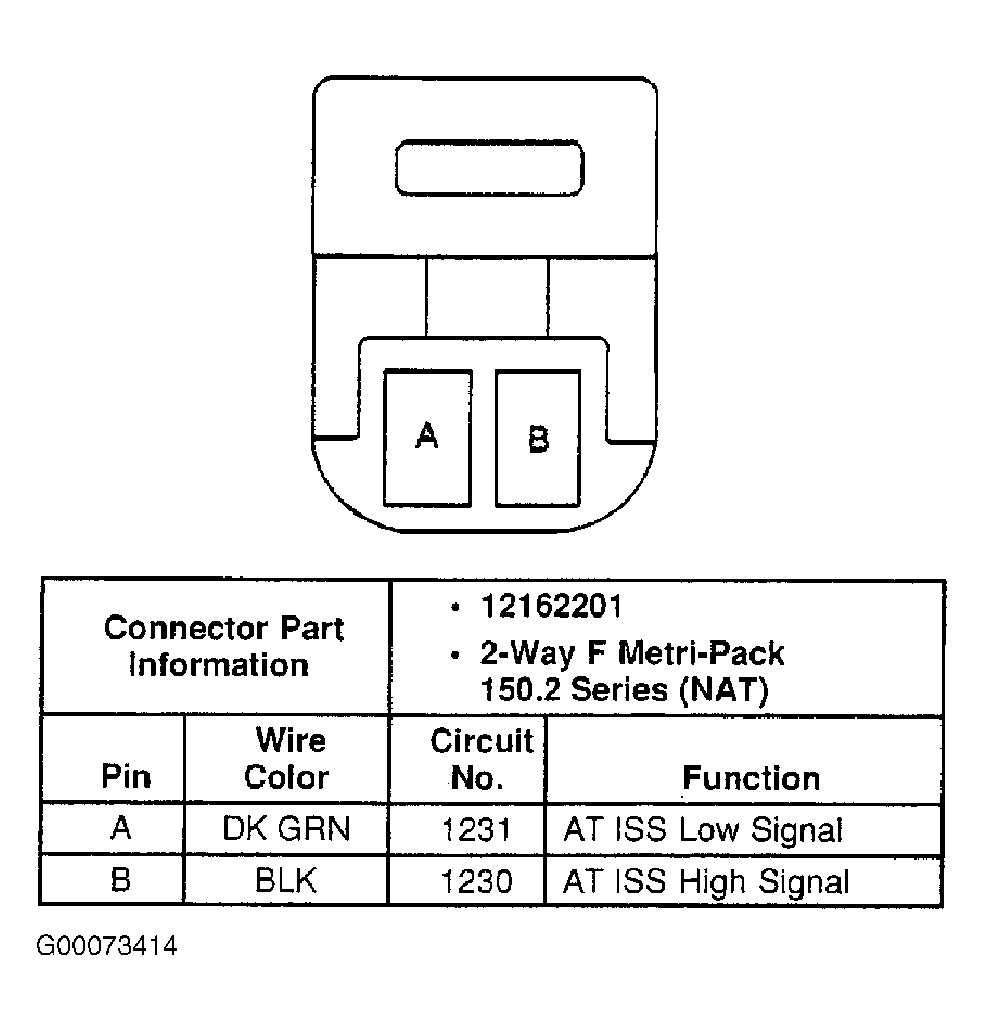

Fig 8: Identifying Input Speed Sensor Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

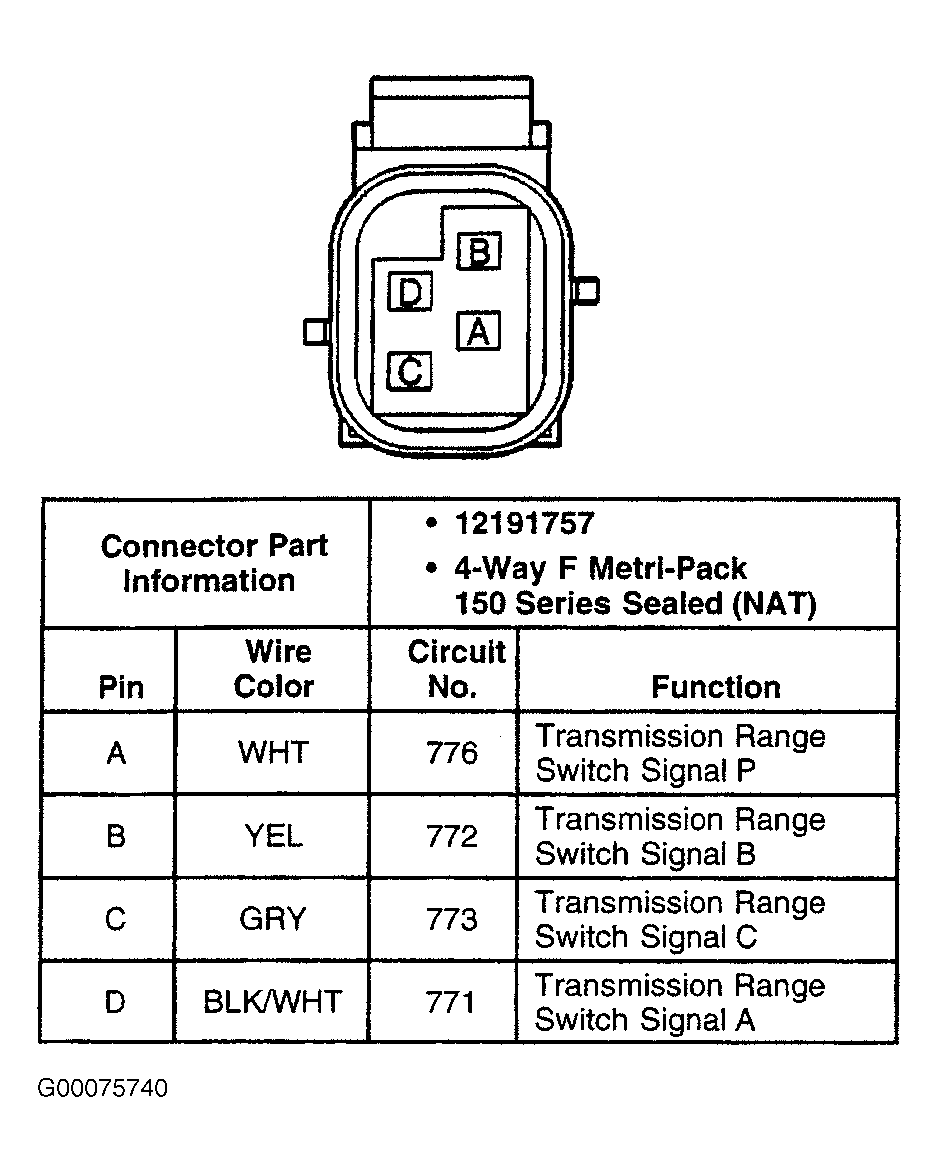

Fig 9: Identifying Transaxle Range Switch Connector C1 Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Transaxle Range Switch Connector C2 Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

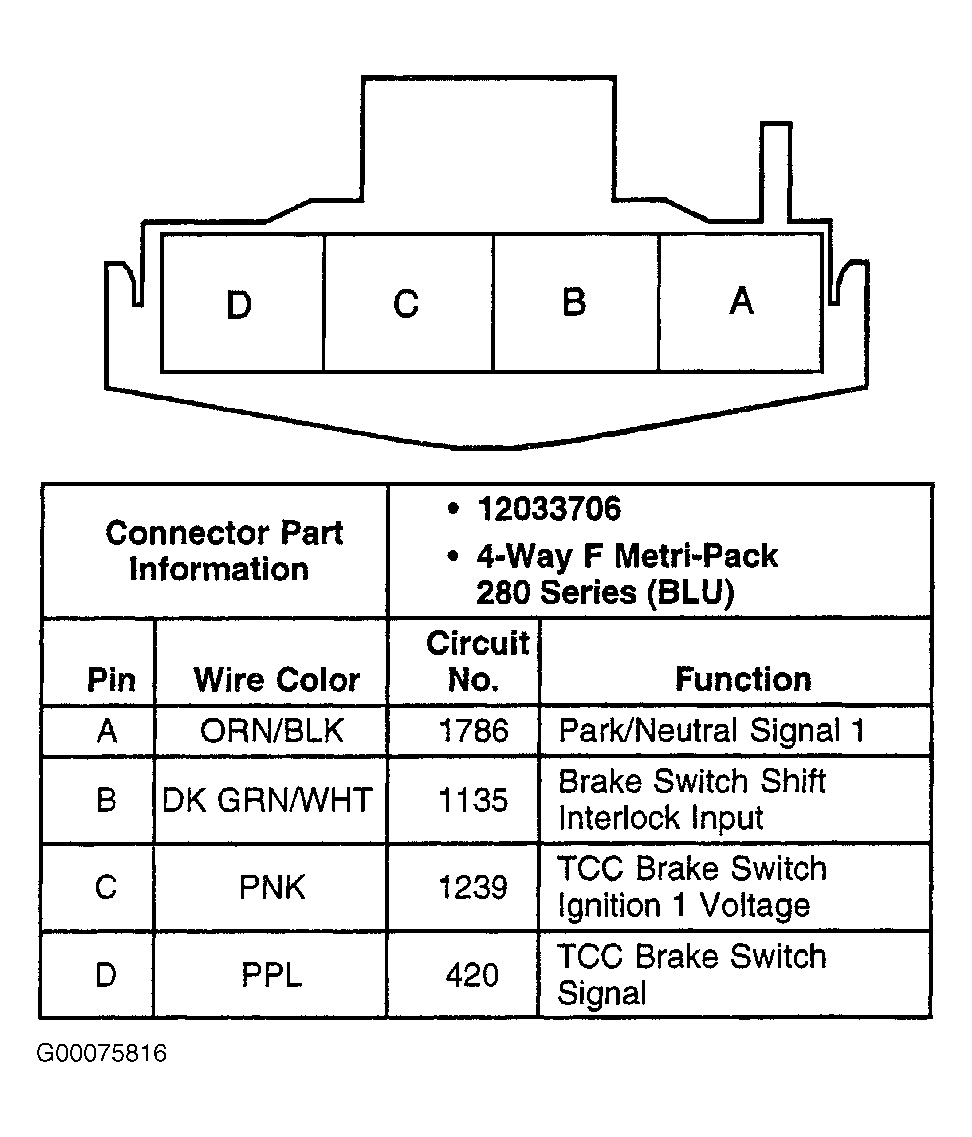

Fig 11: Identifying Stoplamp Switch Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

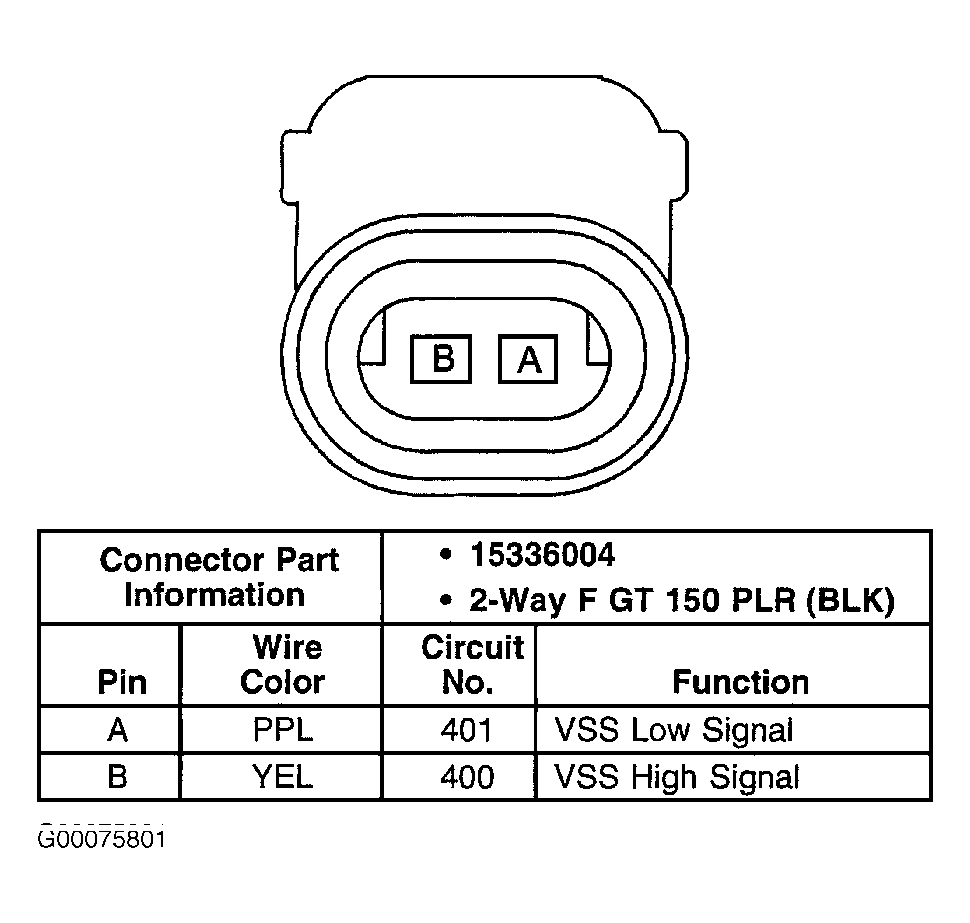

Fig 12: Identifying Vehicle Speed Sensor Connector Terminals (Harness Side)

Courtesy of GENERAL MOTORS CORP.

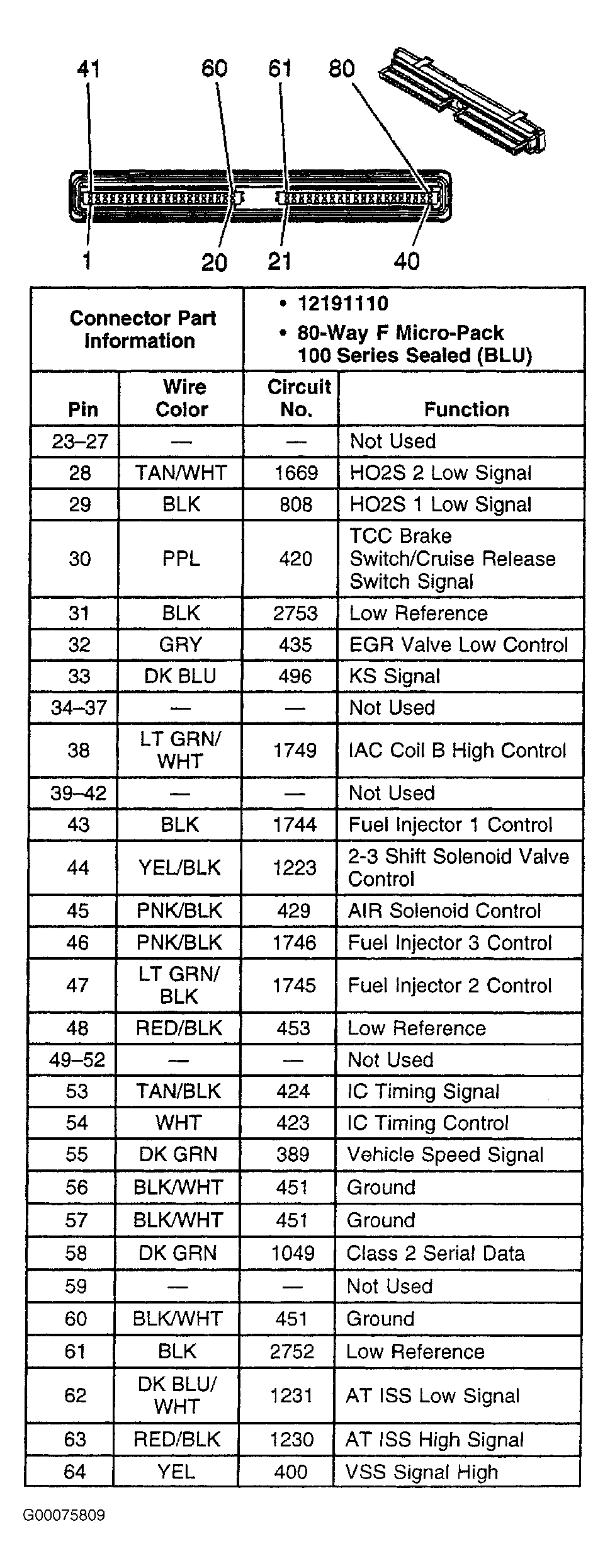

Fig 13: Identifying PCM 80-Way Connector C1 Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

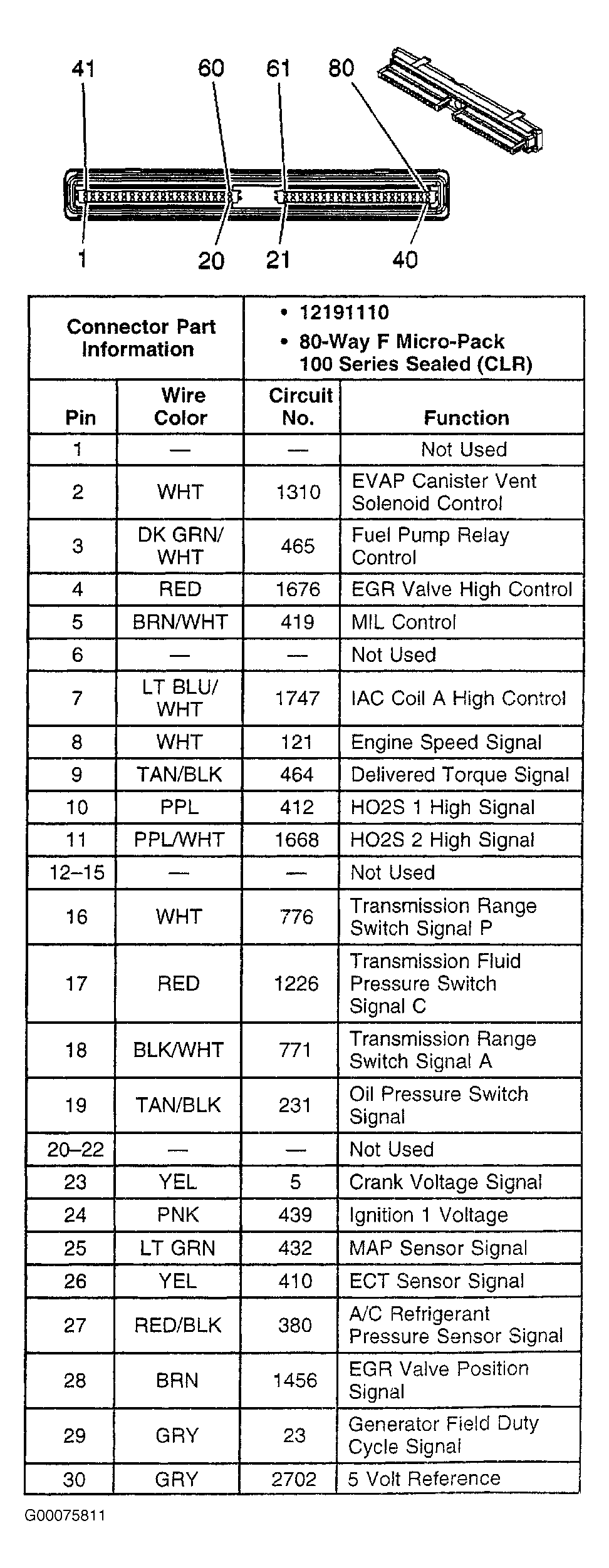

Fig 14: Identifying PCM 80-Way Connector C1 Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

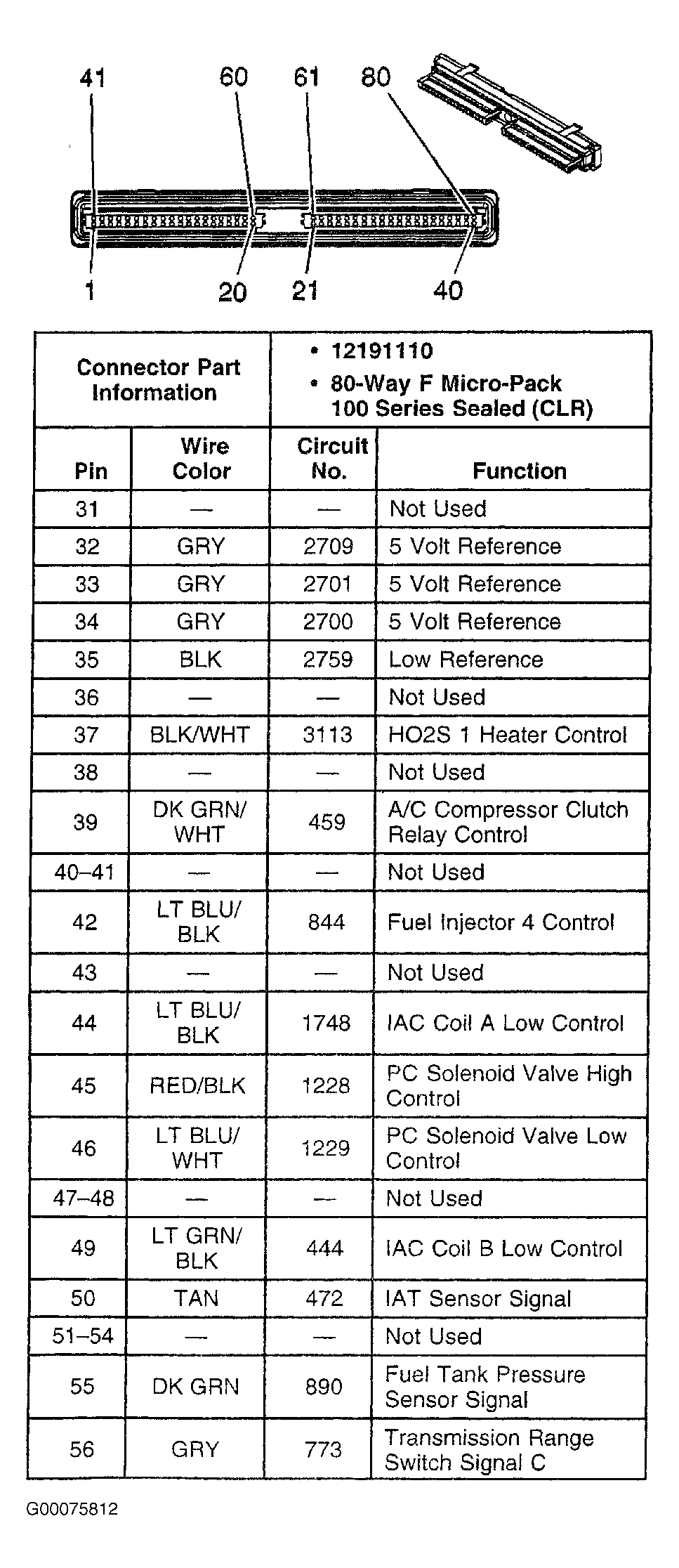

Fig 15: Identifying PCM 80-Way Connector C1 Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

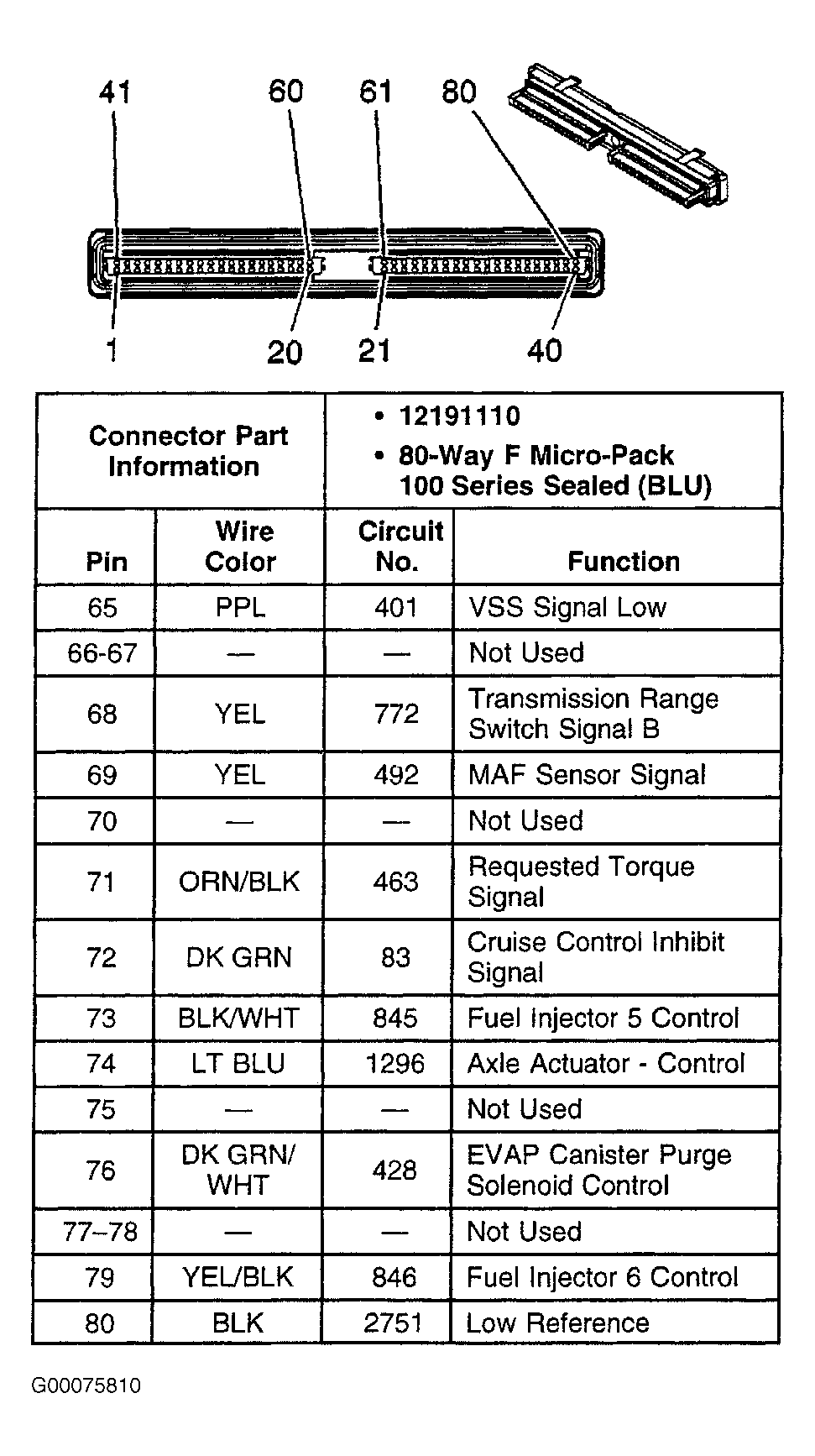

Fig 16: Identifying PCM 80-Way Connector C2 Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying PCM 80-Way Connector C2 Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying PCM 80-Way Connector C2 Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
