Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install sun load sensor.
Connect the sunload sensor electrical connector.

Fig 1: View Of Sun Load Sensor

Courtesy of GENERAL MOTORS CORP.

Align the I/P upper trim locating pins and the retainers to the slots in the I/P.

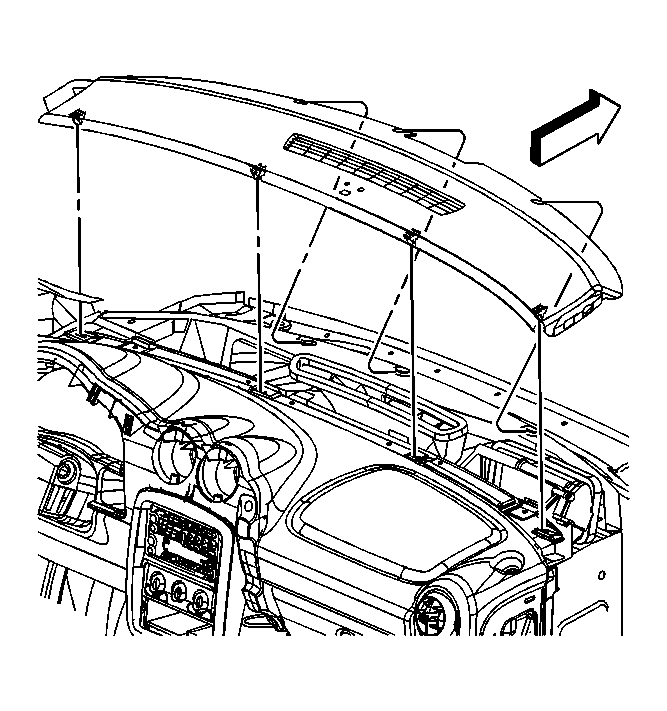

Fig 2: View Of I/P Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Push forward and down on the I/P upper trim panel to lock into place.
Install the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
