Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the data link connector to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the data link connector.

    Tighten

    Tighten the data link connector screws to 2N.m (18 lb in).

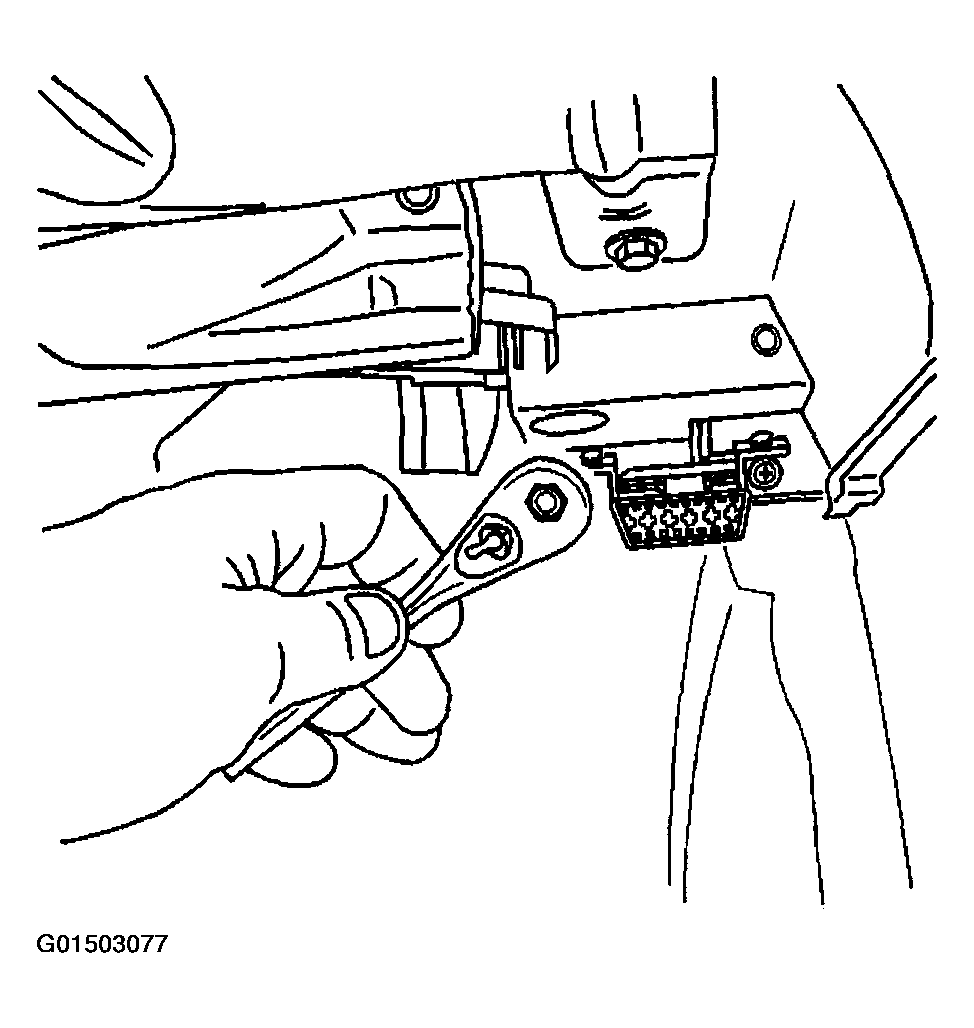

    Fig 1: Installing Screws To Data Link Connector
    G01503077Courtesy of GENERAL MOTORS CORP.
