Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp bulb/socket to the capsule.
  2. Install the headlamp bulb/socket retaining ring to the capsule, rotating clockwise until fully seated.
  3. Align and install the headlamp capsule to the headlamp mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the headlamp capsule to headlamp mounting bracket bolts.

    Tighten

    Tighten the headlamp capsule to headlamp mounting bracket bolts to 4 N.m (35 Ib. in).

  5. Install the headlamp assembly to the vehicle. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT  .
  6. Check and adjust the headlamp aim as necessary. Refer to HEADLAMP AIMING  .

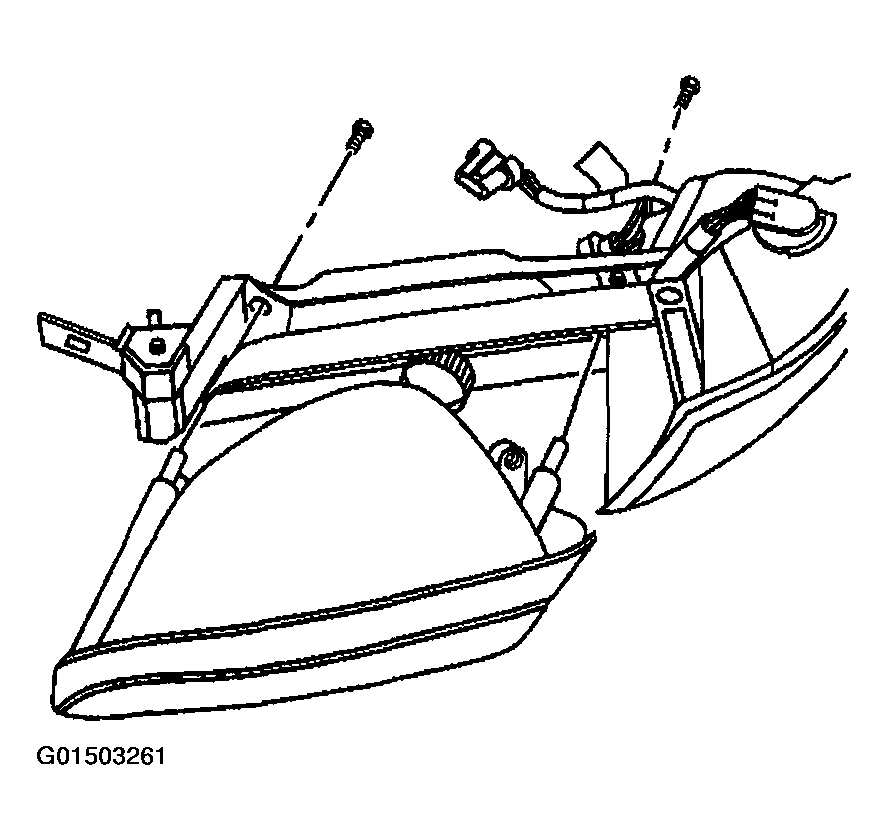

    Fig 1: Installing Headlamp Capsule To Headlamp Mounting Bracket Bolts
    G01503261Courtesy of GENERAL MOTORS CORP.
