Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulb to the license lamp socket, if removed.
  2. Install the license lamp socket to the license lamp housing, then rotate clockwise to secure.
  3. Position the license lamp to the rear bumper fascia.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the license lamp screws to the license lamp.

    Tighten

    Tighten the license lamp screws to 2 N.m (18 lb in).

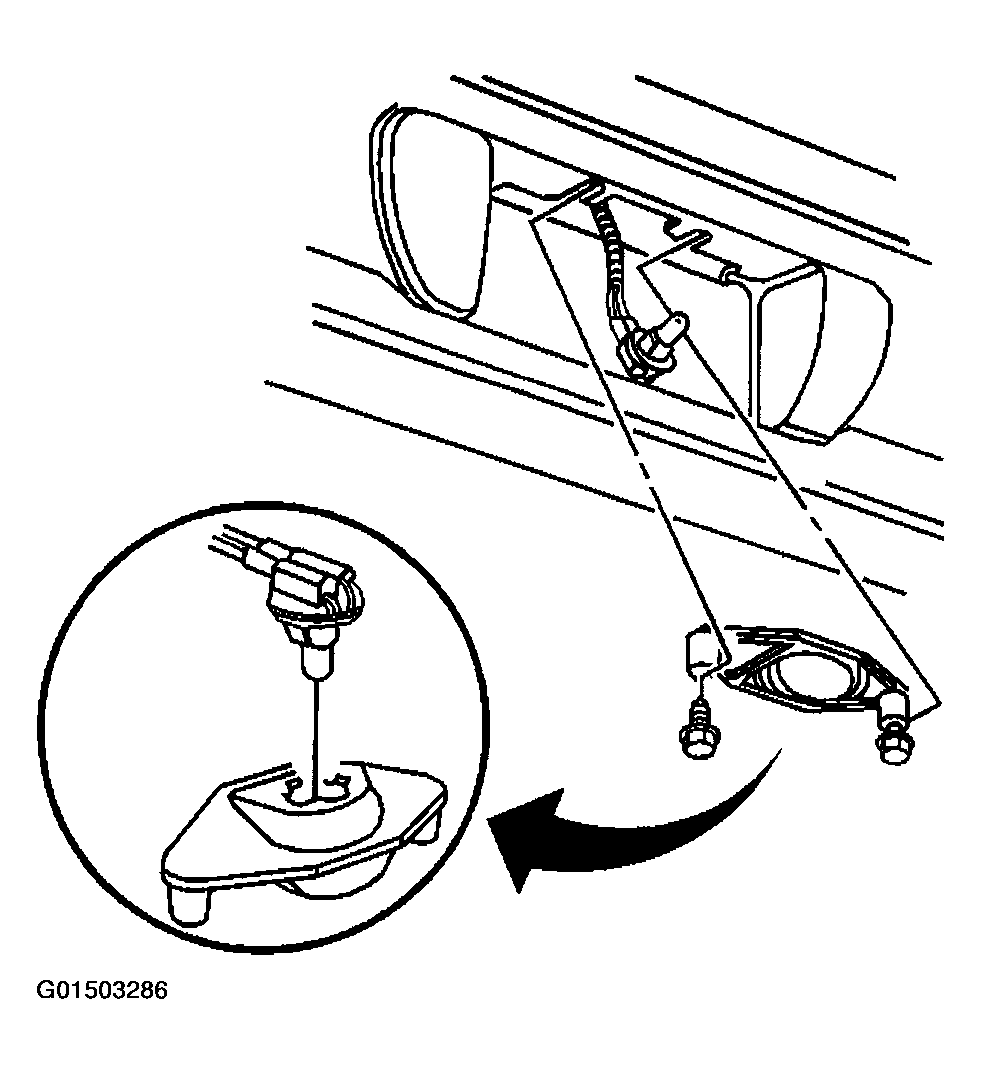

    Fig 1: Installing License Lamp
    G01503286Courtesy of GENERAL MOTORS CORP.
